High productivity auto pin vacuum membrane press machine for wood door
ATM-3200

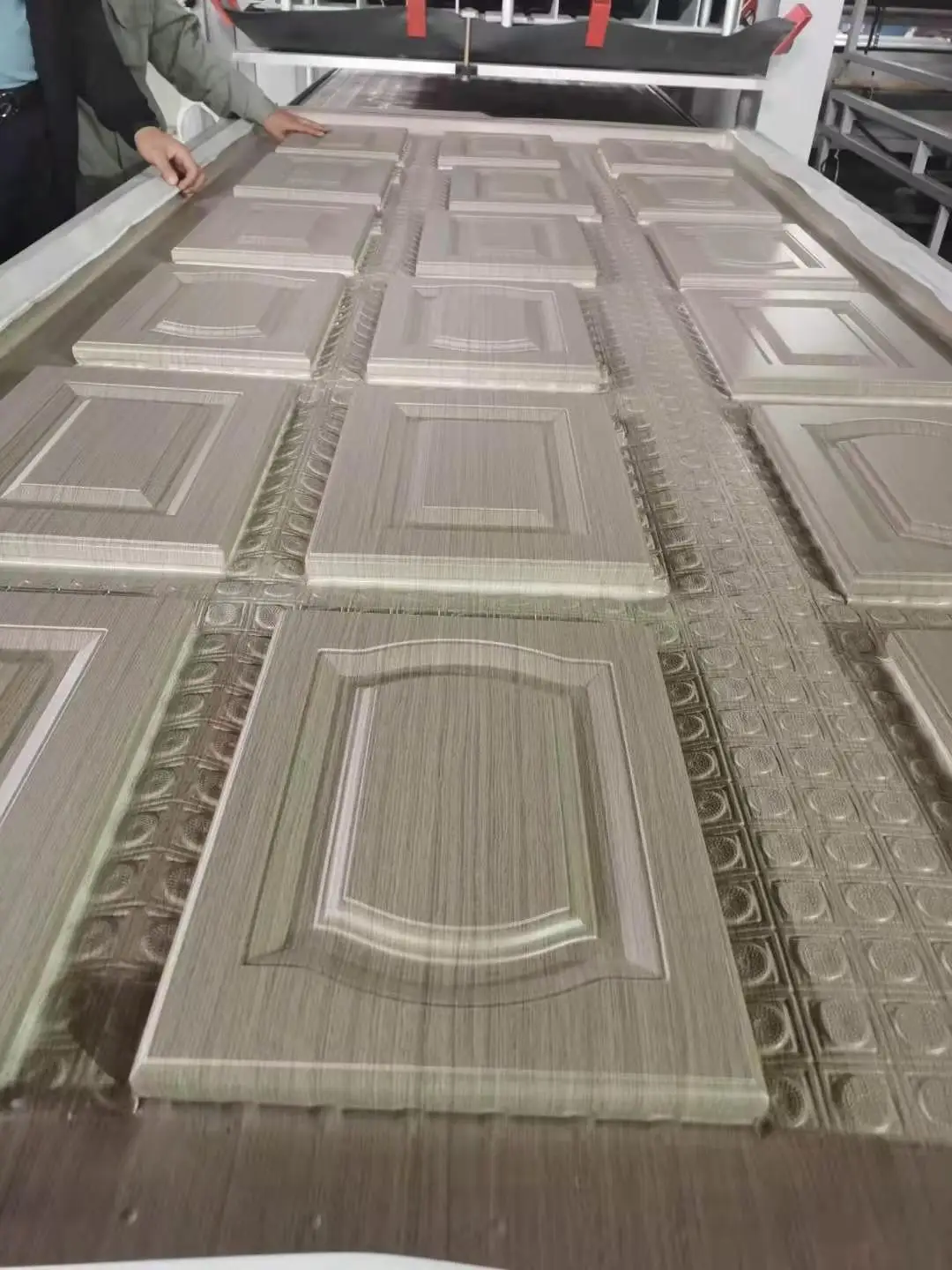

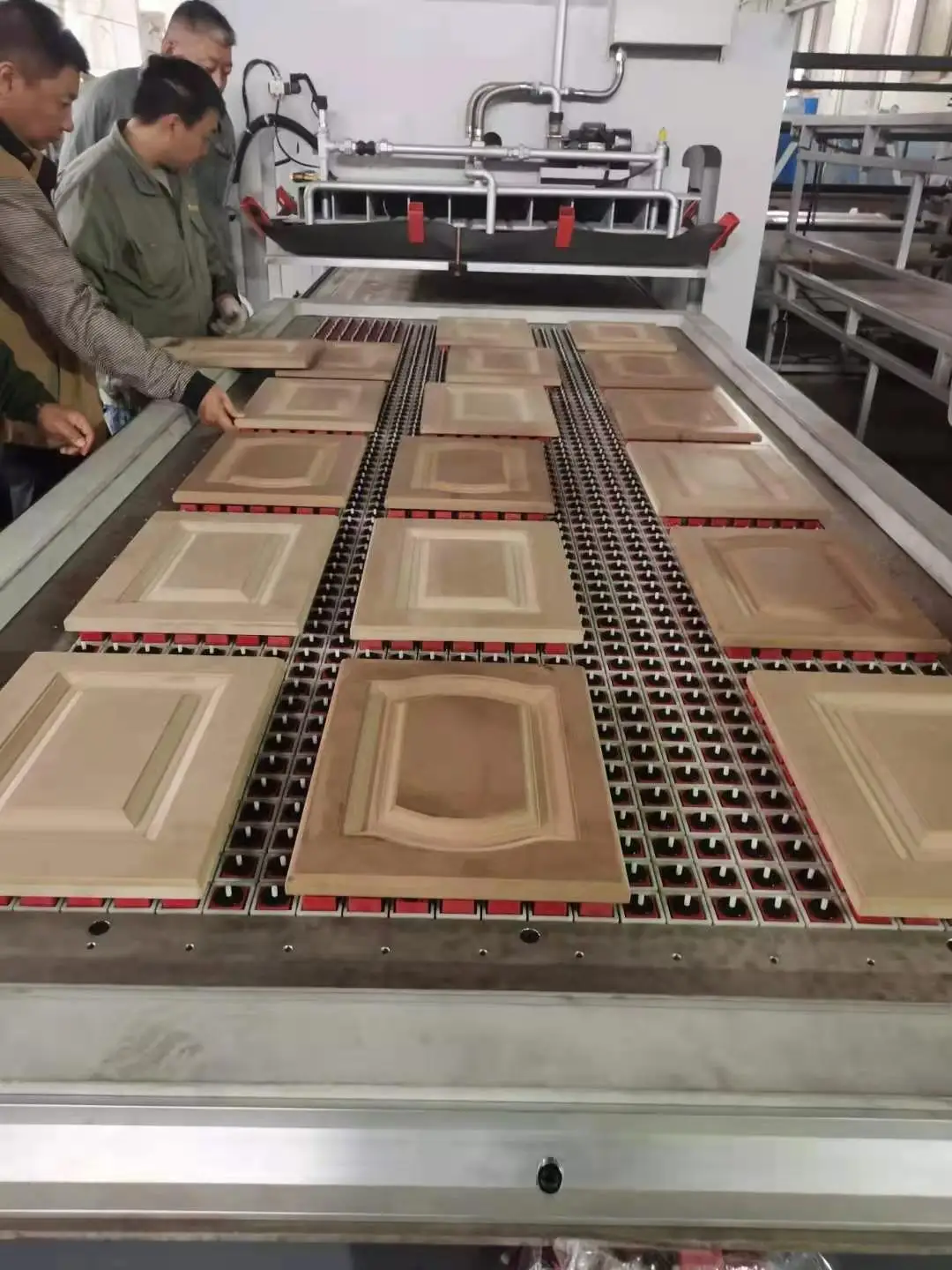

Two working tables at main machine’s right and left,the table inner size:3000x1320mm,adopts gravity induction lift pins,the door board is pressed on the pins which are automatically locked, the pins without pressed board drop down,high and low difference form the bottom supports.This automatic pin design reduce to 2-3 mins/table,the traditional common machine use 5-10 mins to look for and assemble the bottom supports.Automatic pin system improve the production efficiency(260-300m2/day) and save manpower.
It is used to work with various high-quality PVC, high gloss, hot transfer and veneer at one side. Mainly press the cabinet,wardrobe,and other furniture.

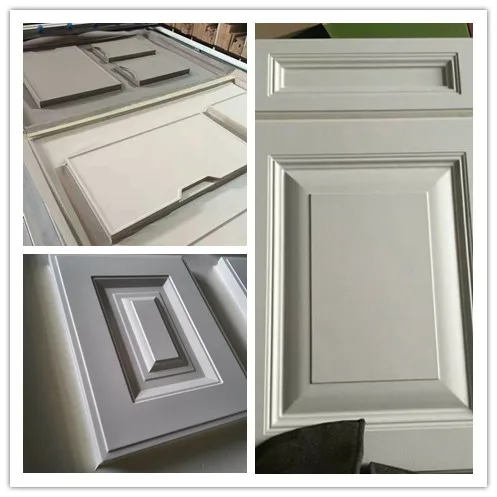

The products are of high quality, and will not peel off,the line and groove are clear.
This machine can choose loading pressure two times mode by silicon rubber sheet to ensure the quality.

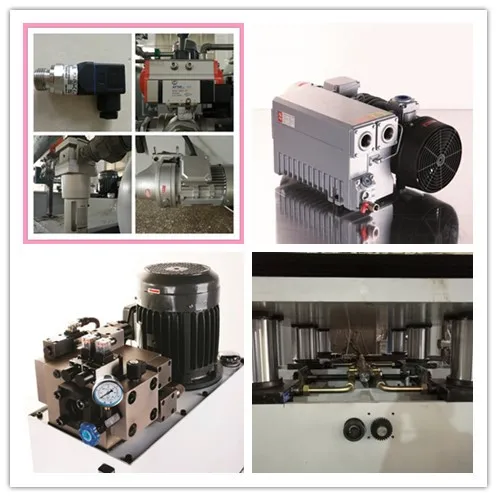

1.vacuum pump,adopting German technology, its horsepower is strong, and long service life.
2.The main engine of hydraulic pressure system adopts international advanced system.The plate plug-in principle features advanced structure, low malfunction rate, high flow and rapid pressure (pressing time about 5 seconds instead of traditional pressing time 15-20 seconds) thus promoting production efficiency.

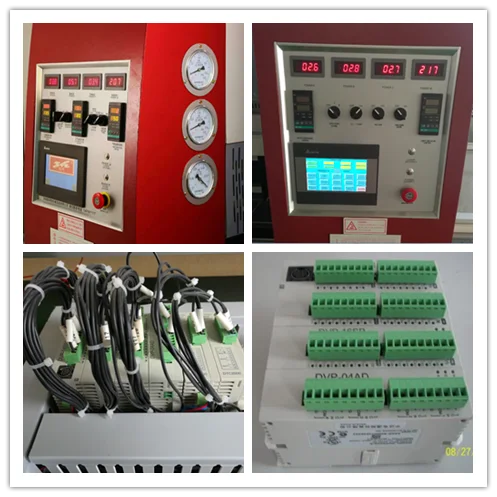

3.The operation system chooses the international branded “Delta” PLC control equipment and the large man-machine touch screen . The machine is easy to control, and the technology is highly advanced. The automatic degree is very high.

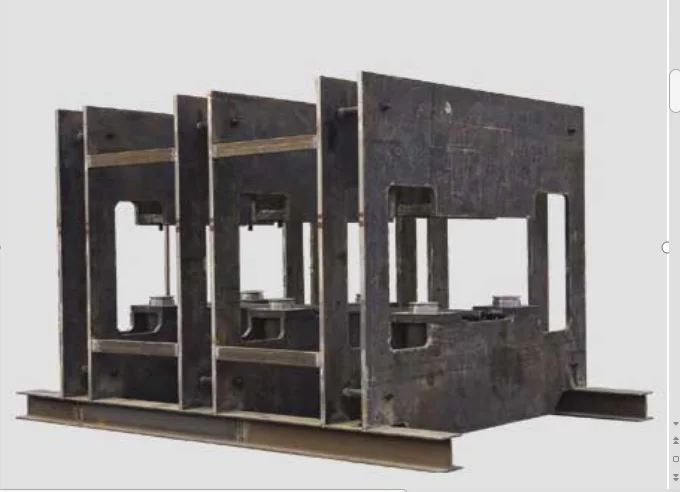

4.The machine frame is made up of 6 whole pieces of armor plates excavated to avoid welding deformation.

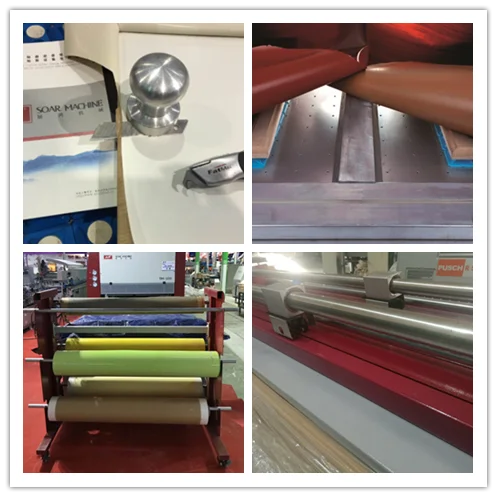

5. 2 sets 8 rollers PVC supports,2 set automatic cutters,hook knife and trimming cutter.
Techinical Specifications:
| Exterior size : | 15000mm×2230 mm×2150mm |
| Working plate size : | 3000mm×1320mm(inner size) |
| Maximum products size: | 2800x1150mm |
| Maximum height of the work piece : | 50mm(including the bottom support) |
| Rating positive pressure: | positive pressure≤0.6Mpa |
| negative pressure: | ≥-0.095Mpa |
| General Power : | about 64Kw |
| Actual power consumption : | about13-15Kw |
| Weight : | 13T |

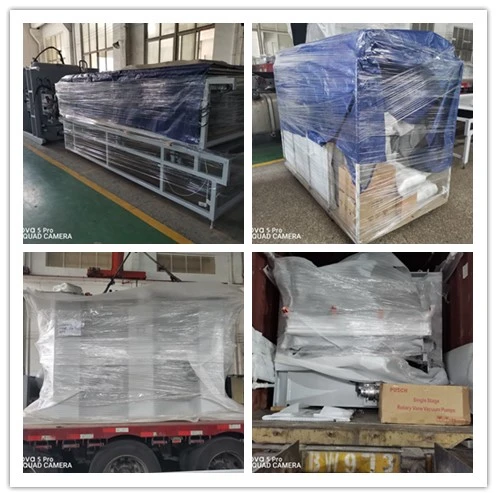

Packaging & Shipping
1.Sandard sea freight package, iron wire fixation.
2.Package size:3.8x2.25x2.3m; 4.2x1.9x1.6m, 2.1x2.2x1.7m,need one 40' container.
Our Services
1. Suppy the installation manual books, videos, and on line assistant the customers install,commissioning,and operate.

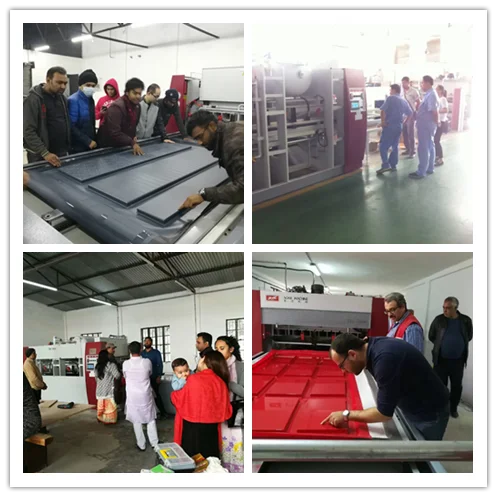

2. Send our engineers to customers' factories.
3. Free spare parts for customers' stock.
Company Information

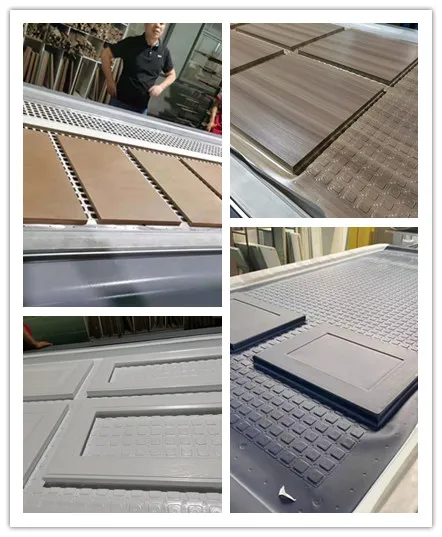

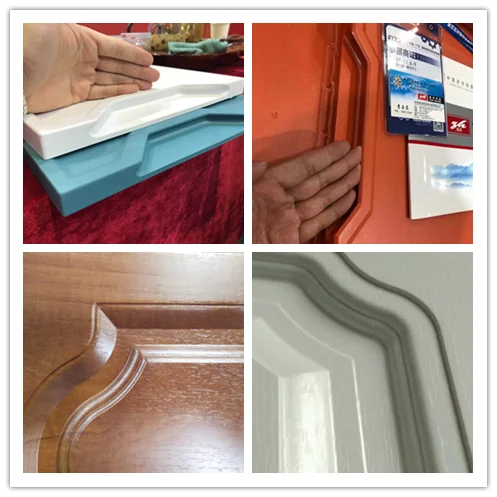

Samples
