Product Overview
Description
Product Description
Suntech Fabric Inspection & Slitting Machine (Cold Cutting)
ST-FISM is suitable for PVC coated fabrics, artificial leather etc. which can be used for inspecting, slitting and rewinding.
Technical Specifications
Speed: | 0-30m/min |
Fabric Width: | 1.8-4.0 meters |
Standard Roll Diameter: | 500mm |
Weight: | 1200kgs(For model ST-KFIM-01-240 only) |
Electric Specs: | 3Phase - 380V; 50HZ(can be adjusted to suit for different countries) |
Remark: | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Main Technical Features
●End of Fabric Roll Stop Sensor- Allow for next roll joining, continuously from one piece of fabric to next.
●Full Width Fabric Inspection - With 30 degree fixed angle inspection screen.
●Full Width Fabric Inspection - With 30 degree fixed angle inspection screen.
●Accurate Length Counting(Y/M) - Counting Errors ≤0.1m/km.
●Consistent Roll Output- Roll Hardness Adjustable.
●Mechanical Cutter for Selvedge and Strip Cutting.
●Waste collection after slitting.
●Consistent Roll Output- Roll Hardness Adjustable.
●Mechanical Cutter for Selvedge and Strip Cutting.
●Waste collection after slitting.

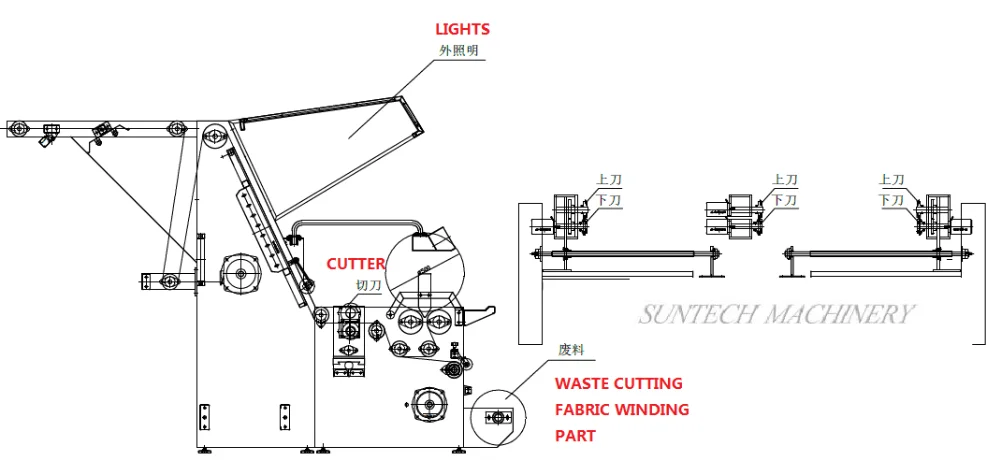

Machine Drawing
Details Images

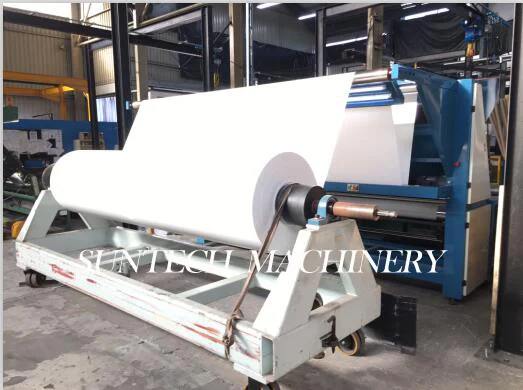

the fabric at inlet was winded on A-frame,which allow a large roll diameter

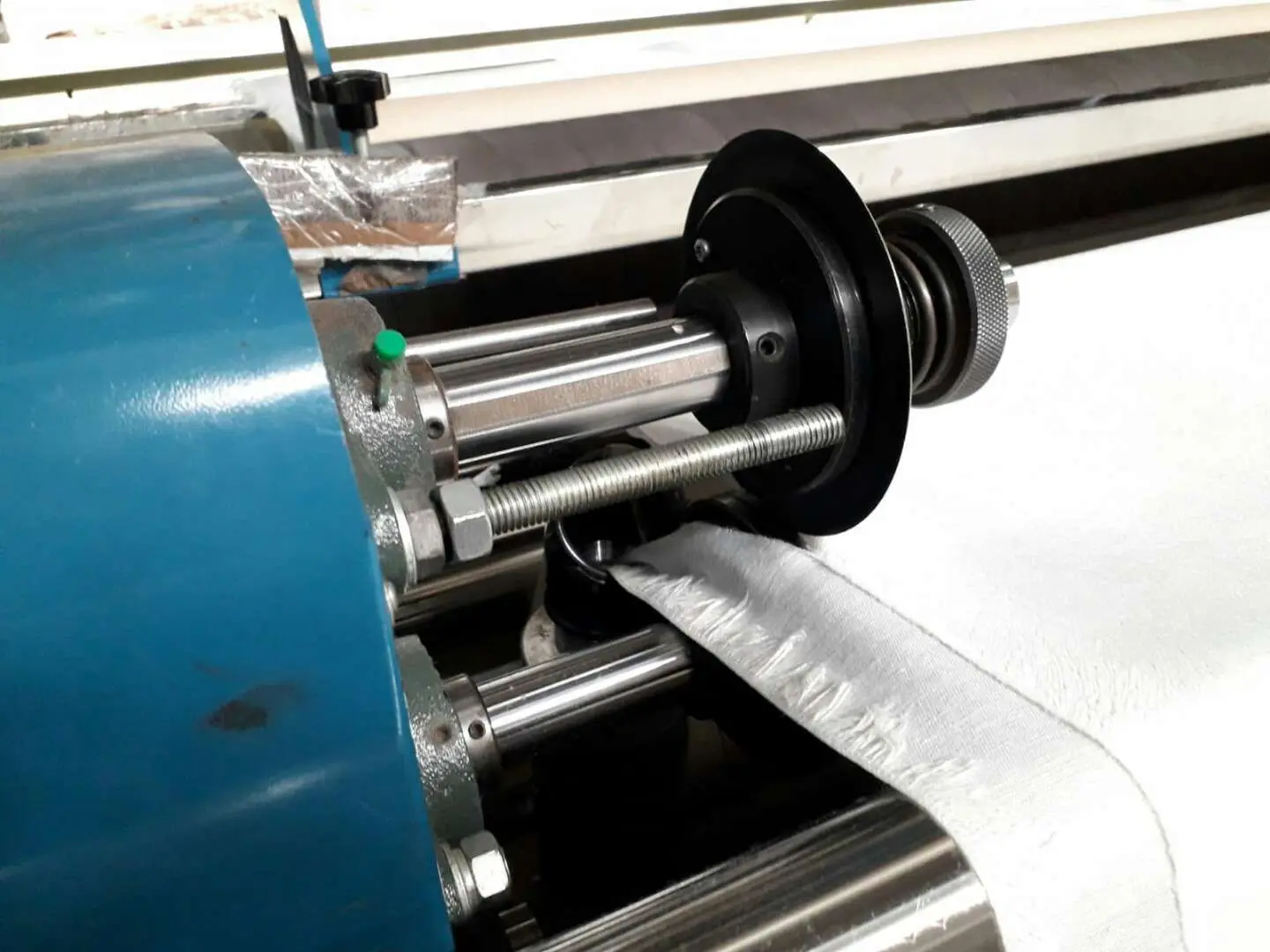

After the fabric edge was cut by cold cutter,the waste fabric will be winded on the waste fabric collection roller.

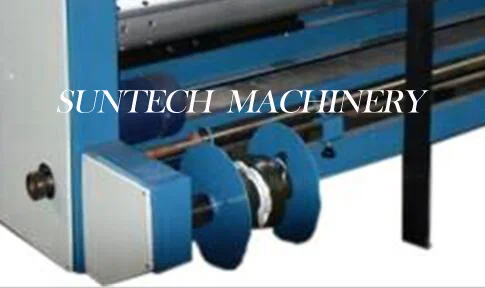

Fabric End Stop Sensor efficiency
It will allow for continuous fabric inspection, from one piece of roll to next, no need to feed fabric again.
Digital Counter Meter
- Unit Meter(M) and Yard(YD) optional
- Error less than 0.1m/km
- Pre-set length available
- Error less than 0.1m/km
- Pre-set length available
Twin Rewinding Roller
Consistent roll output by actively surface rewinding with twin rubber-covered roller.The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight)
through the hand-wheel.
through the hand-wheel.
Product packaging
Options
