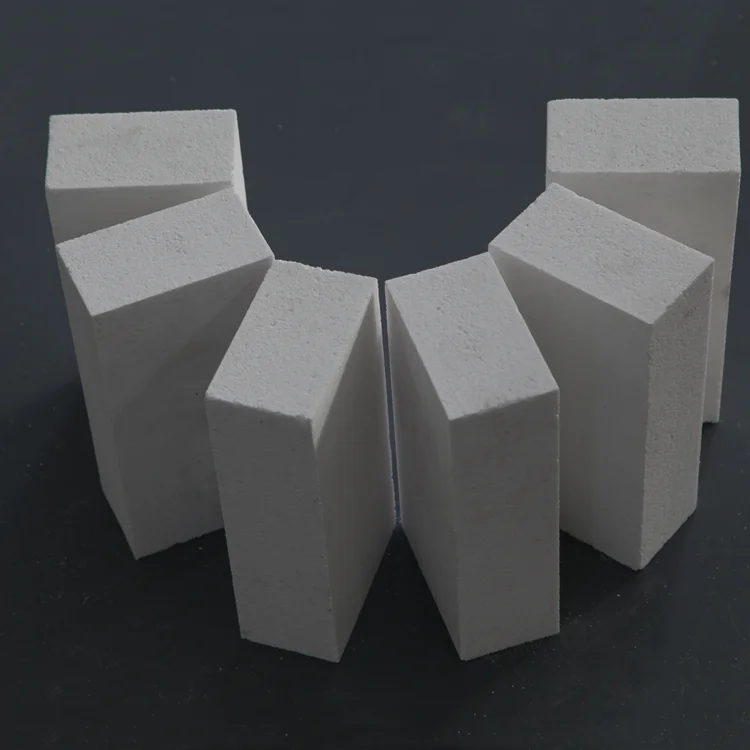

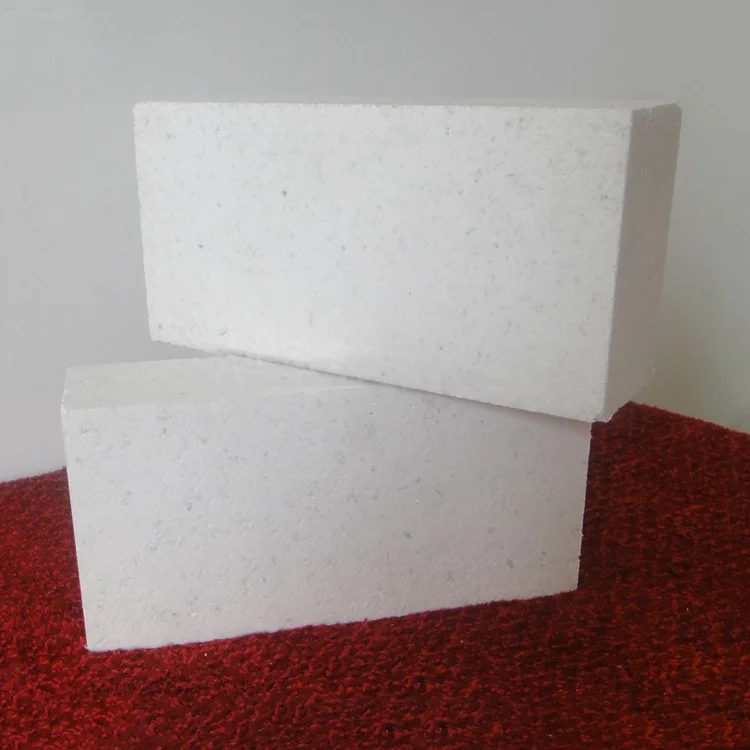

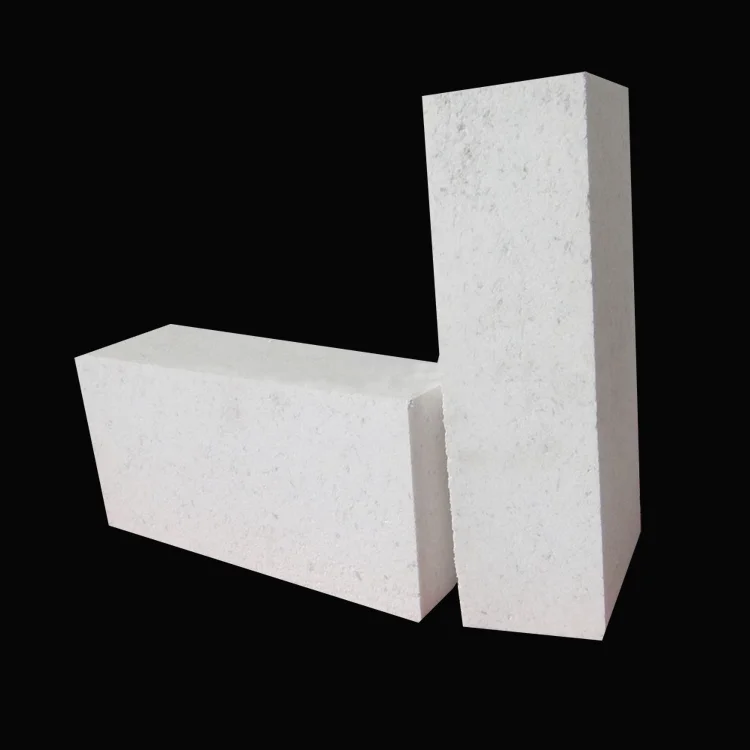

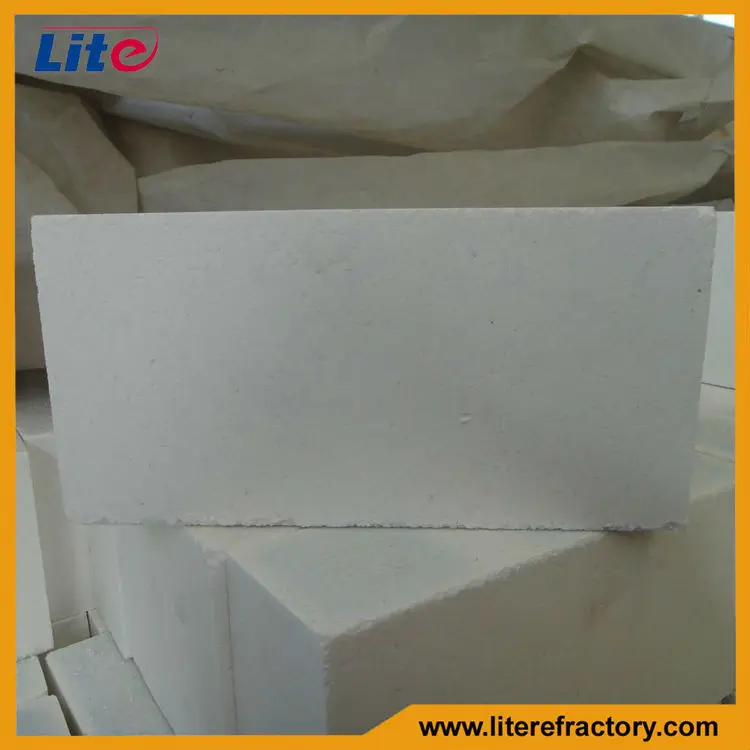

Henan Lite standard size corundum mullite standard size of fire brick
- Category: >>>
- Supplier: Henan Lite Refractory Material Co. Ltd.
Share on (1600322166952):
Product Overview
Description
Product Details
1.Product description
The corundum brick's Al2O3 content is as high as 90% . For its better characters, the corudum brick often be used in petrochemical industry furnace, gasification furnace and large fertilizer equipment, and more than 1600° C super high temperature furnace, liner of furnace. It has longer Service life and it is reliable in quality.
2.Technical parameters
Item | Corundum Brick 99 | Corundum Brick 90 | Mullite Corundum Brick |
Al2O3 % | ≥99 | ≥90 | ≥80 |
SiO2 % | ≤0.2 | ≤8 | ≤18 |
Fe2O3 % | ≤0.2 | ≤0.2 | ≤0.3 |
Bulk Density g/cm3 | ≥3.2 | ≥3.0 | ≥2.8 |
Apparent porosity % | ≤19 | ≤18 | ≤18 |
Cold compressive strength MPa | ≥100 | ≥100 | ≥100 |
(0.2Mpa,0.6%)Load softening began to temperature °C | ≥1700 | ≥1700 | ≥1700 |
3.Common shapes and sizes
Straight | Arch | Wedge | Tile | Other Shapes |

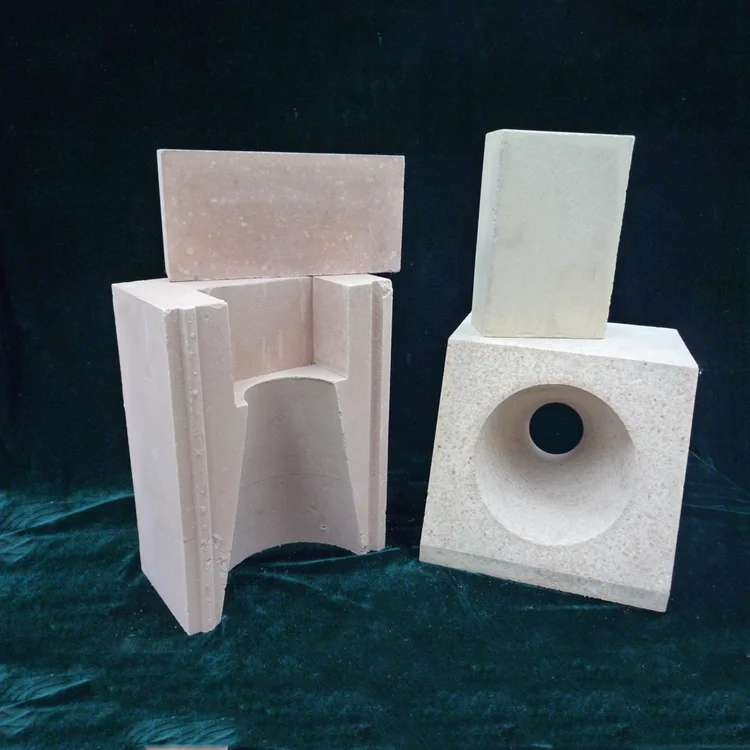

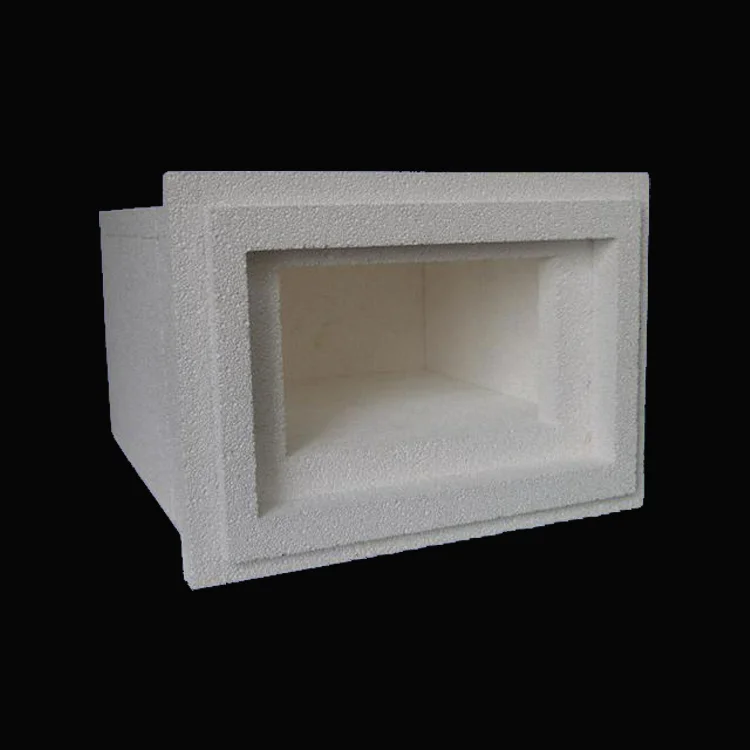

L×W×H(mm) 230×114×65 230×114×75 230×114×32 220×110×60 | L×W×H/h(mm) 230×114×65/55 230×114×65/45 220×110×75/65 220×110×65/50 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 220×110×75/65 220×110×60/40 | L×W×H (mm) 230×230×38 230×230×50 230×230×65 230×230×75 | Skew brick, Key brick, Checker, Soap, Taper, etc. |
4.Feature:
1.High compression strength.
2.Top high-temperature capability.
3.Excellent thermal stability.
4.Lower thermal conductivity.
5.Powerful penetrating-proof capability.
6.Good erosion-resistance.
2.Top high-temperature capability.
3.Excellent thermal stability.
4.Lower thermal conductivity.
5.Powerful penetrating-proof capability.
6.Good erosion-resistance.
5.Applications:
Company Information
Our company
Henan Lite Refractory Material Co., Ltd is located in Zhengzhou,Henan province,which is one of the main refractory production bases in China.
Our main products include different kinds of refractory bricks:Fire Clay Bricks, High Alumina Bricks, Light Weight Insulating Bricks,Corundum Bricks,Mullite Brick Refractory Balls etc.They are widely used in Iron and steel, Nonferrous metals, Building materials(Cement,Glass,Ceramic), Petrochemical, Energy & Incineration etc industries. Our products have been exported to India,Turkey,Vietnam,Malaysia and Kazakhstan etc.
Quality &Test
Quality
Our compay has many years ' producing experiece in refractory products.
Our manager,Mr.Zhanag, supervises in various of refractory materials,process control,quality supervision and package delivery,and we ensure that the products are 100% qualified.
.
Test
Before delivery, we usually test at least twice by professinal testing equipment.Our company's testing equipmets as follows:
1.High Temperature RUL Tester
2.Bulk Density Tester
3.The Pressure Tester
4.Refractoriness Tester
Packing & Delivery
Packaging | ||
About Packaging | ||
On wooden pallets with plastic cover: 1.Wooden pallet size:930*930mm load 2.weight of each pallet:1.5-2.0 tons | ||
Delivery | ||
Item | Delivery methods | |
Sample | Express by air (UPS,DHL,FedEx,TNT,EMS etc.) | |
Tons of goods | 1.We usually Ship them by sea in container. 2.Customer's requirement is welcome. 3.Customers specifying freight forwarders or negotiable shipping methods | |
Certificate& Payment
Certifications
Henan Lite Refroactory Co., Lt is specialized in the production, construction, new technology research and development and popularization and application of refractory materials for industrial high temperature furnace. Our company has a professional enterprise qualification and win more business honor.
Payment term
1. Payment: T/T, Western Union,LC; Usually 30% deposits,70% balance before delivery or negotiations to solve.
2. MOQ: Usually 1Tons,Customers can order certain PCS for special brick.
3. Quality Warranty: 1 years.
4. Package Informations:1.On wooden pallets with plastic cover, 2.According to customer's requirements.
(1)Wooden pallet size:930*930mm,Load weight of each pallet:1.5-2.0 Tons.
(2)20 Foot Container can be loaded 25Tons,40 Foot Container can be loaded 28Tons.
Why choose us
Our competitive Advantages:
1.Competitive Price. Make the products competitive in your market.
2.Abundant Experience. Prevent cracks and twist in bricks.
3.Different Moulds. Save mould fees for you.
4.Lower ferric Oxide,porosity,higher refractoriness,density,higher CCS and exact tolerance.
5.Strict Quality Control. Meet clients' quality requirement.
6.Safty packing,prompt delivery time,and excellent after-sales services.
7.Large stocks. Guarantee prompt delivery.
8.Professional Packing. Avoid damage and secure the goods in transportation.
