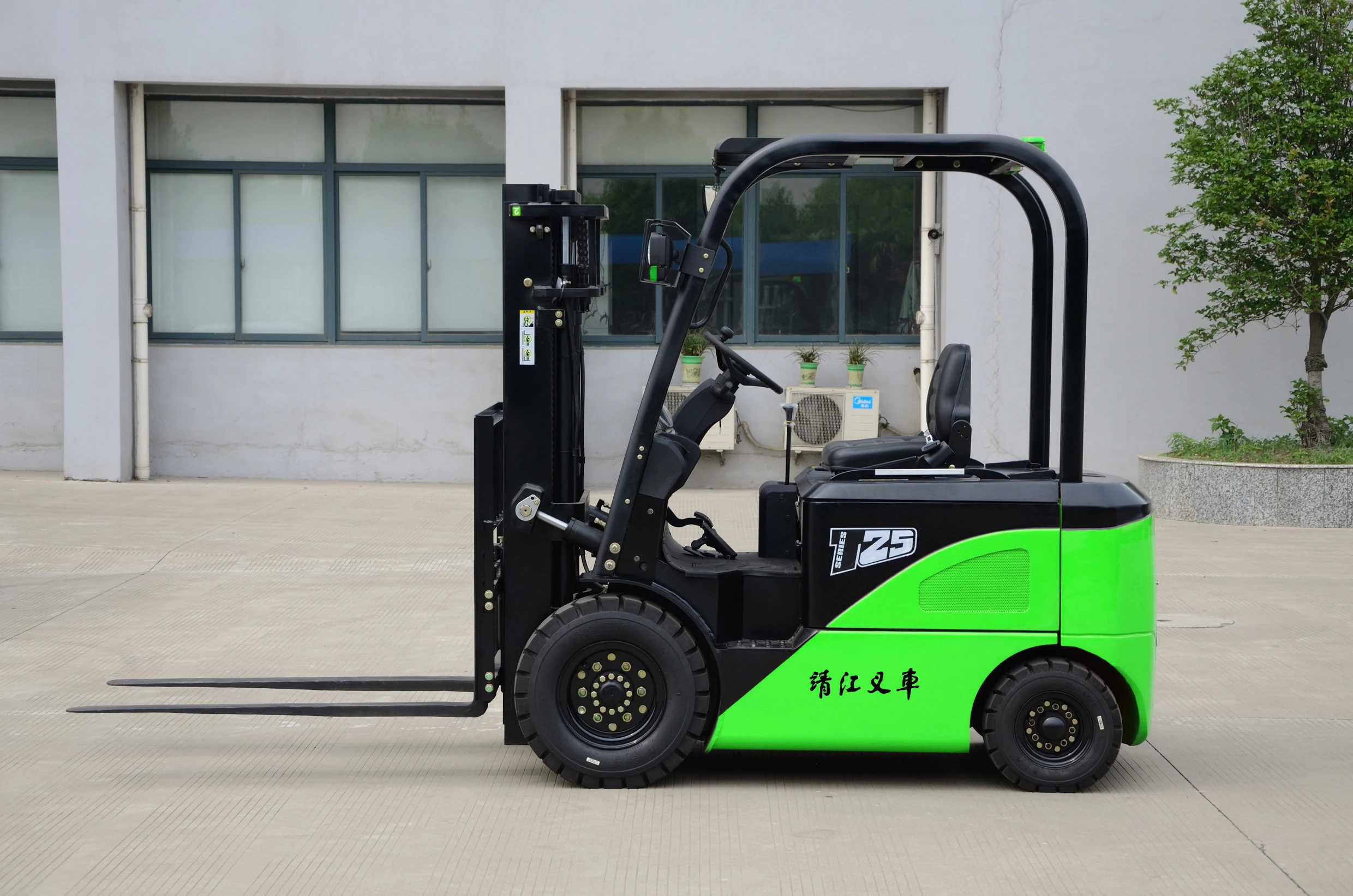

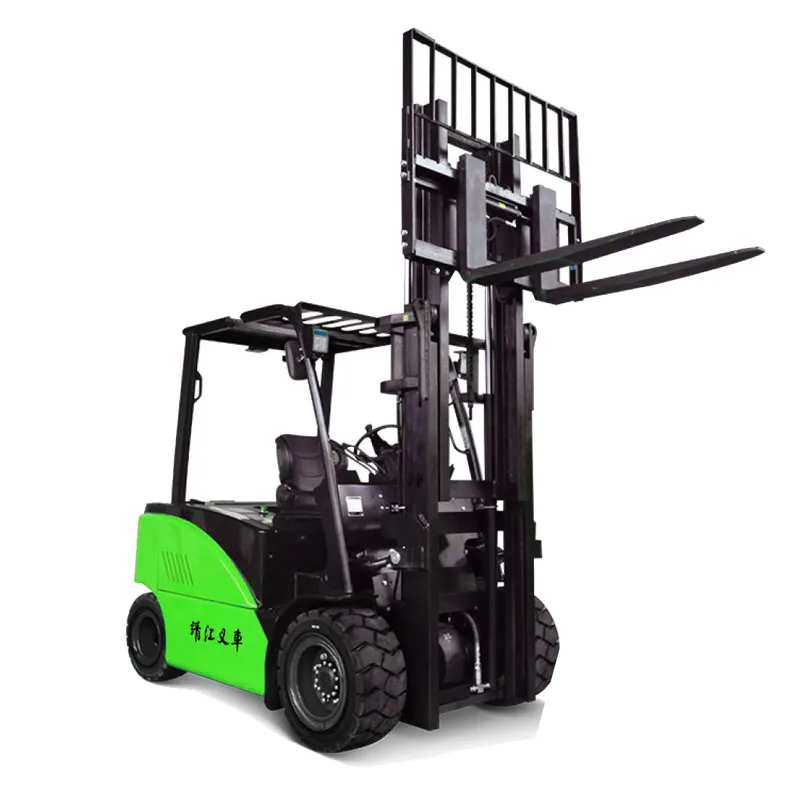

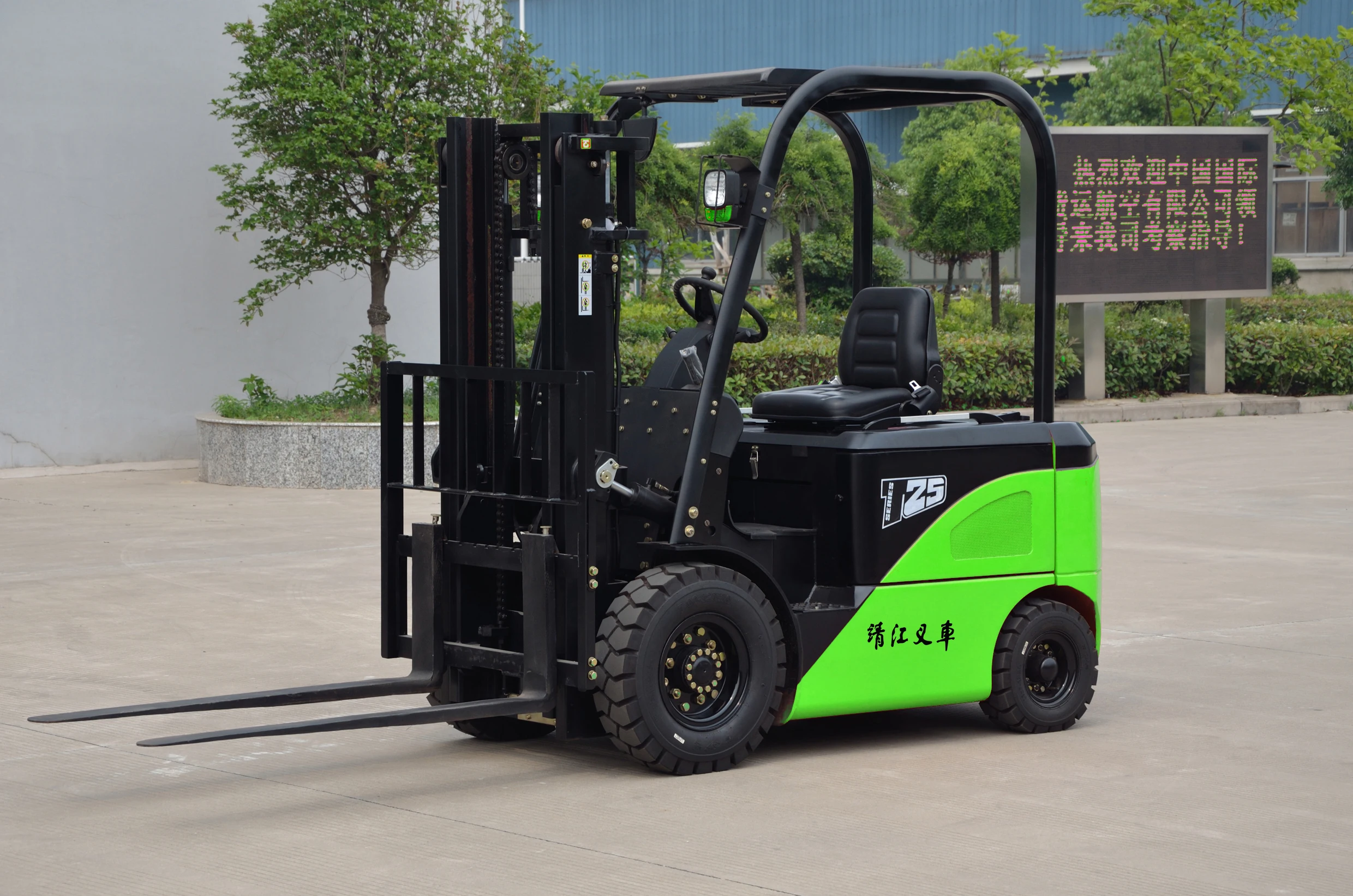

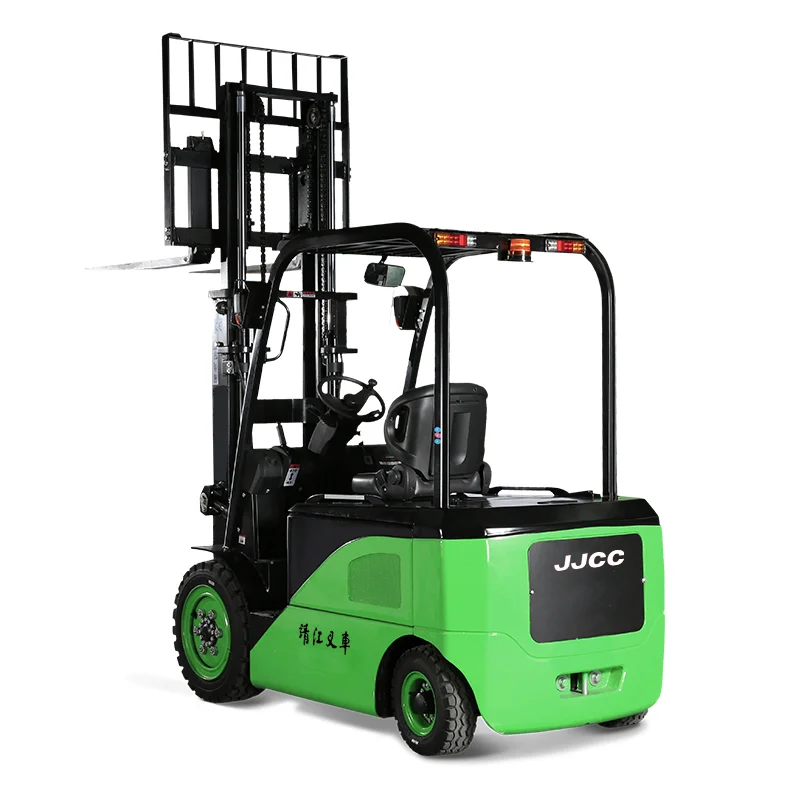

Chinese trading company lithium ion batteries forklift use 80V/270AH electric forklift with lithium battery

Product Overview

Description











1. Compact design offers a large space for comfortable driver operation.

 2. The Li-Ion battery has a big advantage For free maintenance, fast/opportunity charging, longer battery life cycle etc, the battery can be fully charged in 2.5 hours.

 3. It is water protected and can be used outdoors also in the rain.

 4. LI-ION with Longer Life Cycle – 3-4 Times of Life Lead/Acid

 5.Remote monitoring upgrade function for battery and controller option,No need to pay for battery failures if your Equipment has been monitored correctly.



SPECIFICATION FOR FULL-AC ELECTRIC FORKLIFT
General	Model				CPD25FTL
	Power Type				LFP  battery
	Rated Capacity			kg	2500
	Load Centre			mm	500
Dimension	Lift Height			mm	3000
	Free lifting height			mm	120
	Fork Size		L×W×T	mm	1070×125*45
	Mast Tilt Angle		F/R	Deg	6°/10°
	Overall length (Without fork)			mm	2550
	Overall Width			mm	1220
	Mast Lowered Height			mm	2220
	Mast Extended Height (With backrest)			mm	4105
	Overhead Guard Height			mm	2220
	Min. Turning Radius			mm	2300
	Front overhang			mm	500
Performance	Speed	Travel (Full/NO load)		km/h	11/12
		Lifting (Full/NO load)		m/s	0.23/0.37
	Max. Gradeability (Full/NO load)			%	10.5/12
	Service Weight			kg	3930
Chassis	Tire	Front			28*9-15
		Rear			18*7-8
	Wheelbase			mm	1622
	Min. Ground Clearance (Bottom of mast/full load)			mm	130
Drive Unit&Control	Battery	Voltage/Capacity		V/Ah	80V/270AH
	Drive unit	Traveling motor		kw	16.6
		Lifting motor		kw	10
	Electric Controller	Manufacturer			ZAPI
		Type			AC












 1.What's the Certificate do you have?
JJCC workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate

2. Can you customize and design as the clients' requirement?
JJCC will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available



3. How long is the warranty of your products?
All of products are with 1 year / 2000 working  hours subject to the first



4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients



5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY



6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.


How to choose the most suitable JJCC forklift trucks?

1. Power Type
2. Load Capacity
3. Mast Size and Height
4. Side Shifter, tyre and etc.
