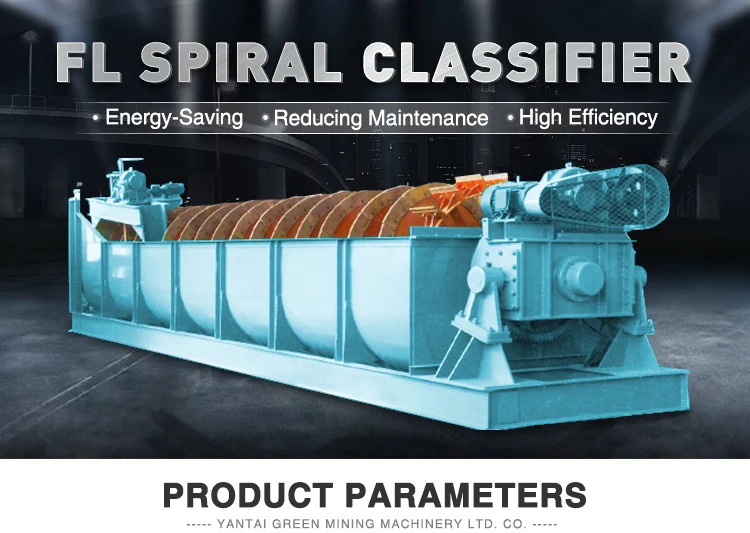

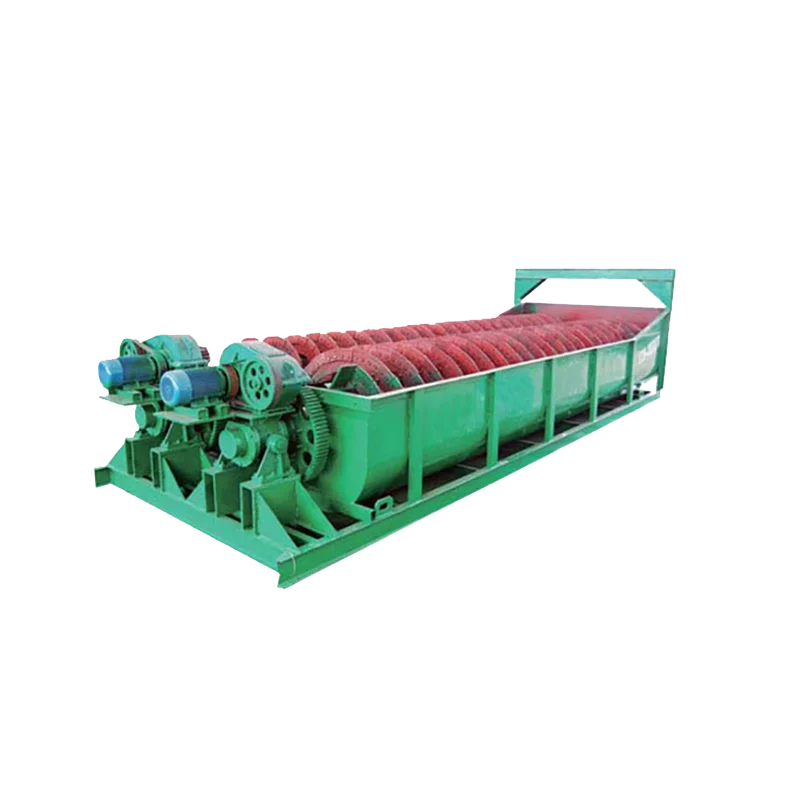

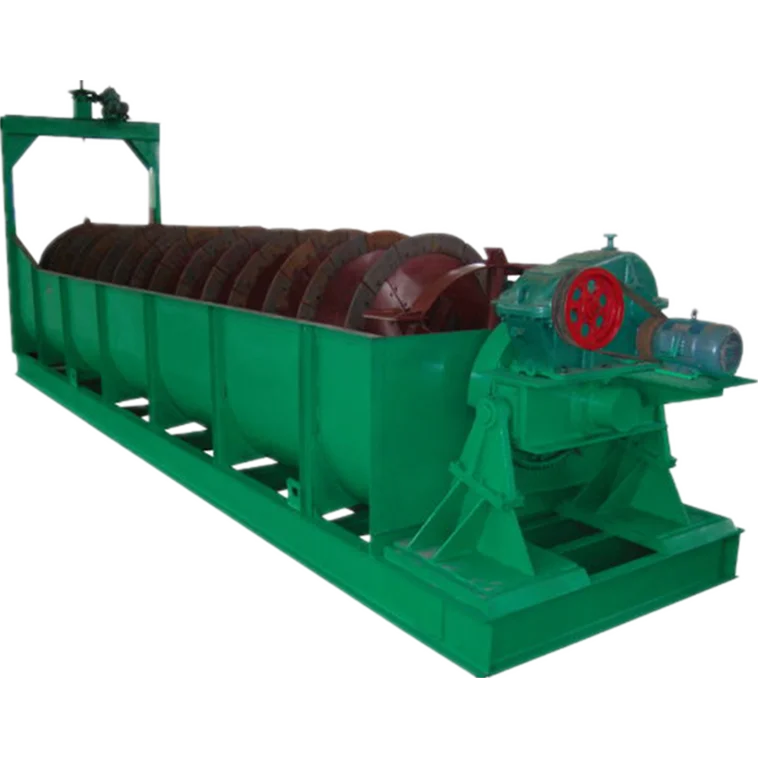

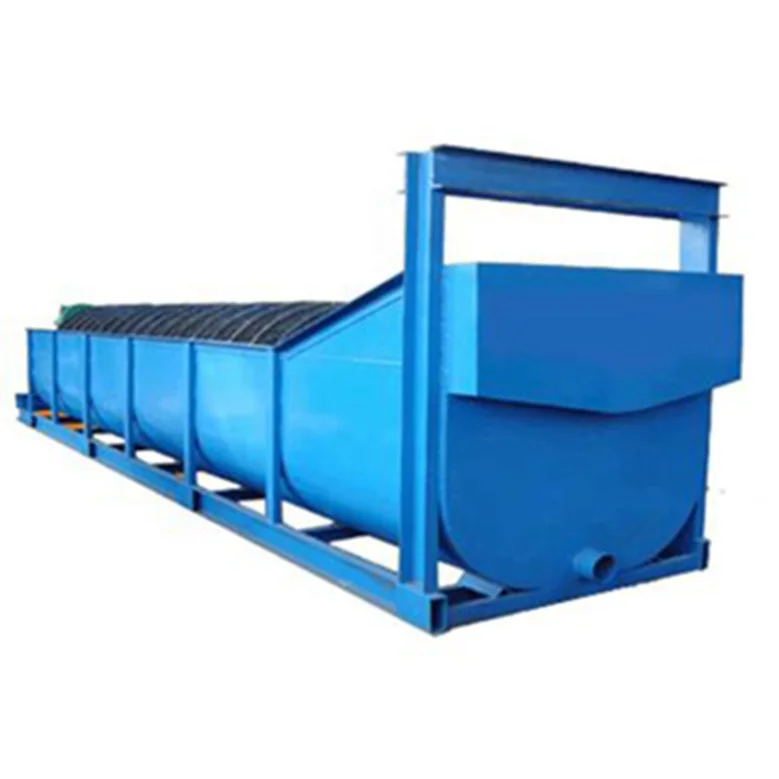

FL Spiral Classifier Gold Chute Mineral Machinery
- Category: >>>
- Supplier: Yantai Green Mining Machinery Limited Company
Share on (1600322256183):
Product Overview
Description
Product Description
Hier Weir Single Screw | ||||||||||||||||
Model | Specifications | Spriral Speed r/min | Sink(mm) | Slope (°) | Capacity | Weightkgs | ||||||||||
Length | Width | Overflowing Qty. | Circulating Load | |||||||||||||
FLG-5 | ∅500 | 10.5 | 4500 | 555 | 14°-18° 30’ | 32 | 143-261 | 1600 | ||||||||
FLG-5 | ∅750 | 6.6 | 5500 | 830 | 65 | 256-564 | 2900 | |||||||||
FLG-5 | ∅1000 | 66 | 6500 | 1112 | 85 | 473-1026 | 4400 | |||||||||
FLG-5 | ∅1200 | 6 | 6500 | 1372 | 155 | 1170-1600 | 8800 | |||||||||
FLG-5 | ∅1500 | 2.5,4.6 | 8265 | 1664 | 235 | 1140-2740 | 11680 | |||||||||
FLG-5 | ∅2000 | 3.6,5.5 | 8400 | 2200 | 400 | 3890-5940 | 20450 | |||||||||
FLG-5 | ∅2400 | 3.6 | 9130 | 2600 | 580 | 6800 | 25650 | |||||||||
FLG-5 | ∅3000 | 3.2 | 12500 | 3200 | 890 | 11650 | 37000 | |||||||||
High Weir Double Screw | ||||||||||||||||
Model | Specifications | Sink (mm) | Slope (°) | Capacity | Weightkgs | |||||||||||
Spriral Speed r/min | Length | Width | Overflowing Qty. | Circulating Load | ||||||||||||
2FLG-12 | ∅1200 | 6 | 6500 | 2600 | 14°-18°,30' | 310 | 2340-3200 | 15840 | ||||||||
2FLG-12 | ∅1500 | 2.5,4.6 | 8250 | 3200 | 470 | 2280-5480 | 22100 | |||||||||
2FLG-12 | ∅2000 | 3.6,5.5 | 8400 | 4280 | 800 | 7780-11880 | 36400 | |||||||||
2FLG-12 | ∅2400 | 3.67 | 9130 | 5100 | 1160 | 13600 | 45874 | |||||||||
2FLG-12 | ∅300 | 3.2 | 12500 | 6300 | 1785 | 23300 | 73030 | |||||||||
Immerged Single Screw | ||||||||||||||||
Model | Specifications | Spiral Speedr/min | Sink (mm) | Slope (°) | Capacity | Weightkgs | ||||||||||
Length | Width | Overflowing Qty. | Circulating Load | |||||||||||||
FLC-10 | ∅1000 | 5 | 8400 | 1112 | 14°-18°,30' | 75 | 473-1026 | 6000 | ||||||||
FLC-12 | ∅1200 | 5,6,7 | 8400 | 1372 | 120 | 1170-1630 | 11020 | |||||||||
FLC-15 | ∅1500 | 2.5,4.6 | 10500 | 1664 | 185 | 1830-2740 | 15340 | |||||||||
FLC-20 | ∅2000 | 3.6,5.5 | 12900 | 2200 | 320 | 3290-5940 | 29060 | |||||||||
FLC-24 | ∅2400 | 3.6 | 14130 | 2600 | 455 | 6800 | 37267 | |||||||||
FLC-30 | ∅3000 | 3.2 | 14300 | 3200 | 705 | 11650 | 43500 | |||||||||
Merged Double Screw | ||||||||||||||||
Model | Specification | Spiral Speedr/min | Sink (mm) | Slope (°) | Capacity | Weightkgs | ||||||||||
Length | Width | Overflowing Qty. | Circulating Load | |||||||||||||
2FLC-12 | ∅1200 | 6 | 8400 | 2600 | 14°-18°,30' | 240 | 2340-3260 | 19610 | ||||||||
2FLC-15 | ∅1500 | 2.5,4.6 | 10500 | 3200 | 370 | 2280-5480 | 27450 | |||||||||
2FLC-20 | ∅2000 | 3.6,5.5 | 12900 | 4280 | 640 | 7780-11880 | 50000 | |||||||||
2FLC-24 | ∅2400 | 3.6 | 14130 | 5100 | 910 | 13608 | 65283 | |||||||||
2FLC-30 | ∅3000 | 3.2 | 14300 | 6300 | 1410 | 23300 | 84870 | |||||||||
Main Products

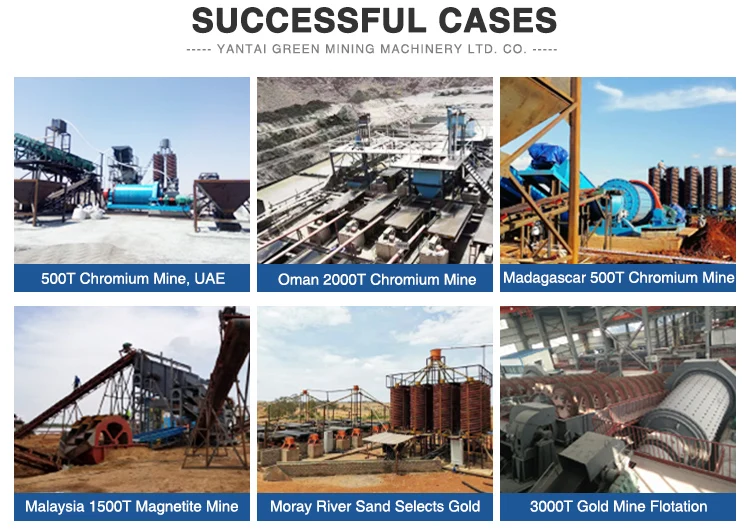

Successful Cases
Company Profile
Our Advantages
FAQ
Q1.Are you factory or trade company?
A1.We are manufacturer, we also supply trade service.
Q2.How is the quality of your products?
A2.We have been approved of ISO,CE ,BV and always produce our products strictly according to national and intertnational standards.We do strict inspection in every production stage,all the machines we sell are under warranty.
Q3.What about your price?
A3.We alway supply the products with low price,because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q4.What about the order lead time?
A4.We have two factories and big productivity,the order lead time is only 15-20 days.
Q5.What payment terms do you accept?
A5.we accept T/T,L/C,D/A,D/P.
A1.We are manufacturer, we also supply trade service.
Q2.How is the quality of your products?
A2.We have been approved of ISO,CE ,BV and always produce our products strictly according to national and intertnational standards.We do strict inspection in every production stage,all the machines we sell are under warranty.
Q3.What about your price?
A3.We alway supply the products with low price,because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q4.What about the order lead time?
A4.We have two factories and big productivity,the order lead time is only 15-20 days.
Q5.What payment terms do you accept?
A5.we accept T/T,L/C,D/A,D/P.
