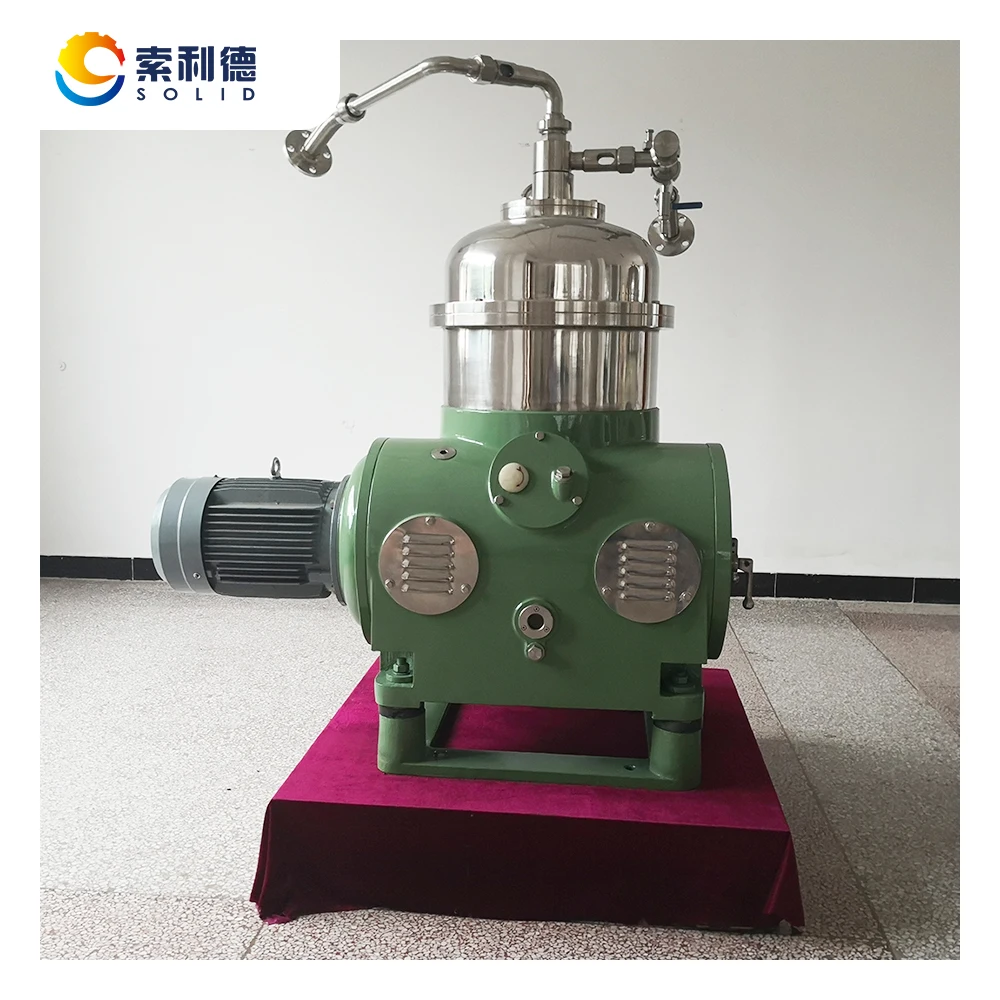

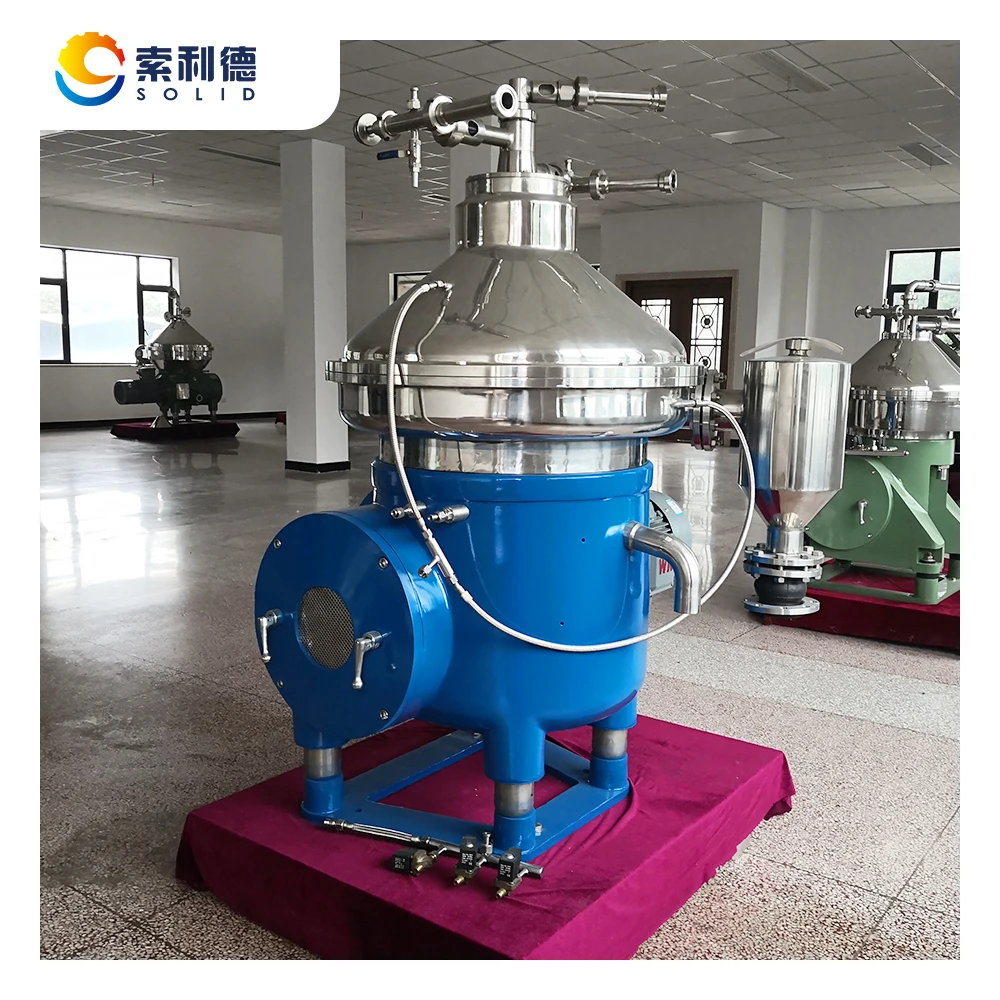

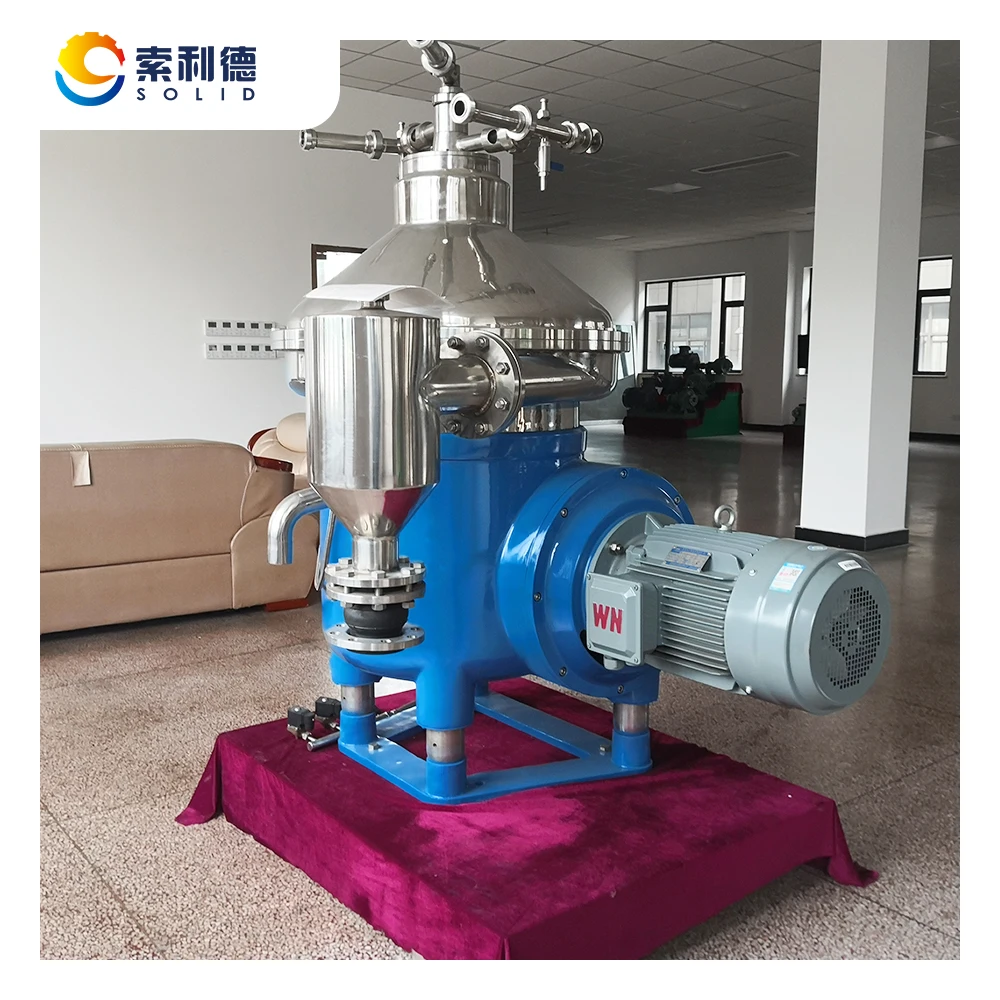

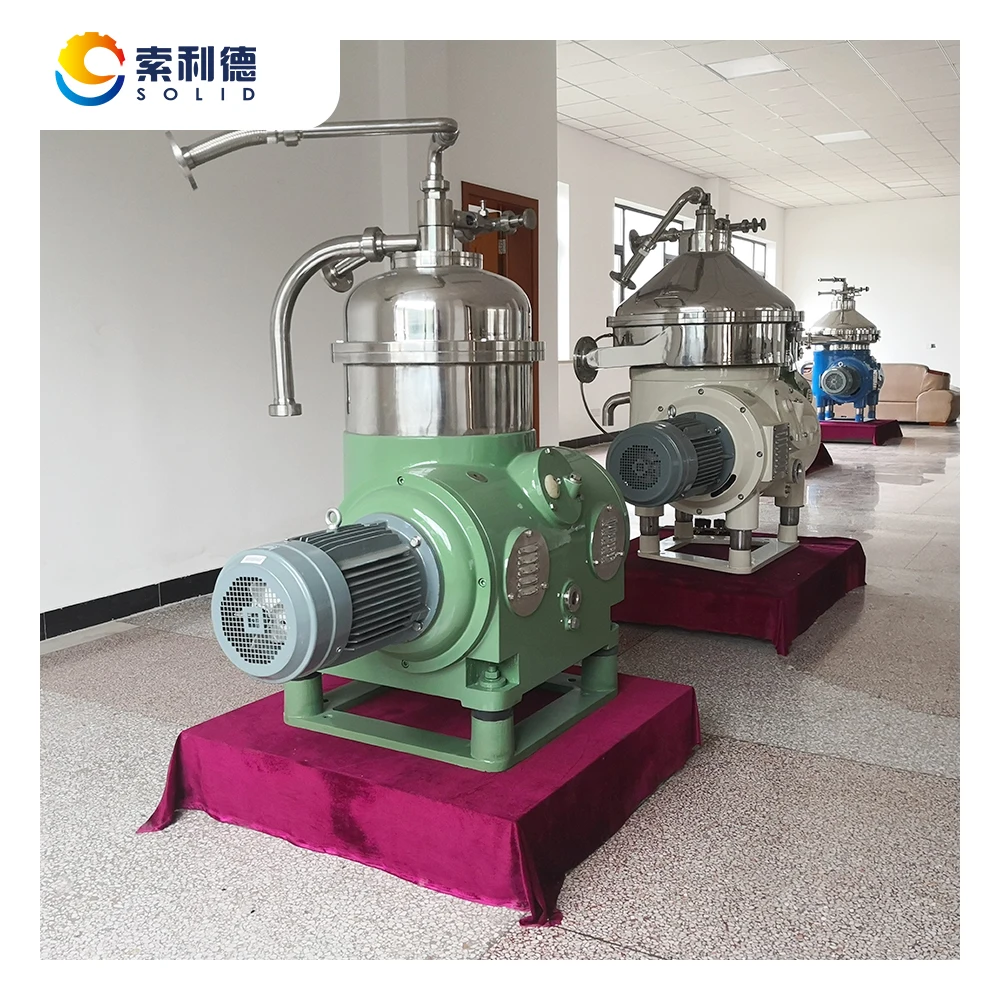

DHZ550 Hot Sale Cottonseed Rice Bran Sunflower Corn Soybean Oil Disc Separator Centrifuge

Share on (1600322258295):


Price:$64,000.00

Quantity:


Product Overview

Description



DHZ Series Vertical Separator

(Special Design for Vegetables Oil Continuous Refining Plant
DHZ series vertical separator is specially designed and used for the vegetables oil continuous degumming&neutralization deacidification process in the continuous refining plant (sunflower oil/soybean oil/palm oil/cotton seeds oil/rice bran oil/ corn germ oil/olive oil/avocado oil/coconut oil etc.).


DHZ360 Vertical Separator
DHZ Series disc separator is mainly used in the vegetable oil continuous refining process.DHZ360 separator is designed for 50TPD vegetable oil refining plant (the real capacity due to the ffa in the crude oil)
DHZ470 Vertical Separator
DHZ Series disc separator is mainly used in the vegetable oil continuous refining process.DHZ470 separator is designed for 100TPD vegetable oil refining plant (the real capacity due to the ffa in the crude oil)


Specification


MODEL
DHZ240
DHZ360
DHZ470
DHZ550
Brand
HENAN SOLID
HENAN SOLID
HENAN SOLID
HENAN SOLID
Capacity
10TPD
50TPD
100TPD
200TPD
Drum ID
240MM
360MM
470MM
550MM
Design Speed
8400
7070
6600
6000
Material
SUS304
SUS304
SUS304
SUS304
Power
4.0KW
7.5KW
15KW
22KW
Start Mode
Frequency Startup
Frequency Startup
Frequency Startup
Frequency Startup
Discharge Model
Self-cleaning
Self-cleaning
Self-cleaning
Self-cleaning
Dimension L*W*H
1090X1100X1200MM
1800X1600X1800MM
1800X1900X1950MM
1800X1900X1950MM
Weight
560KGS
1500KGS
1800KGS
1900KGS

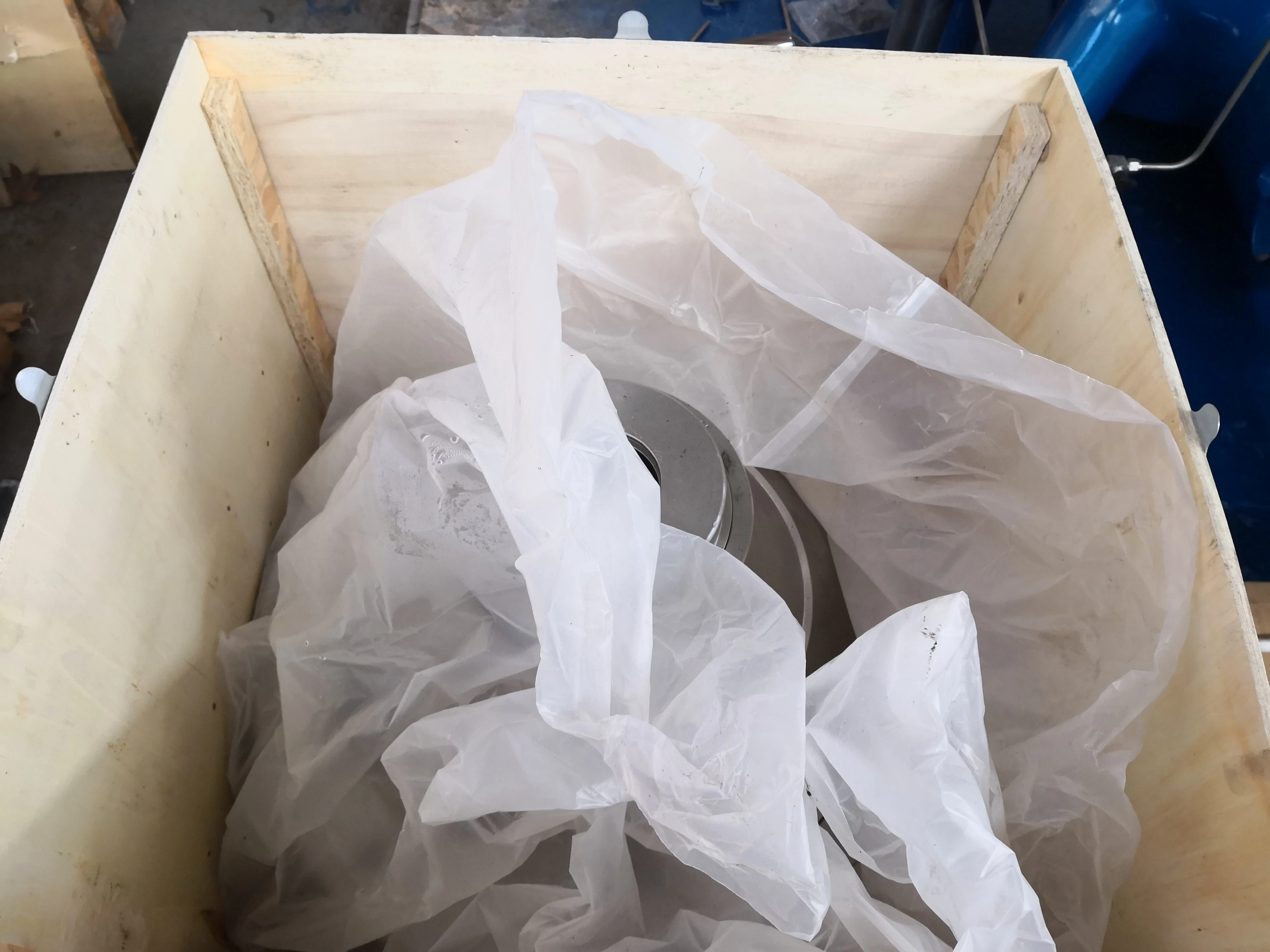

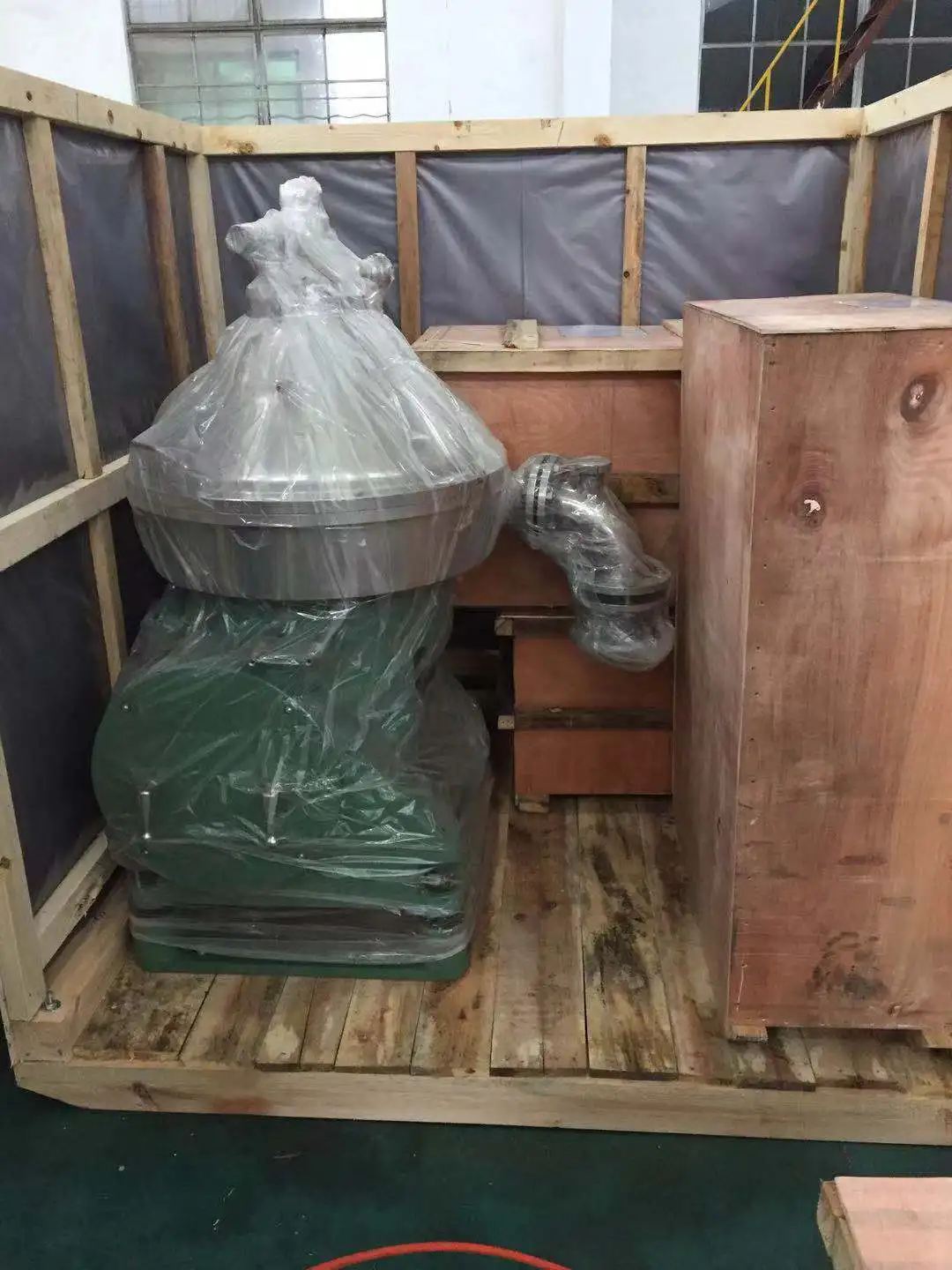

Packing & Delivery

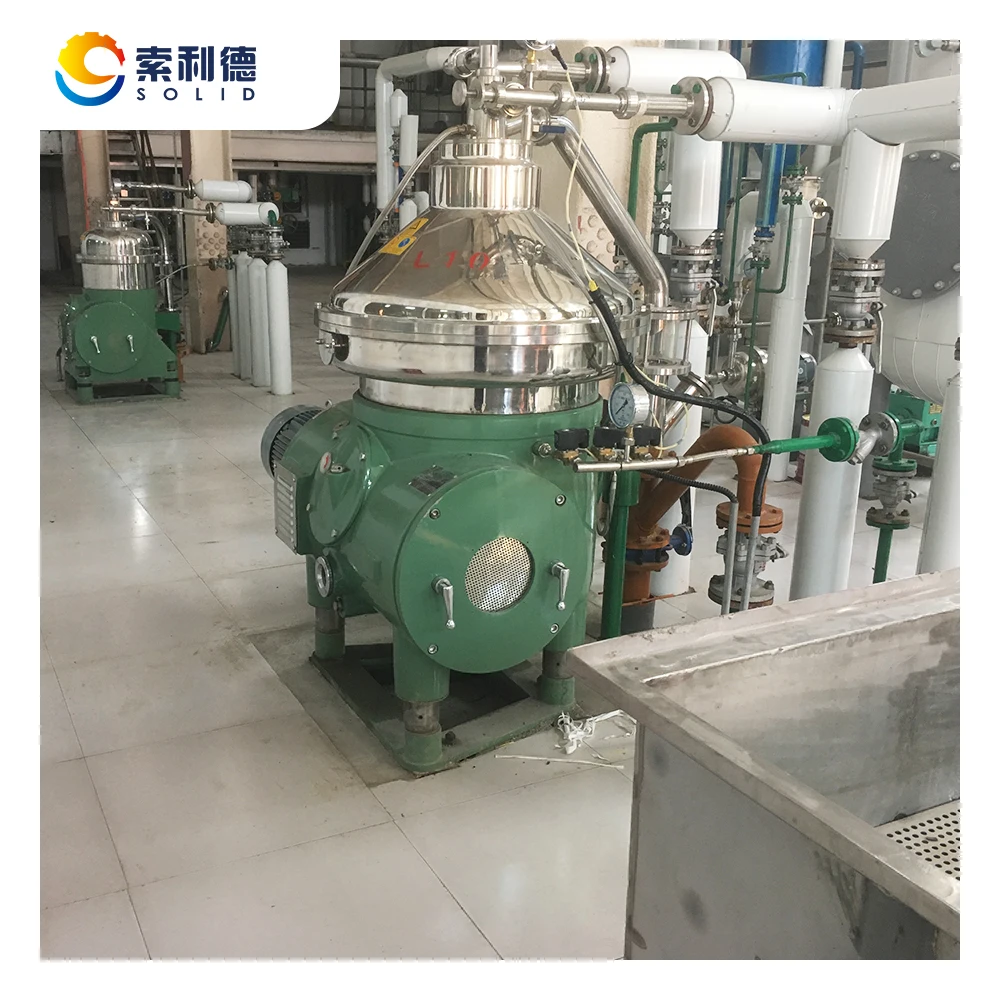

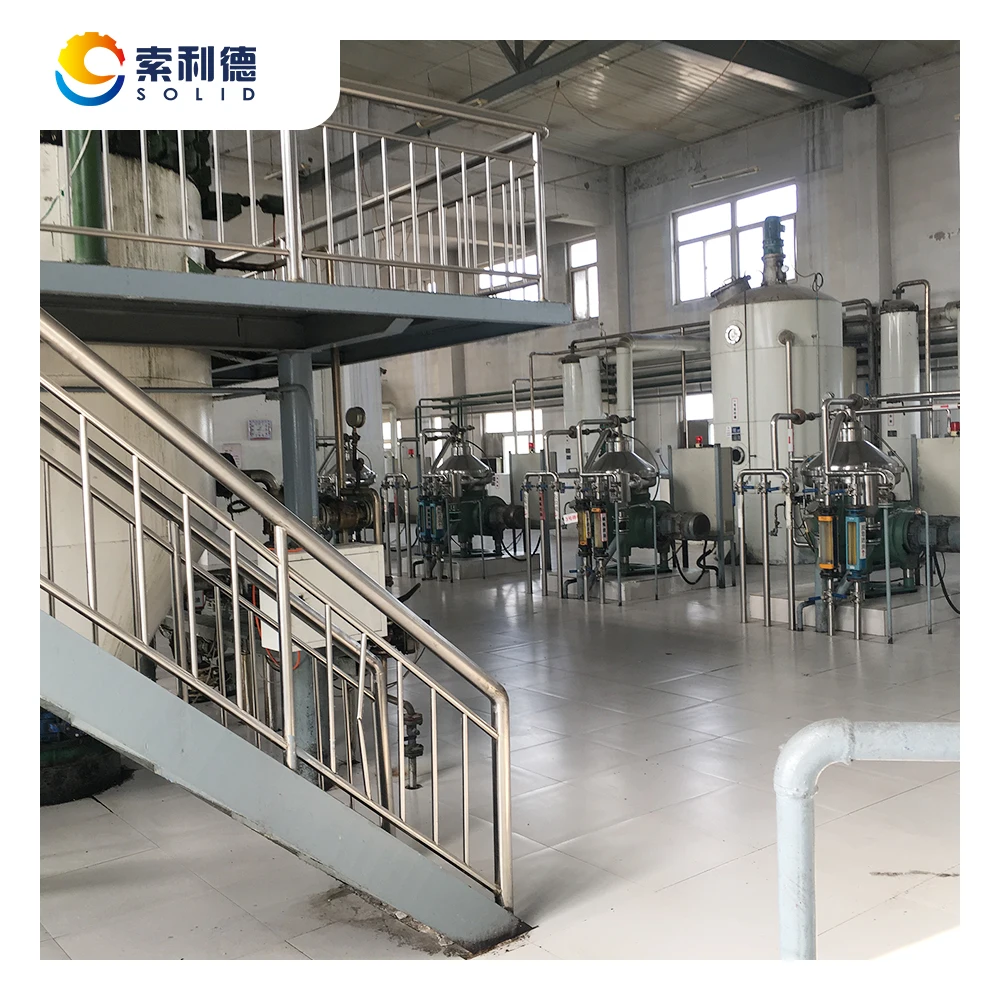

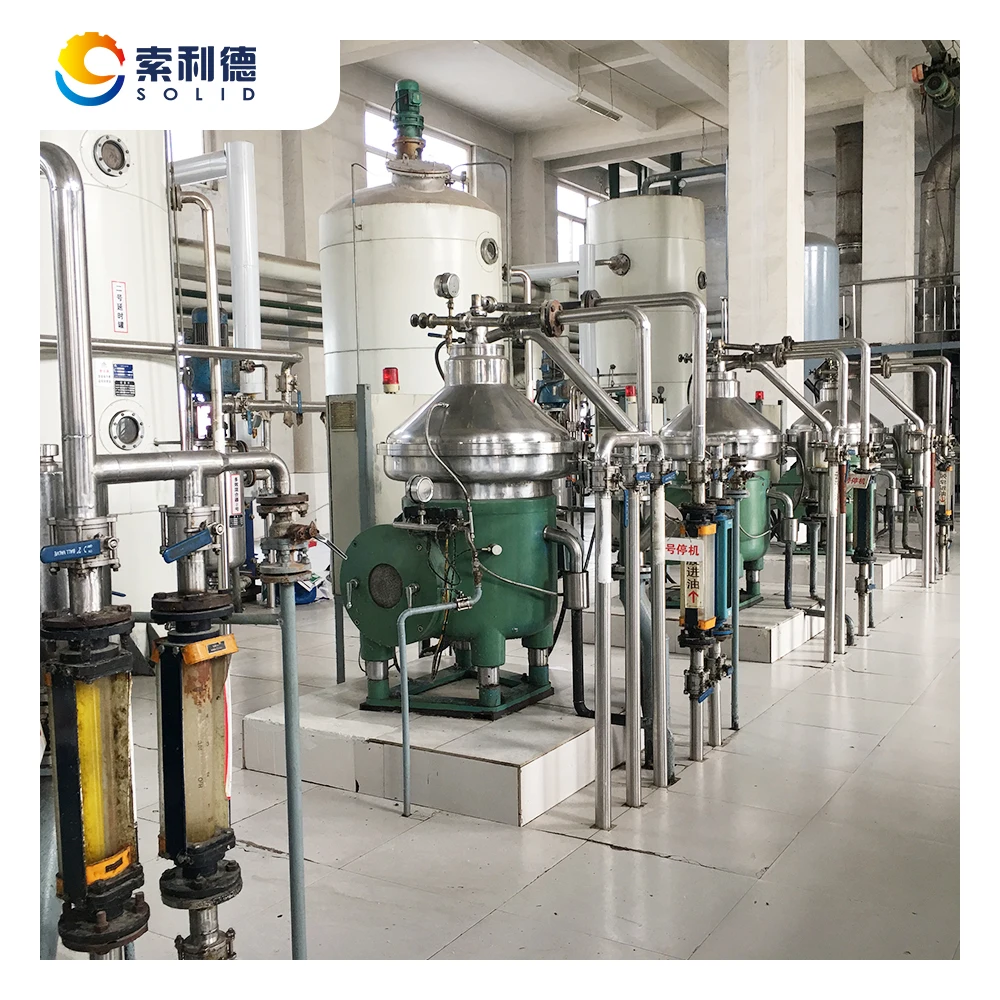

Customer Photos

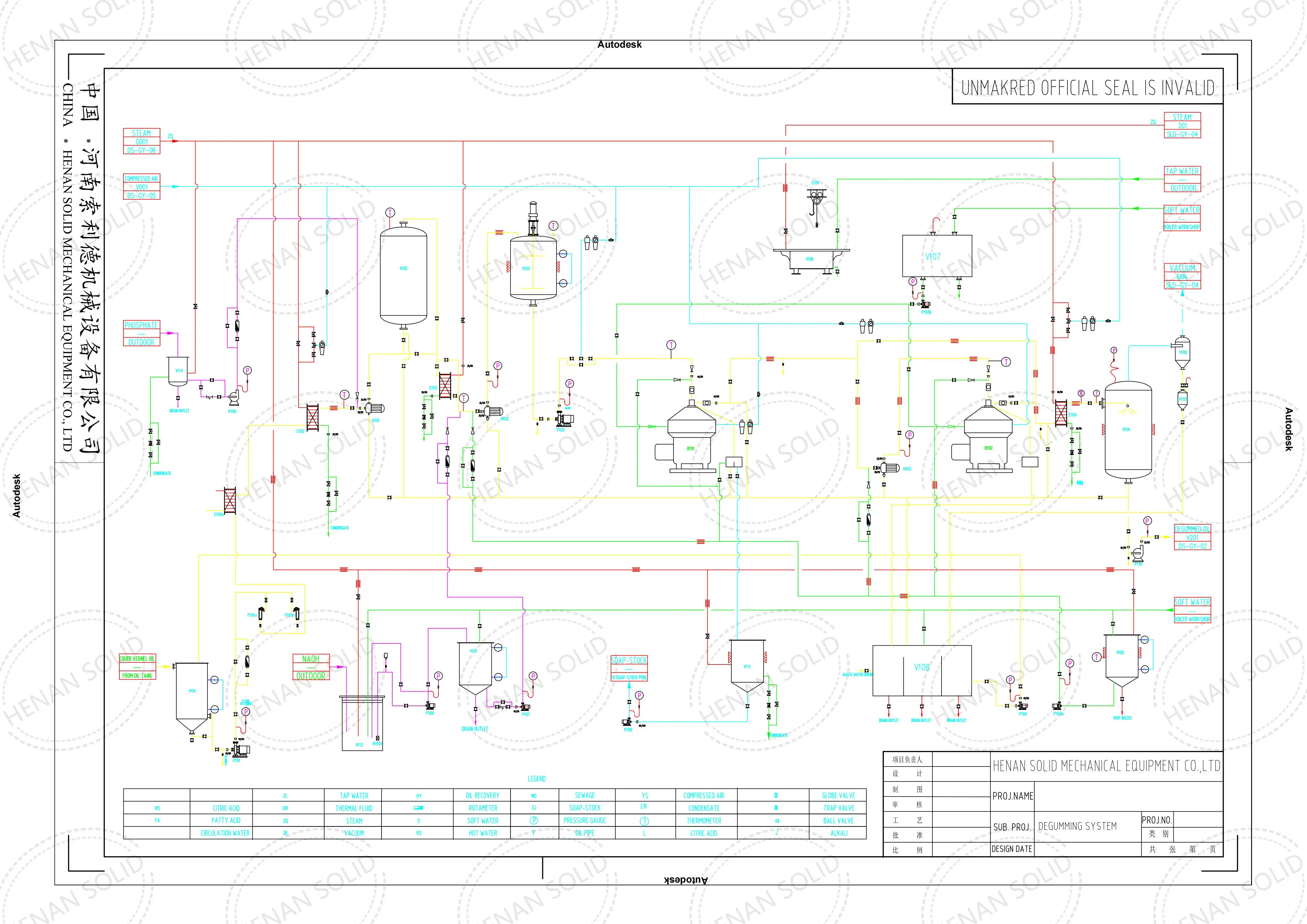

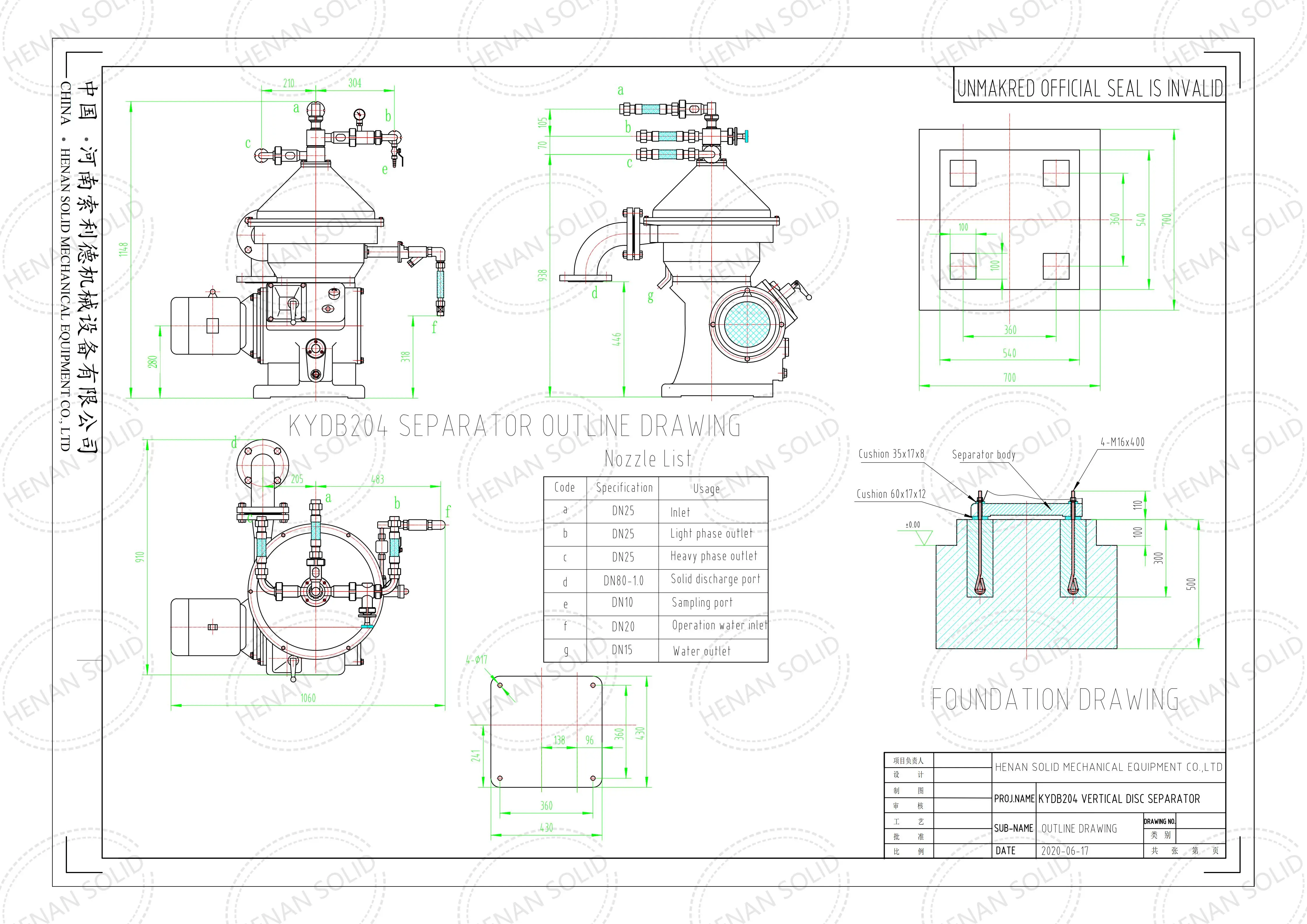

Process Drawing
