Портативный и легко устанавливаемый нагревательный элемент PTC
- Category: Electric Heater Parts >>>
- Supplier: Yancheng Dingchuang Electric Heating Machinery Co. Ltd.
Share on (1600322264170):
Product Overview
Description
Product Overview

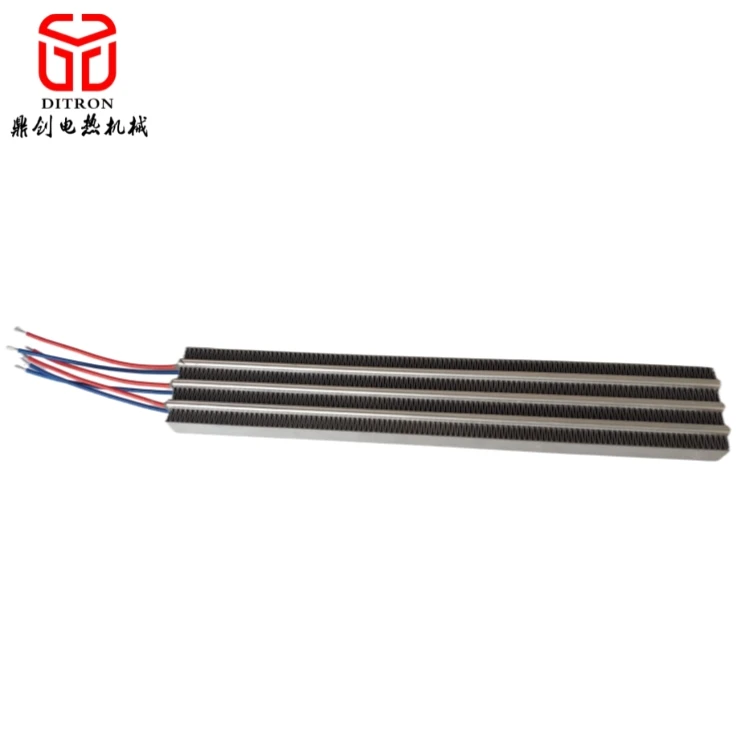

Very low air resistance Electric PTC air heating element
We are specialist in production of electrical elements and equipments. Our factory locates in Yancheng city, Jiangsu province of China. We have been in heating industry for over 35 years, and have got certificates of ISO9001 and CE.
Main products are as below:
Aluminum heating plates
PTC heaters
SUS Tubular heaters
Silicone Rubber Heater
Ceramic heaters
Cartridge heaters
All heaters can be customized to produce according to clients’ requirements. We have exported our heaters to the USA, England and Asian markets.
Main products are as below:
Aluminum heating plates
PTC heaters
SUS Tubular heaters
Silicone Rubber Heater
Ceramic heaters
Cartridge heaters
All heaters can be customized to produce according to clients’ requirements. We have exported our heaters to the USA, England and Asian markets.
PRODUCT SPECIFICATIONS
No | Item | Data | |
1 | Power | 3000W | |
2 | Voltage | 220V | |
3 | Size | 55*320mm | |
4 | Working temp. | 180-240 degrees | |
5 | Usage scope | Home appliances | |
6 | Certificates | ISO, CE | |
7 | Capacity | 25000/month | |
8 | Intended application | Air heating | |
9 | OEM, specifications can be customized. | ||
FEATURES AT A GLANCE
Product features:
Small size, easily installized and aeesmbled.
High efficiency to reach required temperature.
Safe design, in-time cut when over heat.
Simple and light volume.
Simple maintainance in use.
Real materials for product frame.
Electricity power operation.
Brief Introduction on PTC:
The higher the airflow, the higher the heat output and power (wattage).
Therefore, depending on the end design, if the ambient temperature is high, the PTC output power will decrease.
If the airflow is high with low ambient temperature, then the PTC output power will increase.
Advantages: | ||||||
* No Thermostat Required | * Virtually unlimited life and long service life | |||||
* No moving parts to wear | * No electrical noise | |||||
* The PTC heat output can be regulated by the airflow applied in typical applications of heat generation. The higher the airflow, the higher the heat output and power(wattage). | ||||||
* Low air resistance and high heating efficiency. | ||||||
* Internal safety-fuse protection and auto-cut-off to prevent abnormal high current or other external factors. | ||||||
* Fast thermal response time and low inrush current. | ||||||
* Not to cause sparks or flame by instant/sudden power supply variations. | ||||||
* The heating components are tightly sealed and the electrodes are unexposed. | ||||||
Application fields: | |||
* Hand dryer | * Dish dryer | * Shoe dryer | * Air conditioner (heater) |
* Hot air heaters | * Clothes dryer | * Dish washer | * Air conditioner (defroster) |
PRODUCT CONFIGURATION
High-quality raw materials
Firm frame
Safety connection
FAQ
1. What is your MOQ?
At least 1000pcs for each item.
2. What is the lead time?
10-25days, it is up to the quantity.
3. What is your prefered payment term?
TT payment term prefered, 20-30% prepaid after order confirmation.
4. Can you accept non-standard requirements?
Yes, we offer custom-made products and can design per your requirements.
5. Can you provide free samples?
We can provide free sample for 1pcs, but you should burden the freight.
6. What is your shipping type?
At least 1000pcs for each item.
2. What is the lead time?
10-25days, it is up to the quantity.
3. What is your prefered payment term?
TT payment term prefered, 20-30% prepaid after order confirmation.
4. Can you accept non-standard requirements?
Yes, we offer custom-made products and can design per your requirements.
5. Can you provide free samples?
We can provide free sample for 1pcs, but you should burden the freight.
6. What is your shipping type?
We can ship by sea, by air and by land; depends on the destination.
