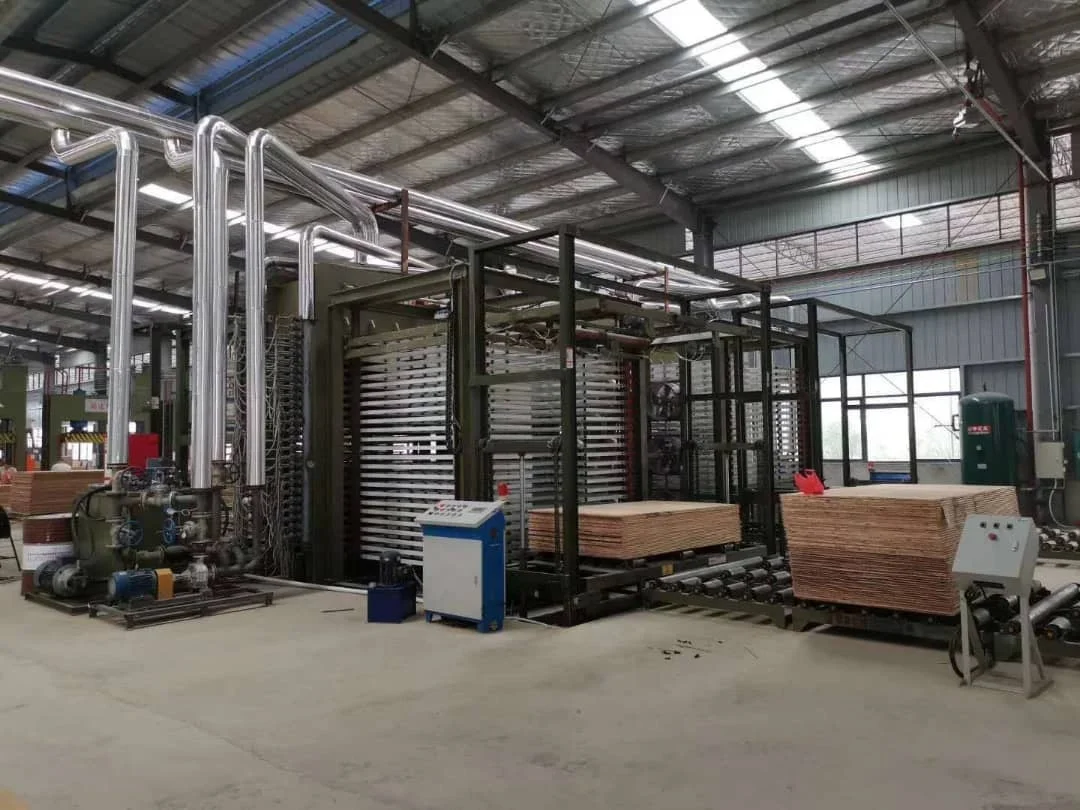

hydraulic hot press plywood machine for door
- Category: >>>
- Supplier: Shandong Shine Machinery Co. Ltd.
Share on (1600322315768):
Product Overview
Description
Products Description

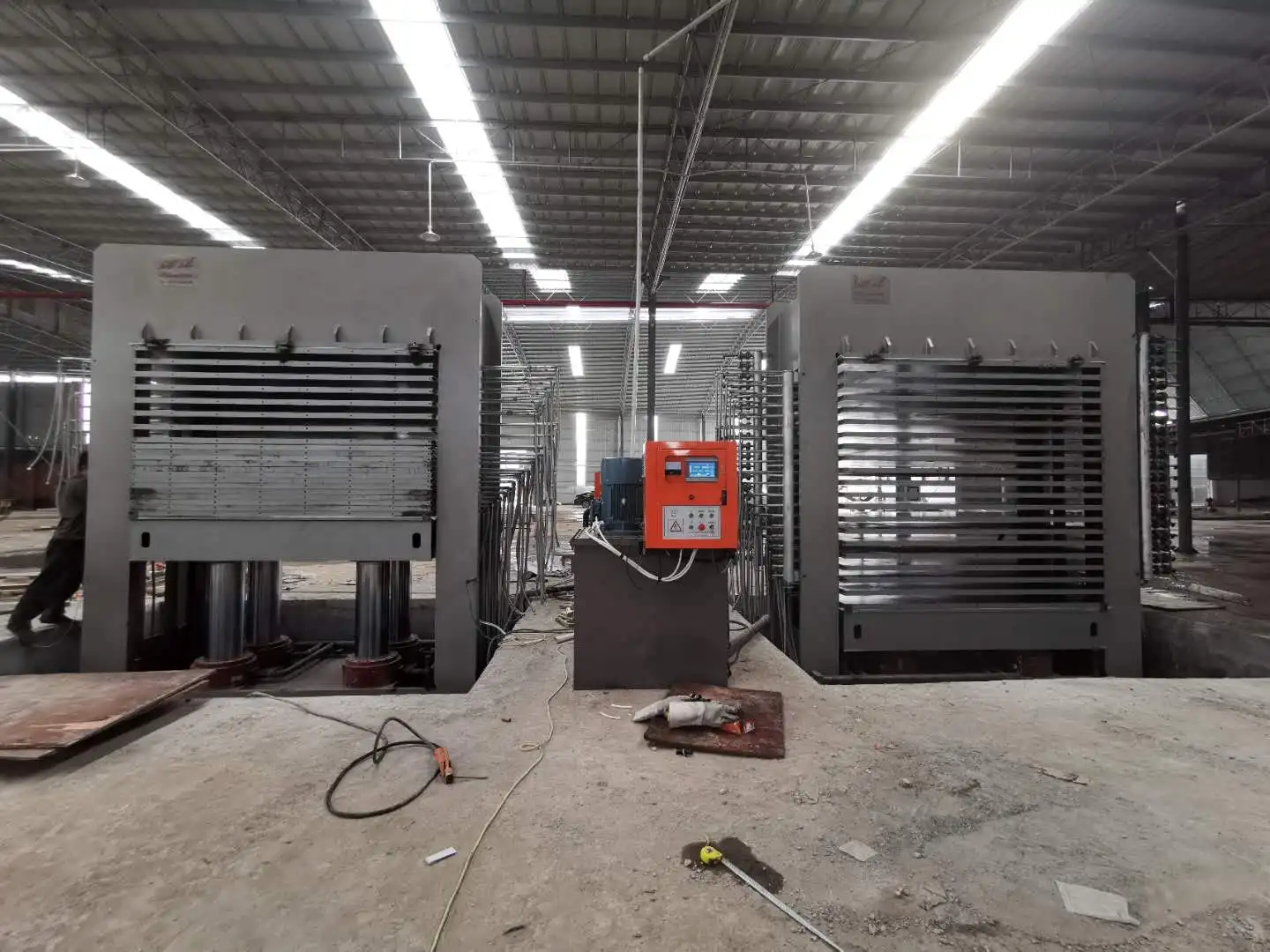

Plywood hot press machine is used for the final formulation of plywood, it is the most important machine in plywood production. Hot press machine is one of the most important machines in plywood production. It determines production efficiency and the quality of final products.
Hot pressing system, heating system, heat conduction system, low heat consumption, meticulous design, uniform heat conduction, high-precision mechanically processed parts, wide range of process parameters adjustment control process, reasonable design to meet various plywood production process requirements.
Hot pressing system, heating system, heat conduction system, low heat consumption, meticulous design, uniform heat conduction, high-precision mechanically processed parts, wide range of process parameters adjustment control process, reasonable design to meet various plywood production process requirements.
Product Paramenters
Total pressure | 500tons |
Board feeding direction | From the long side |
Pressure | 0-25mpa |
Hot Press Plate Size | 2700*1370*40mm double inlet and outlet |
Cylinder diameter and stroke | Φ360x2, 1050mm |
Frame | Bolt connected |
Layer number | 15 layers |
Layer space | 70mm |
hot press plate number | 16 |
total power | 20.5kw |
oil cylinder | origin in Wuxi |
power | 380v 20.5kw 50hz |
upper/lower/middle beam | 900mm/900mm/400mm |
Frame thickness | main body: 35mm, Q235 |
Hydraulic system | automatic hydraulic |
Weight | 32 tons |
Recommend Products
Company Profile
Main Characteristics
Adopt the cylinders from Wuxi city, leakage proof.
Gavanized heating pump, rust proof
Hot platen double in and doubel out design, evenness heat spreading
Gavanized heating pump, rust proof
Hot platen double in and doubel out design, evenness heat spreading
Siemens motor and Schneider electronic parts are used Automatic pump station design, easy to operate Annealing metal frame,
deformulation resistance
deformulation resistance
