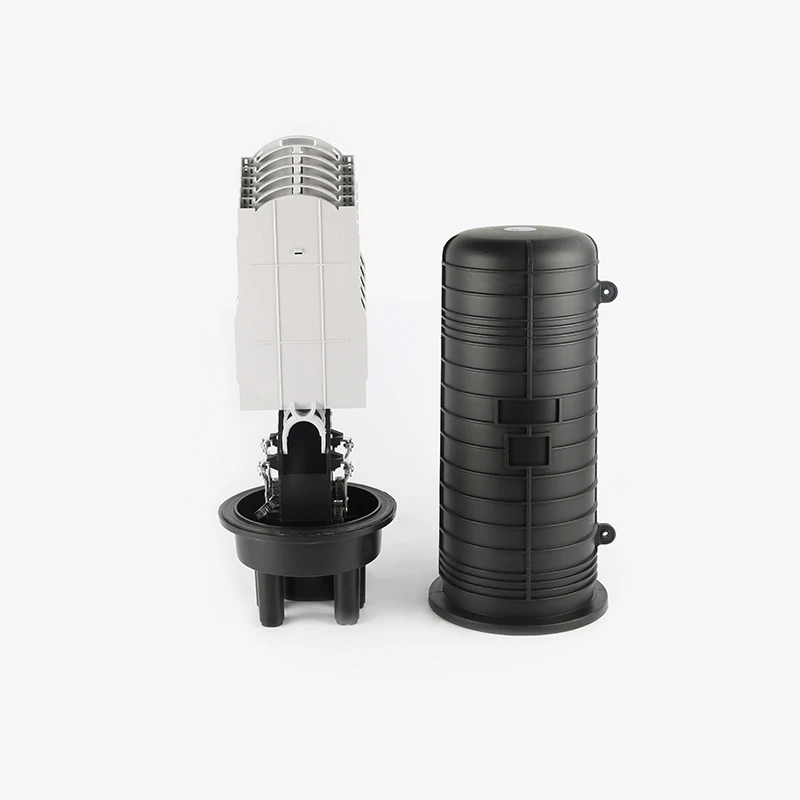

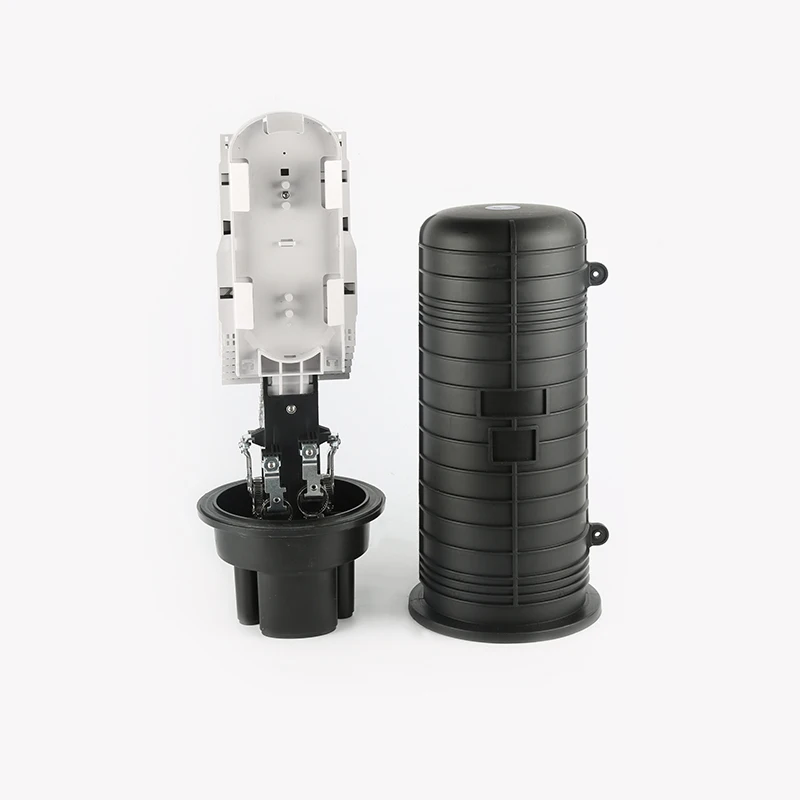

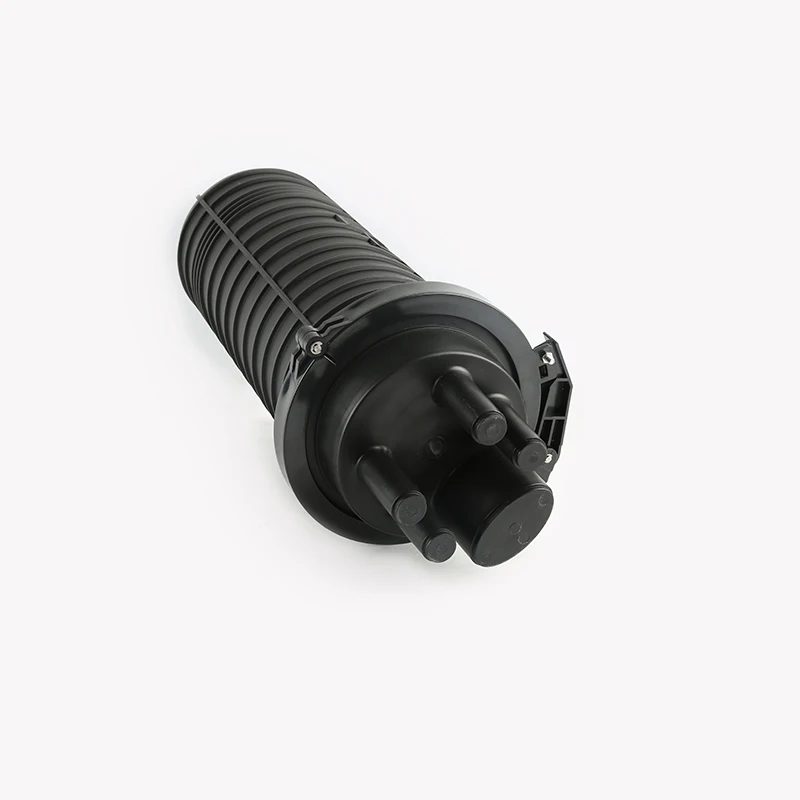

IP68 144 core Dome type fiber optic splice closure FOSC GJS D022
- Category: >>>
- Supplier: Shanghai Wanbao Optical Technologies Co. Ltd.
Share on (1600322324451):
Product Overview
Description
1.This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
2.The scope of application : aerial, underground duct or direct burial .
3.The ambient temperature ranges from –40℃ to +65℃.
Specification
Outside dimension (Height x Diameter) | 455mm×235mm | ||||
Core capacity per tray: | 24 | ||||
Number of inlet/out ports | 5 ports | ||||
Diameter of fiber cable | Φ8mm～Φ25 mm | ||||
Capacity of FOSC | Bunchy: 24-144 (cores), Ribbon: up to432(cores) | ||||
Parameter
Feature
*The ambient tempreture ranges from -40°C to +65°C.
* Holds up to 144 fibers.
* Easy to re-enter.
* Cable entry/exit ports.
* Pressure testing valve and earth deriving device.
* Intergrated seal, air tight and water proof.
* Ideal for cable repair.
* RoHS compliant.
* Holds up to 144 fibers.
* Easy to re-enter.
* Cable entry/exit ports.
* Pressure testing valve and earth deriving device.
* Intergrated seal, air tight and water proof.
* Ideal for cable repair.
* RoHS compliant.
Main components
No. | Name of components | Quantity | Usage | Remarks |
1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 360mm x 177mm |

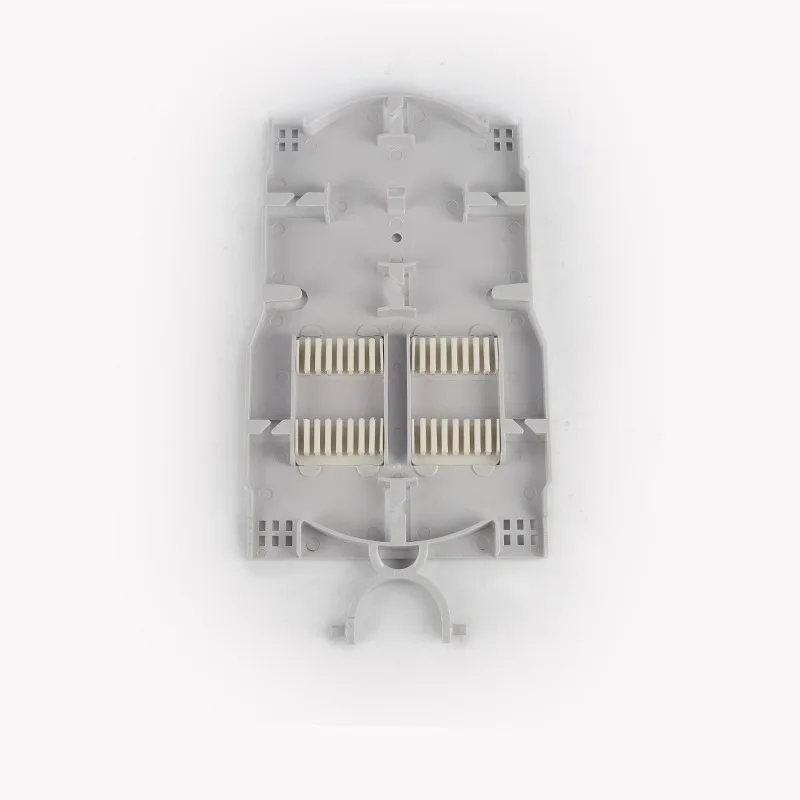

2 | Fiber optic splice tray (FOST) | Max. 6 trays (bunchy) Max. 6 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
3 | Fiber holding tray | 1 pcs | Holding fibers with protective coat | |
4 | Base | 1set | Fixing internal and external structure | |
5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
