Non woven industry use f7 m6 synthetic pocket filter media
US $4.00-$4.50
Разная эффективность G4 F9 медиа хлопок Первичная плиссировка papercard воздушный фильтр
- Category: Air Filter >>>
- Supplier: Shanghai Junkai Environmental Engineering Co. Ltd.
Share on (1600322329786):
Product Overview
Description
About us
1)We are a professional manufacturer of air filters with ISO9001:2008
2)In case specifications or structure changes,subject to company's latest data.
3)We offer OEM/ODM
2)In case specifications or structure changes,subject to company's latest data.
3)We offer OEM/ODM

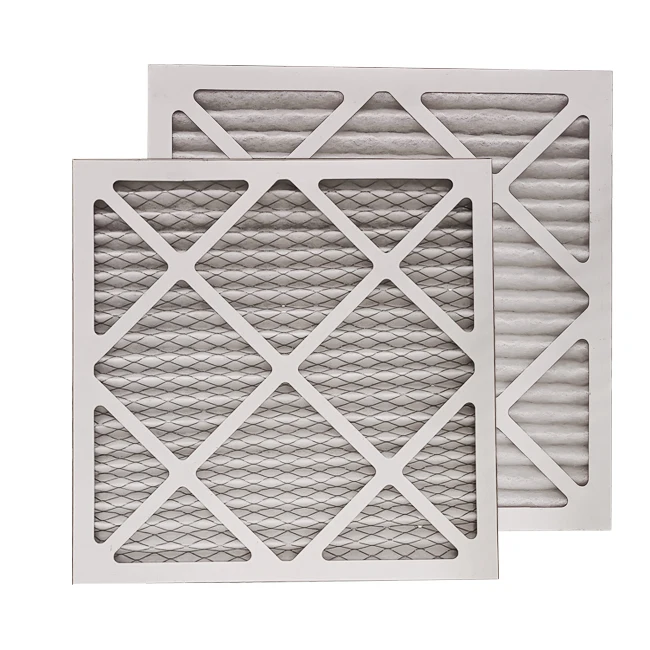

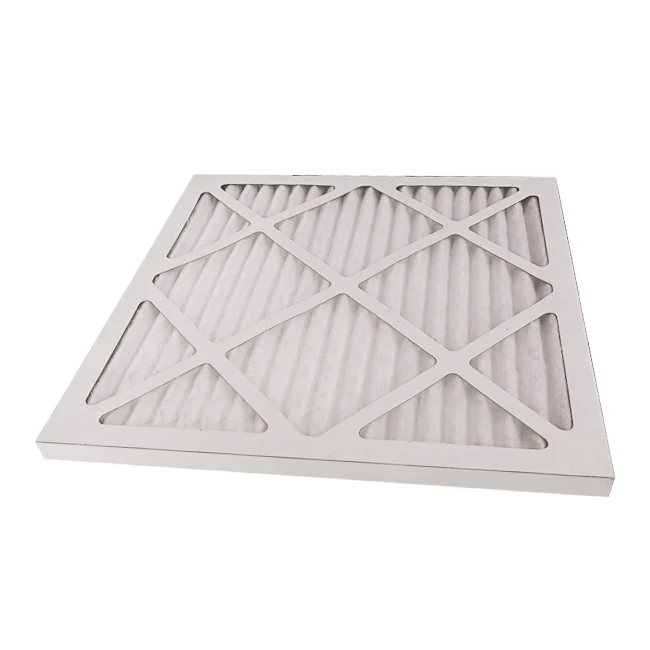

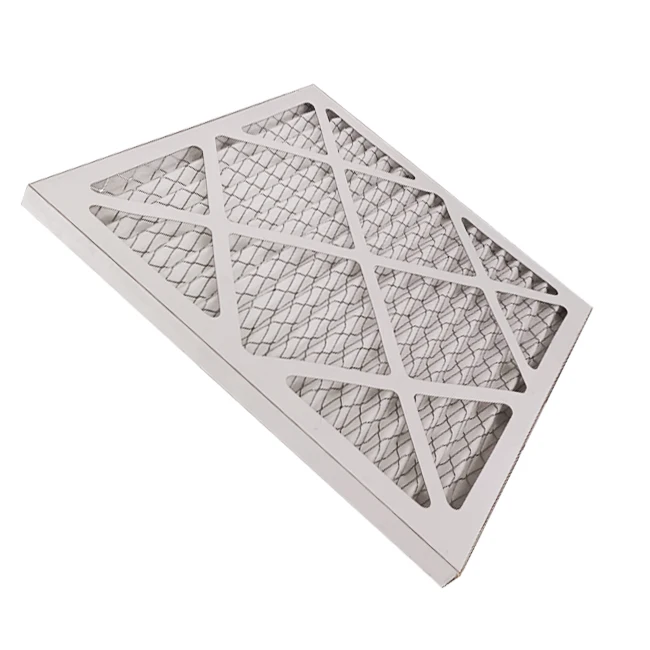

Wide Varieties G4 Metal Pre Primary Filtration Industrial Air Filter
Features

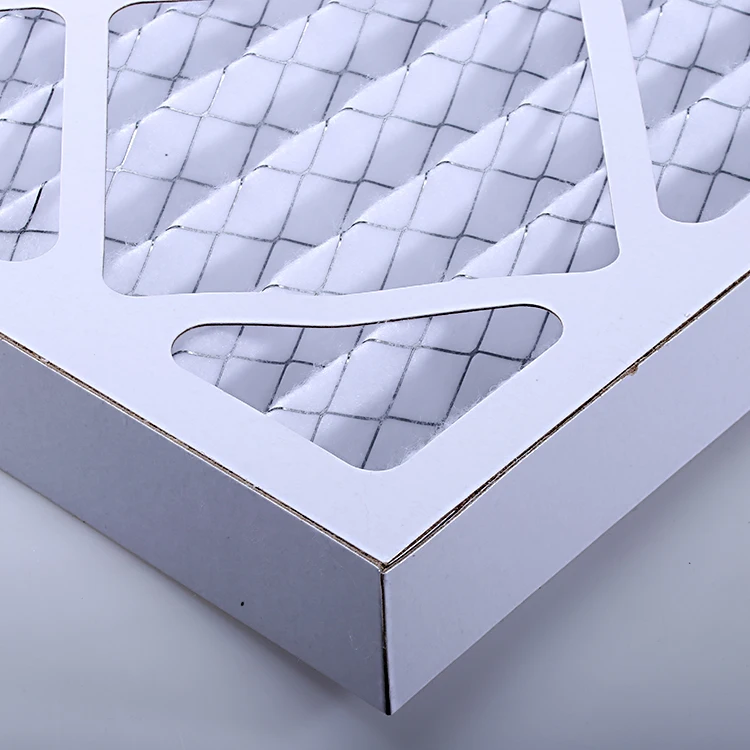

Frame: Rigid water resistant cardboard.

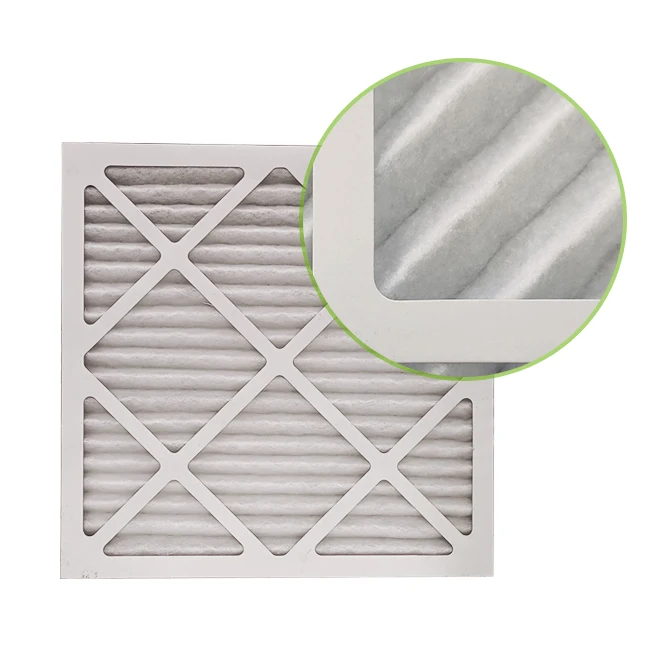

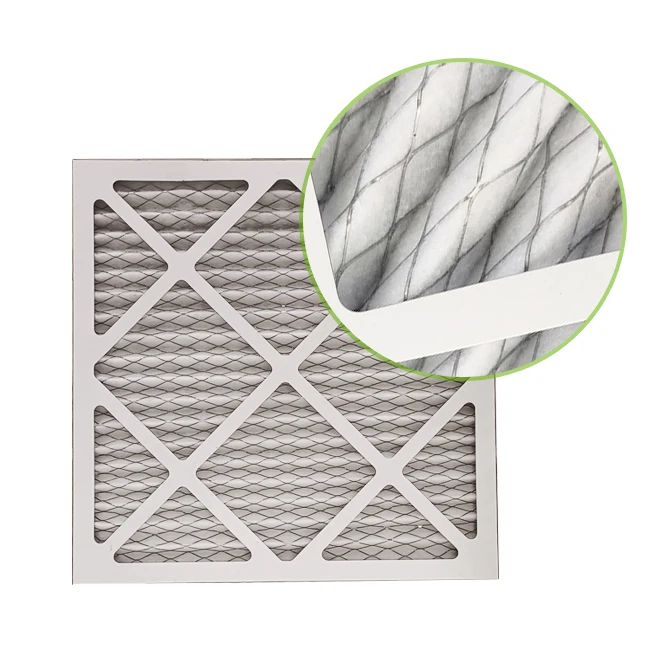

Media:mixture of cotton and synthetic fiber, fully supported media boned on to a wire support grid robust construction
Efficiency: (EN779:2002)G4
(ASHRAE 52.2:2007) MERV8
Final pressure is recommended:250Pa
Resistant temperature:70 °Cmaximum in continuous service.
Model W x H x D | Dimensions W x H x D(mm) | Rated Air Flow(m3/h) 1.52(m/s) 2.54(m/s) 3.18(m/s) | SP-H no. area (fold) (m2) | SP-P no. area (fold) (m2) | SP-S no. area (fold) (m2) |
SPRE-12X24X1 | 290X595X22 | 1020 1700 - | 14 0.36 | - - | - - |
SPRE-20X20X1 | 492X492X22 | 1445 2380 - | 24 0.52 | - - | - - |
SPRE-20X24X1 | 492X595X22 | 1700 2800 - | 24 0.63 | - - | - - |
SPRE-24X24X1 | 595X595X22 | 2040 3400 - | 28 0.74 | - - | - - |
SPRE-12X24X2 | 289X594X44 | 1020 1700 2125 | 14 0.73 | 11 0.58 | 7 0.37 |
SPRE-20X20X2 | 492X492X44 | 1445 2380 2980 | 23 1.00 | 17 0.74 | 12 0.52 |
SPRE-20X24X2 | 492X549X44 | 1700 2800 3570 | 23 1.20 | 17 0.89 | 12 0.63 |
SPRE-24X24X2 | 594X594X44 | 2040 3400 4250 | 28 1.46 | 21 1.10 | 15 0.78 |
SPRE-12X24X4 | 289X594X95 | 1020 1700 2125 | 10 1.13 | 8 0.90 | 7 0.79 |
SPRE-20X20X4 | 492X492X95 | 1445 2380 2975 | 17 1.59 | 15 1.40 | 12 1.12 |
SPRE-20X24X4 | 492X594X95 | 1700 2800 3570 | 17 1.92 | 15 1.69 | 12 1.35 |
SPRE-24X24X4 | 594X594X95 | 2040 3400 4250 | 21 2.37 | 18 2.03 | 15 1.69 |
SPRE-17X20X4 | 430X490X95 | 1150 1900 2400 | 19 1.77 | 14 1.30 | 10 0.93 |
SPRE-25X25X4 | 620X620X95 | 2100 3460 4400 | 22 2.59 | 19 2.24 | 16 1.88 |
Filter material | Hepa 、activated carbon. |
Handle | Add handle |
Frame material | Aluminum、Galvanized steel、Stainless steel、ABS plastic、paperboard |
Edge strip | EPDM、PU、rubber and plastic |
Efficiency | pre-filtration(G3-F5)、middle-filtration(F5-F9)、Hepa filter(H10-U15) |
Logo | praint logo |
HEPA MATERIALS | Synthetic fiber(PP melt blown/PET/PTFE...)、Glass fiber |
ACTIVATED CARBON MATERIALS | Ordinary carbon、Modified carbon（CTC70 CTC50 CTC80...）、Potassium permanganate、Activated alumina |
Filter material | Synthetic pocket filter、Fiberglass bag Filter、Activated charcoal pocket filter |
Frame material | Aluminum、Galvanized steel、Stainless steel |
Efficiency | F5 to F9 |
Frame thickness | 21mm、25mm、46mm |
Bag color | blue、yellow、blue、orange、white |
Please feel free to contact us if you have any questions!
1. Q: Are you trading company or manufacturer ?
A: We are manufacturer specialized in industrial air filter (primary-efficiency panel filters,
medium-efficiency bag filters, high-efficiency HEAP filters) and household air filter (activated carbon filters, carbon cloth
filters and HEPA filters) etc. welcome to visit us from sincerely!
2. Q: Can the product be customized and how to customize?
A: Yes, both the product and the packaging can be customized. We offer OEM and ODM service. Just contact our customer service and
tell us your customized needs for the product, and we will provide you with a customized solution, and our professionalism will
definitely meet your needs.
3. Q: Do you provide samples ?
A: Yes, we could offer the samples for free charge but buyers will pay express fee.
4. Q: What's your packing?
A: Plastic bag 1 Bubble film - Carton - Plywood case 1 Pallet or according to your requirements.
5. What is the MOQ
No strict principle for standard size, but 50pcs for non-standard dimensions or types.
6. What about the after-sales service?
Our company is responsible for the supplied product within usage life.
7. Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance against the B/L copy.
8. Q: How long is your delivery time?
A: Generally it is 7 days if stock. And if special product, it will take 14 days for a 20ft container.
A: We are manufacturer specialized in industrial air filter (primary-efficiency panel filters,
medium-efficiency bag filters, high-efficiency HEAP filters) and household air filter (activated carbon filters, carbon cloth
filters and HEPA filters) etc. welcome to visit us from sincerely!
2. Q: Can the product be customized and how to customize?
A: Yes, both the product and the packaging can be customized. We offer OEM and ODM service. Just contact our customer service and
tell us your customized needs for the product, and we will provide you with a customized solution, and our professionalism will
definitely meet your needs.
3. Q: Do you provide samples ?
A: Yes, we could offer the samples for free charge but buyers will pay express fee.
4. Q: What's your packing?
A: Plastic bag 1 Bubble film - Carton - Plywood case 1 Pallet or according to your requirements.
5. What is the MOQ
No strict principle for standard size, but 50pcs for non-standard dimensions or types.
6. What about the after-sales service?
Our company is responsible for the supplied product within usage life.
7. Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance against the B/L copy.
8. Q: How long is your delivery time?
A: Generally it is 7 days if stock. And if special product, it will take 14 days for a 20ft container.
