High Definition Vacuum Corrugated Board Flexo Printing Slotting Machine / Printing Soltting Machine

Product Overview

Description

High Definition Vacuum Corrugated Board Flexo Printing Slotting Machine / Printing Soltting Machine

Product Description

The Vacuum Transfer high-definition ink printing machine will be popular in recently 3 years! It can Print 5-7 color printing on coated paper, drying, oiling, and die-cutting for one-time forming.
mainly for print coating offset paperboard,or higher speed printing works. for examples: Pizza boxes, fruit boxes, gift boxes, package boxes etc...

1. Vacuum transfer,vacuum transfer wheels and structure which ensures boards transfer smoothly.
2. Multi-sections vacuum volume control, automatic adjusting according to different boards size.
3. Automatic locking & position location, for printing plate.
4. Precise integral anilox roller & rubber roller/chamber blade system rise and fall structure, ensures perfect ink transfer and
avoid shake when printing.
5. Rubber roller & anilox roller fast changing design. Chamber doctor blades and rubber roller are available, optional.
6. Anilox roller automatic self-wash device, much more convenient for circulation washing.
7. Automatic back to “zero” after washing printing studio.
8. Double diaphragm pump, and automatically ink recycling system, can reduce ink waste, and make ink recycling faster. Printing

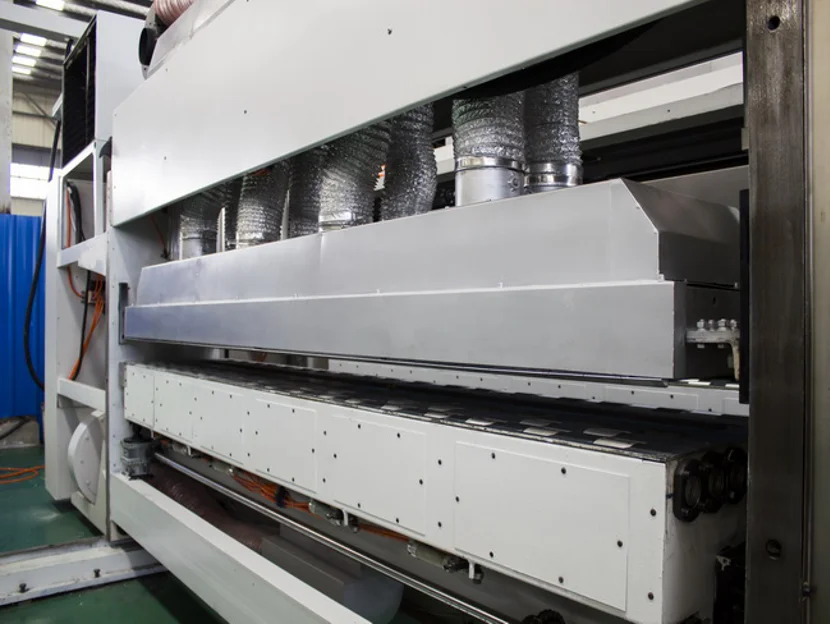

unit can equipped with hot air/IR dryer system.

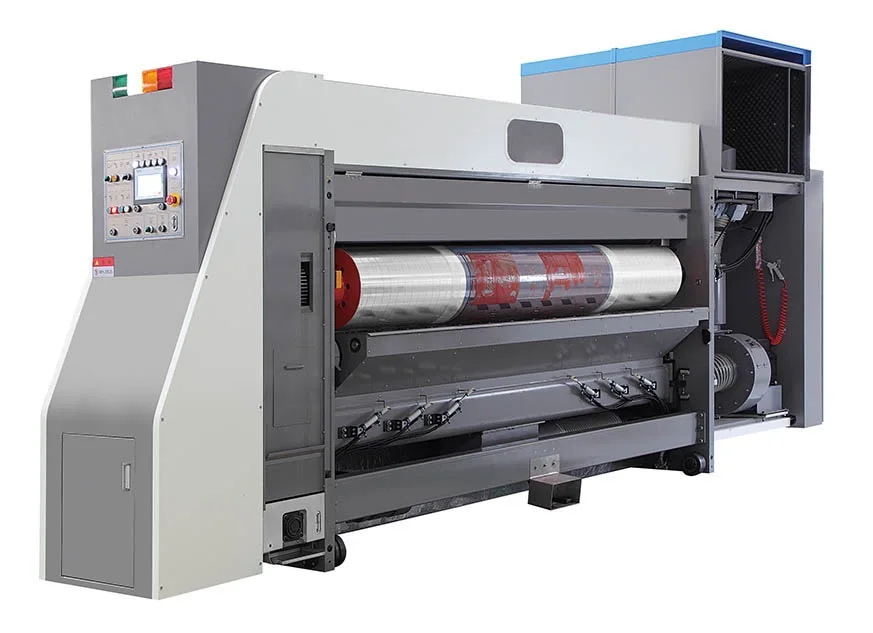

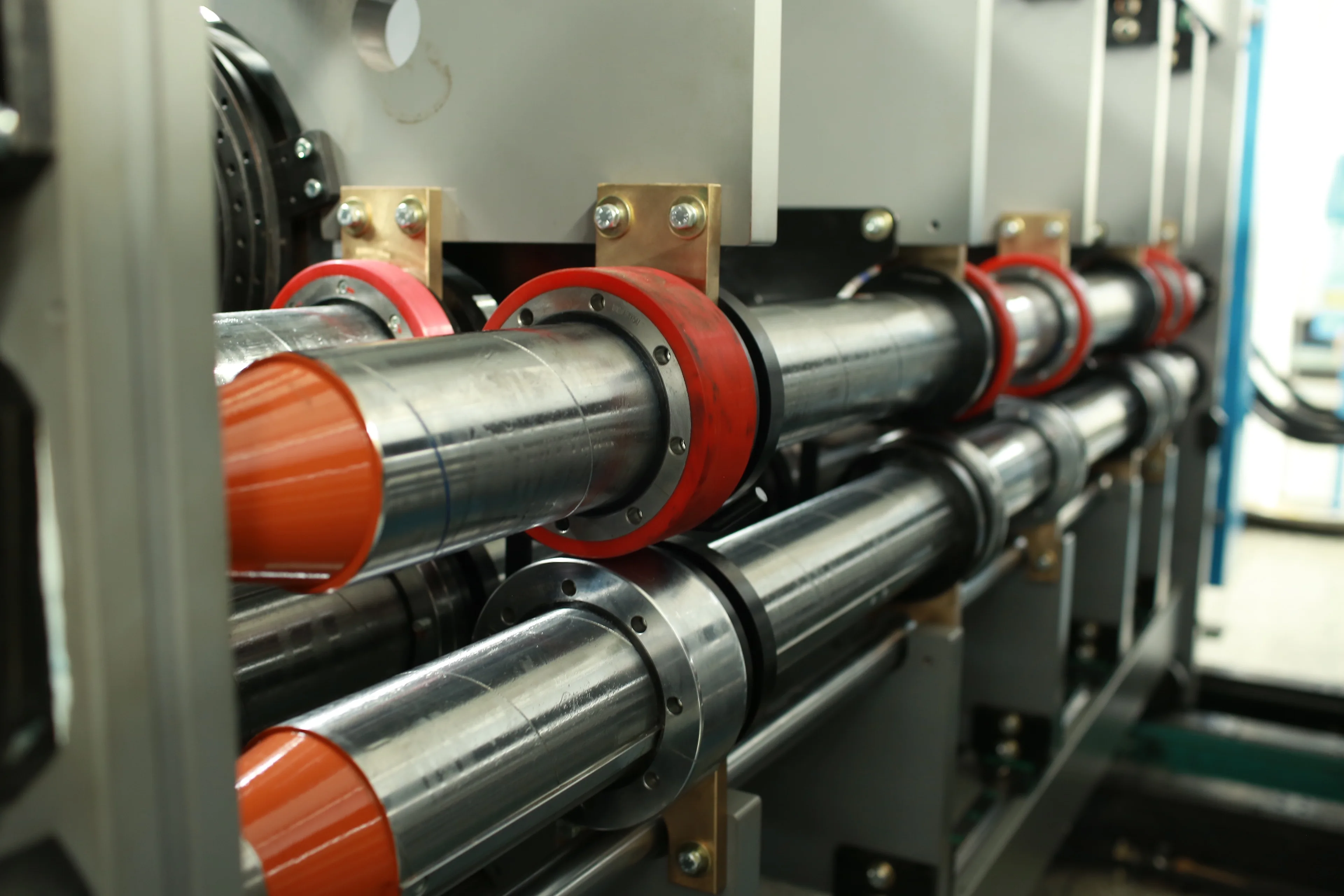

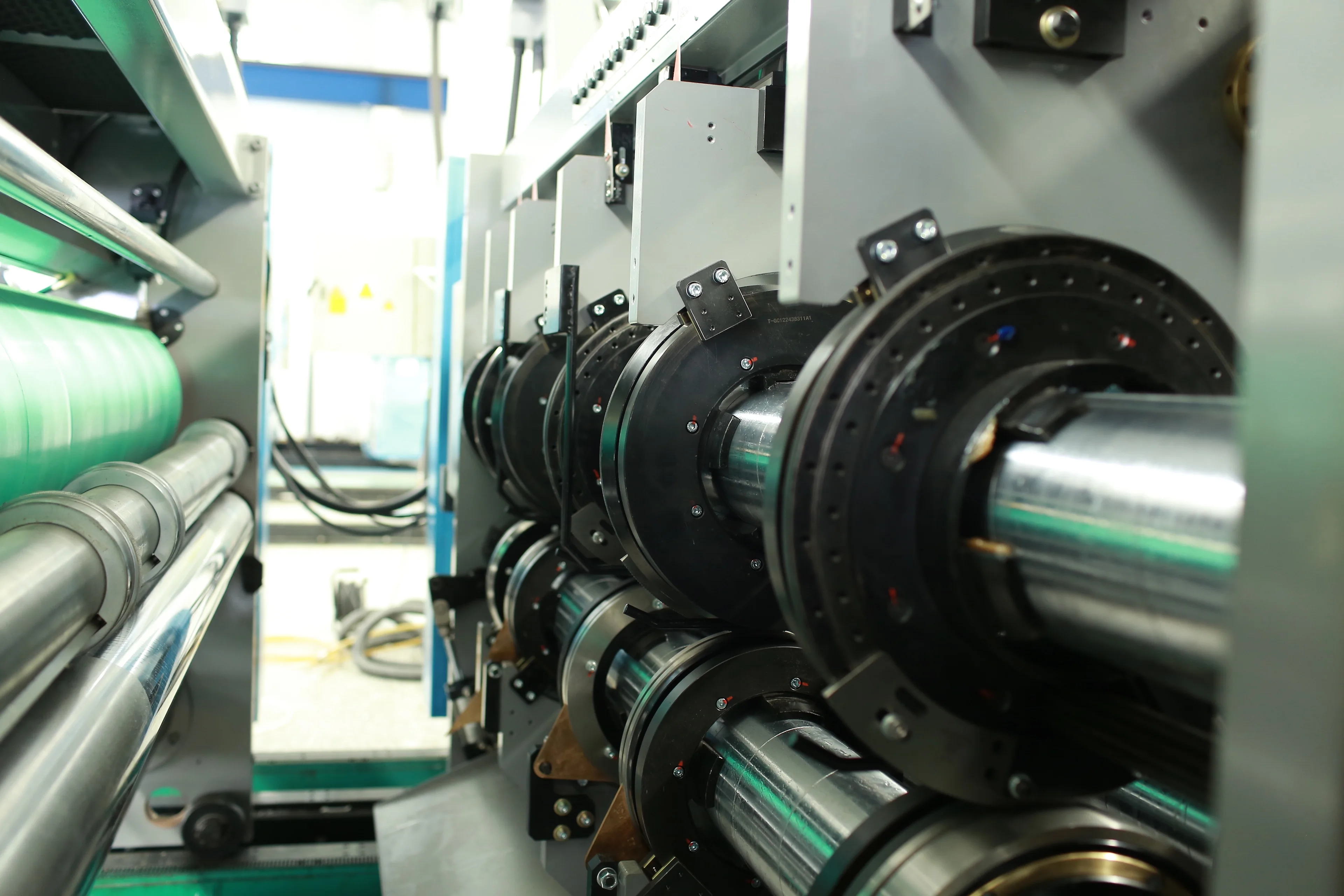

Machine detail

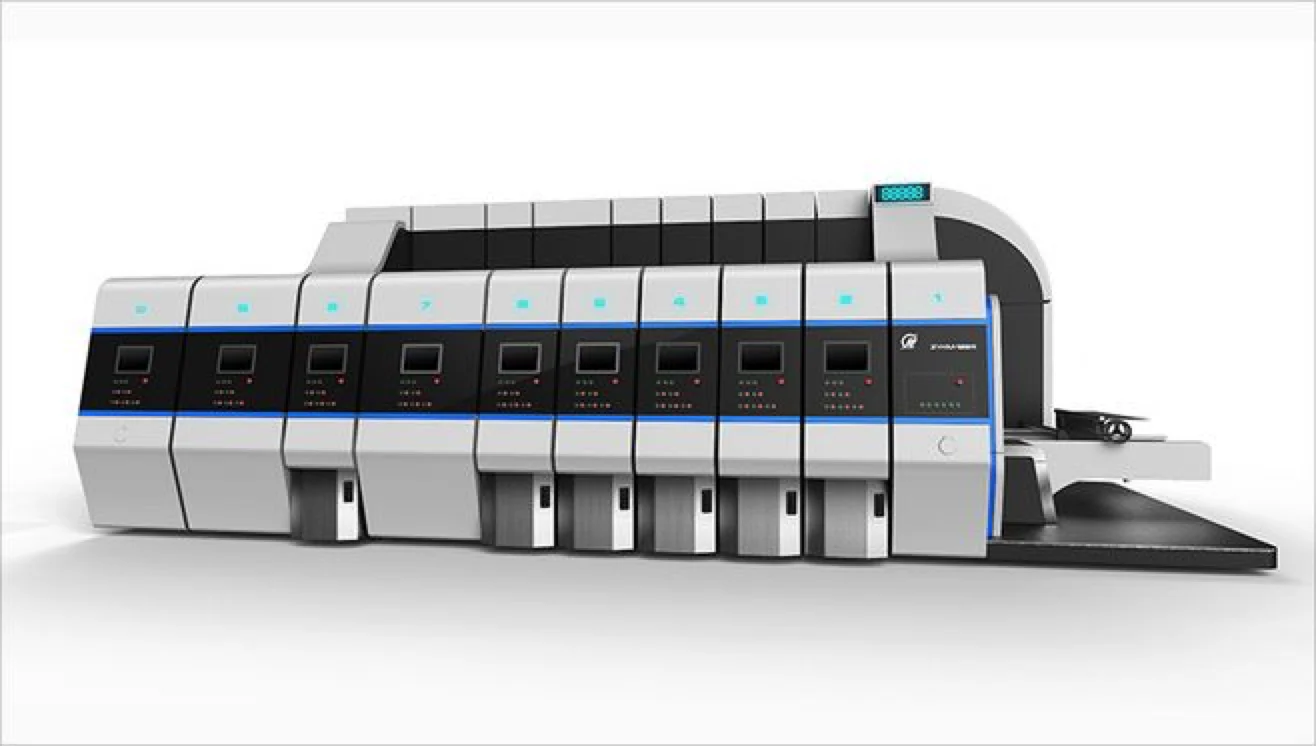

Product Display









Specification

Model	Unit	TB-HD
Design speed	pcs/min	180
Economic speed	pcs/min	150
Inside wallboard width	mm	2900
Max. Paperboard size	mm	290*500
Min. Paperboard size	mm	1200*2600
Min. Paperboard size	mm	400*600
Max. Skip paper feeding size	mm	1500*2600
Max. Die cutting size	mm	1200*2400
Standard thickness of printing plate	mm	7.2 (with version lining)
Printing precision	mm	+0.25
Die cutting precision	mm	+1.5
Application flute paperboard Thickness	mm	2-12

Product Frished





Packing & Delivery



Full Container Loading:

TB printing slotting die cutting stacking machine will wrap with plastic film, then Loading into container and fixed.
