380v Surge Protective Device Class Pa66 3p 100ka Power Surge Protector
- Category: >>>
- Supplier: Zhejiang Jiuji Electric Co. Ltd.
Share on (1600322365189):
Product Overview
Description
Application:
Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
Adjustment,Use,Maintenance
According to the requirements on the SPD installation does not need to be adjusted;
As long as SPD is properly installed on the power grid can be automatic protection;
Operation should regularly check module label is red,the timely replacement of failure element.

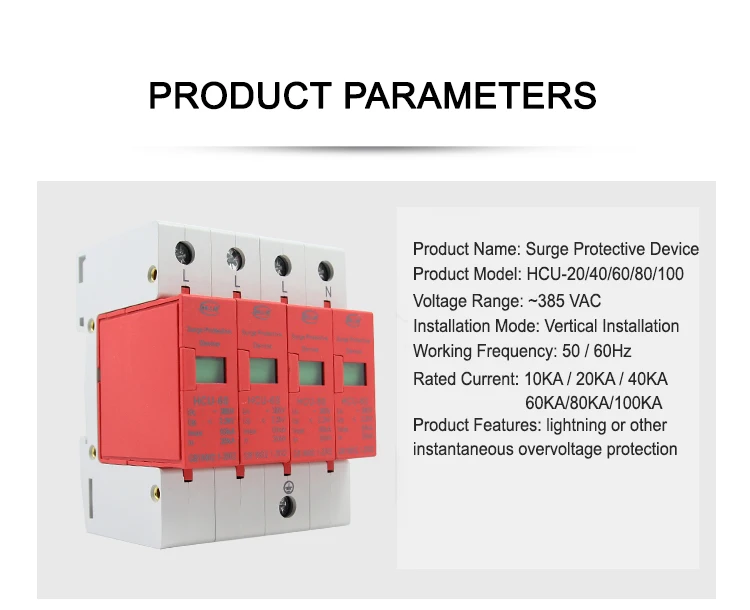

| Model Index | HCU-100 |
| Max.Continuous Operating Voltage (Uc): | ~385VAC |
| Nominal Discharge Current (8/20μs) (In): | 60KA |
| Max. Discharge Current (8/20μs) (Imax.): | 100KA |
| Voltage Protection Level( Up): | ≤2.5KV |
| Response Time: | <25ns |
| Test Level: | II Level |
| Color: | White/With Red |
| Environmental Temperature: | -40℃-+85℃ |

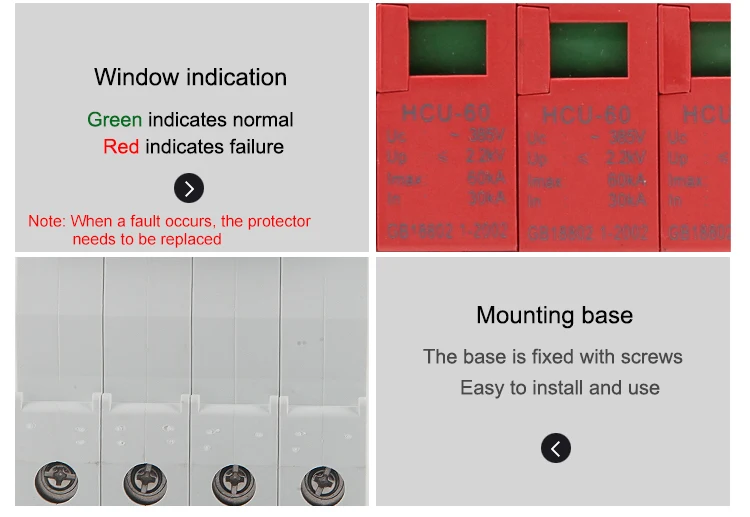

| Indicate Deterioration: | Green(Normal),Red(Malfunction) |
| Protection Mode: | L-PE,N-PE (1P, 2P,3P,3P+N) |
