Product Overview
Description
Product overview and features

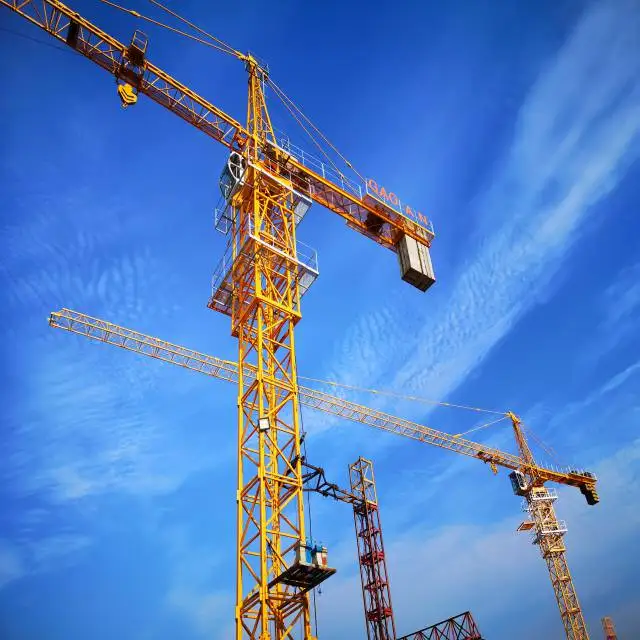

QTZ63(TC5013)-5TONS Pointed tower crane
QTZ63(TC5013)-5TONSTower crane is the latest type of hoisting and transportation machinery designed by our company, which makes full use of group technology, combination design technology and finite element analysis technology, and takes "microcomputer design platform of tower crane" as the tool. This machine is horizontal boom, trolley amplitude, up rotary hydraulic jacking crane. The maximum lifting weight is 5T; Rated lifting moment: up to 630kN·m .
Product specification
Number | Project | Parameter |
1 | Model | QTZ63(TC5013)-5TONS |
2 | Tip load | 1.3 t |
3 | Jib length | 50 m |

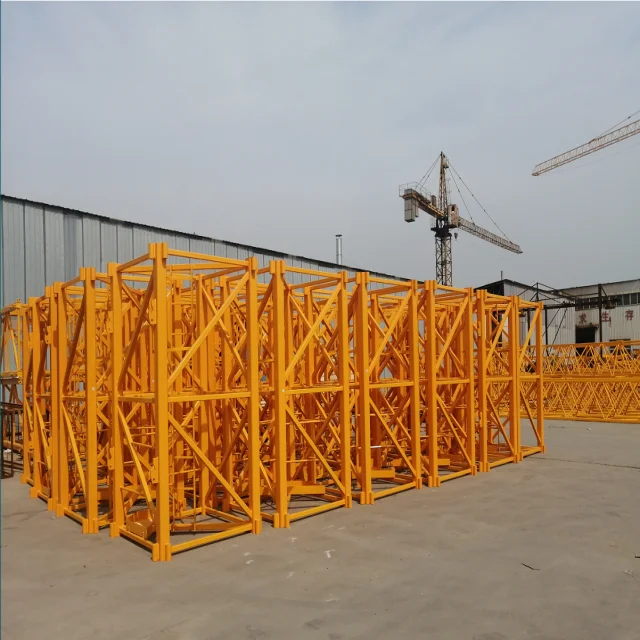

4 | Mast | 160x14 1.6*1.6*2.5m |
5 | Freestanding height | 30m |
6 | Max installation height | 120m |
7 | LIft speed | (a=2) 88/44/8.88 m/min (a=4) 44/22/4 m/min |
8 | Rotary speed | 0.6r/min |
9 | Luffing speed | 0-44 m/min |
10 | Main electric | Schneider |
11 | Total power | 18Kw |
12 | Basis | Pre-embedded leg or # beam or Cross beam |

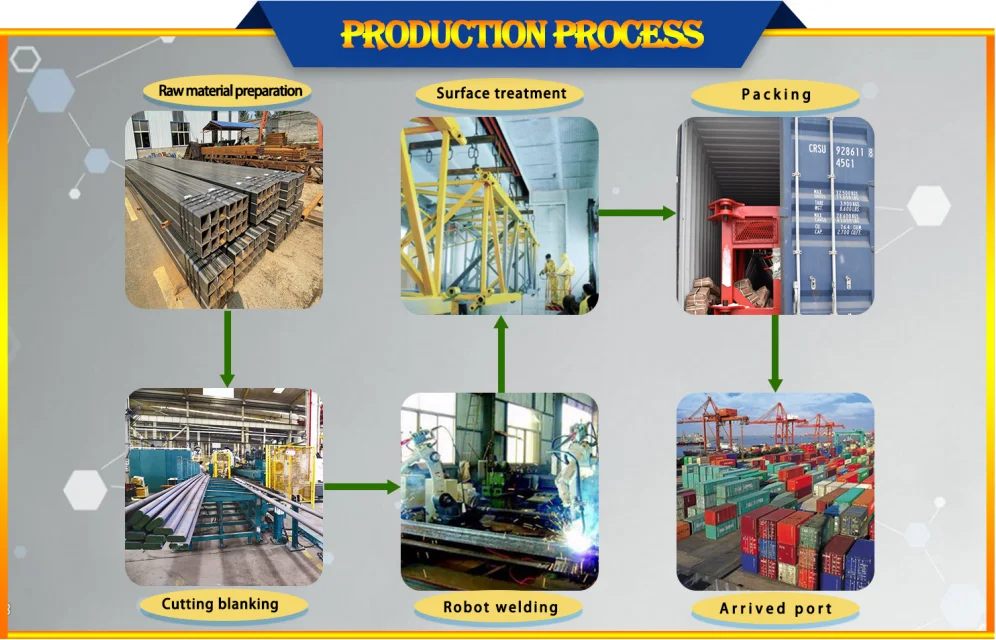

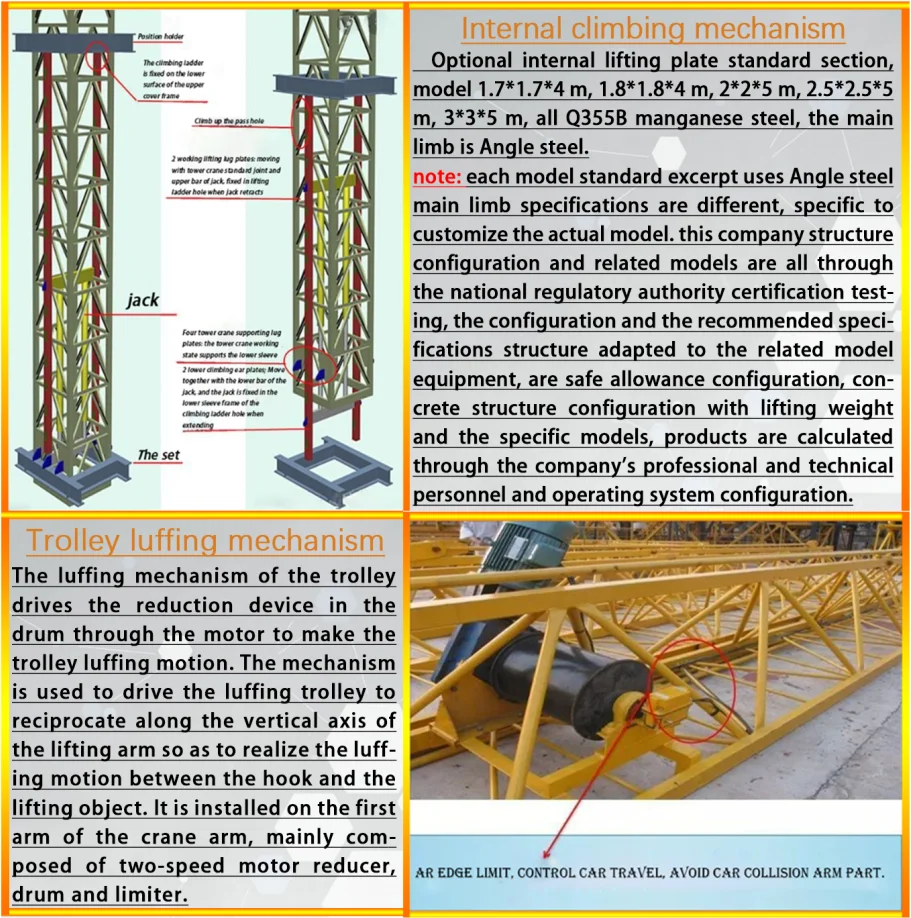

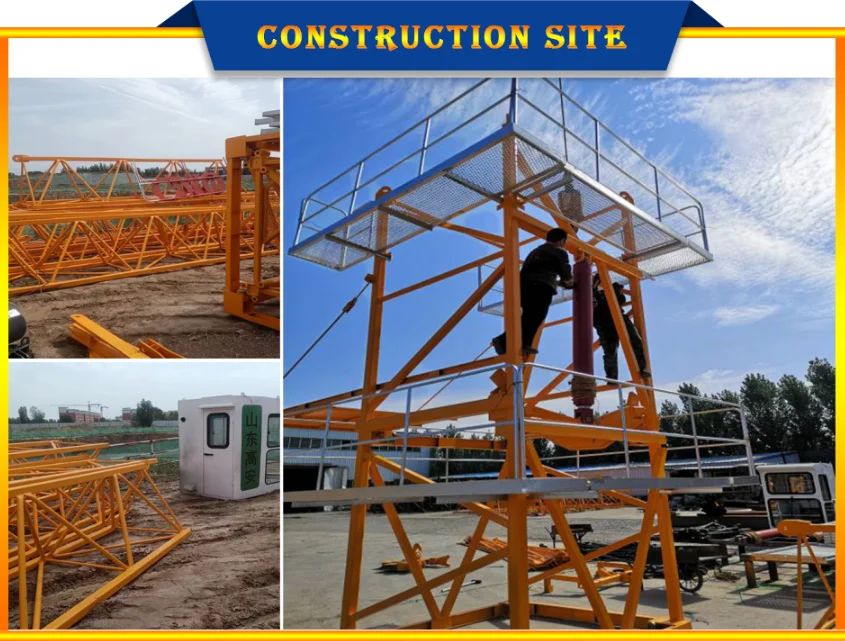

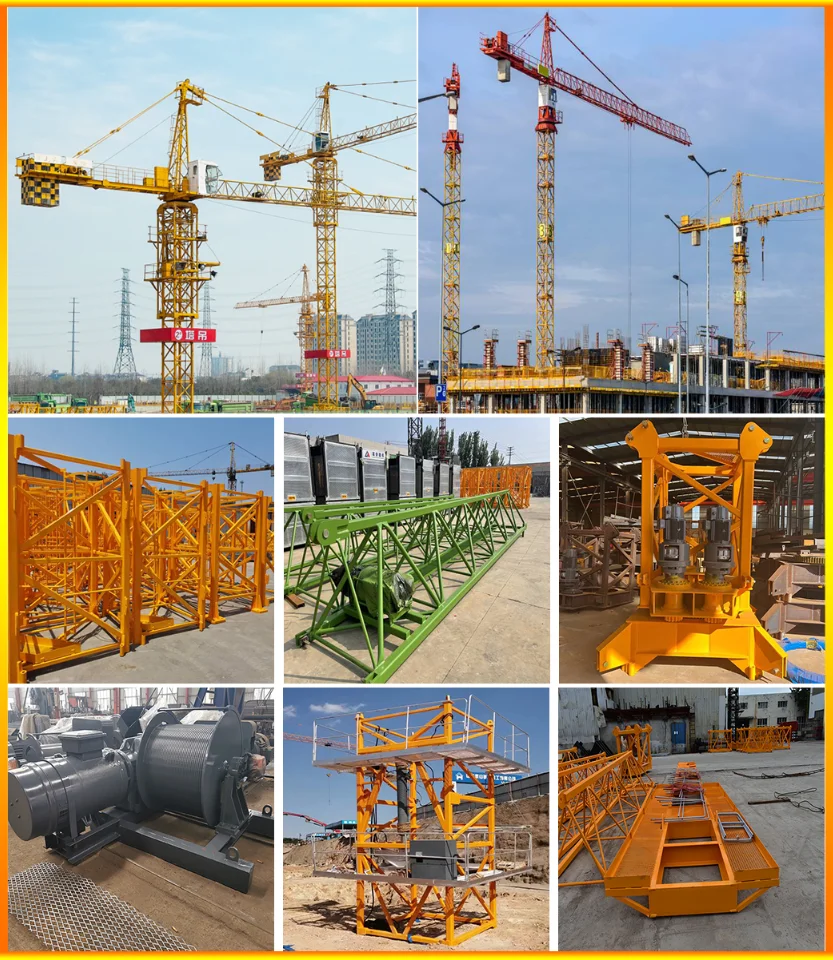

Product configuration process and installation
Institutions Introduction

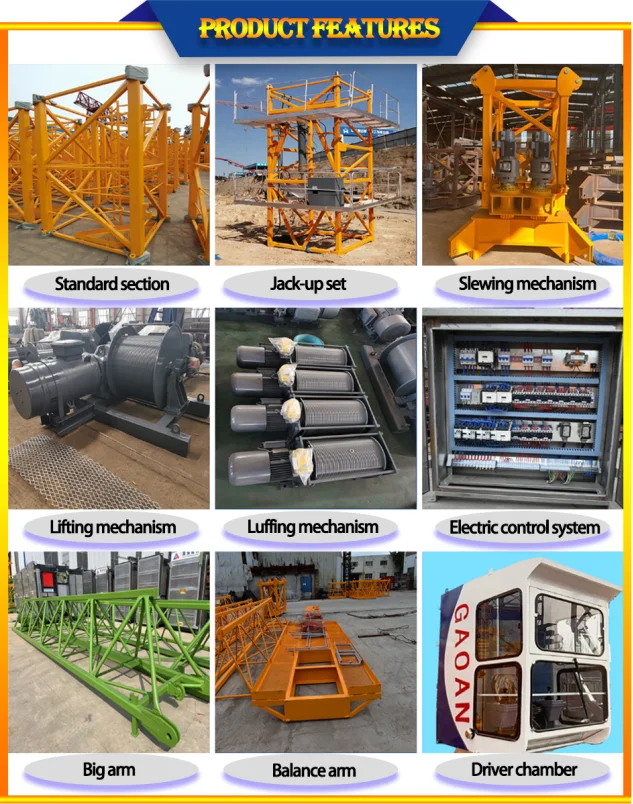

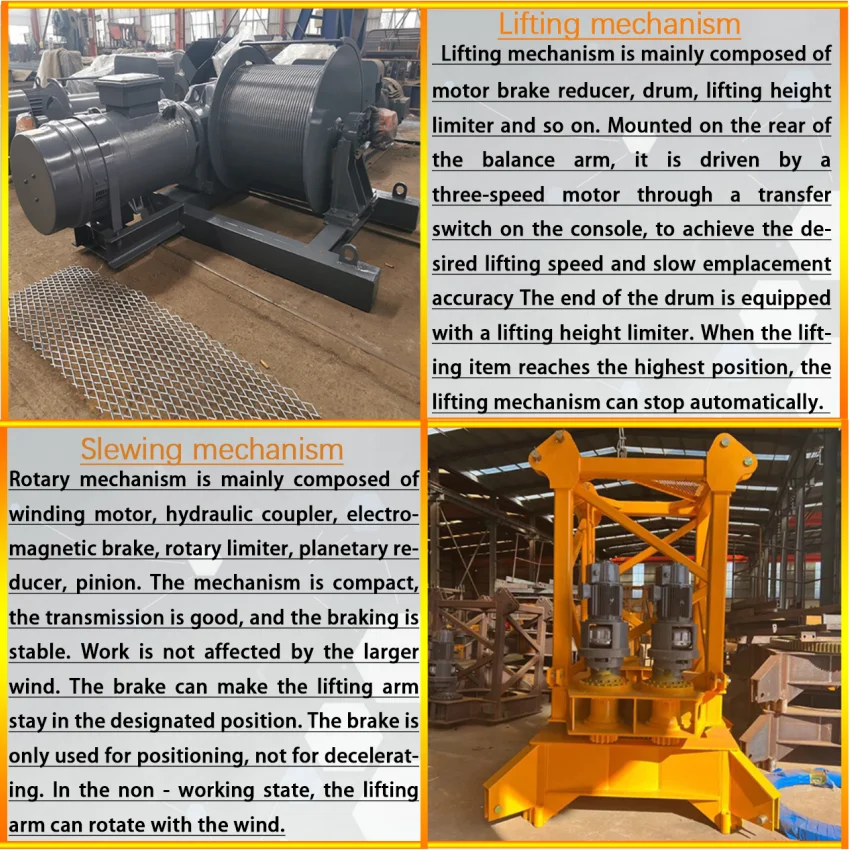

The details show
