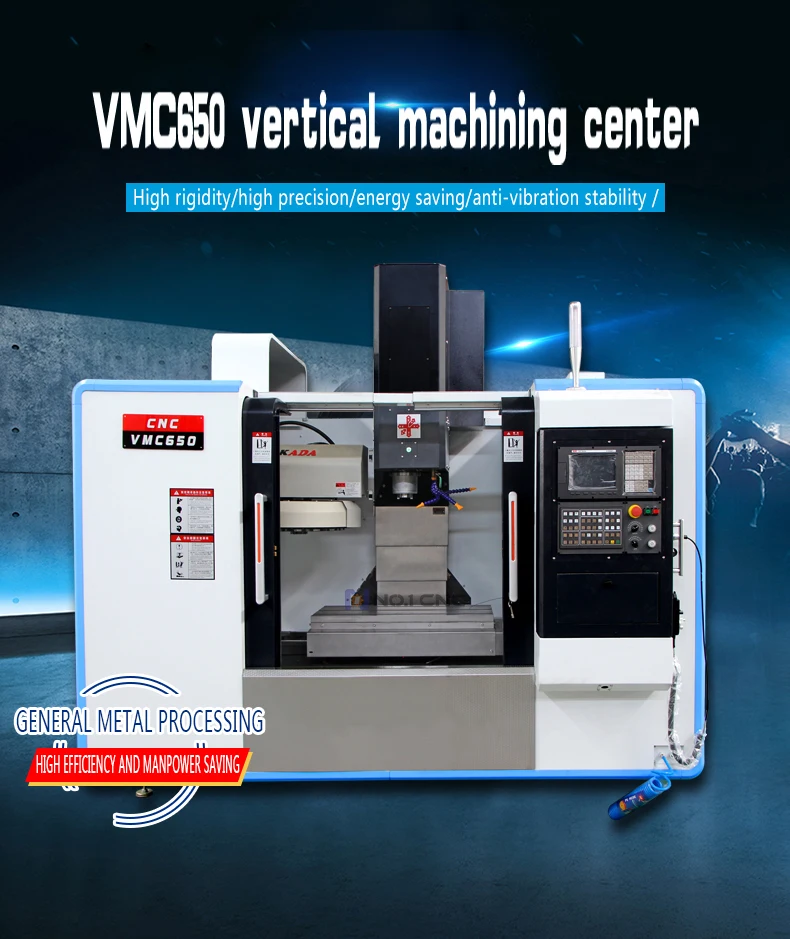

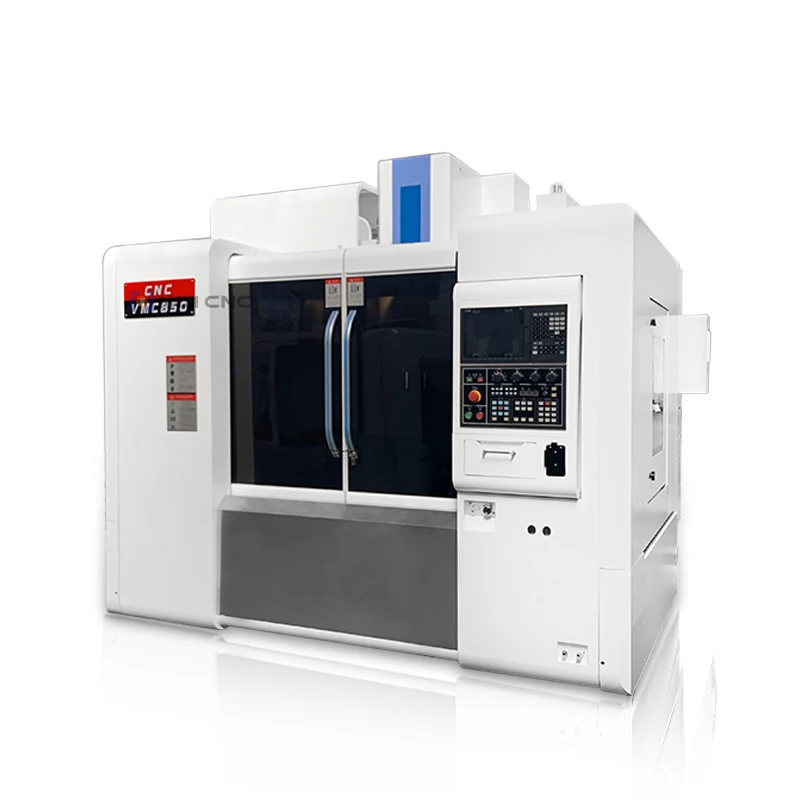

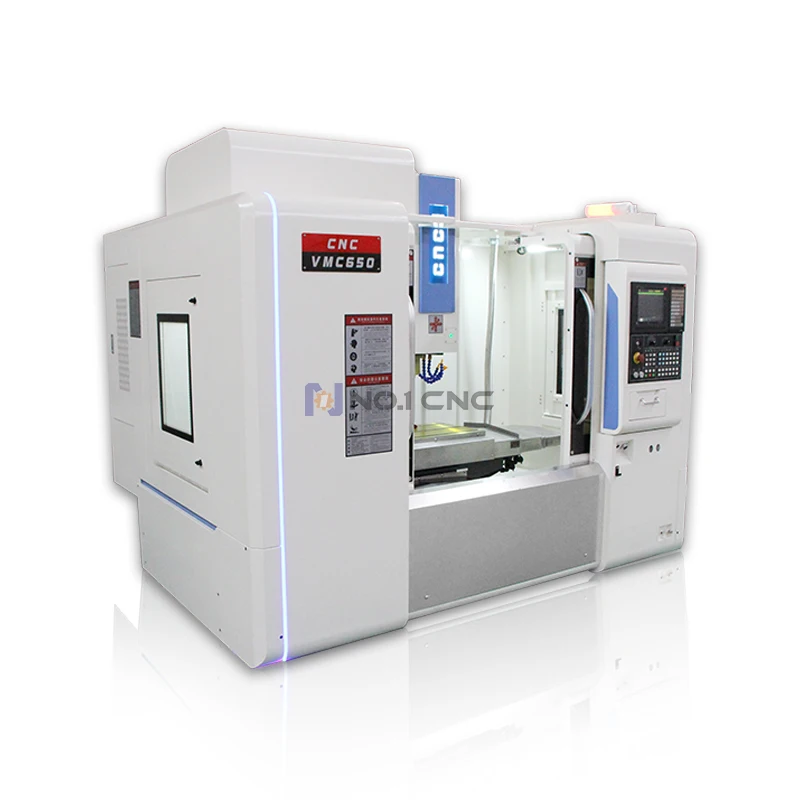

VMC650 Automatic Low Price Small Vmc Machine 3 Axis Cnc Milling Machine Machining Centre
- Category: >>>
- Supplier: Zaozhuang No. 1 Cnc Machine Tool Co. Ltd.
Share on (1600322506124):
Product Overview
Description
Products Description
Vertical machining center features:
1.Taiwan ROYAL spindle unit with 7.5KW servo motor can achieve a rotation speed of 8000r/min. Low speed is for gravity cutting, and high speed is good for precision light cutting.
2. X, Y, Z axis are all use linear guideways, and they are all imported from Germany. The big size of linear guideway can decrease the gap of different guideway, and it can increase precision meantime.
3. It adopts Taiwan PMI precision ball screw, Taiwan YINSH precision locknuts and Japan NSK bearings. It directly connected to flexible coupling, so that it can achieve a high effectiveness and low backlash.
4. It has disc-type tool changer, can load up to 24 tools, and so that it can choose the closest tool and save time.
5. All the transmission shaft pitch is used high-precision laser interferometer to fulfill the adjusting of pitch error and
clearance error, so that the positioning accuracy of each axis is more accurate, and it’s more suitable to produce high -
precision parts.
6. It introduced an automatic quantitative clearance centralized lubrication system to lubricate moving parts such as guideway, ball screw and so on.
1.Taiwan ROYAL spindle unit with 7.5KW servo motor can achieve a rotation speed of 8000r/min. Low speed is for gravity cutting, and high speed is good for precision light cutting.
2. X, Y, Z axis are all use linear guideways, and they are all imported from Germany. The big size of linear guideway can decrease the gap of different guideway, and it can increase precision meantime.
3. It adopts Taiwan PMI precision ball screw, Taiwan YINSH precision locknuts and Japan NSK bearings. It directly connected to flexible coupling, so that it can achieve a high effectiveness and low backlash.
4. It has disc-type tool changer, can load up to 24 tools, and so that it can choose the closest tool and save time.
5. All the transmission shaft pitch is used high-precision laser interferometer to fulfill the adjusting of pitch error and
clearance error, so that the positioning accuracy of each axis is more accurate, and it’s more suitable to produce high -
precision parts.
6. It introduced an automatic quantitative clearance centralized lubrication system to lubricate moving parts such as guideway, ball screw and so on.
Specifications
item | VMC650 |
Condition | New |
Spindle Taper | BT40 |
No. of Spindles | 1 |
Type | VERTICAL |
Dimension(L*W*H) | 2300*2550*2000 |
Weight (T) | 4T |
Table Size (mm) | 900x400 |
CNC Control System | GSK, FANUC, MITSUBISHI, KND, Siemens, machining center |
Number of Axes | 3, 4, 5 |
Table Travel (X) (mm) | 650 |
Table Travel (Y) (mm) | 400 |
Table Travel (Z) (mm) | 500 |
Positioning Accuracy (mm) | ±0.01 |
Repeatability (X/Y/Z) (mm) | ±0.005 |
Range of Spindle Speed(r.p.m) | 0r.p.m - 8000r.p.m |
Spindle Motor Power(kW) | 5.5 |
Max. Table Load(kg) | 400kg |
Feed Speed(mm/min) | 1mm/min - 5000mm/min |
Rapid Feed Speed(m/min) | 24 |
Min. Time of Tool Change(s) | 7 |
Tool Magazine Capacity | 16, machining center |
Key Selling Points | Automatic |
Warranty | 1 Year |
Online support, Video technical support | |
Place of Origin | China |
Brand Name | No.1 machine |
Certification | CE ISO |
Voltage | 380/220 |
Applicable Industries | Machinery Repair Shops, machining center |
After Warranty Service | Video technical support, Online support |
Local Service Location | None, machining center |
Showroom Location | None, machining center |
Marketing Type | New Product 2021 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor |
Machine Type | CNC Vertical Machining Center |
CNC Controller | Fanuc Siemens Syntec KND GSK |
Guideways | Taiwan Linear Guideways |
Spindle | Taiwan 8000 RMP Spindle |
Name | machining center |
Keywords | machining center |
Model | VMC650 |
CNC or Not | CNC |
X/Y/Z Axis Travel | 650*400*500mm |
Tool Changer | ATC 16 Tools Changer |

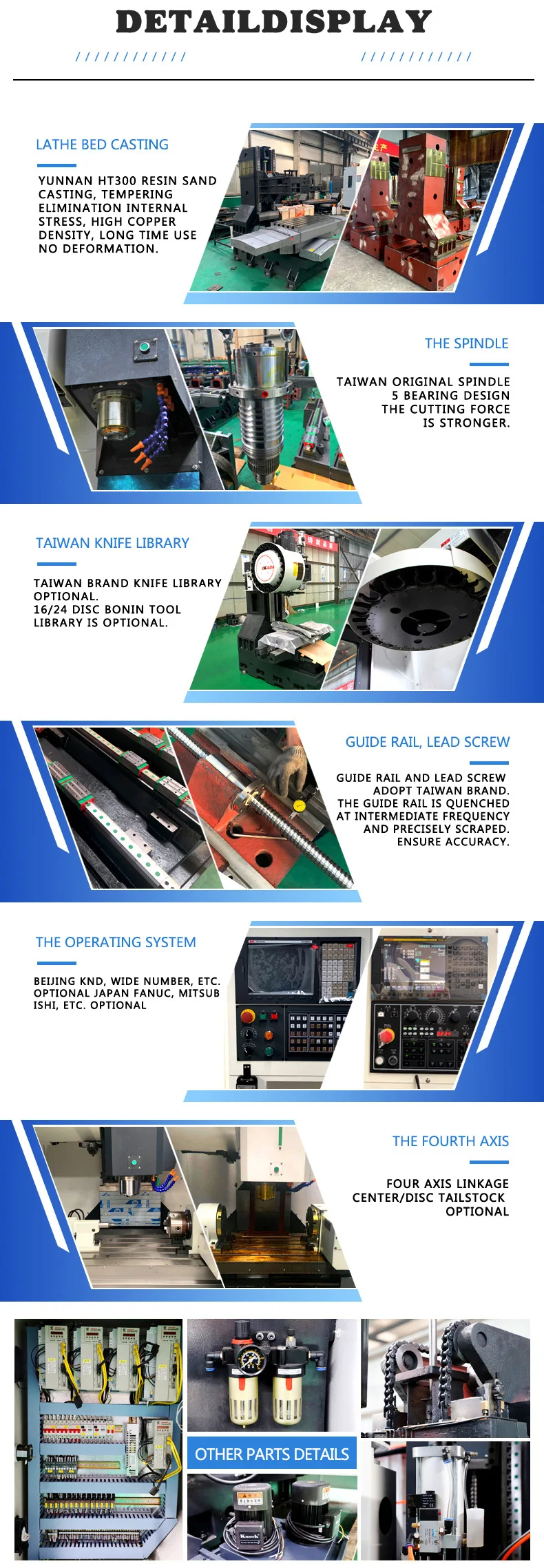

Details Display

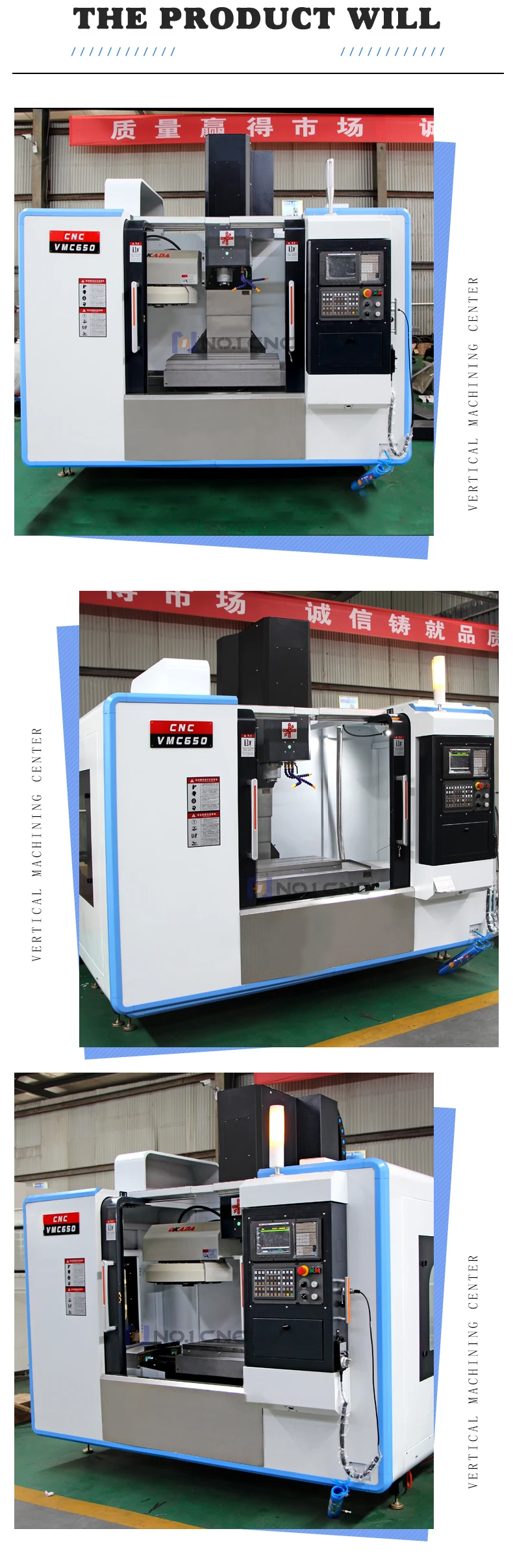

Recommend Products
Company Profile
FAQ
1. Who are we?
We are based in Shandong, China, start from 2016,sell to South Asia(30.00%),Africa(30.00%),Mid East(20.00%),Eastern Asia(20.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
milling machine,CNC milling machine,CNC lathe,lathe machine,drilling machine
4. Why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2016,sell to South Asia(30.00%),Africa(30.00%),Mid East(20.00%),Eastern Asia(20.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
milling machine,CNC milling machine,CNC lathe,lathe machine,drilling machine
4. Why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
