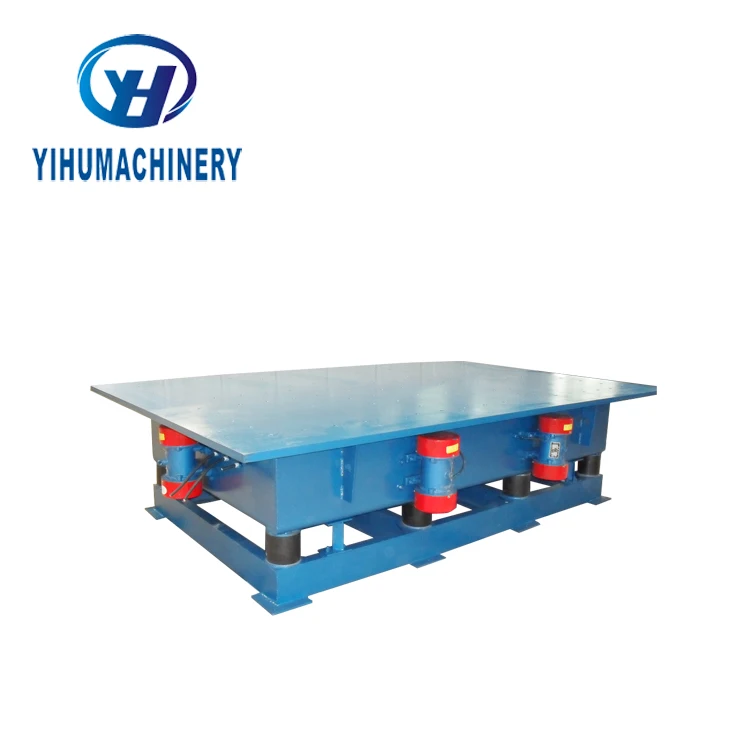

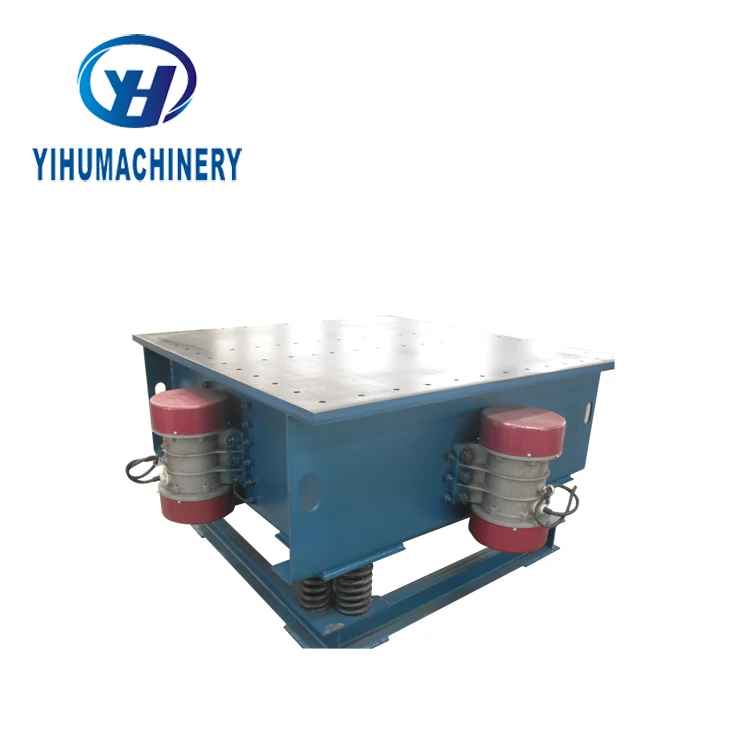

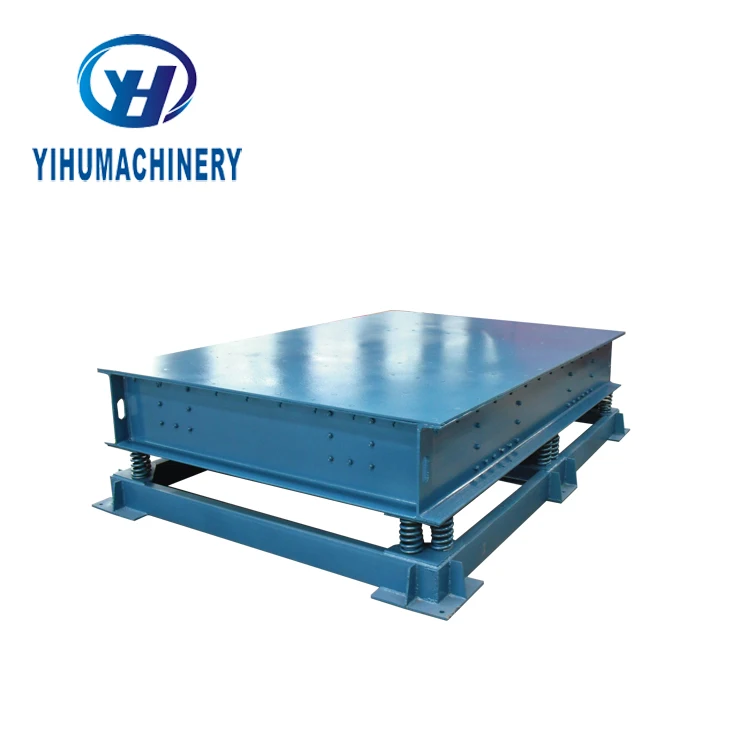

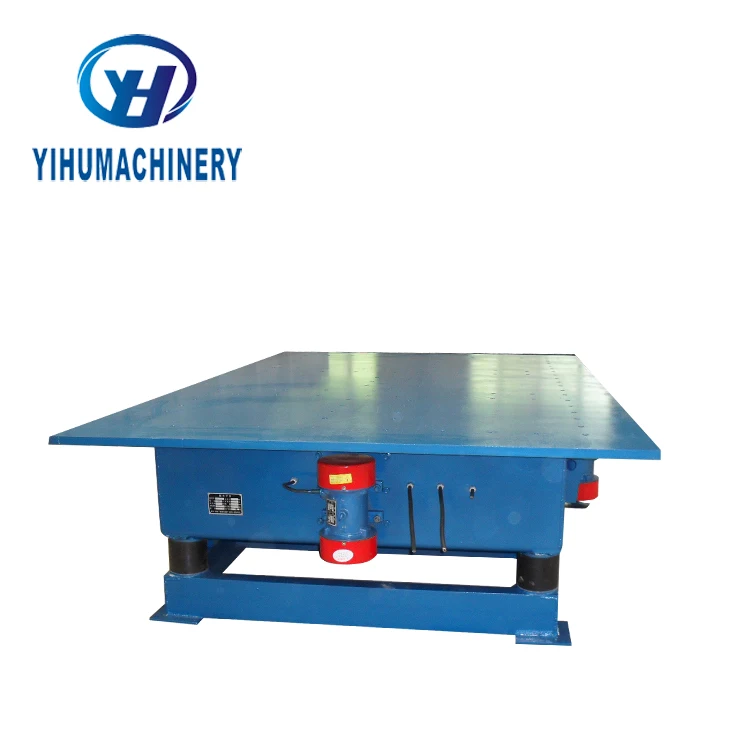

ZDP Series Industrial Separation Concrete Vibration Shaker table
Product Description
ZP series vibrating tableare divided into three types ,two-dimensional vibration automatic control , three-dimensional vibration of self-control , three-dimensional FM shock. It issuitable for precision casting, Pressure molding.And it is a stable machine with low consumption and low noise.Vibration table is used in the production process for Particles, powdery materials from the bulk to the form of a massive shape.
Product Details
Model
Table size
Vibration Quantity
Force(KN)
Power(KW)
YZP-2
500*500
2
5
0.5
YZP-4
800*800
4
20
1.6
YZP-6-Ⅰ
1000*1000
6
30
2.4
YZP-6-Ⅱ
1200*1200
6
30
2.4
YZP-8-Ⅰ
1600*1200
8
40
3.2
YZP-8-Ⅱ
1600*1400
10
40
3.2
YZP-10-Ⅰ
2000*1600
10
50
4
YZP-10-Ⅱ
2000*1800
10
60
6
YZP-12-Ⅰ
3000*2000
12
80
7.5
YZP-12-Ⅱ
4000*3000
12
80
7.5
Click here!!! Choose the suitable machine for you.
Quality is our life!!! Click here, to know about this machine!!
Application scenario
Features
1. Vibration generator is the excitation source with low noise, low power consumption and simple maintenance. 2. Simple structure, reliable operation, light weight, small volume, easy installation. 3. Table height adjustable, suitable for use on assembly line. 4. 3d vibration is suitable for complex cavity casting. 5. Stepless speed change, in the modeling process, without damage model, can obtain the best compaction effect. 6. Self-locking function ensures accurate positioning of the production line.
