Product Overview

Description

       Buntons Assemblies                     Guide Assemblies                    Concrete Bucket
Demension & Technical specifications



Design & Engineering Capacity

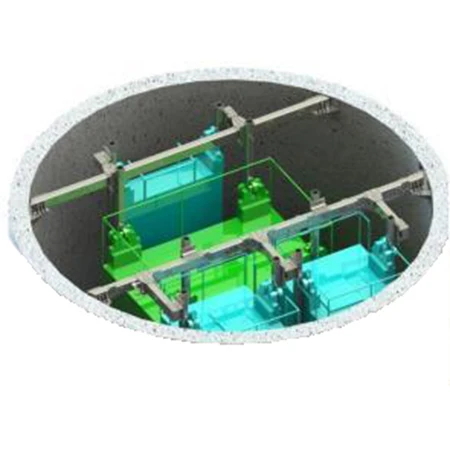

Candid offers 3D modeling design to fit every application.
Based on the experienced engineering & design teams, Candid is dedicated to customized design that
fulfils customers' demands on the shaft steelwork.

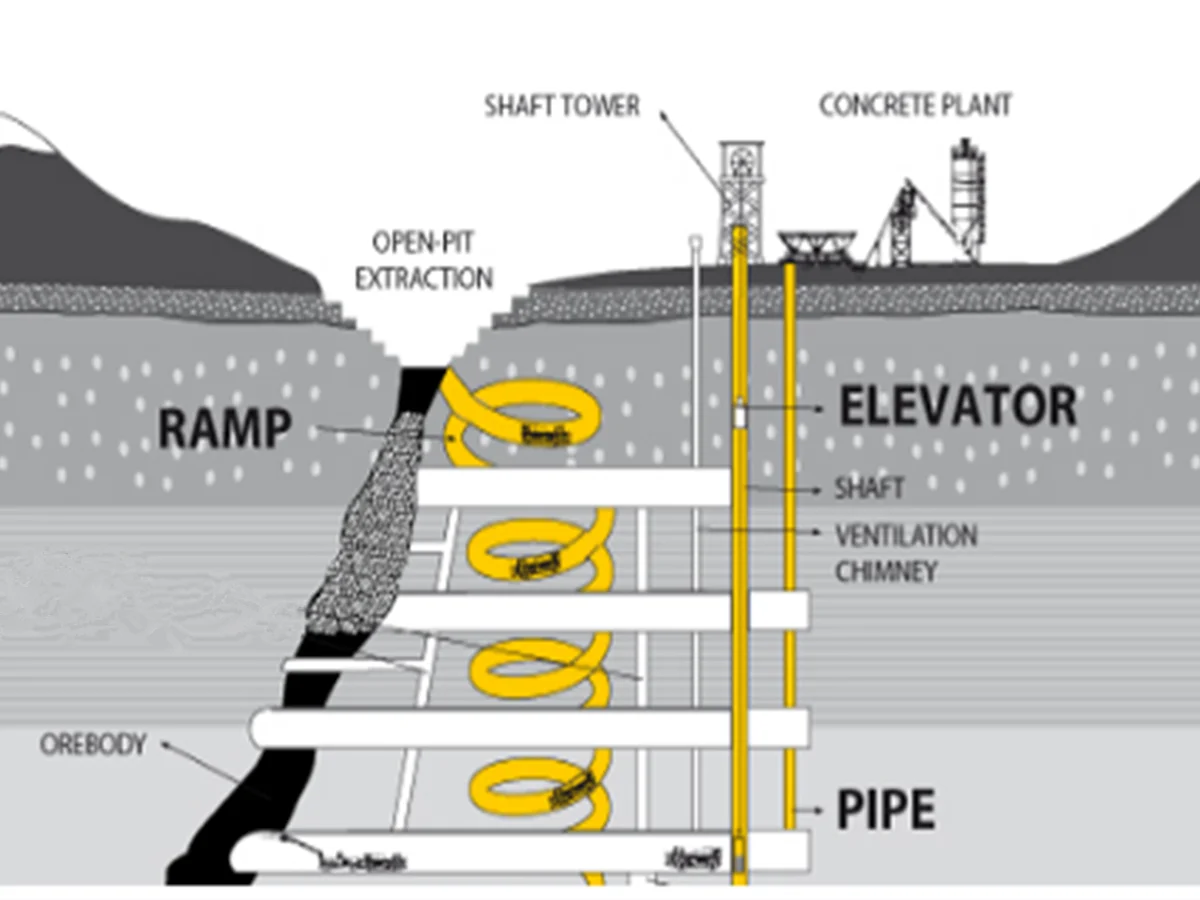

Shaft is the an essential part of the support and supply system for the work flow underground.Ventilation doors wll guide an adequate supply of men and material.


    Guides & Buntons        Concrete Bucket       Sinking Buckets & Baskets          Galloway

When it comes to the Guides & Buntons,all juctions are assembled by a large number of huck bolts which can ensure the stability of the shaft walls. Whether concreting from the buttom up or the top down, it can be an important part of your time and cost cutting  operation.

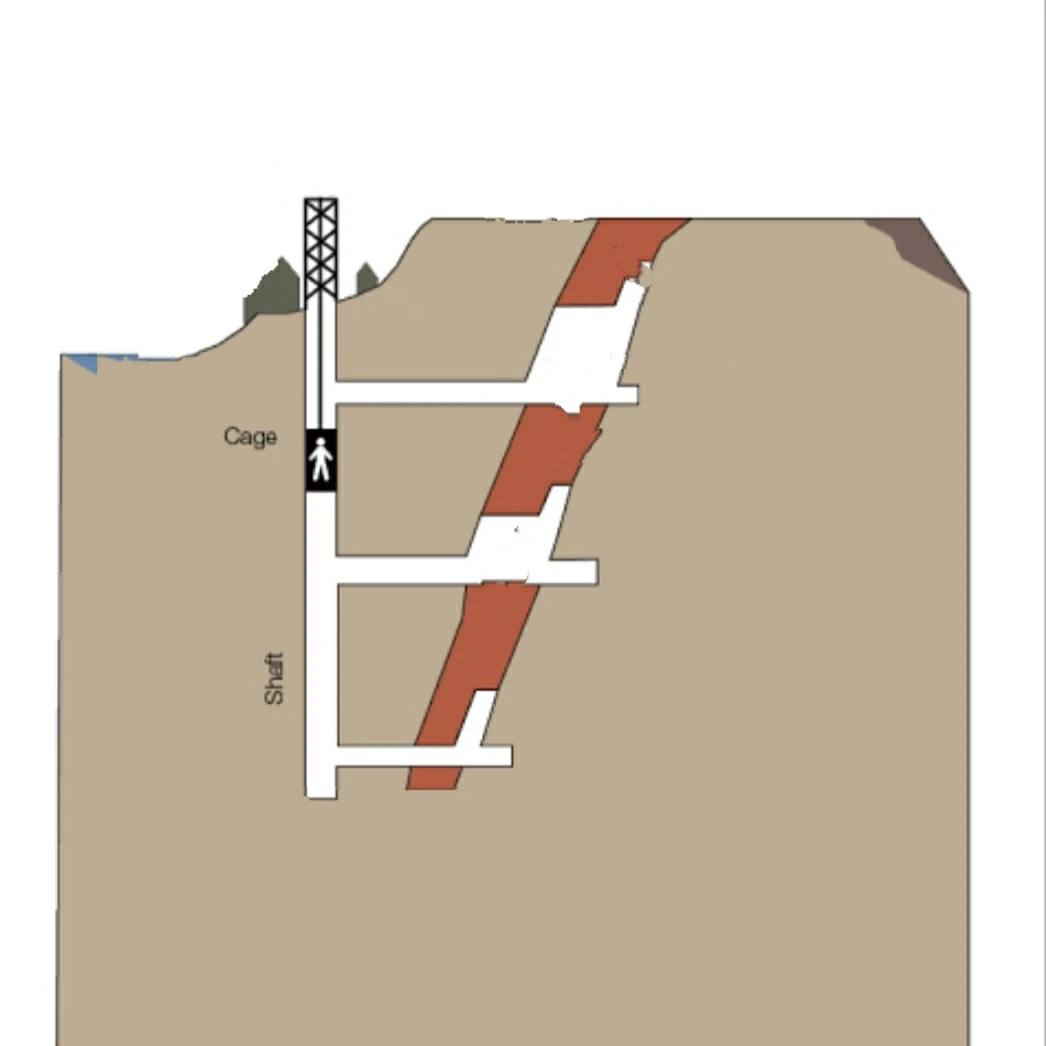

As for  the Galloway that is used to dig the shaft of the mine. It's like a giant elevator that can carry the equipment and the men.


Shop Fabrication & Assembly

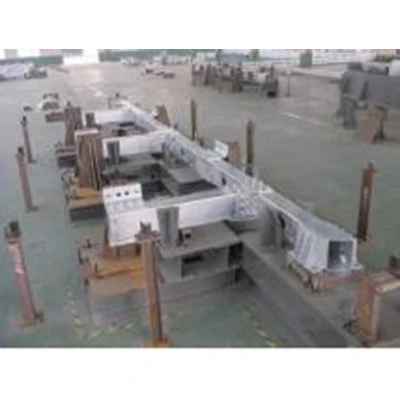

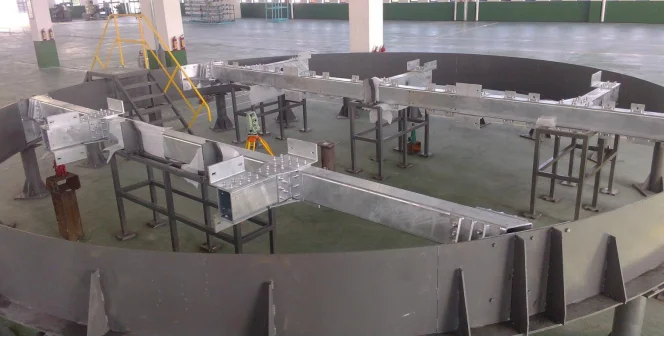

Candid's shaft steelwork is fabricated, pre-assembled and tested in the workshops, which can optimize the fabrication processes, improve the product quality and highly reduces the site construction workload and schedule.


Project Execution:

Project Planning & Scheduling                   Document Control
Sourcing, Procurement                               Field Installation & Commissioning Supervision
Fabrication, Expediting, Inspection             Performance Evaluation


Guarantee and after-service:
1. Guarantee time:one year since machine was at buyer's factory within 24 months against B/L date.
2. We can send our best technician to buyer's factory for installation, debugging and training.
3. Complete installation instructions, circuit diagram, manual operations and machine layout.

Performance:
