Product Overview
Description
Product Description
SINOHERO SE1200 Medical Portable Digital ECG Machine For Hospital 12 channel Electrocardiograph ekg monitor
●Performance :
Display
12.1〞 Color TFT high-resolution folding up touch-screen
Resolution:800×600 pixels or higher
Lead: Standard 12 leads
Power supply
DC and AC power supply
Safety class: Category I, CF type
Battery
Type: Rechargeable Lithium battery
Operating time under the normal use and full charge:≧120minute
Filter
AC Filter: 50Hz/60Hz/Close
EMC Filter: 25Hz/35Hz/45Hz/Close
Drift Filter: 0.05Hz/0.15Hz/0.25Hz/0.50Hz
Lower pass Filter: 70Hz/100Hz/150Hz
Calibration Voltage: 1mV ± 1%
Noise Level: < 15µ Vp-p
Frequency Response: 0.05Hz-150Hz
Time Constant: ≥5s
Input Impedance: 50MΩ
Input Circuit Current: < 50nA
Tolerance Voltage: ±650mV
CMRR: ≥105dB
Anti-Baseline Drift: Automatic
Memory
300 ECGs, Built in 2G SD card to support over 10000 ECG records
Digital filter Mode
Gain
2.5mm/mV、5mm/mV、10mm/mV、AGC(automatic)、20mm/mV、
10/5mm/mV(classification, front means lead gain, behind means chest lead gain) 20/10mm/mV(classification, front means lead gain, behind means chest lead gain)
Accuracy ±2%.
External Input/Output: Input ≥100 KΩ sensitivity 10mm/V ±5%
Output: ≤100Ω, Sensitivity 1V/mV ±5%
Communication Interface: Ethernet, RS232, USB
Recording System
210mm, 216mm width thermal printer papers
USB socket to connect external Printer. Support A4 paper printing
Printer brands: LJ2250N, HP P2015D、HP P2055D
Rhythm lead: single channel and three channels selectable. 12 leads selection for each channel
Recording Mode: Auto/Manual/Rhythm
Recording Format: 12×1+T , 12x1,3x4, 6x2,
3×4+1R、3×4+3R、6×2+1R (R: rhythm lead)
Average Template: 4×3+1R, 6×2+1R recording
Record speed: 5mm/s, 10mm/s, 12.5mm/s, 25mm/s,, 50mm/s
Record Paper:
Roller and Z-fold
Roller paper: 210mm, 216mm
z-fold paper: 210mm x 295mm, 210 x 140mm or 216mm x 295mm,
216mm x 140mm

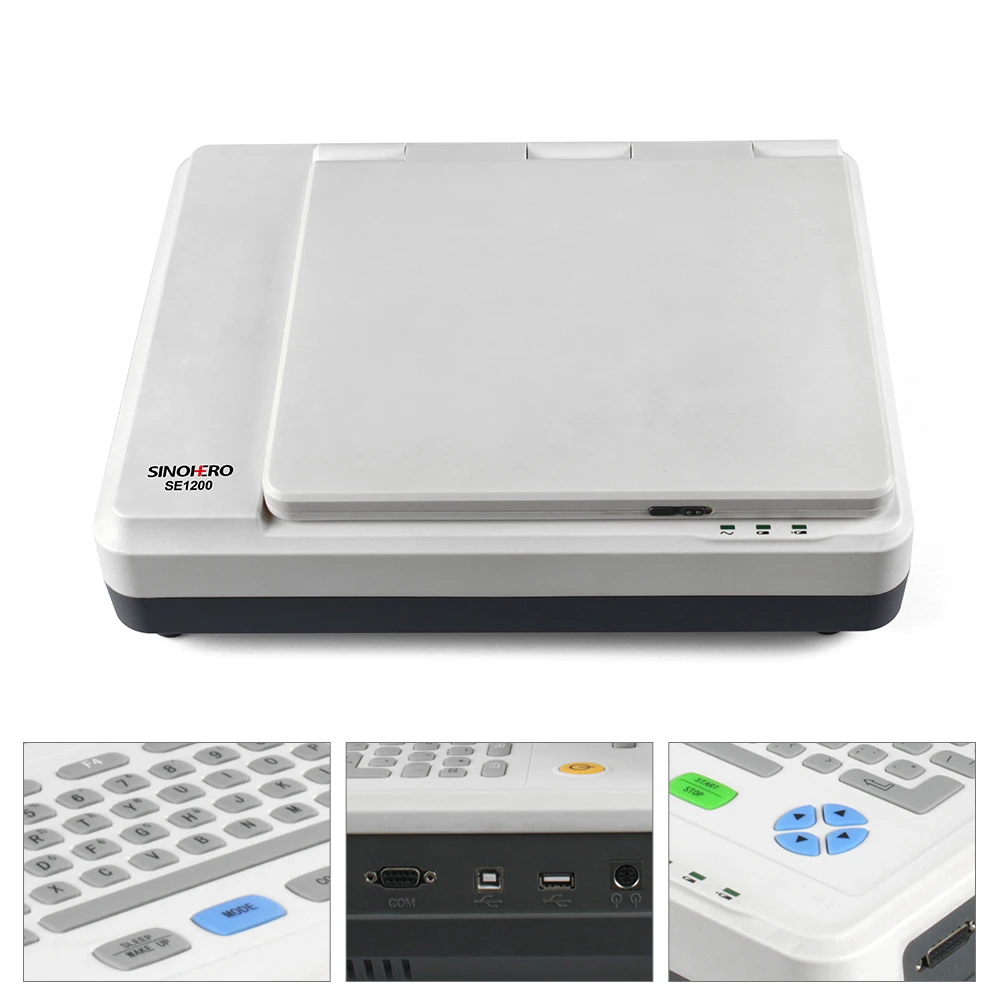

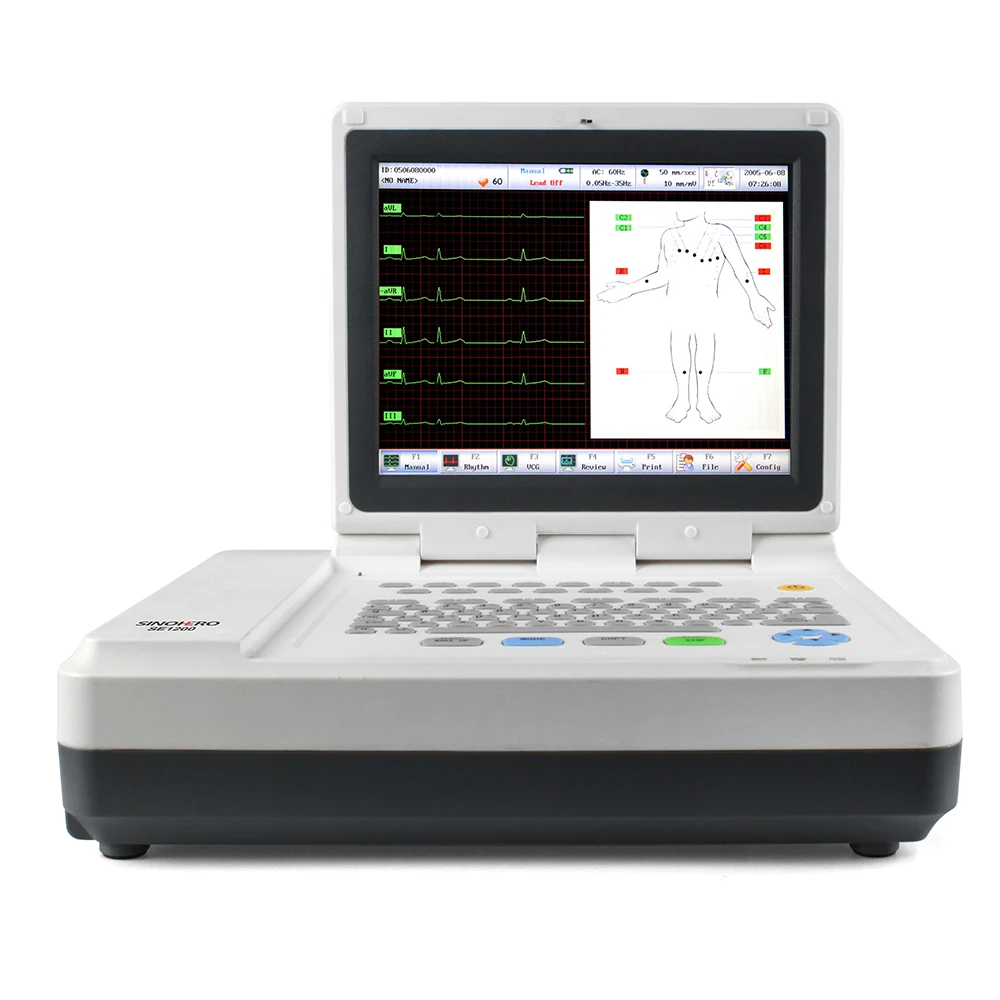

The SE1200 is Multifunctional design equipped with a 12.1-inch folding true-color LCD screen, allowing you to view from multiple angles. The touch screen allows you to easily control and input information. Multi-language option, compatible with paper of various sizes Information solutions for paperless reporting and remote diagnosis.
Application：Electrocardiograph Measure ECG Recorder
Application：Electrocardiograph Measure ECG Recorder.
●Features:
Hand writing support
ECG Waveforms and auto-diagnosis results preview and editing before printing
Support ECG work station. PC software can real display ECG waveform
Support PACS system. Doctor can view ECG waveform and diagnosis
report from system directly.
USB flash disk for data record and recover
Recording Calibration system
Anti-defibrillation and Pacemaker detection
Auto measurement and auto diagnosis function
12-lead simultaneous acquisition, amplification and recording
1:1 Ratio for LCD screen waveforms and output waveform
net-grid on screen and record paper are the same
Last 120 seconds 12-leads waveforms reviewable and recordable
Alphanumeric keyboard, individual capital and numeral key. (optional for touch screen input)
Sleep/Wake Up. Mode for saving energy and extending LCD life
Support upgrading programming on line per U dish, the brand supported including Kingston, PNY, ADATA, Apace
Automatic measurement and interpretation tested Verified channel formats:
3×4、3×4+1R、3×4+3R、6×2、6×2+1R、12×1、12×1+T
122 kinds of arrhythmia analysis
Manual/Auto/ Rhythm working modes selectable
Lead statue map to show ECG leads conductivity
Three kinds of recording modes: Record and not printout, record and
printout, no record only printout
Sketch of displaying and closing ECG leads. Indication of leads off
Using unique high-precision digital filter to eliminate baseline drift and other disturbances, avoid ECG waveform distortion and greatly enhance the anti-baseline drift capability to facilitate waveform detection
Long-distance data transferred through network socket
Multi-language support. Chinese, English, Spanish, Polish, Italian, Turkish
Application：Electrocardiograph Measure ECG Recorder
Application：Electrocardiograph Measure ECG Recorder.
●Features:
Hand writing support
ECG Waveforms and auto-diagnosis results preview and editing before printing
Support ECG work station. PC software can real display ECG waveform
Support PACS system. Doctor can view ECG waveform and diagnosis
report from system directly.
USB flash disk for data record and recover
Recording Calibration system
Anti-defibrillation and Pacemaker detection
Auto measurement and auto diagnosis function
12-lead simultaneous acquisition, amplification and recording
1:1 Ratio for LCD screen waveforms and output waveform
net-grid on screen and record paper are the same
Last 120 seconds 12-leads waveforms reviewable and recordable
Alphanumeric keyboard, individual capital and numeral key. (optional for touch screen input)
Sleep/Wake Up. Mode for saving energy and extending LCD life
Support upgrading programming on line per U dish, the brand supported including Kingston, PNY, ADATA, Apace
Automatic measurement and interpretation tested Verified channel formats:
3×4、3×4+1R、3×4+3R、6×2、6×2+1R、12×1、12×1+T
122 kinds of arrhythmia analysis
Manual/Auto/ Rhythm working modes selectable
Lead statue map to show ECG leads conductivity
Three kinds of recording modes: Record and not printout, record and
printout, no record only printout
Sketch of displaying and closing ECG leads. Indication of leads off
Using unique high-precision digital filter to eliminate baseline drift and other disturbances, avoid ECG waveform distortion and greatly enhance the anti-baseline drift capability to facilitate waveform detection
Long-distance data transferred through network socket
Multi-language support. Chinese, English, Spanish, Polish, Italian, Turkish
●Performance :
Display
12.1〞 Color TFT high-resolution folding up touch-screen
Resolution:800×600 pixels or higher
Lead: Standard 12 leads
Power supply
DC and AC power supply
Safety class: Category I, CF type
Battery
Type: Rechargeable Lithium battery
Operating time under the normal use and full charge:≧120minute
Filter
AC Filter: 50Hz/60Hz/Close
EMC Filter: 25Hz/35Hz/45Hz/Close
Drift Filter: 0.05Hz/0.15Hz/0.25Hz/0.50Hz
Lower pass Filter: 70Hz/100Hz/150Hz
Calibration Voltage: 1mV ± 1%
Noise Level: < 15µ Vp-p
Frequency Response: 0.05Hz-150Hz
Time Constant: ≥5s
Input Impedance: 50MΩ
Input Circuit Current: < 50nA
Tolerance Voltage: ±650mV
CMRR: ≥105dB
Anti-Baseline Drift: Automatic
Memory
300 ECGs, Built in 2G SD card to support over 10000 ECG records
Digital filter Mode
Gain
2.5mm/mV、5mm/mV、10mm/mV、AGC(automatic)、20mm/mV、
10/5mm/mV(classification, front means lead gain, behind means chest lead gain) 20/10mm/mV(classification, front means lead gain, behind means chest lead gain)
Accuracy ±2%.
External Input/Output: Input ≥100 KΩ sensitivity 10mm/V ±5%
Output: ≤100Ω, Sensitivity 1V/mV ±5%
Communication Interface: Ethernet, RS232, USB
Recording System
210mm, 216mm width thermal printer papers
USB socket to connect external Printer. Support A4 paper printing
Printer brands: LJ2250N, HP P2015D、HP P2055D
Rhythm lead: single channel and three channels selectable. 12 leads selection for each channel
Recording Mode: Auto/Manual/Rhythm
Recording Format: 12×1+T , 12x1,3x4, 6x2,
3×4+1R、3×4+3R、6×2+1R (R: rhythm lead)
Average Template: 4×3+1R, 6×2+1R recording
Record speed: 5mm/s, 10mm/s, 12.5mm/s, 25mm/s,, 50mm/s
Record Paper:
Roller and Z-fold
Roller paper: 210mm, 216mm
z-fold paper: 210mm x 295mm, 210 x 140mm or 216mm x 295mm,
216mm x 140mm
● Physical characteristic:
Working environment
Environmental: Operating: Temperature: 5℃～40℃
Relative humidity: 25%～93%
Atmospheric pressure: 700hPa～1060hPa
Transportation and storage: Temperature: -20℃～+55℃
Relative humidity: 25%～95%
Atmospheric pressure: 500hPa～1060 hPa
Product size: 41×31.6×11.8cm
Packing size: 57x45x29cm
Net weight: 5kg
Gross weight:10kg
Working environment
Environmental: Operating: Temperature: 5℃～40℃
Relative humidity: 25%～93%
Atmospheric pressure: 700hPa～1060hPa
Transportation and storage: Temperature: -20℃～+55℃
Relative humidity: 25%～95%
Atmospheric pressure: 500hPa～1060 hPa
Product size: 41×31.6×11.8cm
Packing size: 57x45x29cm
Net weight: 5kg
Gross weight:10kg
Recommend Products
ECG SE508
3-Channel ECG Machine
Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
ECG SE1208
12-Channel Electrocardiograph
* Splendid 10” color TFT with Alpha-numeric keyboard
*Simultaneous 12 leads of ECG printing(Roll or Z-fold)
*Multiple USB port for connecting PC-ECG software and external printer
* Excellent ECG auto-interpretation program and Pacemaker detection
* Reliable and fas Network Connectivity and data transmission
* Splendid 10” color TFT with Alpha-numeric keyboard
*Simultaneous 12 leads of ECG printing(Roll or Z-fold)
*Multiple USB port for connecting PC-ECG software and external printer
* Excellent ECG auto-interpretation program and Pacemaker detection
* Reliable and fas Network Connectivity and data transmission
ECG SE509
3-Channel ECG Machine
* 4.3” Vivid color Full Touch Screen
* 12 Leads ECG simultaneous acquisition and display
* Innovative digital
filters&anti-noise technology
* Built-in high resolution thermal printer with various 3-channel report printing
* Both SD and USB memory enlarge available
Packing & Delivery

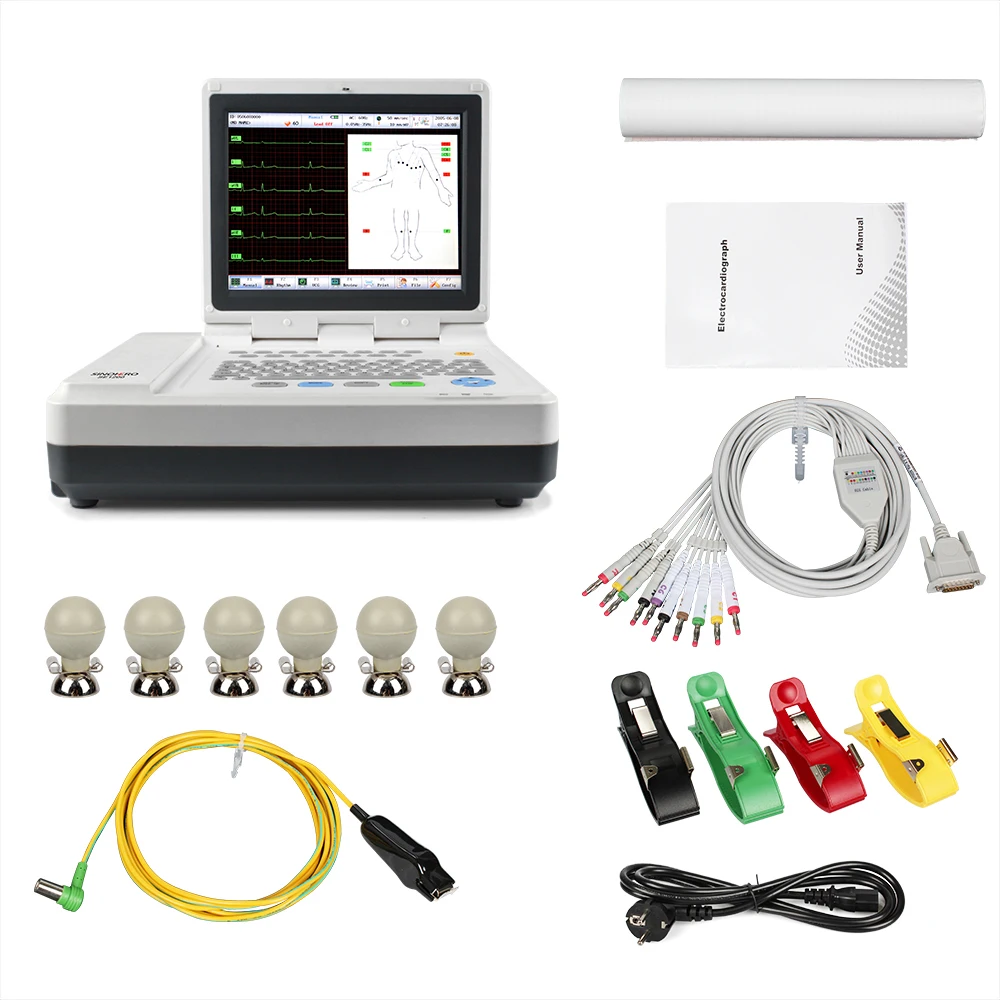

Standard Accessories:
1 ECG machine
1 Patient Cable
4 Limb Electrodes
6 Chest Electrodes
1 Power Cable
1 Paper Roller
1 roll Recording Paper
1 Built-in Battery
1 User's Manual
1 ECG machine
1 Patient Cable
4 Limb Electrodes
6 Chest Electrodes
1 Power Cable
1 Paper Roller
1 roll Recording Paper
1 Built-in Battery
1 User's Manual
Optional:
PC Work Station Package (Installation CD,Internet Cable)
Five-Stand
Trolley etc...
PC Work Station Package (Installation CD,Internet Cable)
Five-Stand
Trolley etc...
Company Profile
Certifications
Exhibition
FAQ
1. Who we are?Where we are from? Where we service?
We are Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical
devices and medical accessories in China. We are based in Shenzhen,Guangdong, China, start from 2004, WE service more than 100
country： Northern Europe(10.00%),Western Europe(10.00%),EasternAsia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast
Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total
about 11-50 people in our office.
devices and medical accessories in China. We are based in Shenzhen,Guangdong, China, start from 2004, WE service more than 100
country： Northern Europe(10.00%),Western Europe(10.00%),EasternAsia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast
Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total
about 11-50 people in our office.
2.What we have?How can we guarantee quality?
We are professional in medical more than 16 Years,We have TUV CE a& ISO13485 Certifications for our products. All of our items
Always a pre-production sample before mass production; All items get 100% checking before in our stock; Always final Inspection
before shipment.
Always a pre-production sample before mass production; All items get 100% checking before in our stock; Always final Inspection
before shipment.
3.What items we could provide for you?
SINO-HERO business activities focus on product lines below: 1) A wide range of versatile Patient Monitors suitable for all
hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all
major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG
cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5)
Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7)
A wide range of compatible ultrasound probes and repairable ultrasound probes.
hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all
major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG
cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5)
Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7)
A wide range of compatible ultrasound probes and repairable ultrasound probes.
4. Why should you buy from us not from other suppliers?
SINHERO’s products are installed in over 50 countries, including US, UK, Germany, France, Italy, Spain, etc. and the percentage of
total sales from Europe has been growing fast.
The main competitive advantages of SINOHERO’s products:
a. quality
b. functionality
c. easy maintenance and easy to operate
d. spare parts and consumables at low cost
e. on-time delivery
f. strong after sales technical support
total sales from Europe has been growing fast.
The main competitive advantages of SINOHERO’s products:
a. quality
b. functionality
c. easy maintenance and easy to operate
d. spare parts and consumables at low cost
e. on-time delivery
f. strong after sales technical support
5. What services we Can provide for you?
We could provide items with Ready to ship,we also could do OEM,ODM orders,we also welcome you to be our Brand Sinohero Agent to
work together with us;
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian
work together with us;
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian
Contect us
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
