2021 Hot Sale Left Handed Rebar Bolt Full Thread Steel Anchor Bolt/Anchor Rod Manufacturer
- Category: >>>
- Supplier: Anto Mining Equipment Co. ltd.
Share on (1600322710286):
Product Overview
Description
Products Description
Left-handed full-thread bolts are mainly used in mines where rock formations such as coal mines are not hard enough. bolts are generally used together with anchoring agents to achieve end anchoring or full anchoring in mines.ANTO left-handed full-thread bolt is made of high-strength HRB500 or HRB600, which can provide high load-bearing capacity to protect mine safety.
The one-way left-handed rebar bolt without longitudinal reinforcement can be used in all kinds of mines and underground projects,and is especially suitable for the support of coal tunnels with wire mesh. It has achieved good technical and economic effects. The structural features of the anchor rod: the full length of the body has a rolled continuous thread, and the full length is of equal strength; the fastening end is provided with a prestressed gasket and a ball nut. It is superior to the bolt processed by round steel, and is a new type of bolt with material saving, labor saving and equal strength.
---Detail Images---
Full Thread Steel Pipes

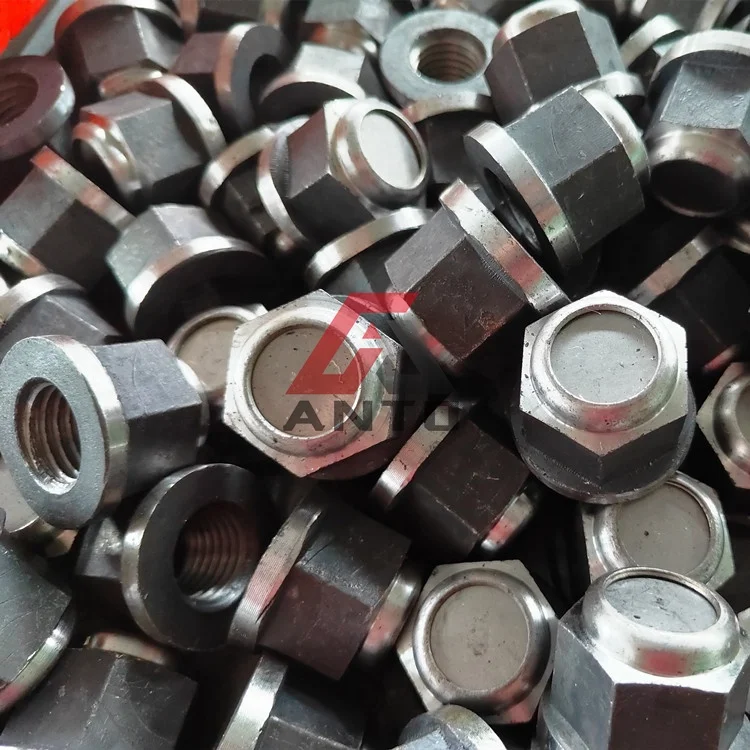

Nuts

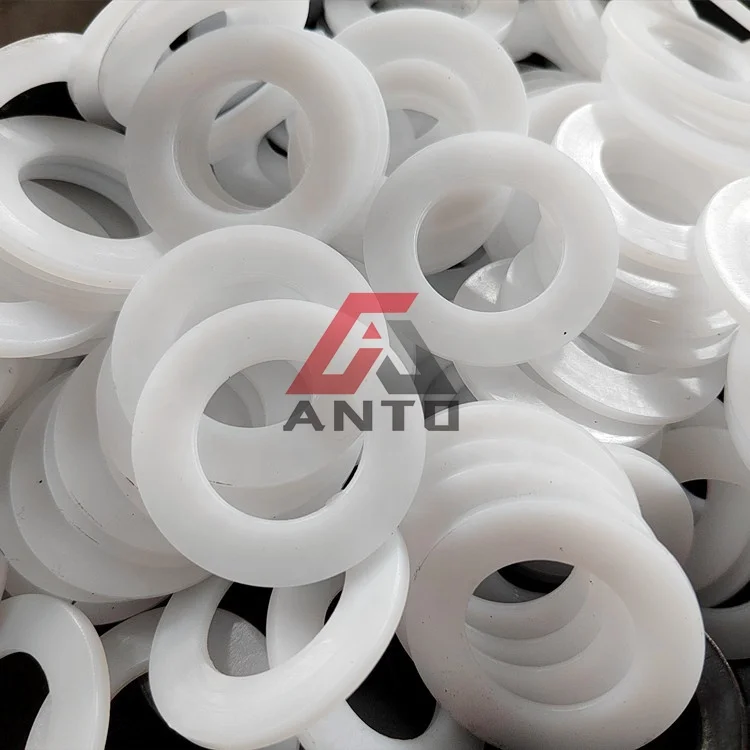

Friction Washers
Plates

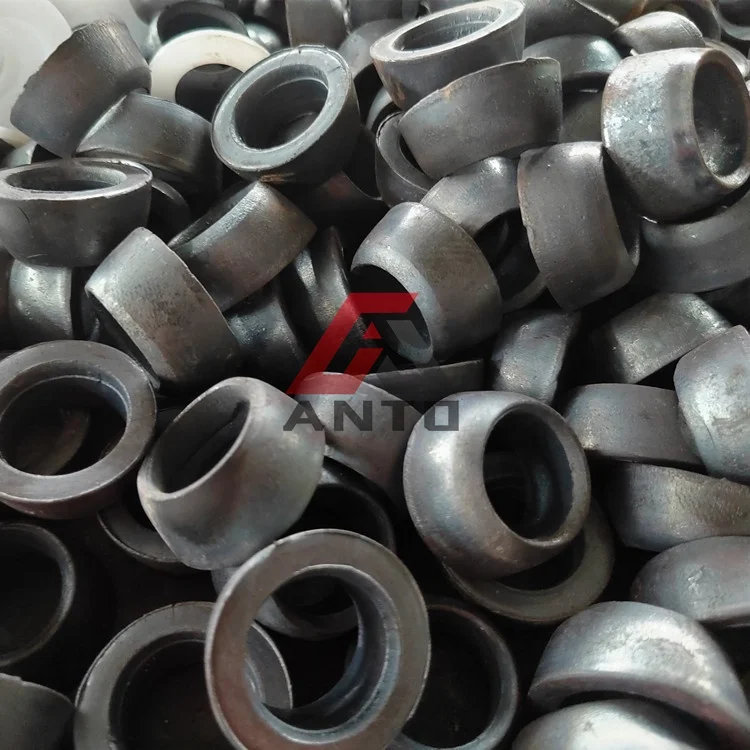

Ball washers
Measurement Test
Product Parameters
Item No. | Diameter | Material 500Mpa | Material 600Mpa | |||||||||
Min Yield | Max Breaking | Elongation | Min Yield | Max Breaking | Elongation | |||||||
ATLF16 | 16mm | 98 | 140 | ≥15% | 120 | 170 | ≥15% | 1-6meters | ||||
ATLF18 | 18mm | 125 | 178 | ≥15% | 150 | 210 | ≥15% | 1-6meters | ||||
ATLF20 | 20mm | 157 | 220 | ≥15% | 188 | 260 | ≥15% | 1-6meters | ||||
ATLF22 | 22mm | 190 | 265 | ≥15% | 227 | 310 | ≥15% | 1-6meters | ||||
ATLF25 | 25mm | 245 | 340 | ≥15% | 290 | 410 | ≥15% | 1-6meters | ||||

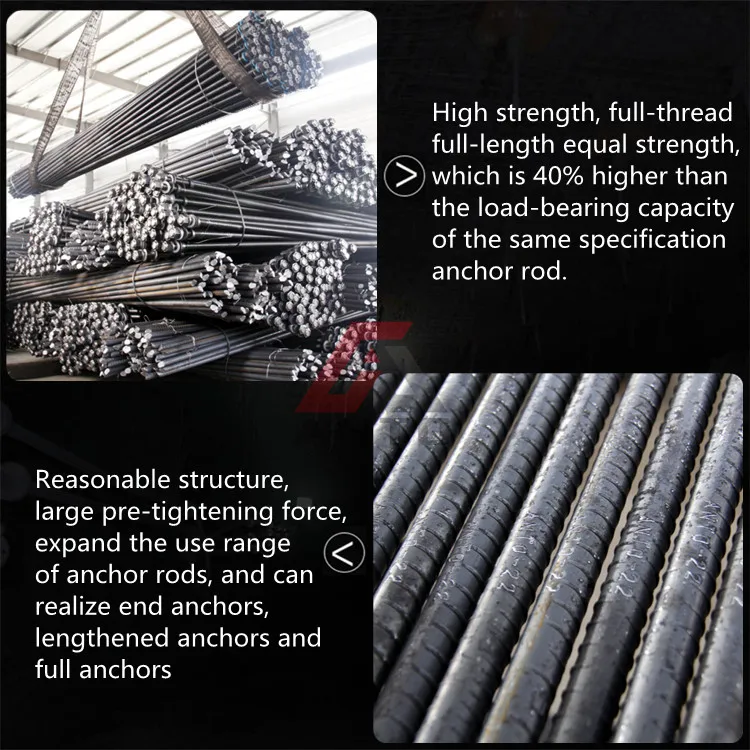

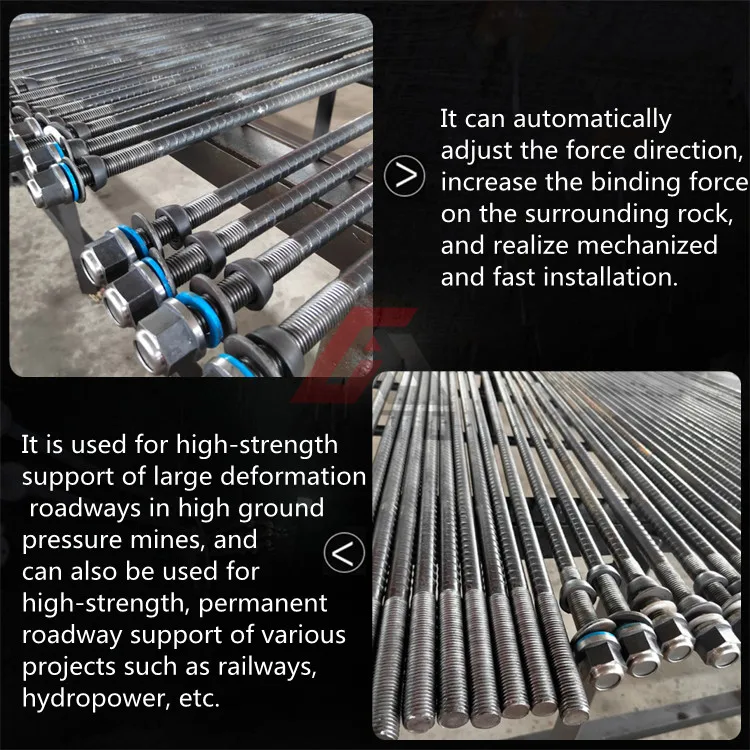

Product Advantages

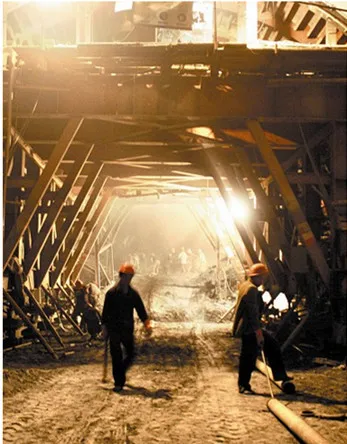

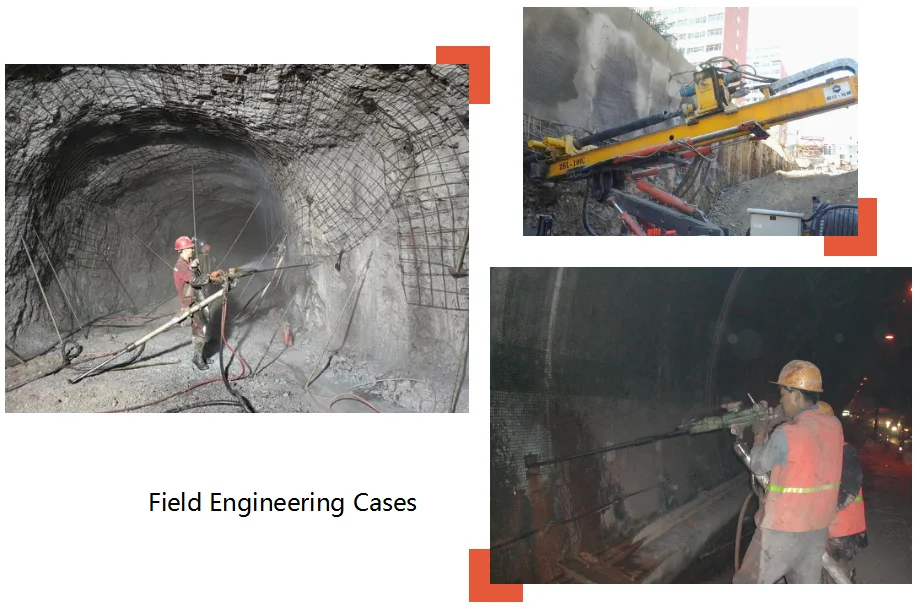

---Product Application---

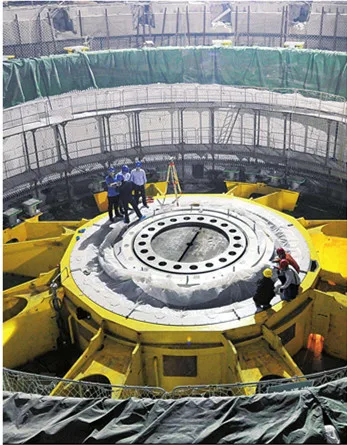

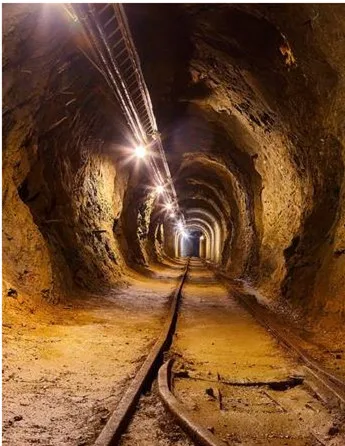

Railway construction Large engineering project Coal mine Tunnel project

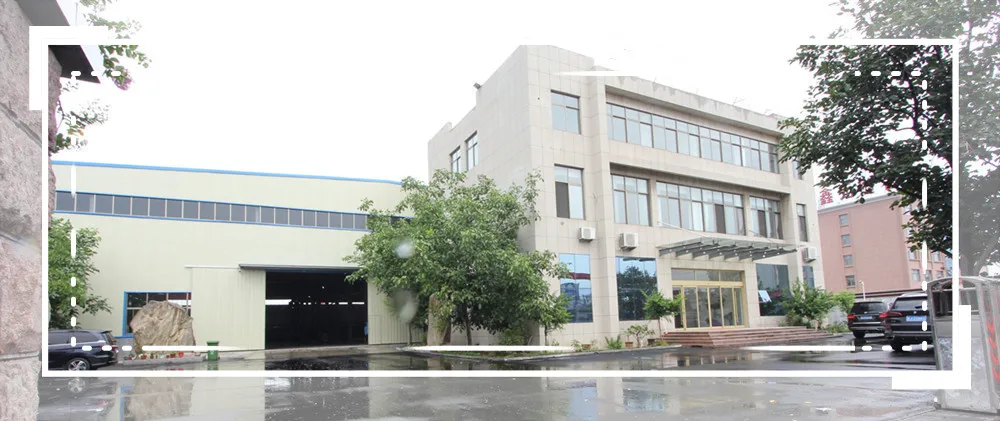

Company Profile
ANTO Mining Equipment Co.,LTD.
ANTO is located at the feet of Mountain Tai,in the northern China heavy-industry development zone.Enjoys convenient sea and land transportation,with TianJin port on its north, Shanghai port on its south and Qingdao port on the east.；A network of high-speed railways ( such as Beijjng-Shanghai ) and highways (such as Beijing-shanghai And Beijing-fuzhou ) intersect here!
ANTO Mining Equipment Co.,LTD. Is a modern integrated production enterprise which incorporates the processing & manufacturing of Split set bolt(friction bolt), Mining welded mesh, Mining Steel bar, Domed plate ,Nuts, other mining Equipments, sales and logistics.
ANTO Mining Equipment Co.,LTD. Is a modern integrated production enterprise which incorporates the processing & manufacturing of Split set bolt(friction bolt), Mining welded mesh, Mining Steel bar, Domed plate ,Nuts, other mining Equipments, sales and logistics.
Certifications
Our Advantages
Customer Photos
Packing & Delivery
ANTO Mining Rock Bolts
——Making Mine Safety !
——Making Mine Safety !
