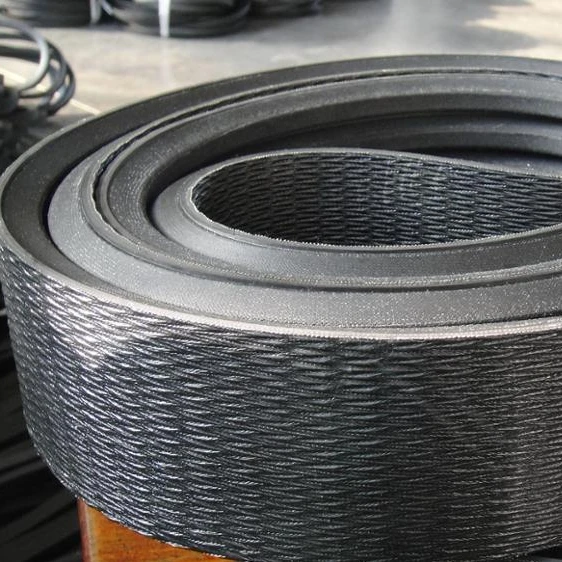

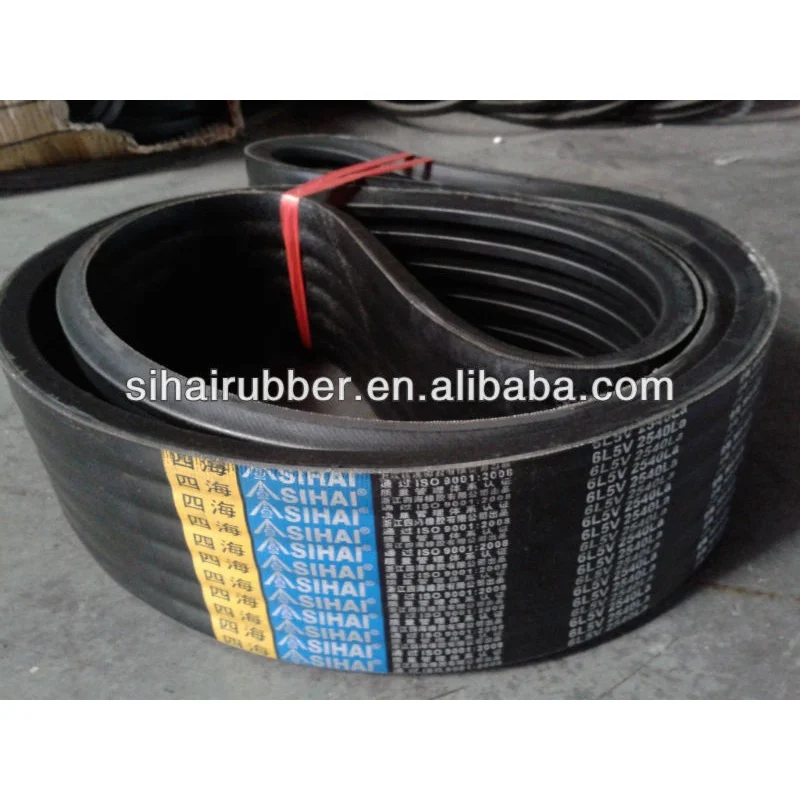

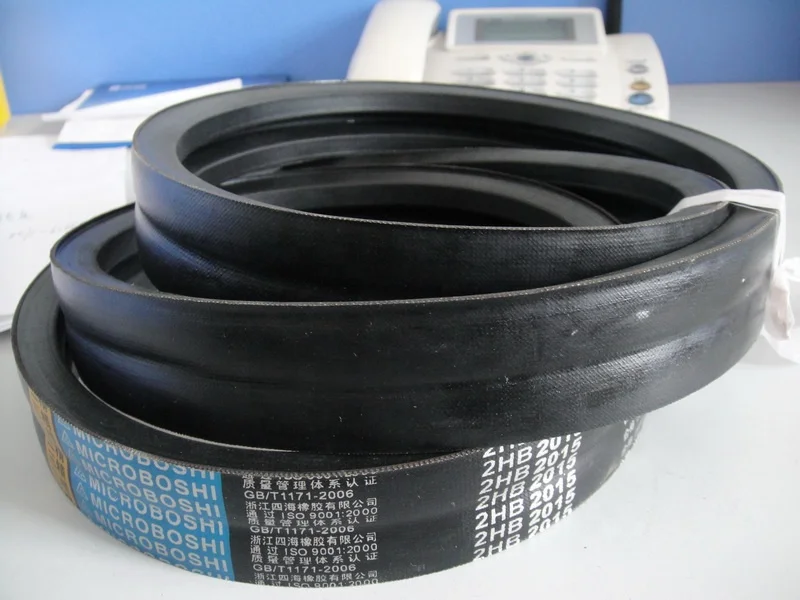

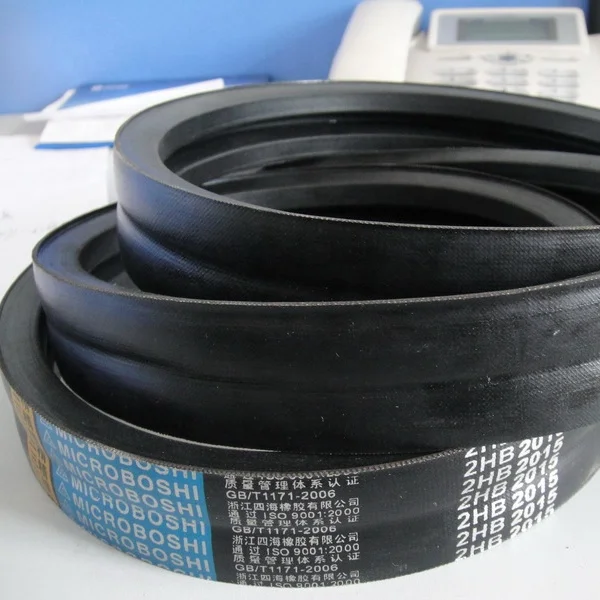

Direct Factory SIHAI 5L 3V classical wrapped v belt Transmission V Belt For Transmission

Product Overview

Description



WRAPPED BANDO  BELT    FEATURES:

1. High quality

2.Excellent heat and oil resistance

3.Excellent abrasion resistance

4.long life

5.have the complete mould of every size(A,B,D,C,O(M)/Z,SPA,SPB,SPC.3V.5V.8V.AA,BB,CC,and Banded belt and agricultural belt).



 Size:

Production Type	Top Width	Pitch Width	Height	Angle
O(Z)	10	8.5	6	40°
A	13	11.0	8	40°
B	17	14.0	11	40°
C	22	19.0	14	40°
D	32	27.0	19	40°
E	38	32.0	23	40°



Production Type	Top Width	Height	Angle
HAA	13	6	40°
HBB	17	8	40°
HCC	22	11	40°



Production Type	Top Width	Height	Angle
AJ	13.6	10	40°
BJ	17.0	13	40°
CJ	22.4	16	40°
DJ	32.8	21.5	40°

Physcial Characters Of Common V-belt (wrapped)GB/T1171-2006

Type	Tensile-Strength KN ≥	Reference Force Extension %≤	Adhesive Strength Of The Cord (KN/m)≥	Adhesive Strength Between Cloth And Top Rubber(KN/m)≥
Z	2.0	13.0	-
A	3.0	17.0
B	5.0	21.0	2.0
C	9.0	31.0
D	15.0	31.0
E	20.0	31.0
