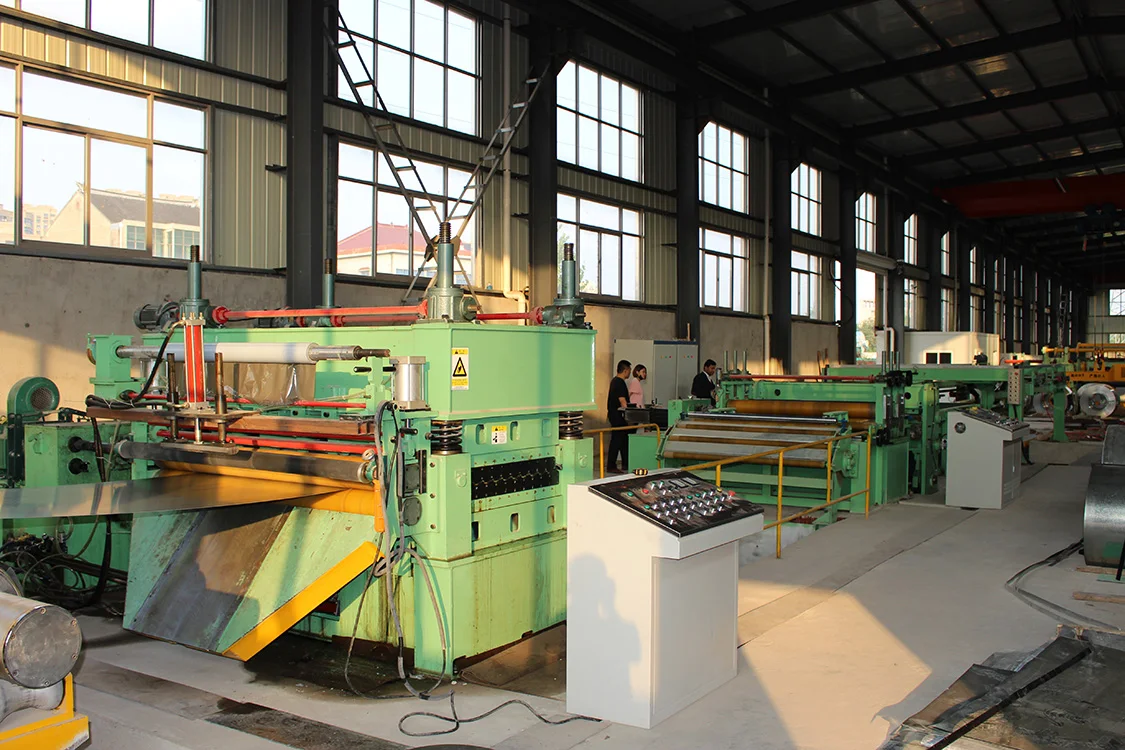

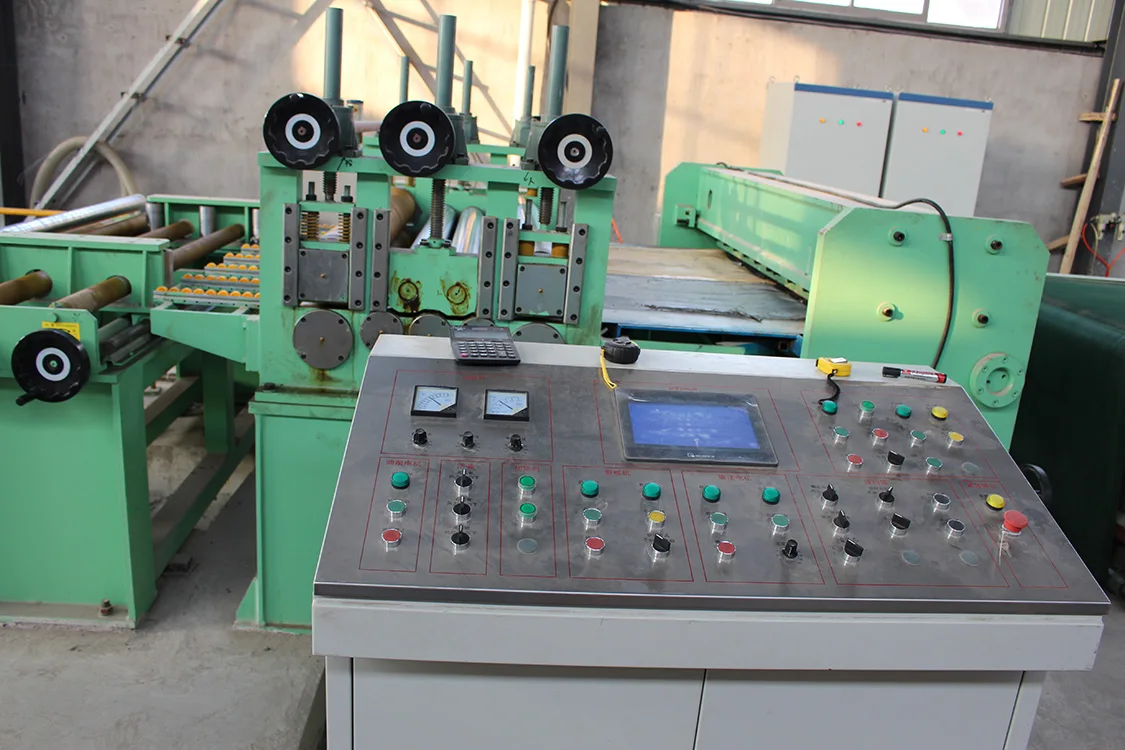

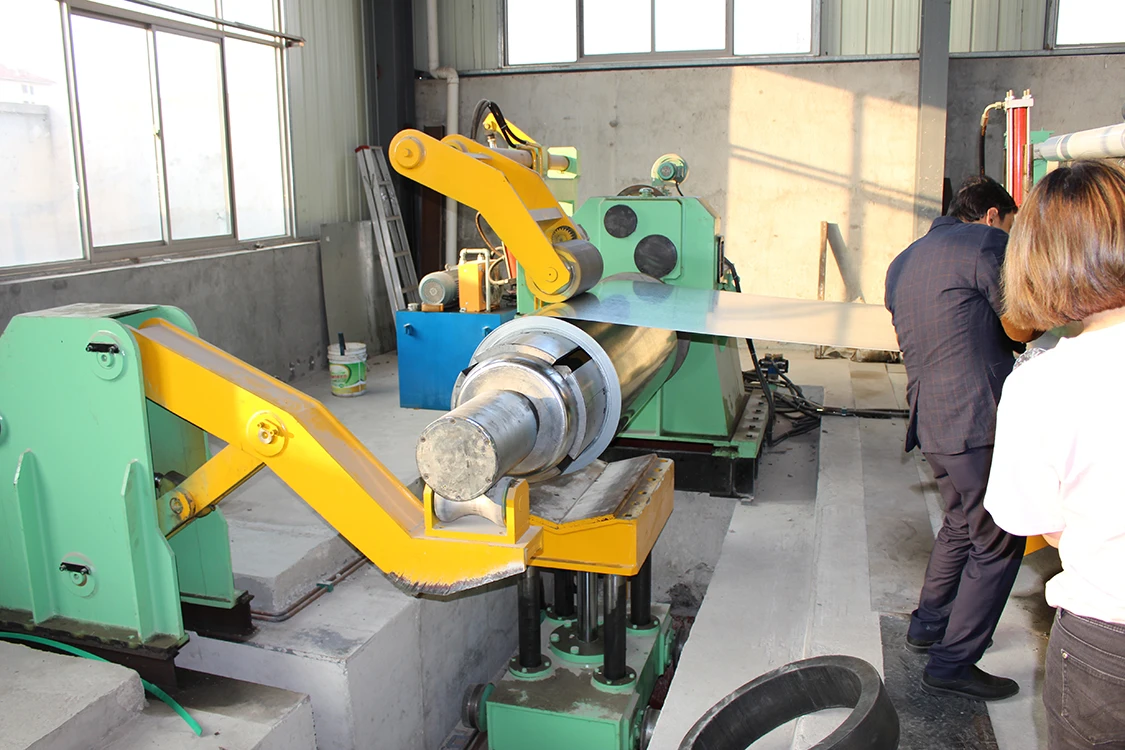

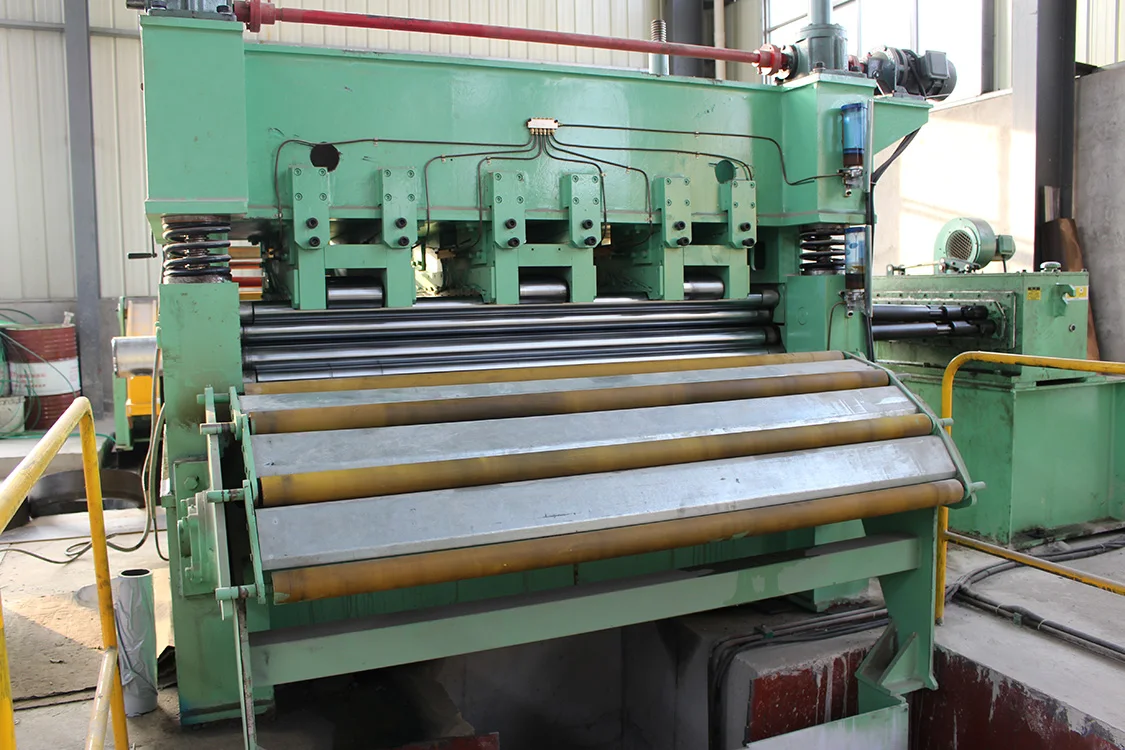

Wuxi famous brand steel coil cut to length line mini cut to length line
- Category: >>>
- Supplier: Wuxi Hai Roll Fone Science And Technology Co. Ltd.
Share on (1600322948778):
Product Overview
Description
Video display
Automatic cable tray roll forming machine
product description
Description &Function
1、What is Cut To Length Machine
The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well
2、Function

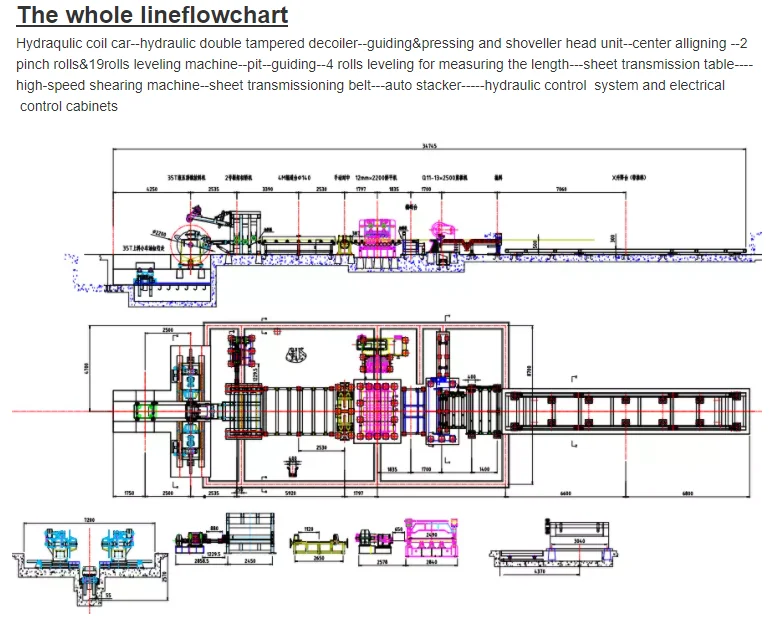

This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc.
3、Category
According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on.
According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..
1、What is Cut To Length Machine
The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well
2、Function
This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc.
3、Category
According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on.
According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..
ITEM | PARAMETER | ||
Specifications | Material | Mild Steel Q235/Q345, YS≦260Mpa TS≦350Mpa | |
Thickness | 8mm—25mm | ||
Width | 80mm—2500mm | ||
Coil plate I.D. | Φ500━Φ800mm | ||
Coil plate E.D. | Φ1000mm—Φ2100mm | ||
Max. weight | 40T | ||
Finish product’s specification | Gauge length for cutting | 2000mm—12000mm | |
Cutting precision： Length tolerance Diagonal tolerance Others | ±1.0mm/2m ±1.0mm/2m 1.5mm/2m in accordance with GB/T709-88 stipulation | ||
Leveling speed(by 8m plate) | 0—18m/min | ||
Max thickness | 25mm | ||
Line elevation | 1000mm | ||
Total power consumption | About 430kw | ||
型号/Type | 3×1600 | 6×2000 | 8×2000 | 10×2200 | 12×2200 | 16×2200 | 20×2500 | 25×2500 |
可加工板厚(mm) Thickness Range | 0.3-3 | 1-6 | 2-8 | 2-10 | 3-12 | 4-16 | 6-20 | 8-25 |
可加工板宽(mm) Width Range | 1600 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 |
长度范围(mm) Cutting Length | 300-4000 | 500-6000 | 600-8000 | 600-10000 | 800-12000 | 800-12000 | 800-12000 | 800-12000 |
剪切长度精度(mm) Cutting precision | ±0.5 | ±0.5 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
矫平辊数量 Roller Numbers | 15 | 15 | 13 | 13 | 11 | 11 | 9 | 9 |
辊径(mm) Roller Diameter | Ф85 | Ф140 | Ф155 | Ф160 | Ф180 | Ф200 | Ф230 | Ф260 |
Product parameter

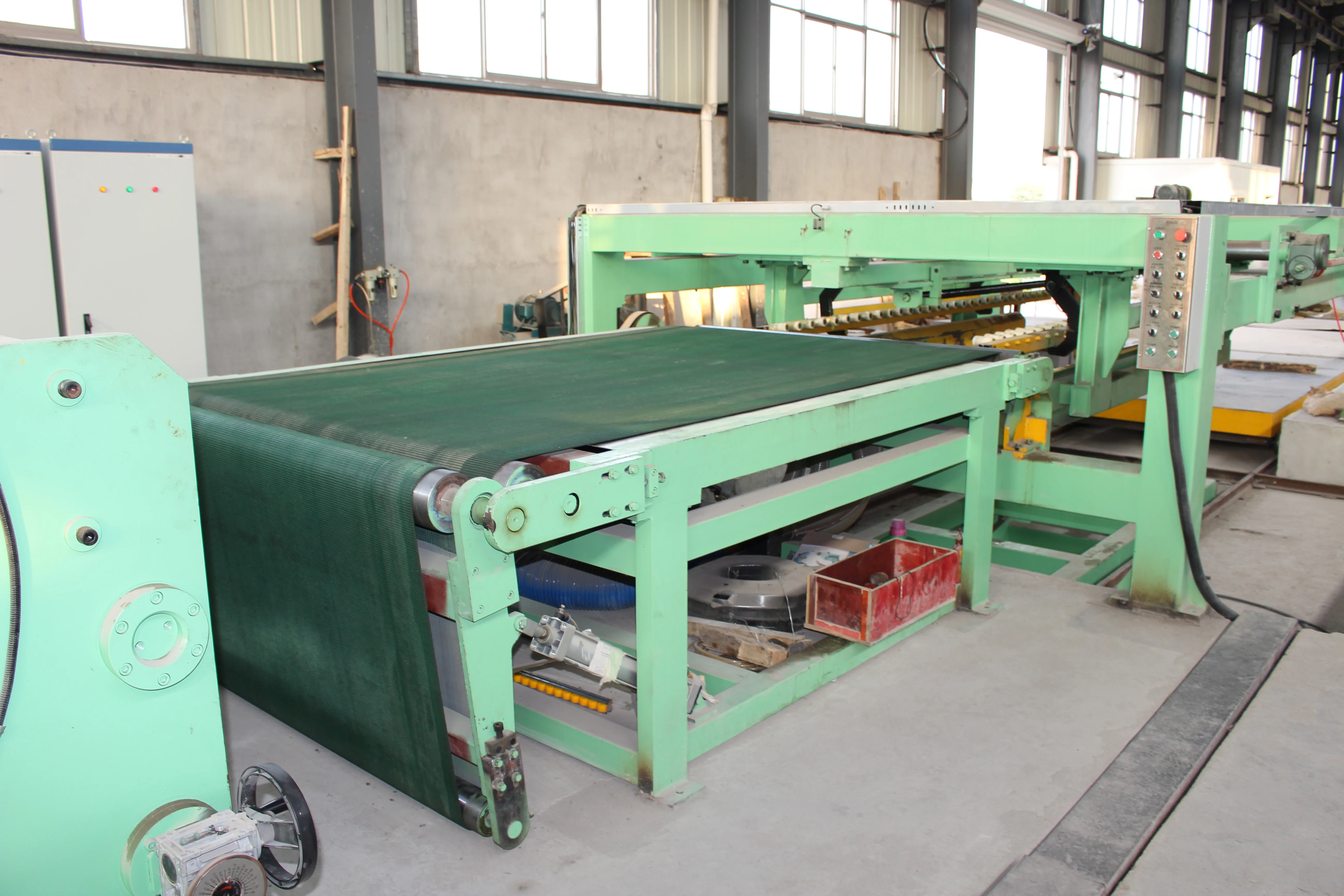

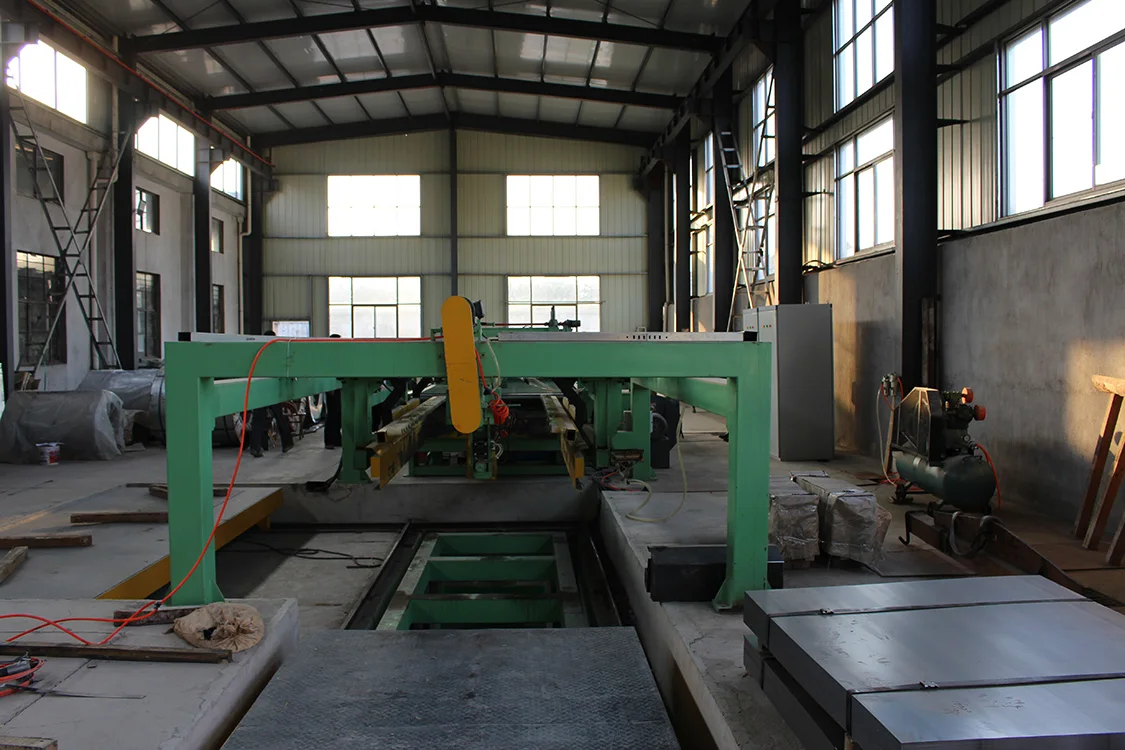

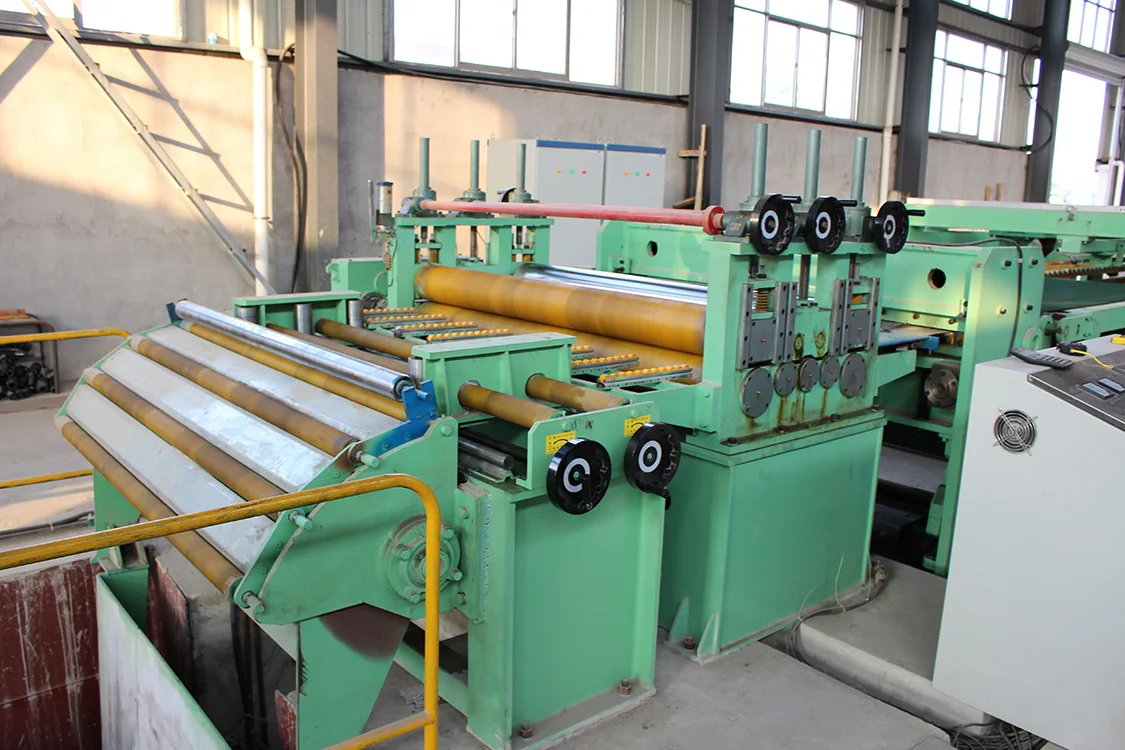

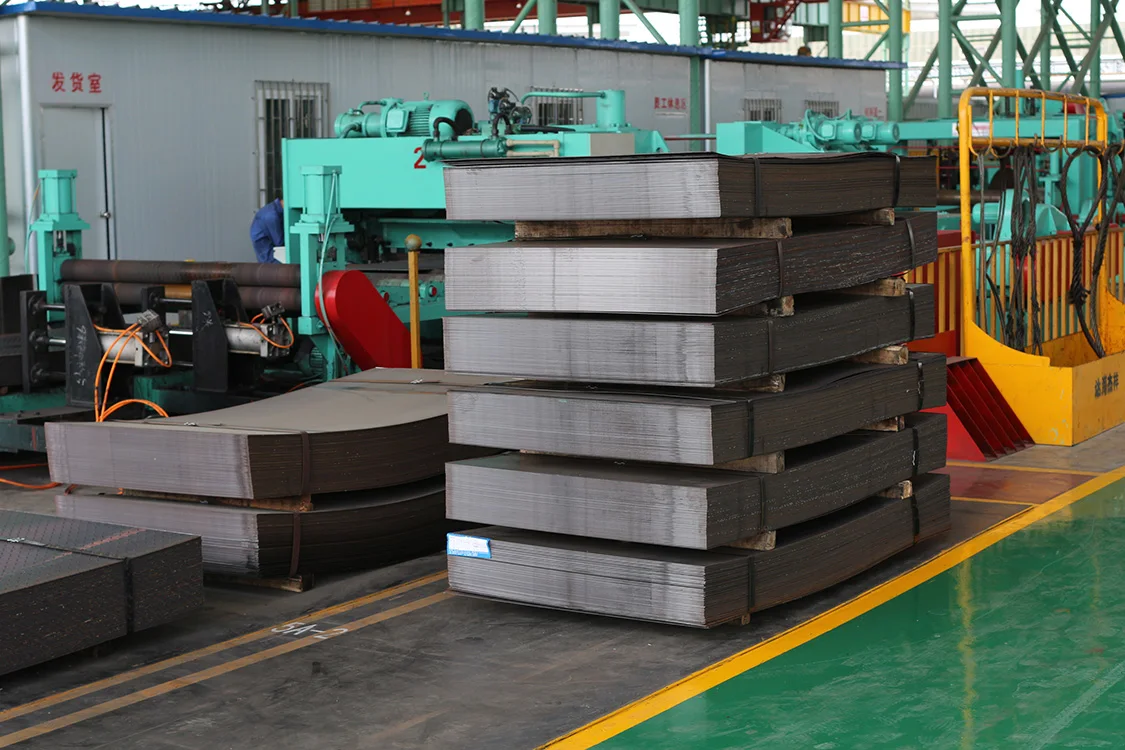

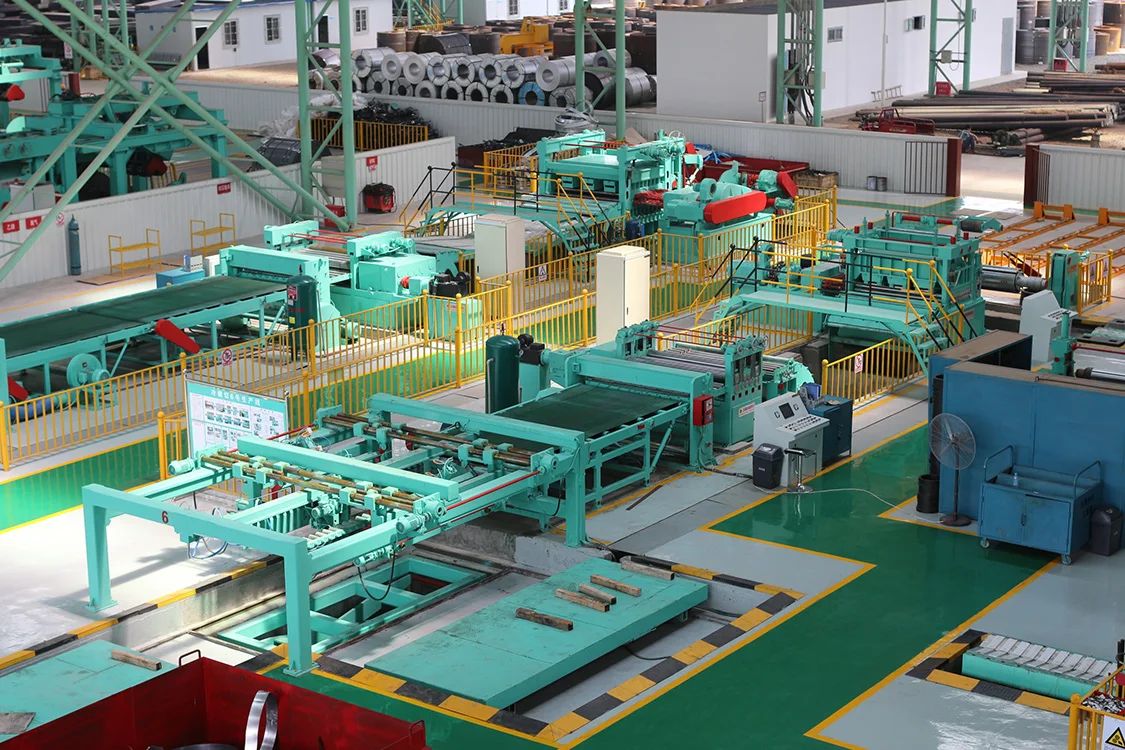

Scene application and quality inspection
Established in 2009 Wuxi HRF Science & Technology Co.,Ltd located in Wuxi city,Jiangsu province is close to Shanghai international airport .we enjoy convenient transportation and advantageous location with which it can supply good business opportunities for the investors home and abroad.
We are specialized in designing,manufacturing the roll forming machines e.g cable tray forming machine,supermarket rack forming machine,expressway guardrail forming machine,grain silo forming machine,solar strut forming machine etc. These products are used widely in the field of steel structure ,building construction,supermarkets,factory warehouses,schools roofing,grain silos etc . In addition we also can manufacture all types of steel coils slitting machine,coils cut to length machines and tube mills
We are ready to establish the business relations with the overseas customers and we also believe" the opportunity here,here you are"
Our commitment is high-quality and in-time service , our goal is customer satisfaction.
We are specialized in designing,manufacturing the roll forming machines e.g cable tray forming machine,supermarket rack forming machine,expressway guardrail forming machine,grain silo forming machine,solar strut forming machine etc. These products are used widely in the field of steel structure ,building construction,supermarkets,factory warehouses,schools roofing,grain silos etc . In addition we also can manufacture all types of steel coils slitting machine,coils cut to length machines and tube mills
We are ready to establish the business relations with the overseas customers and we also believe" the opportunity here,here you are"
Our commitment is high-quality and in-time service , our goal is customer satisfaction.
Service Concept
Pragmatic and innovative service spirit
Modest and prudent service attitude
Professional and high-quality service team
A keen sense of service
Modest and prudent service attitude
Professional and high-quality service team
A keen sense of service
Advantage
1. 20+ Yrs Experience.
2.15-20 R & D team to ensure product R & D update.
3.Quick response after receiving customer's order, 30-50 delivery time.
4.We have 15-20 people after-sales team, ready to go to the customer's factory for debugging and technical services.
