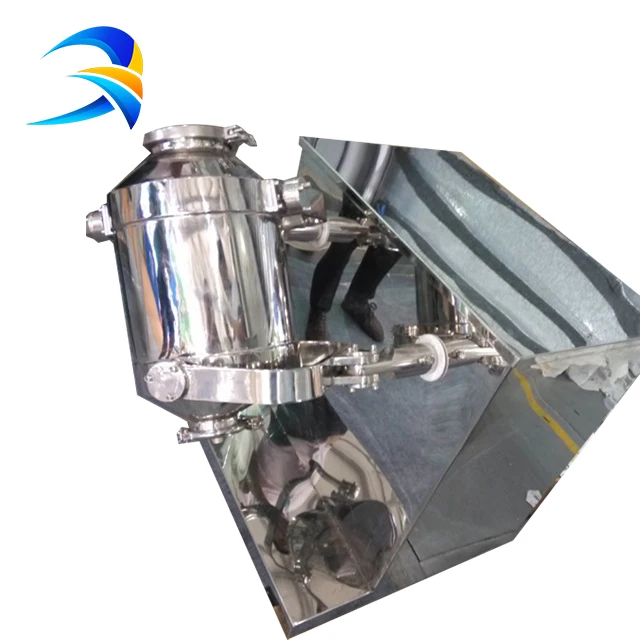

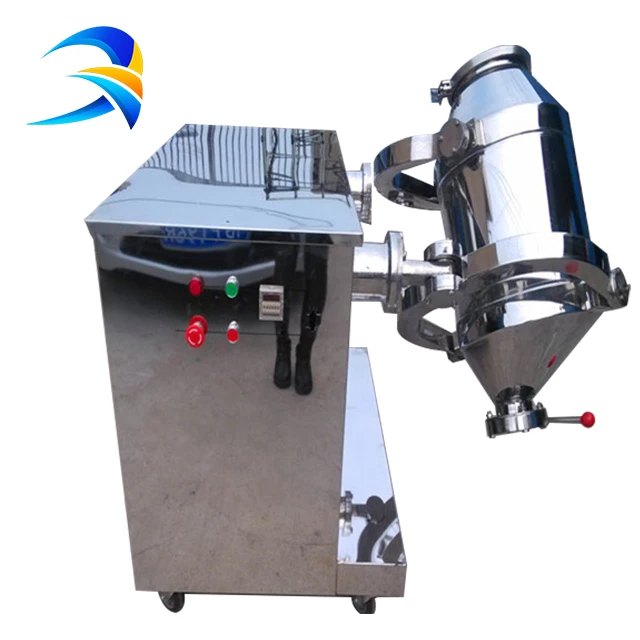

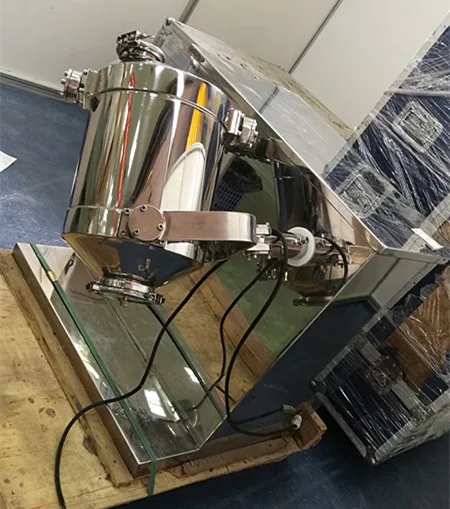

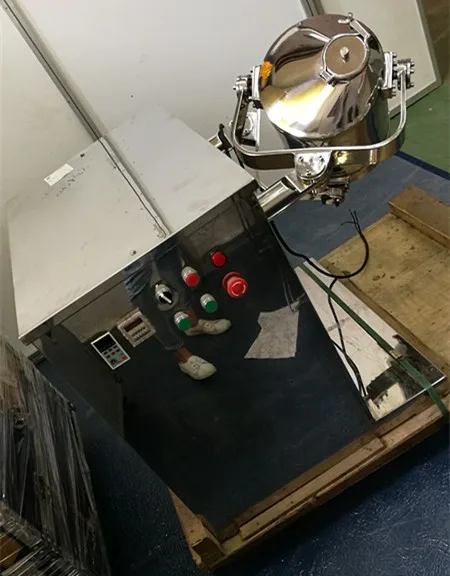

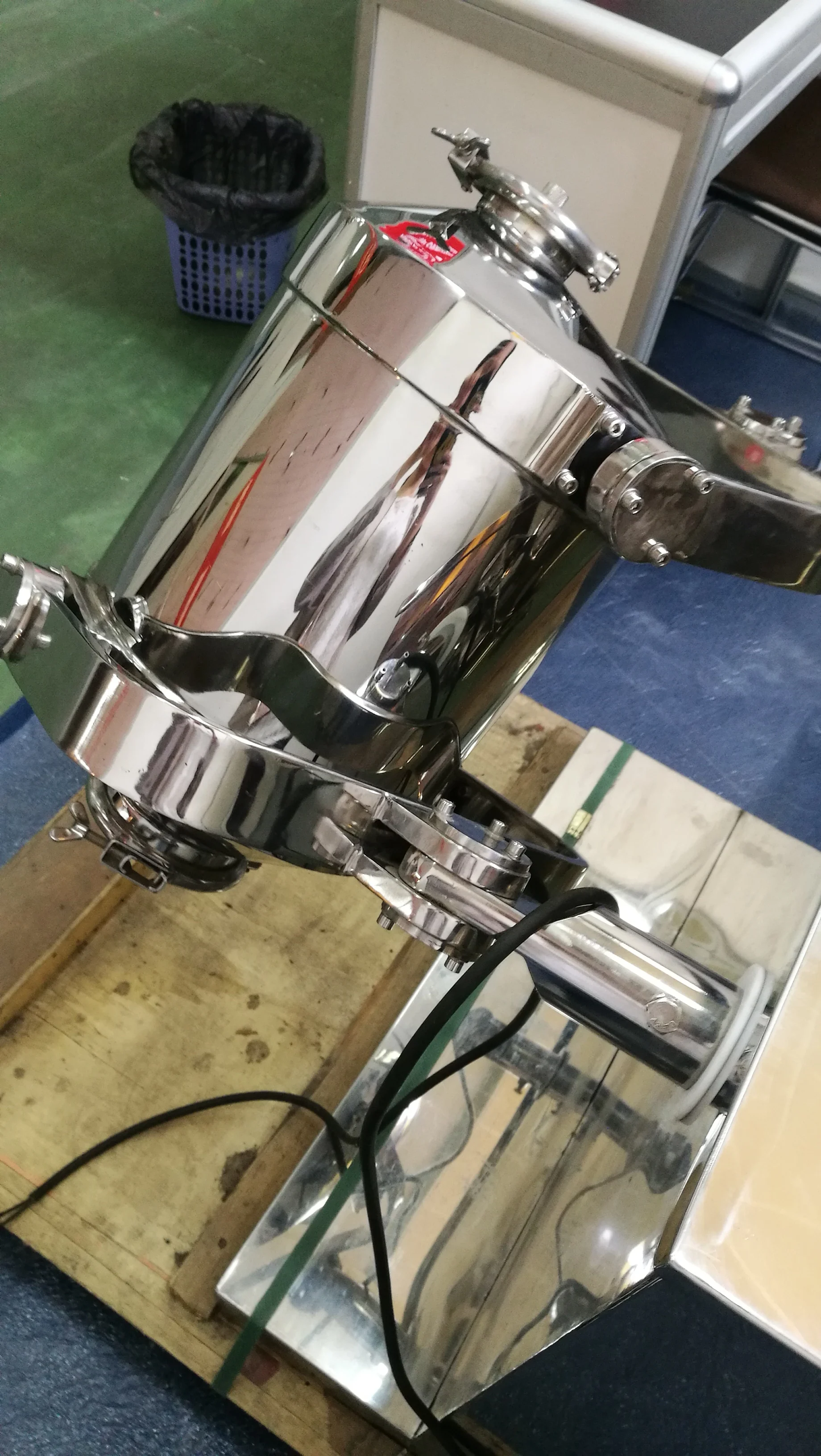

Easy To Operate Automatic Pharmaceutical Three Dimensional Mixing Machine
- Category: >>>
- Supplier: Jiangyin City Xuan Tai Machinery Equipment Co. Ltd.
Share on (1600323137367):
Product Overview
Description
Product Description
Main Application
The machine is widely used for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granule size and gravity.
Characteristics
With its unique three-dimensional swing, parallel moving and rolling methods, the mixer can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, low noise, high loading quantity and short mixing time as well.
Working method
The machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circle, radical and axially, achieving uniform mixing of different varieties of material.
The machine is widely used for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granule size and gravity.
Characteristics
With its unique three-dimensional swing, parallel moving and rolling methods, the mixer can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, low noise, high loading quantity and short mixing time as well.
Working method
The machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circle, radical and axially, achieving uniform mixing of different varieties of material.
Technical Data
SYH Series Three Dimensional Swing Mixer | ||||||||||
Model | 5 | 10 | 15 | 20 | 50 | |||||
Barrel capacity (L) | 5 | 10 | 15 | 20 | 50 | |||||
Max loading capacity (L) | 4 | 8 | 12 | 15 | 40 | |||||
Max loading weight (kg) | 2 | 4 | 6 | 8 | 25 | |||||
Speed of driving shaft (r/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | |||||
Motor Power (kw) | 0.25 | 0.37 | 0.37 | 0.55 | 1.1 | |||||
Overall dimensions (mm) | 600*1000*700 | 650*1000*800 | 700*1000*900 | 750*1100*950 | 1000*1400*1100 | |||||
Total weight (kg) | 70 | 80 | 100 | 200 | 300 | |||||
Packing & Delivery
Wooden case packing
Company Profile
Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine.
Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of "to the quality of survival,to the efficiency of development".Being pioneers,creative and striving to improve product quality.We will provide our customers with better service.
Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine.
Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of "to the quality of survival,to the efficiency of development".Being pioneers,creative and striving to improve product quality.We will provide our customers with better service.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2017,sell to Southeast Asia(20.00%),North America(15.00%),Western Europe(15.00%),South Asia(15.00%),Domestic Market(8.00%),Northern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Southern Europe(5.00%),Mid East(3.00%),Central America(2.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pulverizer,Grinder,Mixer,Sifting machine,capsule/tablet counting machine
4. why should you buy from us not from other suppliers?
Our factory produce pulverizer,mixer,sifting machine,cutting machine,dry mchine.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2017,sell to Southeast Asia(20.00%),North America(15.00%),Western Europe(15.00%),South Asia(15.00%),Domestic Market(8.00%),Northern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Southern Europe(5.00%),Mid East(3.00%),Central America(2.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pulverizer,Grinder,Mixer,Sifting machine,capsule/tablet counting machine
4. why should you buy from us not from other suppliers?
Our factory produce pulverizer,mixer,sifting machine,cutting machine,dry mchine.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Escrow;
Language Spoken:English,Chinese
