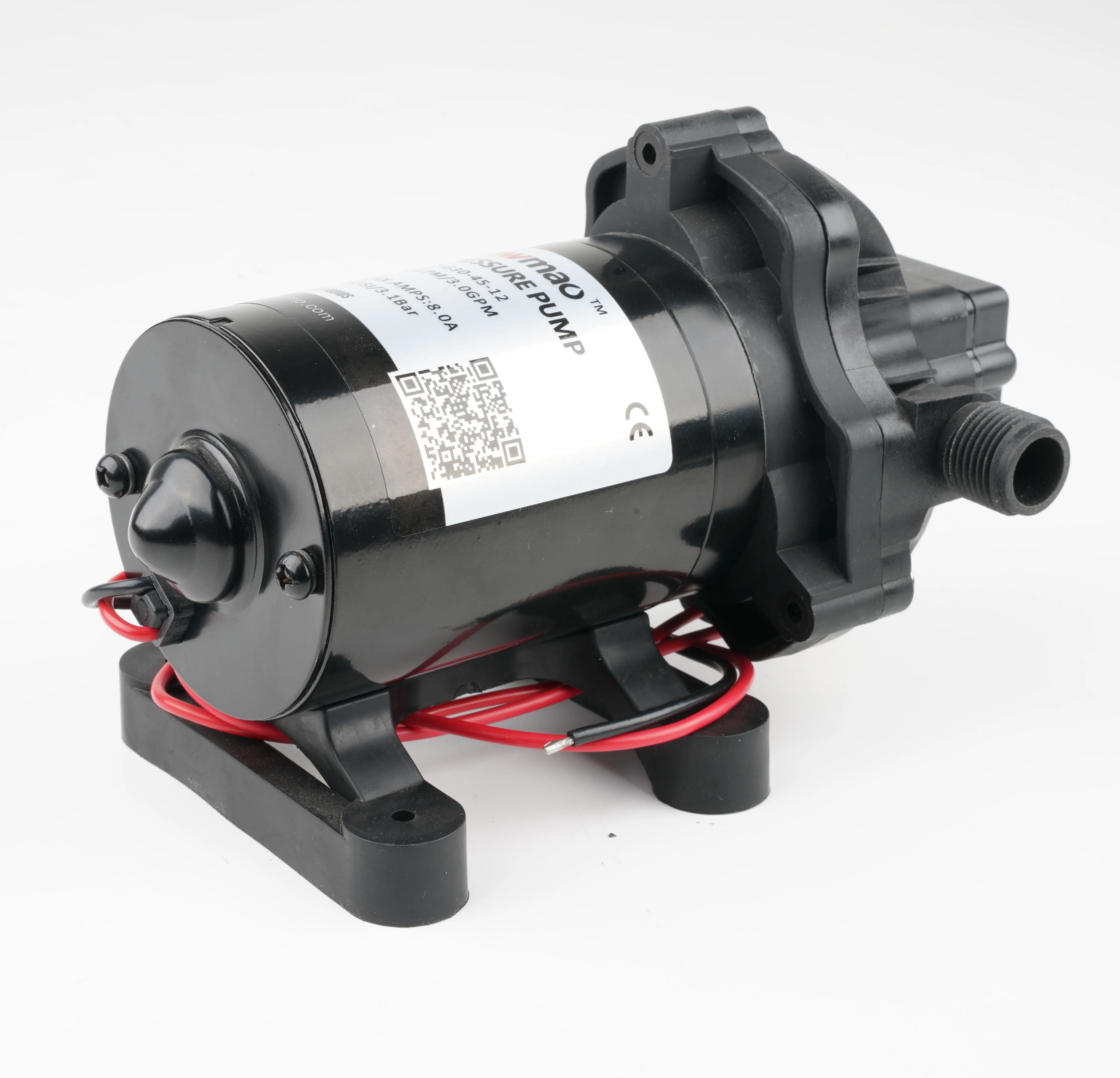

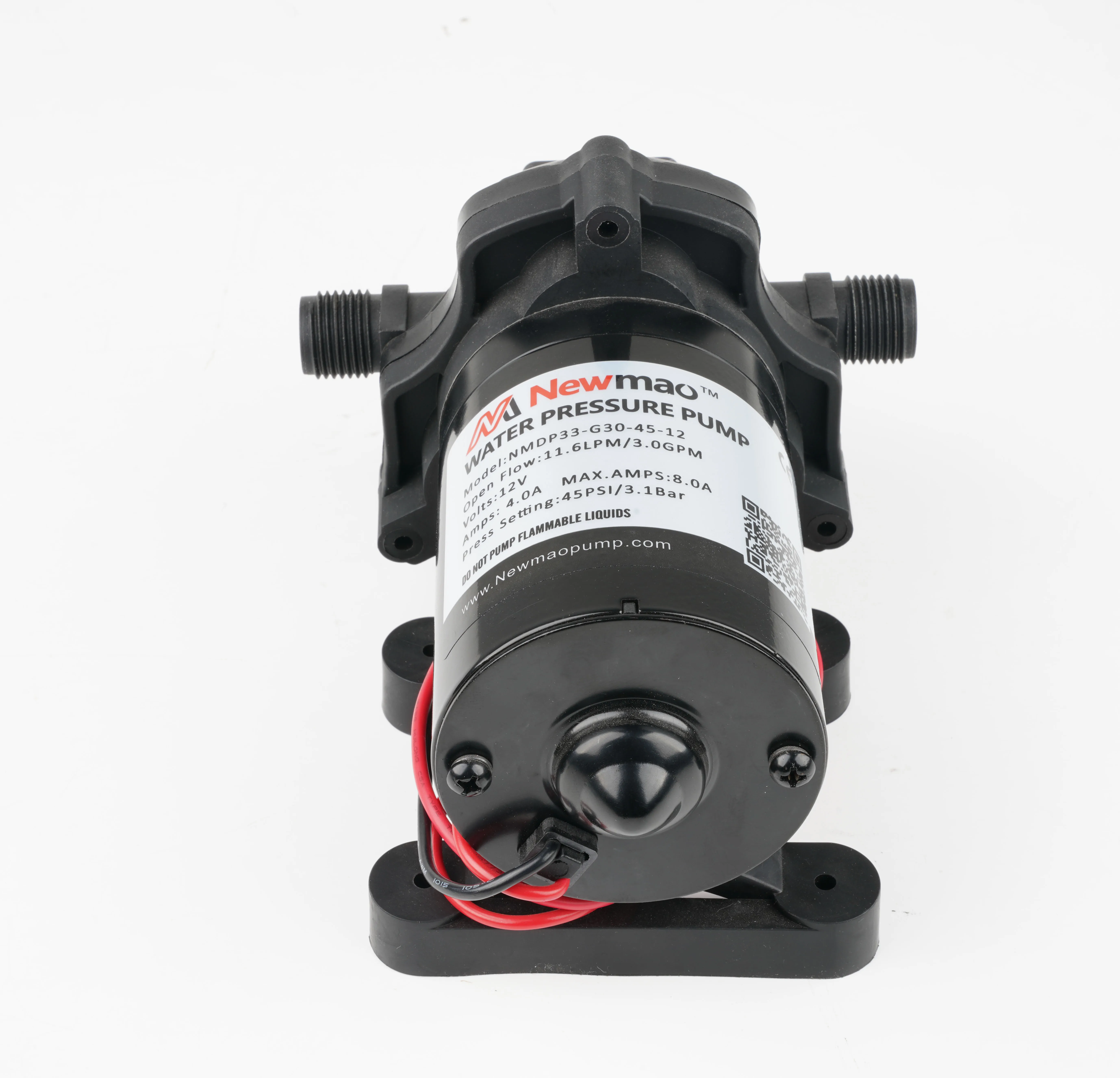

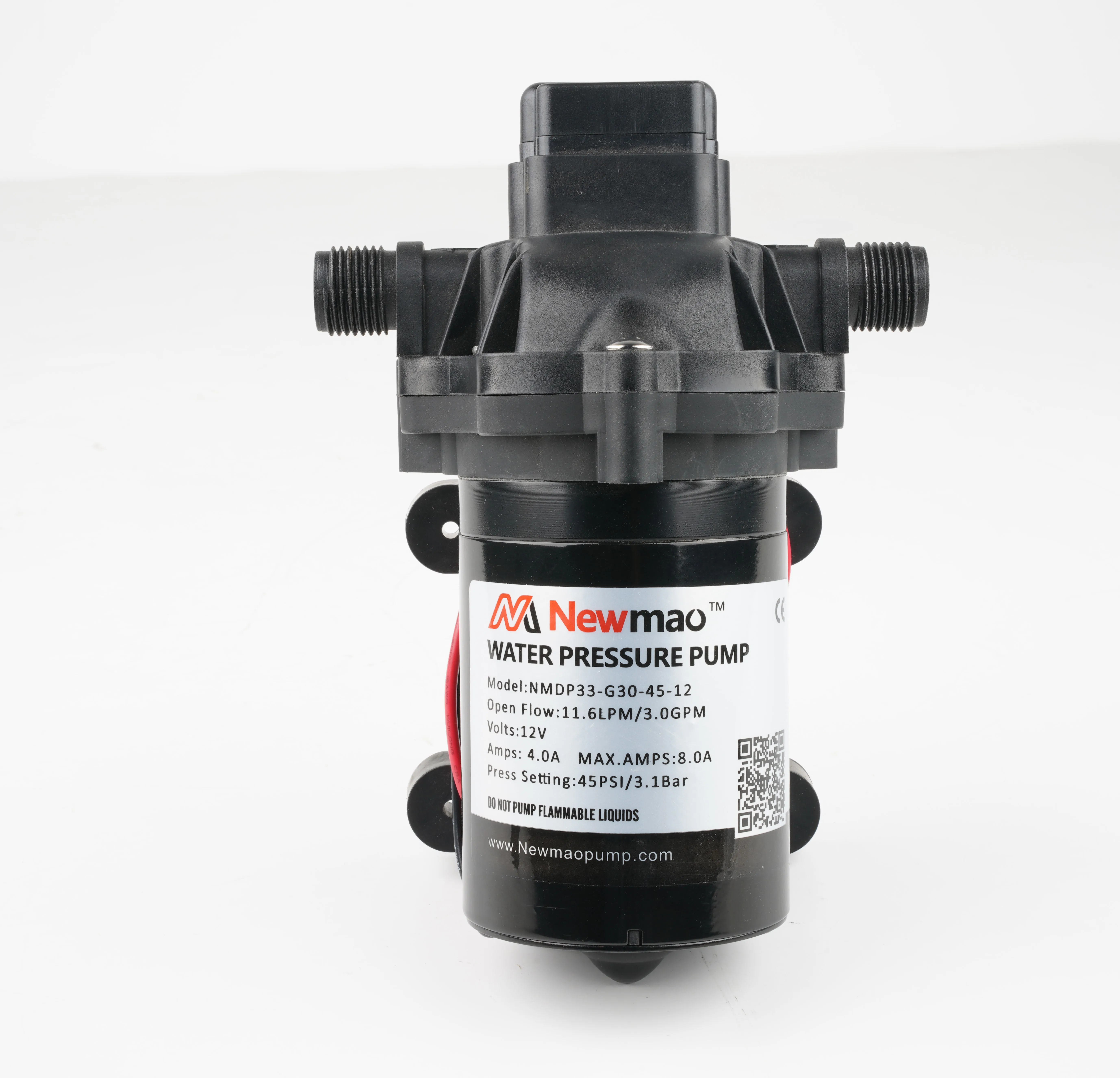

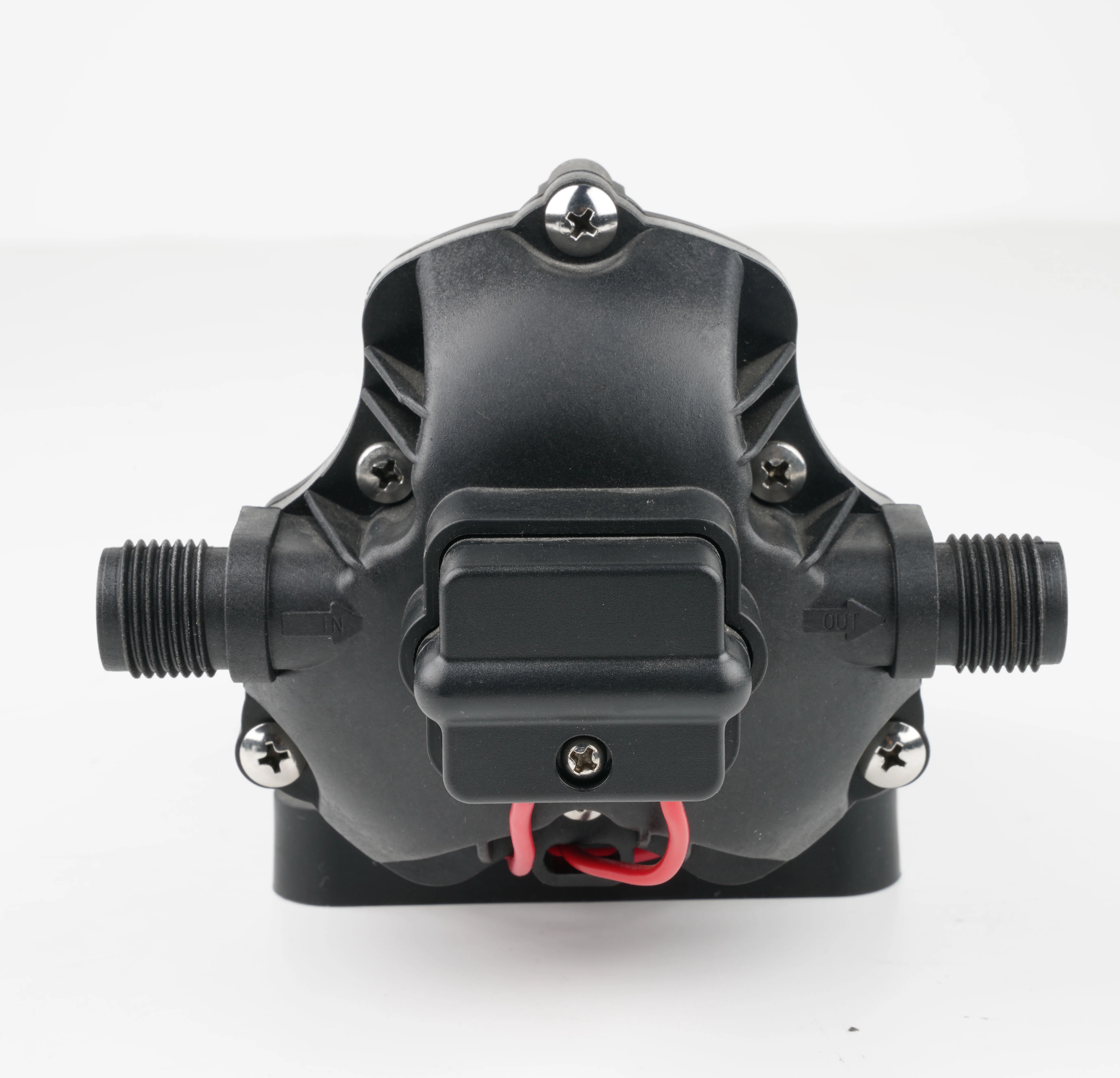

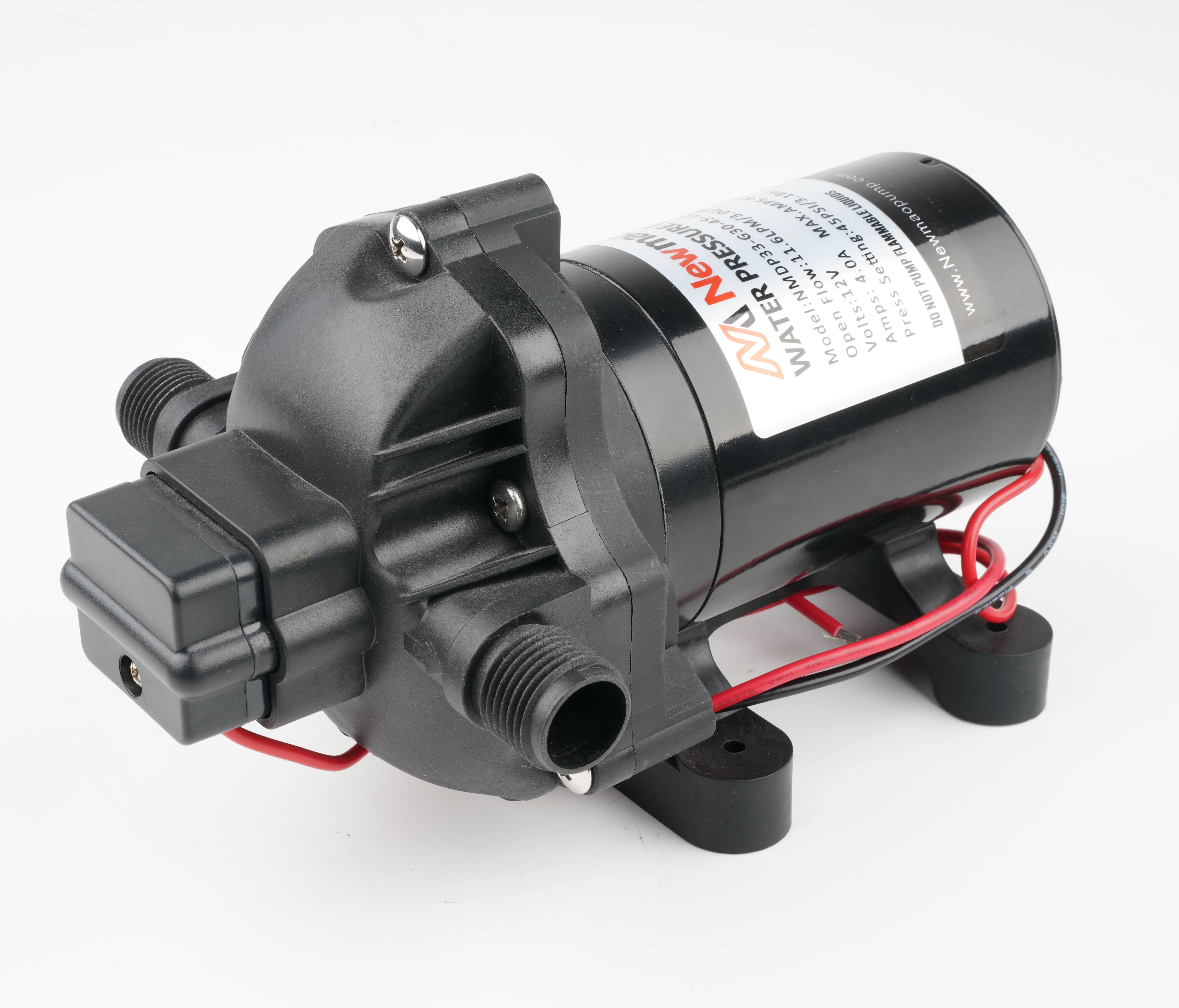

OEM 3.0GPM Home Use 24V Diaphragm marine pump rv water pump 17 60 psi sea water pump 12V
- Category: >>>
- Supplier: Xiamen Newmao Pump Industry Co. Ltd.
Share on (1600323213192):
Product Overview
Description
Typical Applications

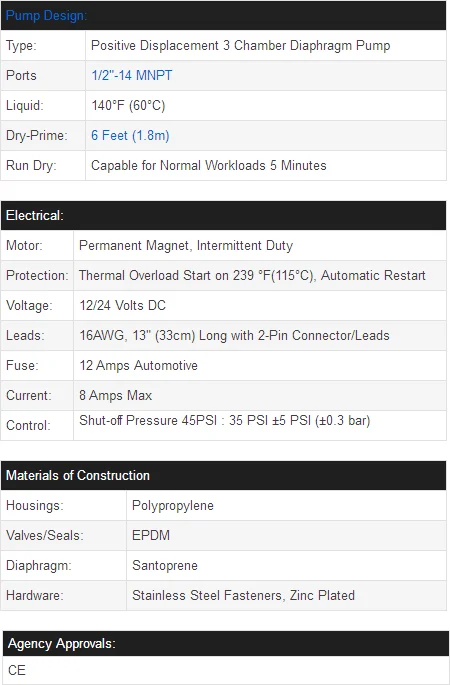

Key Specs
Model | Voltage | Open Flow (GPM/LPM) | Control Type | Max Draw | Shut-off Pressure (PSI/BAR) | Valves | Diaphragm | Ports | Wire Connections |
NMDP33-G30-45-12 | 12V | 3.0 / 11.6 | Switch | 8.0A | 45 / 3.1 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
NMDP33-G30-45-24 | 24V | 3.0 / 11.6 | Switch | 4.0A | 45 / 3.1 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
NMDP33-G28-45-12 | 12V | 2.8 / 10.6 | Switch | 6.0A | 45 / 3.1 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
NMDP33-G28-45-24 | 24V | 2.8 / 10.6 | Switch | 3.5A | 45 / 3.1 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
Custom Service: Bar-cording, Packaging, Label / Logo, Instruction, Color, etc.

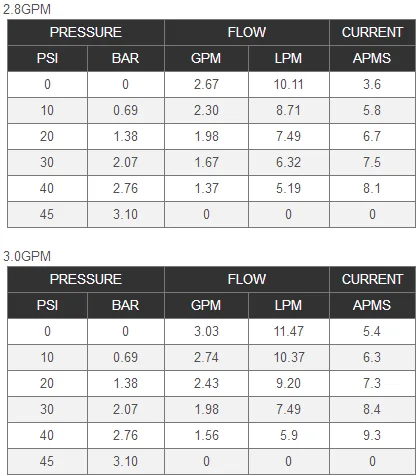

Performance Data

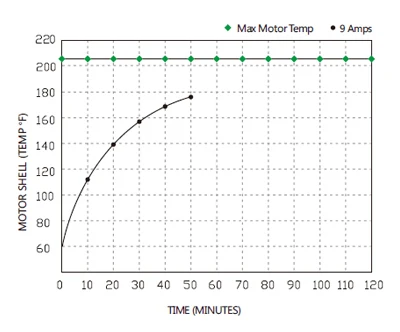

Heat Rise

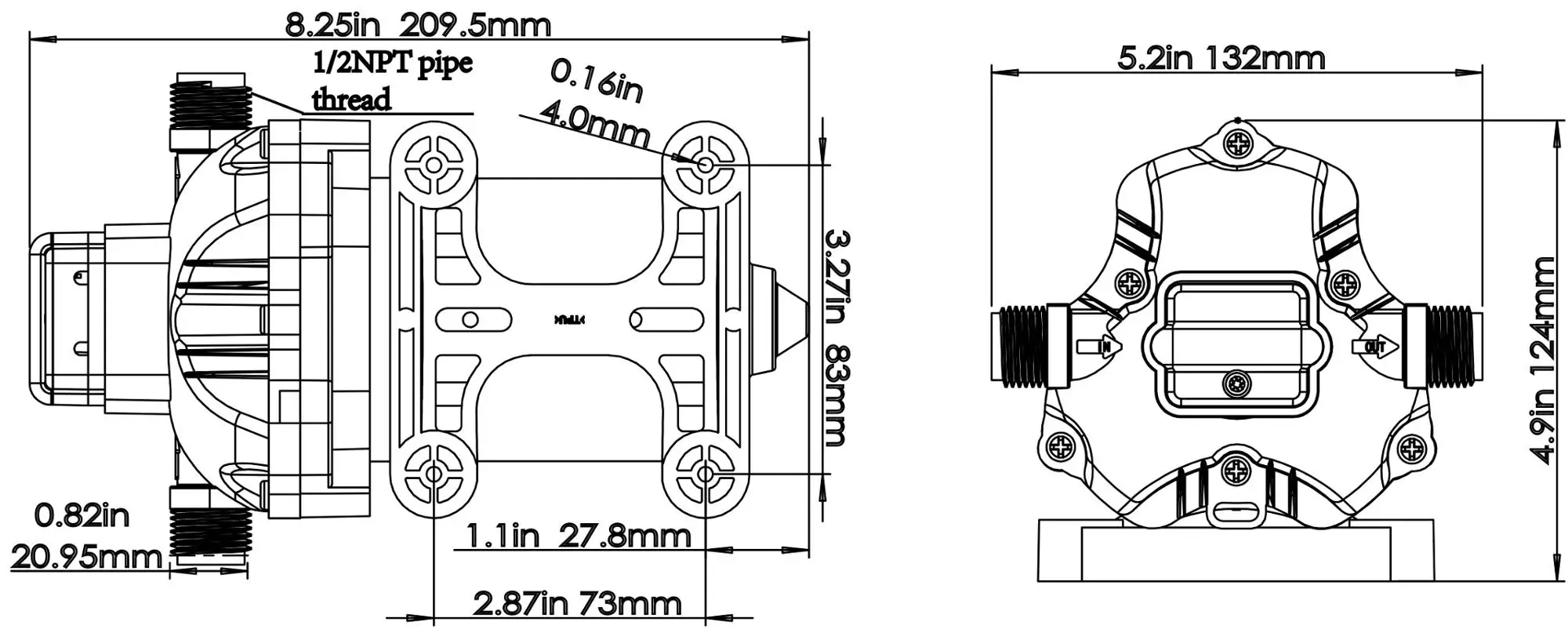

Dimensions
Note: Do NOT use any Newmao pump for petrol gasoline, petroleum products, solvents, thinners or any other flammable liquid with a flash point below 82 C (180 F). This pump requires a round cable. Warranty: 1 Year.

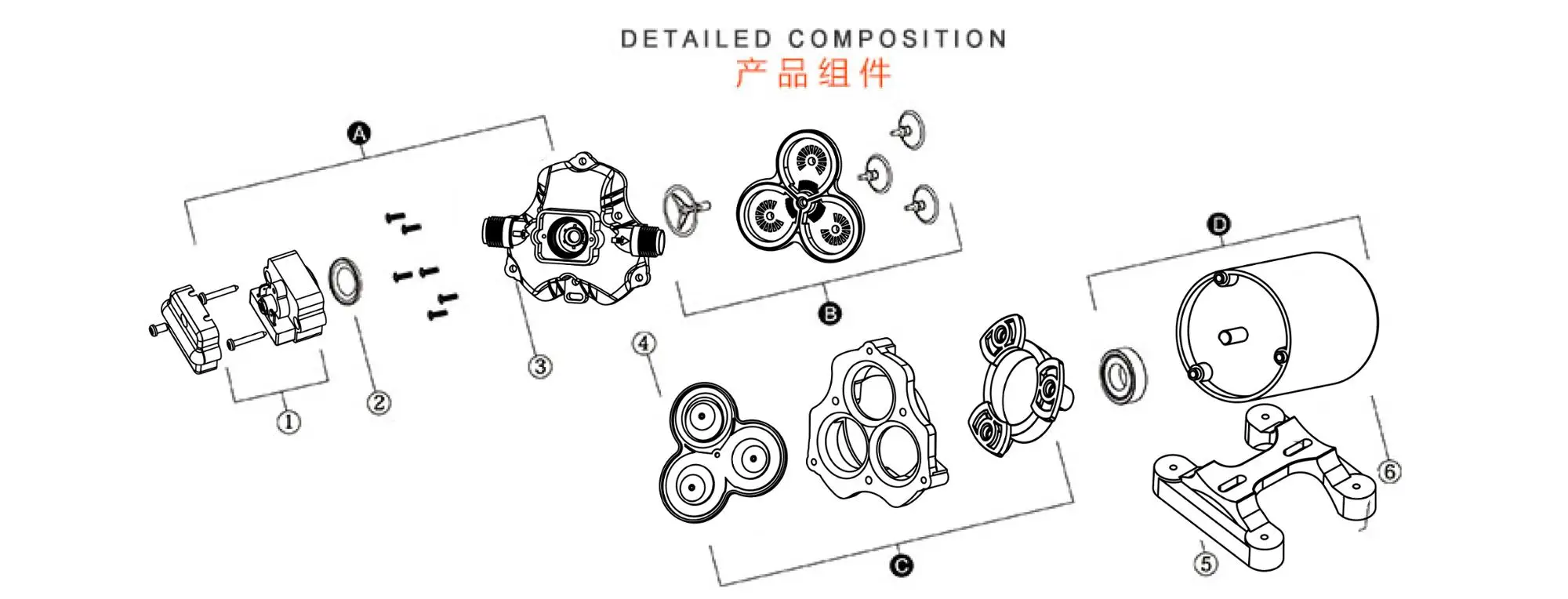

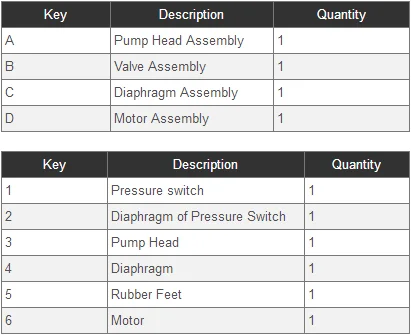

Repair Kits
