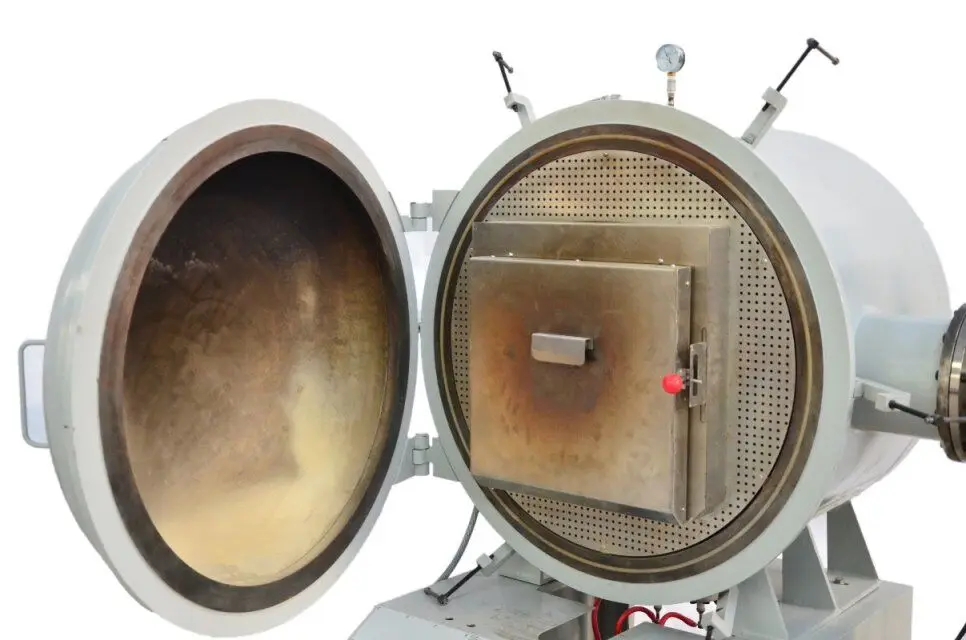

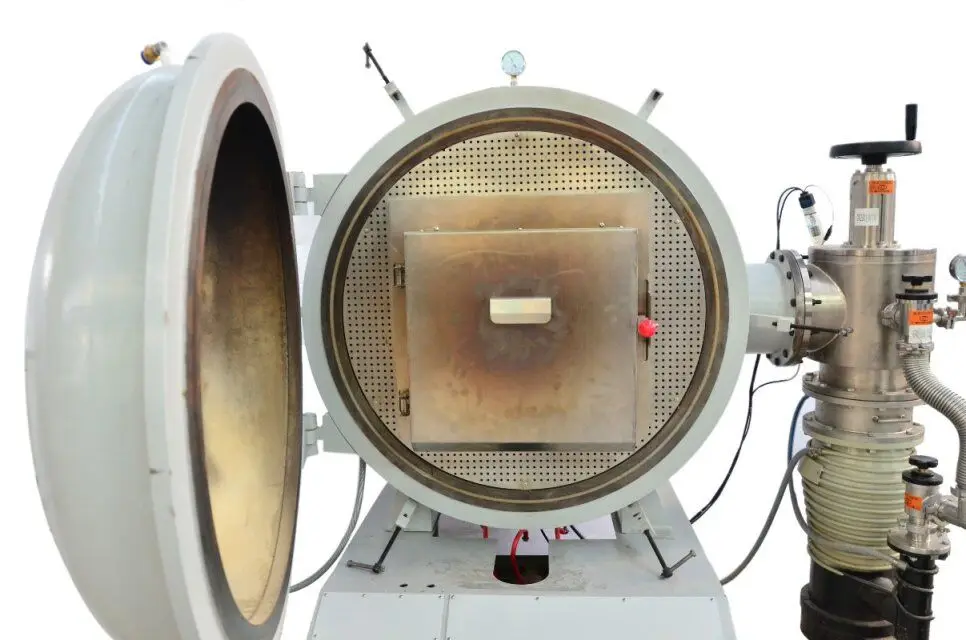

Higher Vacuum Level Oven Sintering Furnace For 3D Printer Heating Treatment of metal parts after printing

Max. Temperature:

1700.C

Continuous Working Temperature:

1600.C

Inner Chamber Size

D200xW150xH150mm, 4.5 Liters

Max. Heating Rate:

0-30.C /min, suggest to be 10.C/Min under 800.C,5.C/min at 1000.C-1100.C;

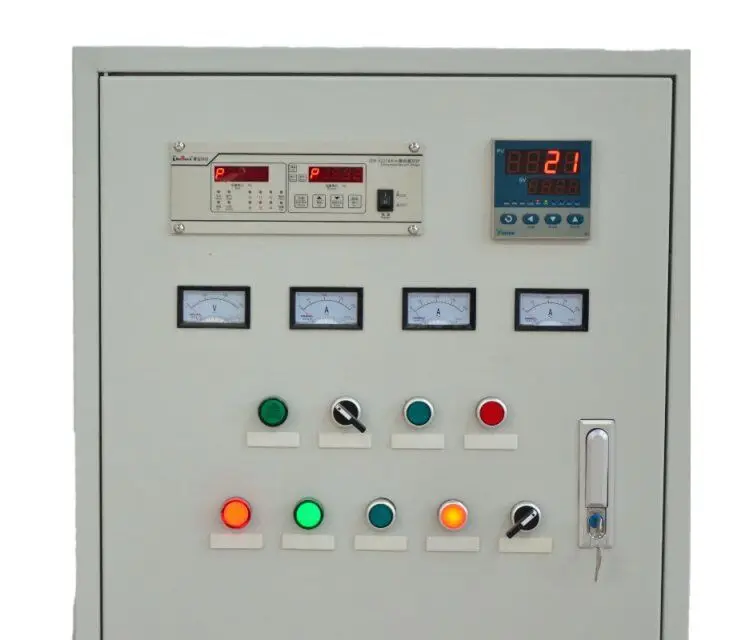

Temperature Controller:

PID automatic control and auto-tune function,
30 programmable segments for precise process.

Temperature Accuracy:

+/- 1 .C

Heating Element:

Mosi2

Vacuum

(in cold state) ≤ 10 pa

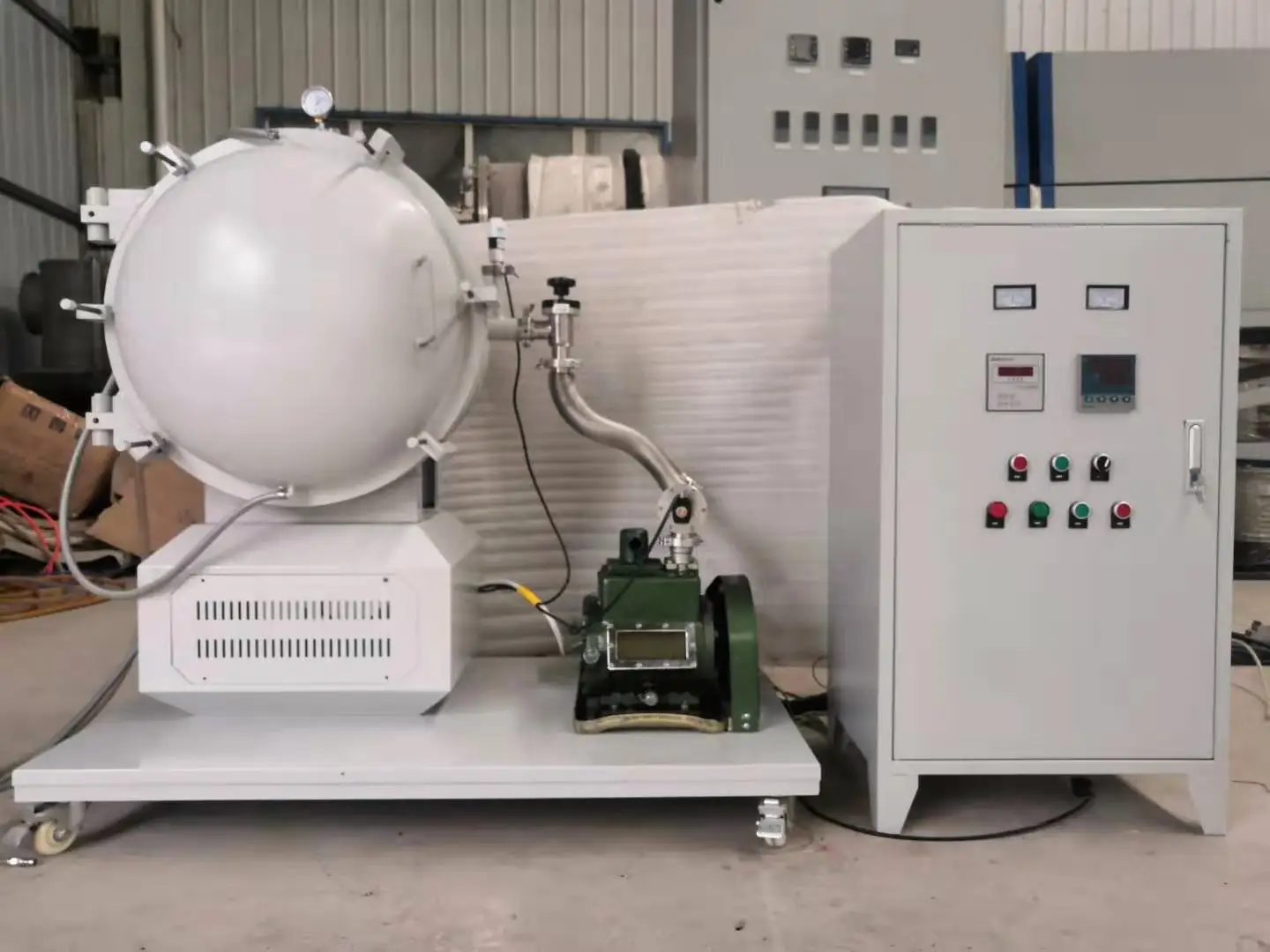

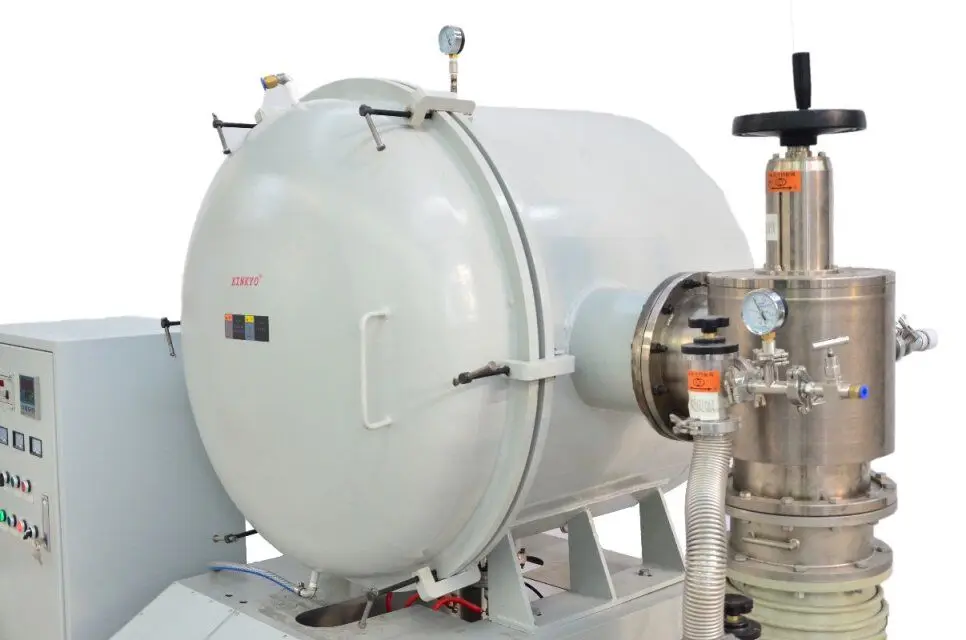

Vacuum system

1. Vacuum pressure tank
2. Two-stage rotary vane mechanical vacuum pump
Digital display vacuum meter

Certification:

UL / MET / CSA/CE

Warm Tips:

1.For improve the service life of the heating assembly , we suggest that the heating rate should not exceed 10 ℃ / min.
2.The cooling rate should not exceed 5 ℃ / min.
3.The furnace has no vacuum sealing and is prohibited from entering toxic or explosive gases.
4.Small cracks may occur on the surface of the furnace. This is a normal phenomenon, does not affect the normal use, cracks can be
repaired with alumina coating.
5.Heating furnace can be replaced

Warranty:

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by
user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under
the coverage of One Year Limited Warranty.
