NYB15 New Style Filter Press Easy To Clean Sludge Oil Filter Press Oil Small Filter Press Oil Machine
- Category: >>>
- Supplier: Tacheng City Xinchen Trading Co. Ltd.
Share on (1600323275035):
Product Overview
Description
Product description

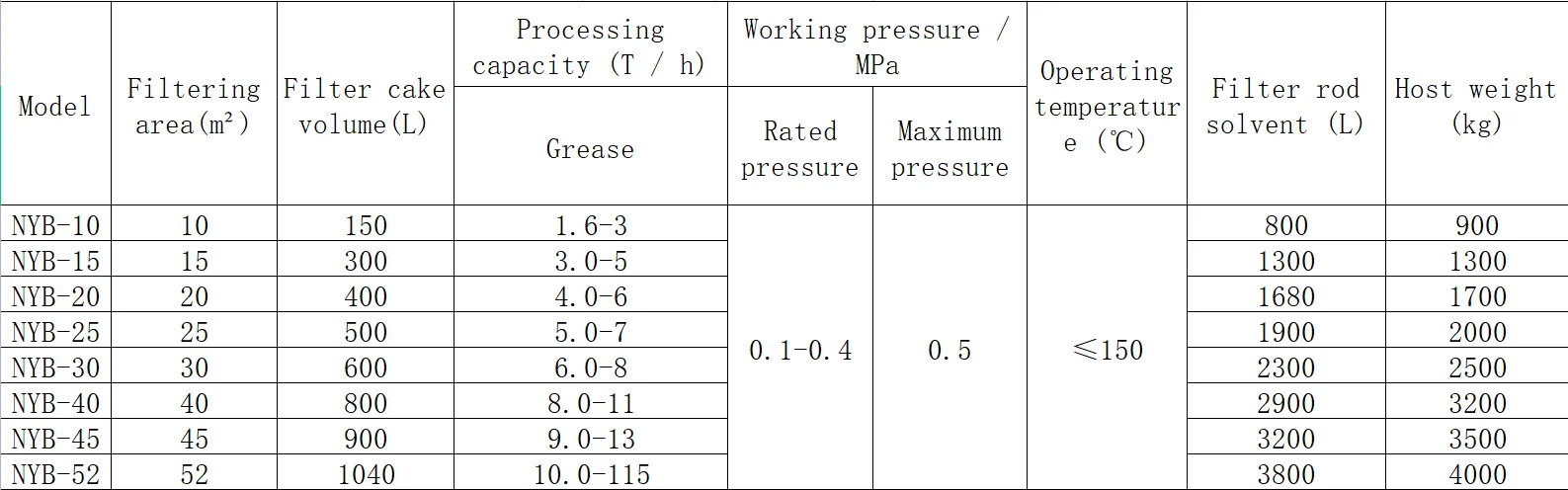

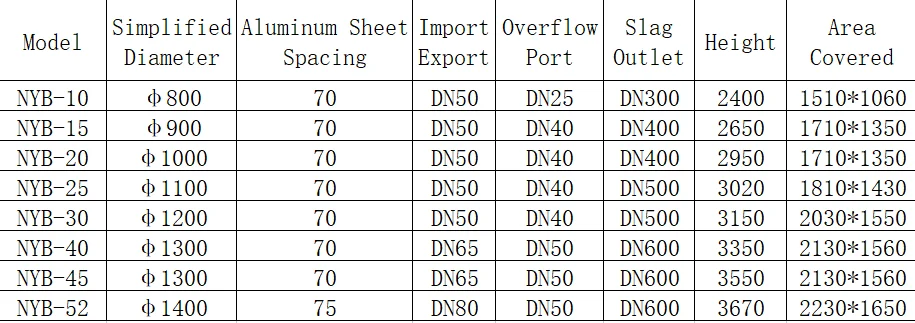

Model No. | NYB high efficiency plate closed filter | ||||||
Capacity | 1.6-115 ton per hour, different model with different capacity, contact us to get a right one | ||||||
Advantage | High efficiency, energy saving and super long warranty | ||||||
Application | It is widely used in chemical, oil, petroleum, coating, food, pharmaceutical and other industries. | ||||||

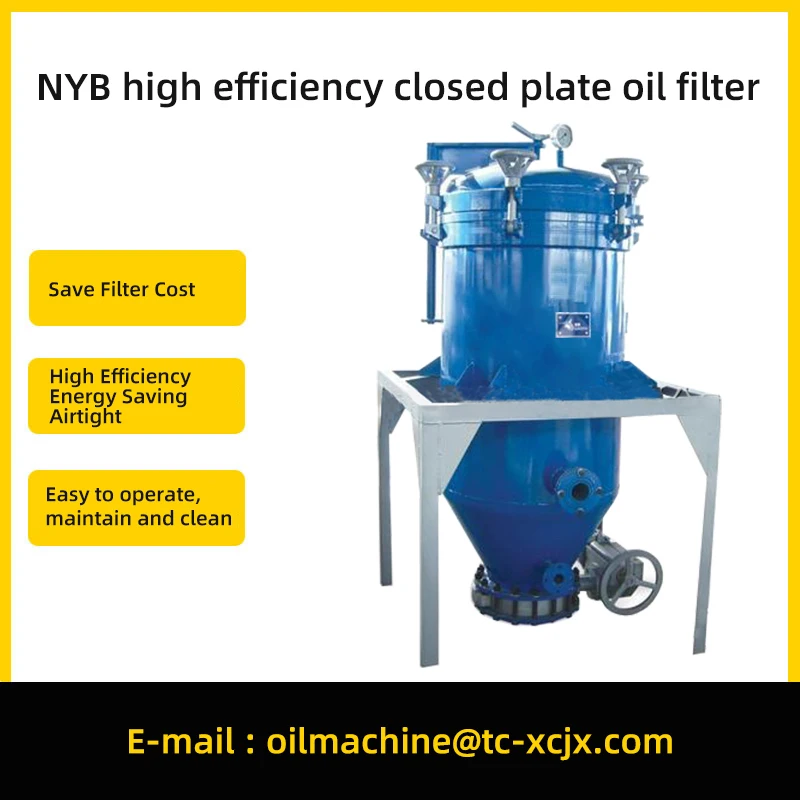

NYB Closed Plate Oil Filter
NYB serial high Efficiency Plate Type Hermetic filter belong to the fine filter, it is designed by advanced technology of similar products at home and abroad and combining the situation in China.
NYB series high-efficiency plate type filter is a kind of precision clarification and filtration equipment with high-efficiency
and energy-saving airtight operation. It is widely used in chemical, grease, petroleum, paint, food, pharmaceutical and other
industries.
and energy-saving airtight operation. It is widely used in chemical, grease, petroleum, paint, food, pharmaceutical and other
industries.
The product has a unique design structure, small size, high filtration efficiency, high filtrate transparency, good
fineness, no material loss, no consumption of filter paper, filter cloth or filter element, etc., so the filtration cost is very
low, and there is no environmental pollution.
fineness, no material loss, no consumption of filter paper, filter cloth or filter element, etc., so the filtration cost is very
low, and there is no environmental pollution.
The whole equipment is easy to operate, maintain and clean.
Scope of application (main purpose):
Oils and fats: crude oil, bleaching earth, oxidized oil, winterized oil stearin, fatty acid, etc.
Petrochemical products: diesel oil, lubricating oil, paraffin mineral oil products, etc.
Beverages: beer, juice, alcohol, milk, etc. Organic chemicals: various organic acids, alcohols, benzaldehydes, etc.
Paints and varnishes: resins, varnishes, dyes, lacquers, etc.
Inorganic chemicals: Australian water, potassium cyanide, fluorspar, etc. Food: gelatin, vinegar, starch, sugar juice, sweet water, etc. Medicine: hydrogen peroxide, vitamins, etc. Minerals: coal dust, cinder, etc. Others: purification of air and water, etc.
Oils and fats: crude oil, bleaching earth, oxidized oil, winterized oil stearin, fatty acid, etc.
Petrochemical products: diesel oil, lubricating oil, paraffin mineral oil products, etc.
Beverages: beer, juice, alcohol, milk, etc. Organic chemicals: various organic acids, alcohols, benzaldehydes, etc.
Paints and varnishes: resins, varnishes, dyes, lacquers, etc.
Inorganic chemicals: Australian water, potassium cyanide, fluorspar, etc. Food: gelatin, vinegar, starch, sugar juice, sweet water, etc. Medicine: hydrogen peroxide, vitamins, etc. Minerals: coal dust, cinder, etc. Others: purification of air and water, etc.

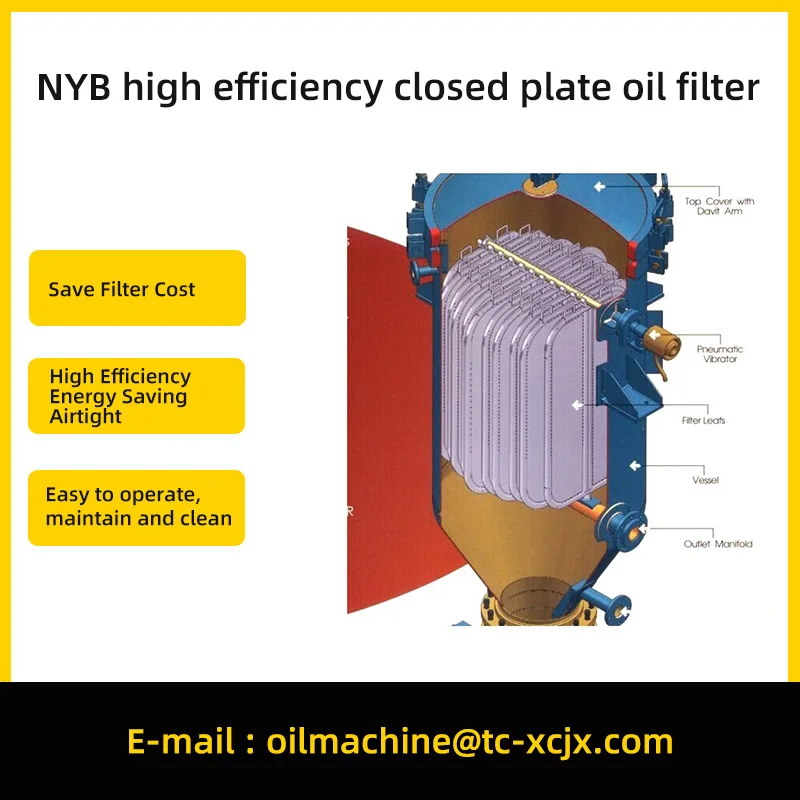

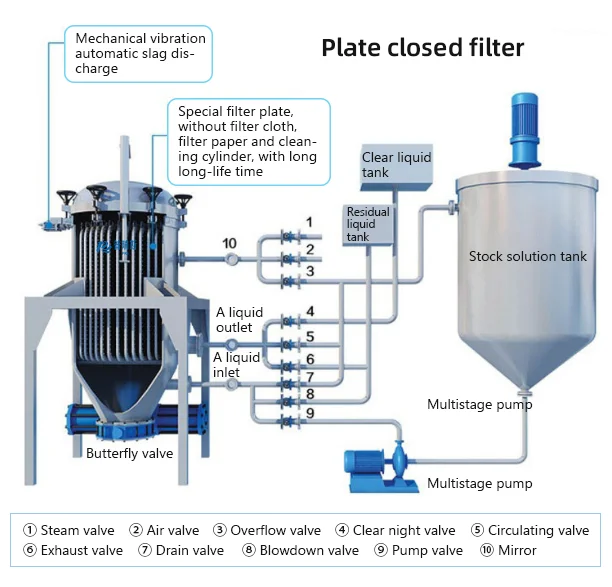

Main structure and working principle:
The main body of the filter is composed of a shell filter plate, a cover lifting structure, an automatic slag discharge device, etc. The filter plate is composed of multi-layer stainless steel filter materials, which are installed on the central collecting pipe, and are very convenient to disassemble and clean.
During filtration, the filtrate containing the filter aid enters the filter through the conveying system, so that a stable filter cake is formed on the filter screen (the filter cake layer can provide countless fine channels), and the filtrate is actually filtered through the micropores of the filter cake layer.
The main body of the filter is composed of a shell filter plate, a cover lifting structure, an automatic slag discharge device, etc. The filter plate is composed of multi-layer stainless steel filter materials, which are installed on the central collecting pipe, and are very convenient to disassemble and clean.
During filtration, the filtrate containing the filter aid enters the filter through the conveying system, so that a stable filter cake is formed on the filter screen (the filter cake layer can provide countless fine channels), and the filtrate is actually filtered through the micropores of the filter cake layer.

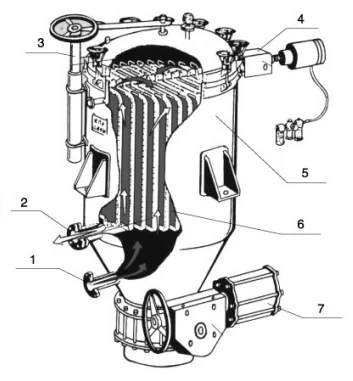

1、Feed port
2、Discharge port
3、Cover removing Mechanism
4、Vibrator
5、Filter tank
6、Filter plate
7、Residue discharging valve

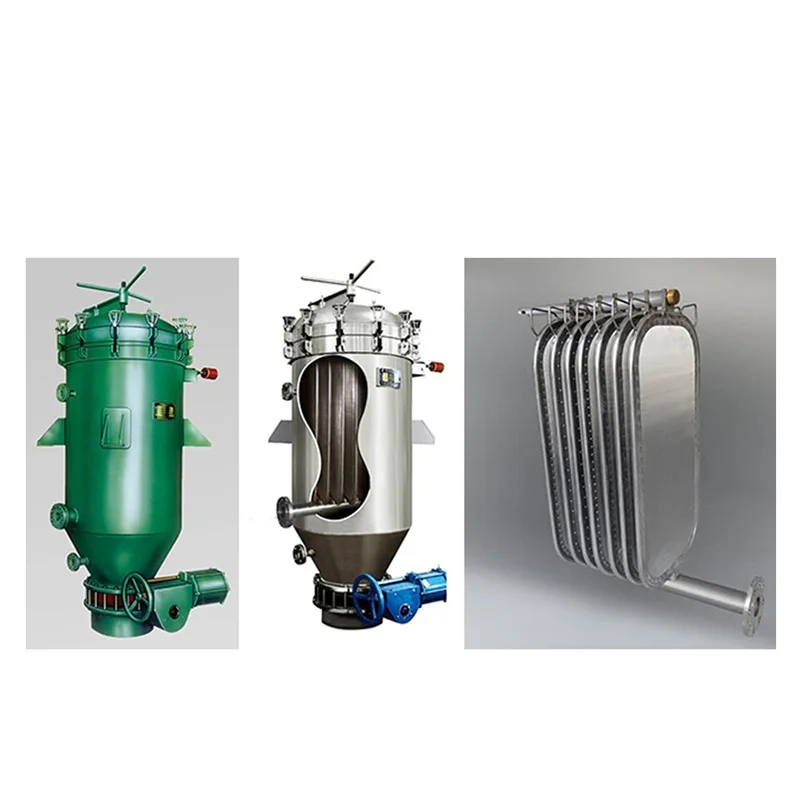

Details Images

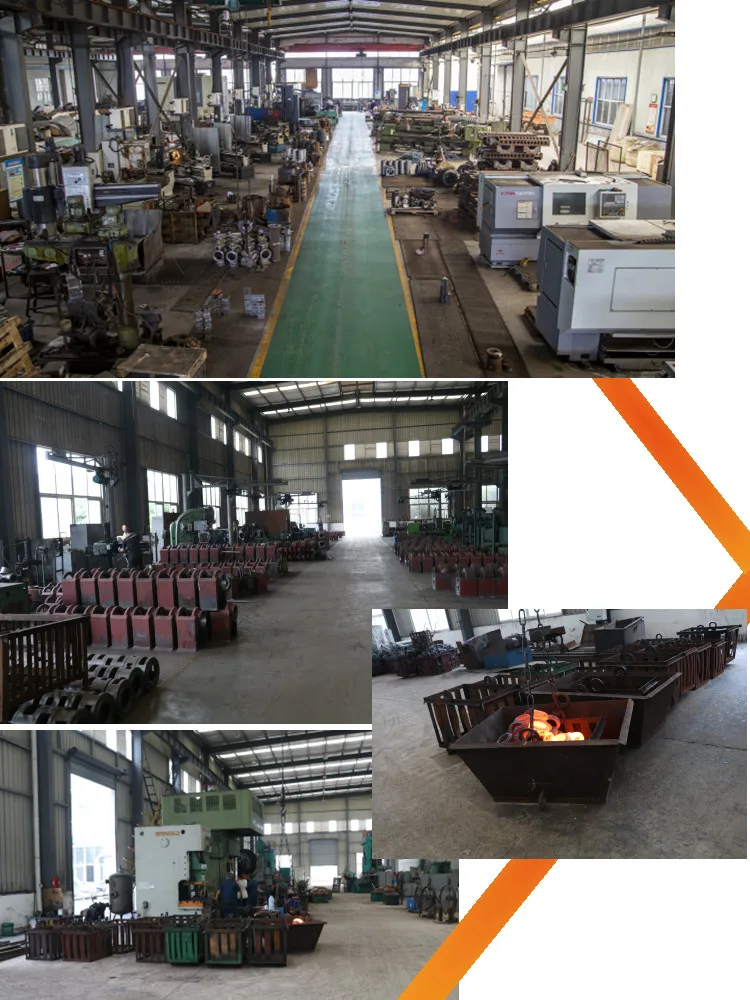

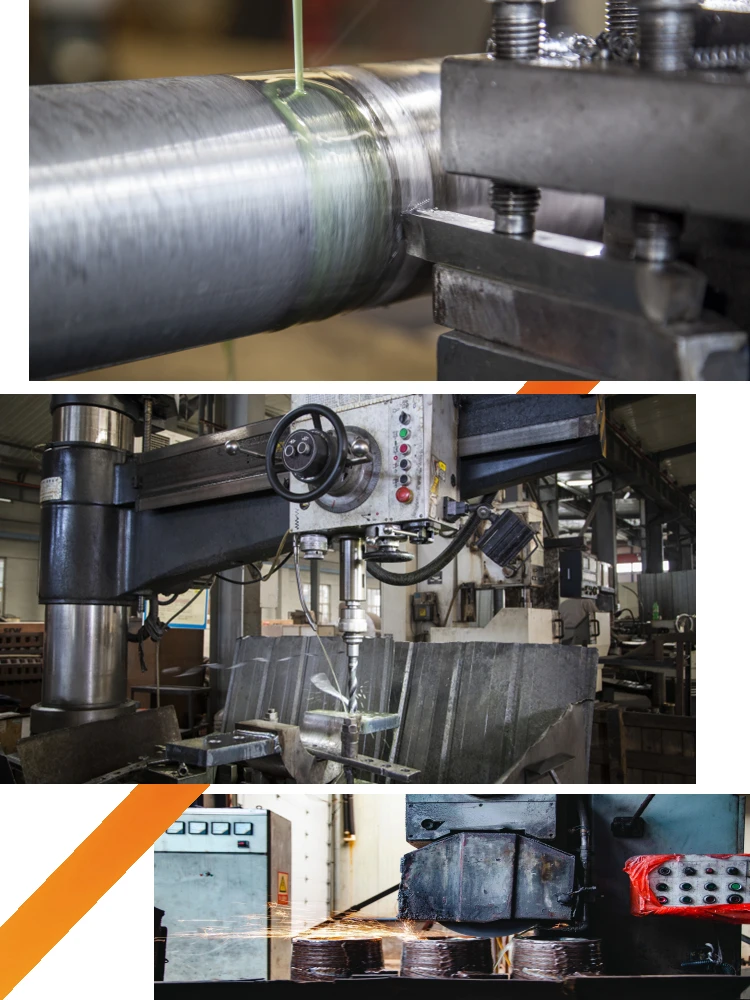

Company profile
Customer
Contact Us
Packing & Shipping
FAQ
Q: Why work with your company ?
A: We have 14 years experience in oil press machine industry, and we can help you find a great solution that can save your cost and reach your production targets. Our main products including :screw oil press, oil filter, oil refinery machine and spare parts etc.
Q: How can I judge your machine quality ?
A: Actually we already got good reputations in Russia and The Five Countries in Central Asia because of our service and stable quality. All of our machines can provide 1 year warranty and lifetime maintenance, for core parts are 6 months warranty.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our engineer will help you from the starts, and machine has been tested and fully assembled before shipping, you just needs to make 2-4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1 KG sand + 1 KG water, mix them, put in oil press, wear in 3~4 hours.
1. 1st hour, adjust oil cake thickness as 3 mm.
2. 2nd hour, adjust oil cake thickness as 2.5 mm.
3. 3rd hour, adjust oil cake thickness as 2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture.
Q:What service do you provide?
A: (1) 1 year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can I get a quotation?
A: Contact us immediately for further details by sending us an inquiry.
A: We have 14 years experience in oil press machine industry, and we can help you find a great solution that can save your cost and reach your production targets. Our main products including :screw oil press, oil filter, oil refinery machine and spare parts etc.
Q: How can I judge your machine quality ?
A: Actually we already got good reputations in Russia and The Five Countries in Central Asia because of our service and stable quality. All of our machines can provide 1 year warranty and lifetime maintenance, for core parts are 6 months warranty.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our engineer will help you from the starts, and machine has been tested and fully assembled before shipping, you just needs to make 2-4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1 KG sand + 1 KG water, mix them, put in oil press, wear in 3~4 hours.
1. 1st hour, adjust oil cake thickness as 3 mm.
2. 2nd hour, adjust oil cake thickness as 2.5 mm.
3. 3rd hour, adjust oil cake thickness as 2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture.
Q:What service do you provide?
A: (1) 1 year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can I get a quotation?
A: Contact us immediately for further details by sending us an inquiry.
