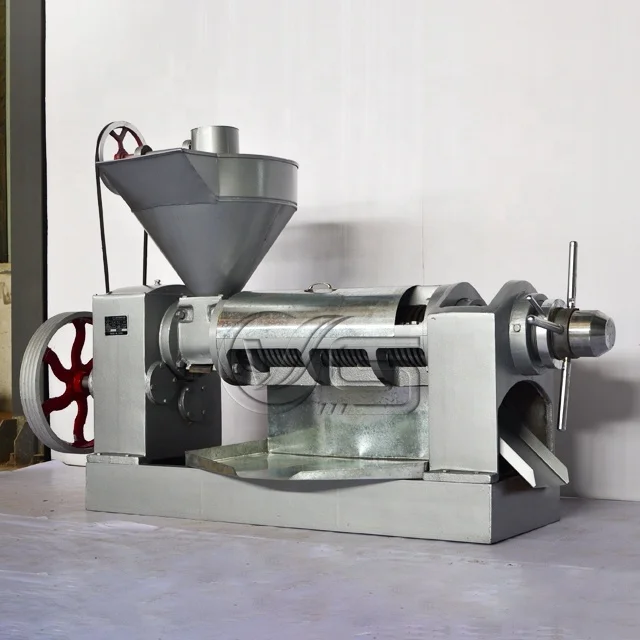

Jatropha Seeds Oil Press Oil Extraction Machine for Biodiesel Oil Production
- Category: >>>
- Supplier: Zhengzhou VOS Machinery Equipment Co. Ltd.
Share on (1600323314432):
Product Overview
Description
Product Application
Product Description
Currently we have concluded one case with buyer from European to meet their demand of mobile production line for Jatropah seeds oil production line. so that they could press Jatropha seeds anywhere once available from farmers

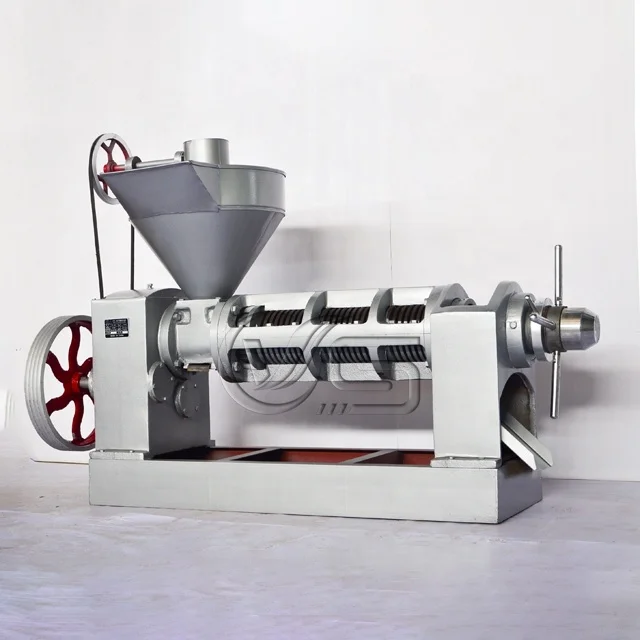

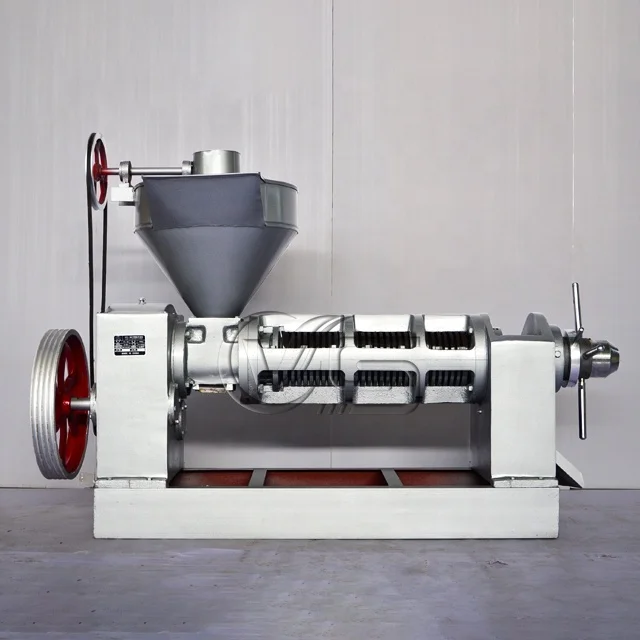

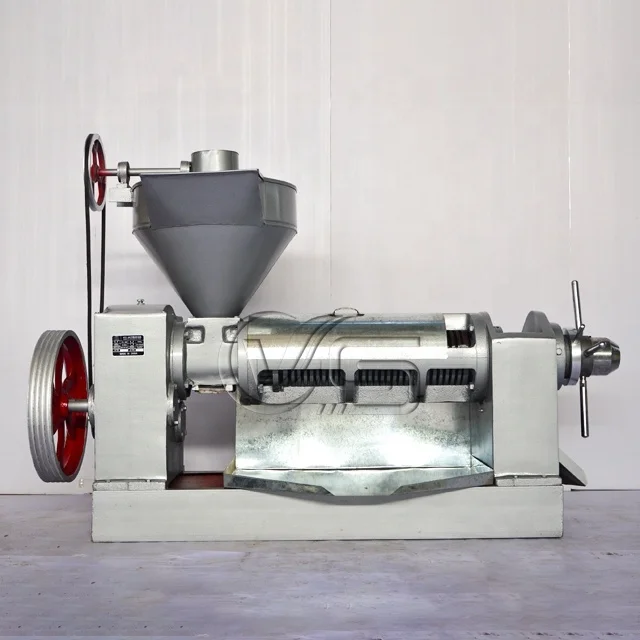

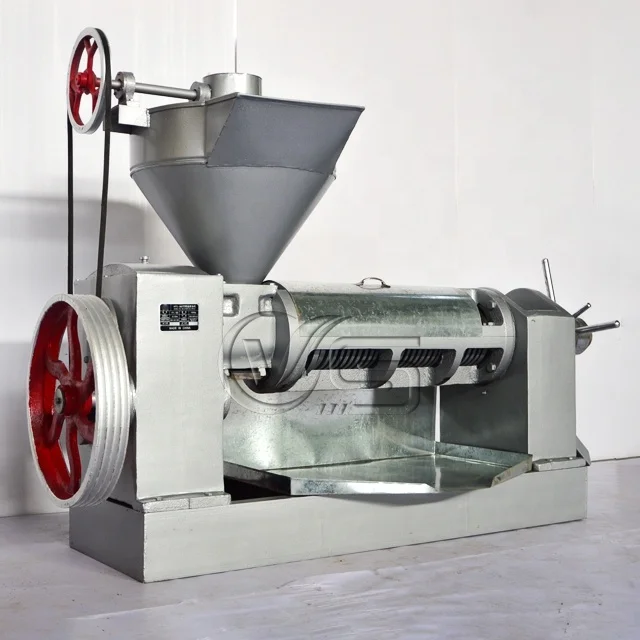

This 6YL-165 OIL PRESS currently sells popular because of high demand of bio-diesel project, and our oil press could help to do the extraction process to get the crude oil out of the Jatropha seeds or other oilseeds. This system 6YL-165 is suitable for customers where the power is 50hz 3 Phase with either voltage at 380V or 440V, at the same time, if power is not stable , the diesel engine shall help you to reach continue working performance.
Model | 6YL-165 |
Capacity | 625-800 kg/hour |
Shaft speed | 28-35r/m |
Motor | 20-30kw electric motor or 40HP diesel engine |
Dimension | 2290*750*1020mm |
Weight | 1600kg |
Cake residual | 7% |
Shaft Rotation speed | 28~35rev/minute |
Gear case transmission rate | 15/34*13/55=1:9.59 |
Allocate power | 22-30kw |
Strap length | B type 3500-4000mm |
Performance index
( Hot and Cold extraction)
Name | Model 6YL-165 | ||||||
24hour processing quantity( Ton) | Oil output per 100 kg raw material | Dry Cake remaining oil rate(%) | |||||
Rape seeds | Hot Pressing | 15~20 | 30~38 | 7.5-8 | |||
Cold Pressing | 13~18 | 28~35 | |||||
Hot Pressing | 15~20 | 30~38 | 7 | ||||
Cold Pressing | 13~18 | 28~35 | |||||
Hot Pressing | 14~19 | 10-16 | 6.5-7 | ||||
Cold Pressing | 14~18 | 8-14 | |||||
Sesame | Hot Pressing | 13-16 | 44-47 | 6.5-7.5 | |||
Cotton seeds | Cold Pressing | 13-15 | 10-14 | 5.5-6.5 | |||
What raw material this oil press machine can extract?
This multi-function sunflower seed and peanut oil press is an advanced expeller which is widely used in extraction oil from various oil seeds and nuts, such as cotton seeds, soybean seeds, peanut kernels, canola seeds, sunflower seed, grape seed, black seed, canola, niger seed, hemp seed, and so on.

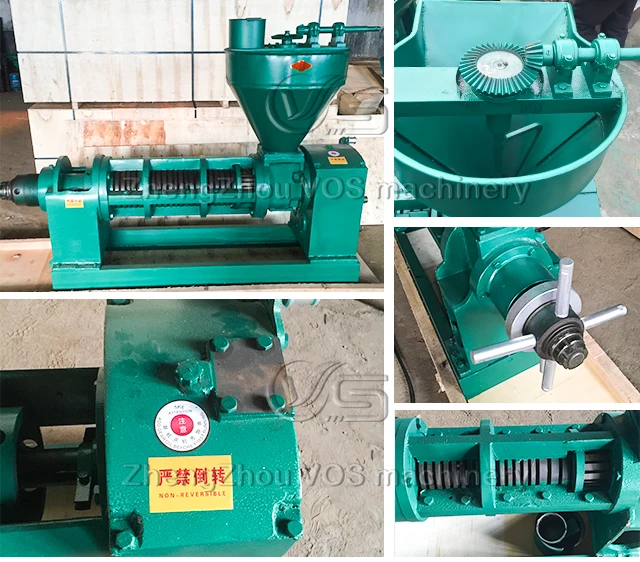

Details Images
Advantage of Multi-function sunflower seed oil extraction machine
1. Good Quality: Passed SGS certification
2. Best After Sales Service: Many Maintenance Agents
3. Reasonable price: Depend on good quantity
4. Unique design: Helical gearing &low maintenance
5. High productivity: Large quantity & high quality oil
6. Multiple functions: Cold & heat pressing
7. Big capacity, less power consumption, low running cost
8. One kind of mini-type screw oil presses covering small area characterized by low investment, strong adaptability and high efficiency of oil production, etc

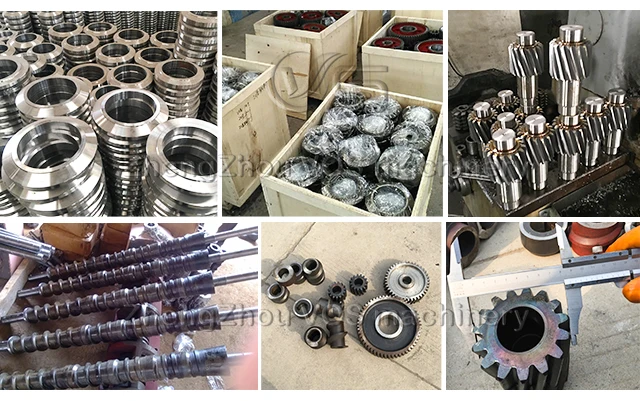

Strong machining spares parts of oil press:
The machine’s casting and steel press chamber, press screw and press ring, gears is the higher quality, the accessories is enough hard after quenching conditioning treatment, wear resistance and long service life, the enduser could get stable oil pressing effect, saving the maintenance cost.

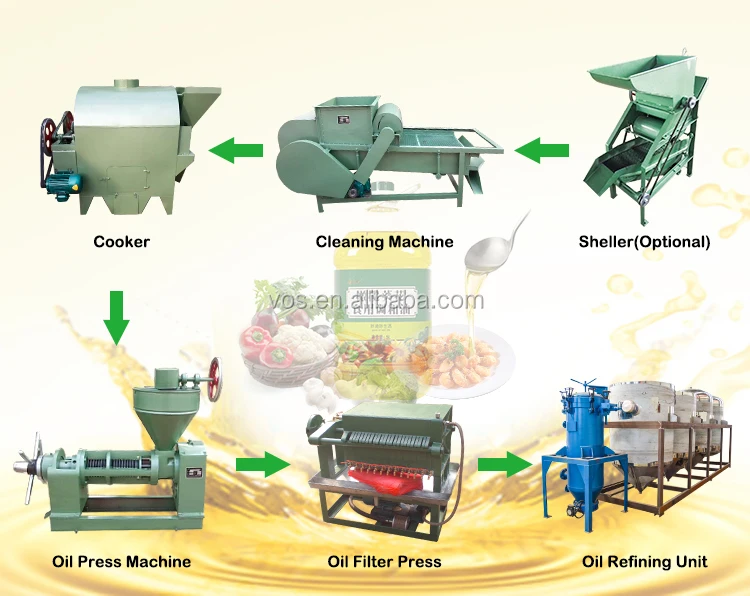

PROCESSES TO OPERATE of Multi-function sunflower seed and peanut oil press
1. Prepare the seeds.
2. Adjust the machine, such as electricity, heating (optional).
3. Start the machine, putting seeds into the feeder.
4. Seed into the screw bolt , begin to press.
5. The crude oil comes out of the squeezing bolt, then flow into the board.
6. Go into the vacuum filter, using it for filtration.
7. After filtration, the oil comes out from the bottom of pipe.
2. Adjust the machine, such as electricity, heating (optional).
3. Start the machine, putting seeds into the feeder.
4. Seed into the screw bolt , begin to press.
5. The crude oil comes out of the squeezing bolt, then flow into the board.
6. Go into the vacuum filter, using it for filtration.
7. After filtration, the oil comes out from the bottom of pipe.
Relate product
Model | Capacity(T/24H) | Power(KW) | Dimensions(MM) | Weight(KG) |
6YL-68 | 0.8-1.2 | 5.5 | 920*390*750 | 150 |
6YL-80 | 2-3 | 5.5 | 1540*510*680 | 370 |
6YL-90 | 4 | 7.5 | 1540*510*680 | 370 |
6YL-95 | 5 | 7.5 | 1920*550*765 | 480 |
6YL-100 | 4-5 | 11 | 1910*610*765 | 550 |
6YL-105 | 5-7 | 15 | 2140*550*765 | 580 |
6YL-120 | 6 | 15 | 1970*700*780 | 680 |
6YL-130 | 9-12 | 18.5 | 2320 *700 *780 | 820 |
ZX-130 | 9-12 | 18.5 | 2320 *700 *780 | 820 |
6YL-165 | 15-20 | 22-30 | 2290*750*1020 | 1600 |
We provide different types of oil pres machine to meet your different oil making requirements. You can choose the one which totally suitable for your needs from above main models of our best sunflower oil machine.

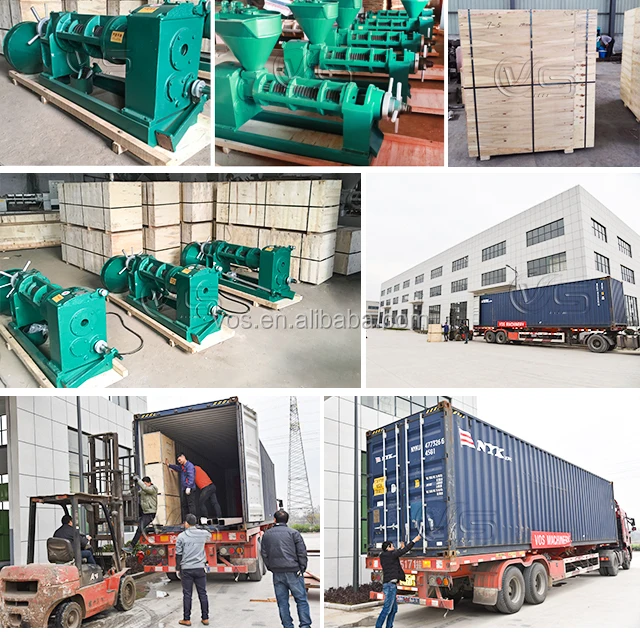

Packing&Shipping
We use customized export wooden cases package, short lead time
1.Package:all machines will be packed into plywood case and then send into container to make safety delivery.
2.Shipping:the paddy rice mill machine will be delivered within 15 working days after get the payment.
Company Introduction
Why Choose Us?
We are a company specialized in producing machinery in oil processing area with more than 40 years'
experience, we have obtained the SGS certificate and be nominated by the Ministry of Machinery Industry of China as a National Patent Certified manufacturer.
As professional oil milling factory in China, We had been exporting oil press machines in bulk quantities around 70 countries worldwide, such as United States, Germany, France, Slovenia, Ethiopia, Nigeria, Uganda, Zimbabwe, Kenya, Tanzania, Burkina Faso, Mali, Morocco, Benin, Laos, Vietnam Cambodia, Uzbekistan, Sudan, Philippines, Indonesia, and many other countries.
experience, we have obtained the SGS certificate and be nominated by the Ministry of Machinery Industry of China as a National Patent Certified manufacturer.
As professional oil milling factory in China, We had been exporting oil press machines in bulk quantities around 70 countries worldwide, such as United States, Germany, France, Slovenia, Ethiopia, Nigeria, Uganda, Zimbabwe, Kenya, Tanzania, Burkina Faso, Mali, Morocco, Benin, Laos, Vietnam Cambodia, Uzbekistan, Sudan, Philippines, Indonesia, and many other countries.
1.Energy Saving: The electric power can be reduced by 40% under the same output. For example, the machine can save 6 kilowatt at an average of one hour.
2.Labor Saving: 60% labor can be saved under the same output. One or two person can organize the production.
3.Widely Usage: The machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed, sesame, rape seeds, sunflower, cottonseeds, soybean, etc.
4.Oil Pure: Vacuum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
2.Labor Saving: 60% labor can be saved under the same output. One or two person can organize the production.
3.Widely Usage: The machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed, sesame, rape seeds, sunflower, cottonseeds, soybean, etc.
4.Oil Pure: Vacuum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
How to find a good oil mill?
1.Material.
2.Capacity.
3.Oil yield.
4.Whether temperature is automatically controlled.
5.Security and convenient of operating.
6.Whether adopt automatic filtration system.
7.Whether the appearance of the machine is painted evenly.
8.Which wear-resisting material is used.
2.Capacity.
3.Oil yield.
4.Whether temperature is automatically controlled.
5.Security and convenient of operating.
6.Whether adopt automatic filtration system.
7.Whether the appearance of the machine is painted evenly.
8.Which wear-resisting material is used.
