DLS400 FINCM Structure Steel Directly Wholesale High Speed CNC Beam Drilling Machines
- Category: >>>
- Supplier: Shandong Fin Cnc Machine Co. Ltd.
Share on (1600323316561):
Product Overview
Description
Product Description
Mainly used for drilling holes on H beam and Channels. It can be mass production of multiple varieties.
Machine composition：
1)Feeding support rolling table：1 set
1)Feeding support rolling table：1 set
2)Feeding trolley：1set
3)Three-dimensional CNC drilling machine（SWZ1250C）：1set
4)Corner band saw machine（DJ1250）：1 set
5)discharge supportrolling table ：1 set
6)electric systems ：1set
3)Three-dimensional CNC drilling machine（SWZ1250C）：1set
4)Corner band saw machine（DJ1250）：1 set
5)discharge supportrolling table ：1 set
6)electric systems ：1set
Product name | Steel Structure Beam Drilling and Sawing Combined Machine Line |
Environment humidity | ≤75% |
Working temperature | 0℃~ 40℃ |
Power | Three phase four wire system |
AC Voltage | 380V |
Fluctuation of voltage | ±10% |
Frequency | 50 Hz |
MODEL | DLS400 | DMS700 | DMS1206A | DMS1250 | ||||
H-beam Section height | 100～400mm | 150～700mm | 150～1250mm | 150～1250mm | ||||
H-beam Flange width | 75mm～300mm | 75～400mm | 75～600mm | 75～600mm | ||||
Channel steel height | 126～400mm | 150～700mm | 150～1250mm | 126～400mm | ||||
Channel steel leg width | 53mm～104mm | 75～200 mm | 75～300mm | 53～104mm | ||||
Spindle speed(RPM) | 180～560r/min | 20～2000r/min | 20～2000r/min | 180～560 r/min | ||||
Sawing unit | ||||||||
Plate size maximum | 500×400 mm | 700 ×400 mm | 1250 ×600 mm | 500×400 mm | ||||
Plate size minimum | 100×75mm | 150 ×75 mm | 500x 500mm | 100×75mm | ||||
Saw blade specification | T:1.3mm | T:1.3mm W:41mm | T:1.6mm W:67mm | T:1.3mm W:41mm | ||||
Main motor | 5.5 kW | 7.5 kw | 15 kw | 5.5 kw | ||||

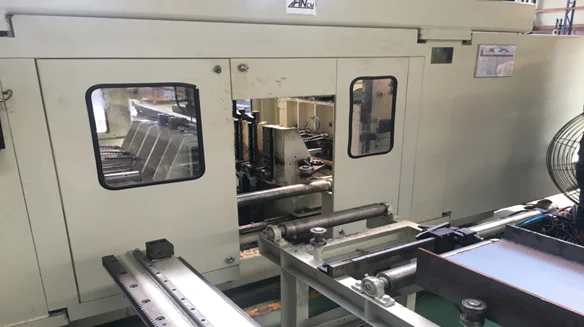

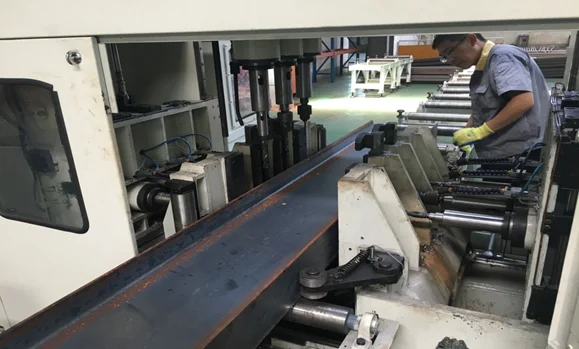

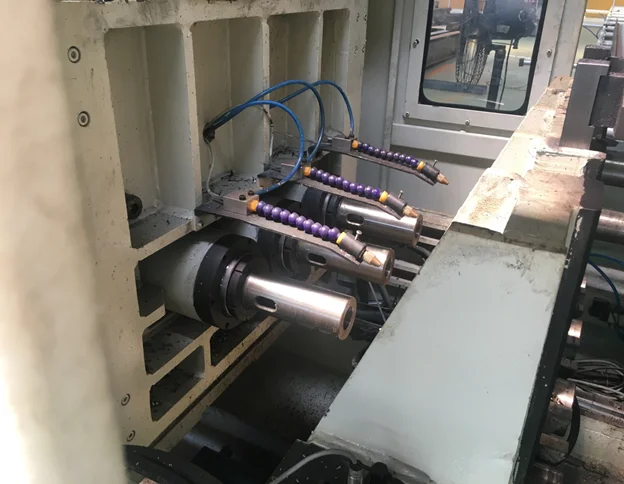

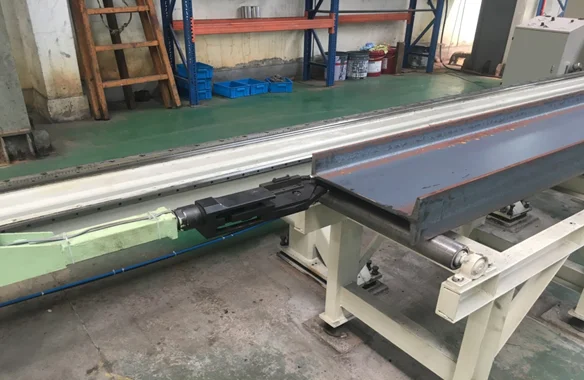

Details Images
More Products
Our Company
Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research,design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
Cooperative Supplier
Product Process Control
Sales Network
Our Service
FAQ
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
