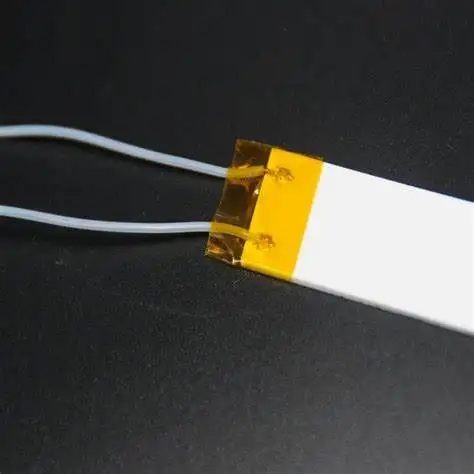

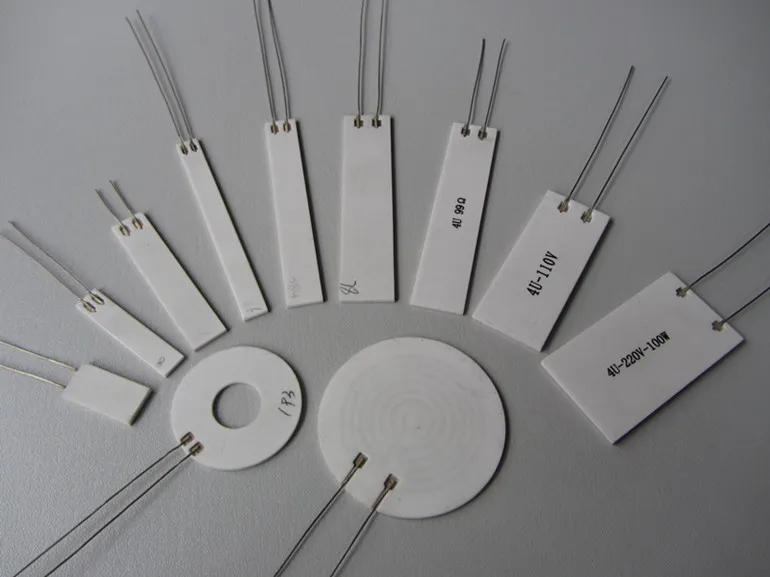

MCH Moxibustion 24MM Size Alumina Ceramic Heater for Medical Machine
- Category: >>>
- Supplier: Zhuhai Ino Electronics Co. Ltd.
Share on (1600323409934):
Product Overview
Description
Place of Origin | Zhuhai china |
Brand name | Inotoday |
Type | Electrothermal Ceramics |
Model Number | MCH-06 |
Advantage | Energy-Saving,Superior Thermal Properties,High Reliability |
Electrode | Positive and Negative (universal) |
Property | Insulated Ceramic Heater |
Certificate | RoHS,CE,REACH,ISO9001 |

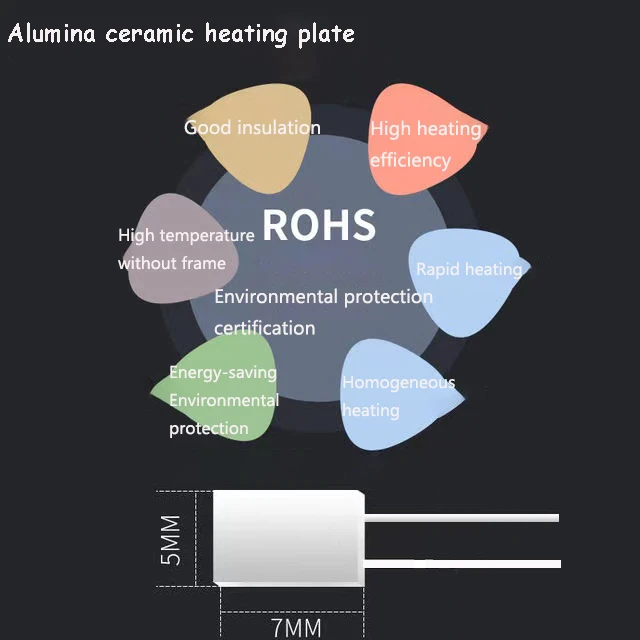

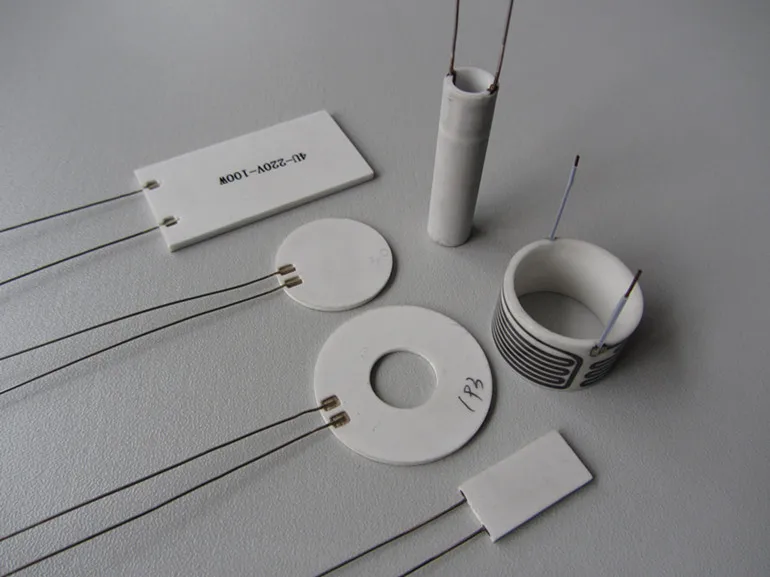

MCH is the abbreviation of metal ceramics heater. A new type of heating element is formed by using high thermal conductivity alumina ceramic as matrix and refractory metal as inner electrode. It is co fired at 1600 ° C by a series of special processes.
Other names: MCH ceramic heaters , MCH heaters , metal ceramic heaters , alumina ceramic heaters , HTCC ceramic heating elements , HTCC ceramic heating elements heating components , ceramic heaters , ceramic heaters.
1.Energy saving , small size , high thermal efficiency.
3.Linear resistance-temperature , easy to control temperature by controlling the electric resistance.
4.No power decay for a long period, long production life.
5. Rapid heating , ceramic heating element can reach above 900 ℃ in 30 seconds ; its components can reach above 200℃ in 10 seconds.
6. No open flame , safety.
7. Uniform surface heating.
8. High power density: ≥ 50 W/cm2.
9. Environmental Protection: no lead，cadmiummercury，hexavalent chromium，polybrominated biphenyls ，more harmful substances such as polybrominated diphenyl ethers，in full compliance with ROHS and EU environmental.
2.Surface is not charged , good electric insulation , withstand 4200V/s , and the insulation resistance of the product is ≥ 100m Ω.
3.Linear resistance-temperature , easy to control temperature by controlling the electric resistance.
4.No power decay for a long period, long production life.
5. Rapid heating , ceramic heating element can reach above 900 ℃ in 30 seconds ; its components can reach above 200℃ in 10 seconds.
6. No open flame , safety.
7. Uniform surface heating.
8. High power density: ≥ 50 W/cm2.
9. Environmental Protection: no lead，cadmiummercury，hexavalent chromium，polybrominated biphenyls ，more harmful substances such as polybrominated diphenyl ethers，in full compliance with ROHS and EU environmental.
MCH is mainly used in the heating core of hairdressing appliances , such as hairpins , curling instruments , hair dryers , as well as electric soldering iron , water boiling machine , steam machine , medical equipment ,etc.
Attentions:
1. The temperature control of heating plate must be within the steady voltage for long-term operation, and the temperature control shall be less than 500 ℃.
2. Avoid sudden cooling and heating , sharp temperature difference change can make heating plate expand and damage tungsten wire heating layer.
3. When the installation pressure is less than 2kg / cm2 , stainless steel clasp or elastic pressure is recommended.
4. The lead wire should be connected with high temperature resistant lead clip.
5. The connection of heating body lead wire is not waterproof , and avoid contact with liquid.
1. The temperature control of heating plate must be within the steady voltage for long-term operation, and the temperature control shall be less than 500 ℃.
2. Avoid sudden cooling and heating , sharp temperature difference change can make heating plate expand and damage tungsten wire heating layer.
3. When the installation pressure is less than 2kg / cm2 , stainless steel clasp or elastic pressure is recommended.
4. The lead wire should be connected with high temperature resistant lead clip.
5. The connection of heating body lead wire is not waterproof , and avoid contact with liquid.
Zhuhai Ino Electronics Co., Ltd. was established in November 2010，It's a company with Research & Development, Manufacturing and International sales.
We served more than 300 enterprises, including many international well-known enterprises , such as American Rheem , Japan Paloma and Rinnai , etc . Our annual turnover is about 5 million US dollars. We can provide free sample and we have professional sales team who can response you within 12 hours.
We served more than 300 enterprises, including many international well-known enterprises , such as American Rheem , Japan Paloma and Rinnai , etc . Our annual turnover is about 5 million US dollars. We can provide free sample and we have professional sales team who can response you within 12 hours.
We served more than 300 enterprises , including many international well-known enterprises , such as American Rheem , Japan Paloma and Rinnai , etc.
Q: Are you trading company or manufacturer ?
Q: Do you provide samples ? is it free or charge ?
A: Yes, we could offer the sample for free but we don’t pay the cost of freight.
Q: What is your terms of payment ?
A: 30% in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
A: We are factory.
.
Q: How long is your lead time?
A: Generally it is one week if the goods are sufficient in stock. or it is 10-30 days if the goods are out of stock, it is according to quantity.
Q: How long is your lead time?
A: Generally it is one week if the goods are sufficient in stock. or it is 10-30 days if the goods are out of stock, it is according to quantity.
Q: Do you provide samples ? is it free or charge ?
A: Yes, we could offer the sample for free but we don’t pay the cost of freight.
Q: What is your terms of payment ?
A: 30% in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
