Customized 12V 24V 110V 240V High Quality Small Size Heater for Sterilizer
- Category: >>>
- Supplier: Zhuhai Ino Electronics Co. Ltd.
Share on (1600323429536):
Product Overview
Description
Place of Origin | Zhuhai china |
Brand name | Inotoday |
Type | Electrothermal Ceramics |
Model Number | MCH-06 |
Advantage | Energy-Saving,Superior Thermal Properties,High Reliability |
Electrode | Positive and Negative (universal) |
Property | Insulated Ceramic Heater |
Certificate | RoHS,CE,REACH,ISO9001 |

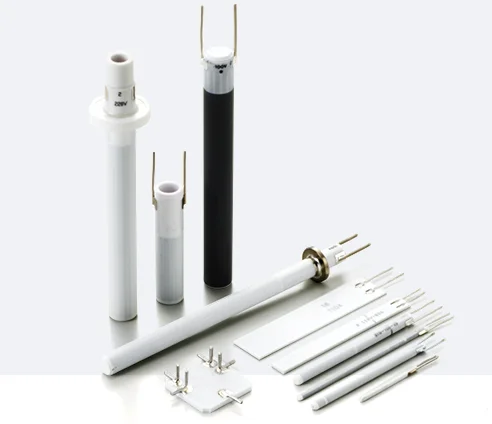

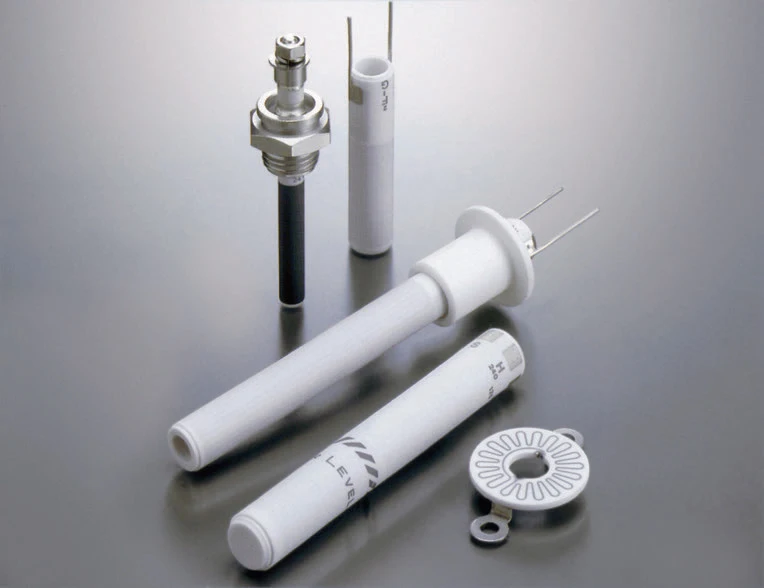

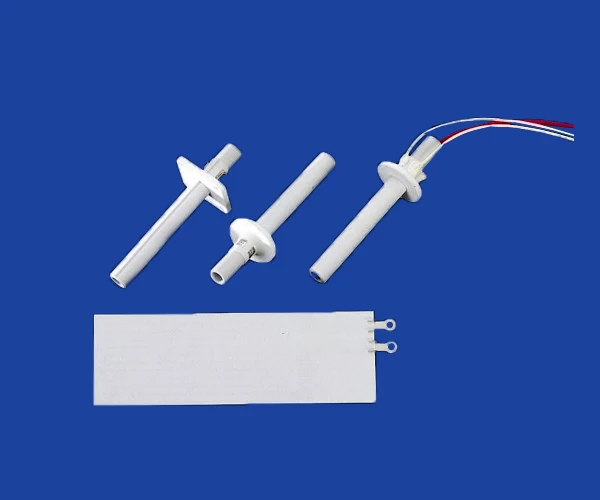

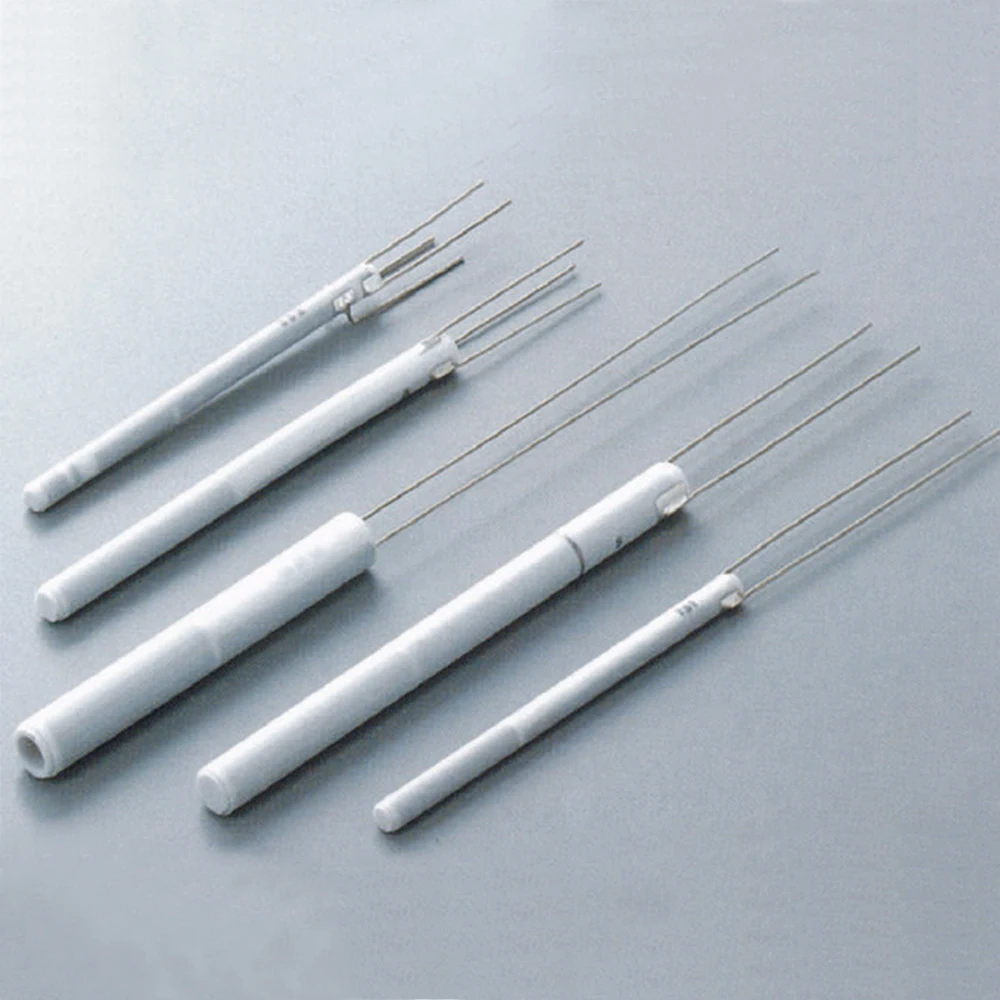

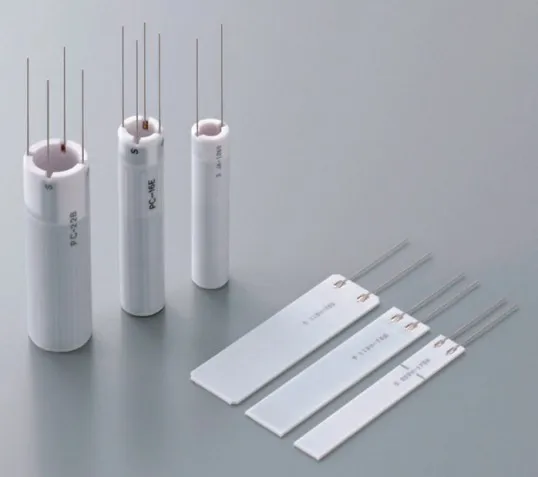

MCH is the abbreviation of metal ceramics heater. A new type of heating element is formed by using high thermal conductivity alumina ceramic as matrix and refractory metal as inner electrode. It is co fired at 1600 ° C by a series of special processes.
Other names: MCH ceramic heaters , MCH heaters , metal ceramic heaters , alumina ceramic heaters , HTCC ceramic heating elements , HTCC ceramic heating elements heating components , ceramic heaters , ceramic heaters.
1.Energy saving , small size , high thermal efficiency.
3.Linear resistance-temperature , easy to control temperature by controlling the electric resistance.
4.No power decay for a long period, long production life.
5. Rapid heating , ceramic heating element can reach above 900 ℃ in 30 seconds ; its components can reach above 200℃ in 10 seconds.
6. No open flame , safety.
7. Uniform surface heating.
8. High power density: ≥ 50 W/cm2.
9. Environmental Protection: no lead，cadmiummercury，hexavalent chromium，polybrominated biphenyls ，more harmful substances such as polybrominated diphenyl ethers，in full compliance with ROHS and EU environmental.
2.Surface is not charged , good electric insulation , withstand 4200V/s , and the insulation resistance of the product is ≥ 100m Ω.
3.Linear resistance-temperature , easy to control temperature by controlling the electric resistance.
4.No power decay for a long period, long production life.
5. Rapid heating , ceramic heating element can reach above 900 ℃ in 30 seconds ; its components can reach above 200℃ in 10 seconds.
6. No open flame , safety.
7. Uniform surface heating.
8. High power density: ≥ 50 W/cm2.
9. Environmental Protection: no lead，cadmiummercury，hexavalent chromium，polybrominated biphenyls ，more harmful substances such as polybrominated diphenyl ethers，in full compliance with ROHS and EU environmental.
MCH is mainly used in the heating core of hairdressing appliances , such as hairpins , curling instruments , hair dryers , as well as electric soldering iron , water boiling machine , steam machine , medical equipment ,etc.
Attentions:
1. The temperature control of heating plate must be within the steady voltage for long-term operation, and the temperature control shall be less than 500 ℃.
2. Avoid sudden cooling and heating , sharp temperature difference change can make heating plate expand and damage tungsten wire heating layer.
3. When the installation pressure is less than 2kg / cm2 , stainless steel clasp or elastic pressure is recommended.
4. The lead wire should be connected with high temperature resistant lead clip.
5. The connection of heating body lead wire is not waterproof , and avoid contact with liquid.
1. The temperature control of heating plate must be within the steady voltage for long-term operation, and the temperature control shall be less than 500 ℃.
2. Avoid sudden cooling and heating , sharp temperature difference change can make heating plate expand and damage tungsten wire heating layer.
3. When the installation pressure is less than 2kg / cm2 , stainless steel clasp or elastic pressure is recommended.
4. The lead wire should be connected with high temperature resistant lead clip.
5. The connection of heating body lead wire is not waterproof , and avoid contact with liquid.
