Direct Selling Classic Design Vacuum Air Flow Packing Machine Machine for Packing Air Flows
- Category: >>>
- Supplier: Henan Sparta Industrial Co. Ltd.
Share on (1600323453440):
Product Overview
Description
Model | The valve mouth packing machine |
Type | Automatic weighing |
Packaging scope | 5-50kg/bag |
Workers required | 1-2 persons |
Filling speed | 6-10s/bag |
Capacity | 5T/H |
Working method | Manual doing,Automatic weighing |
Total weight | 180kg |
Overall Dimension(L*W*H) | 1100*650*1005mm (L*W*H) |

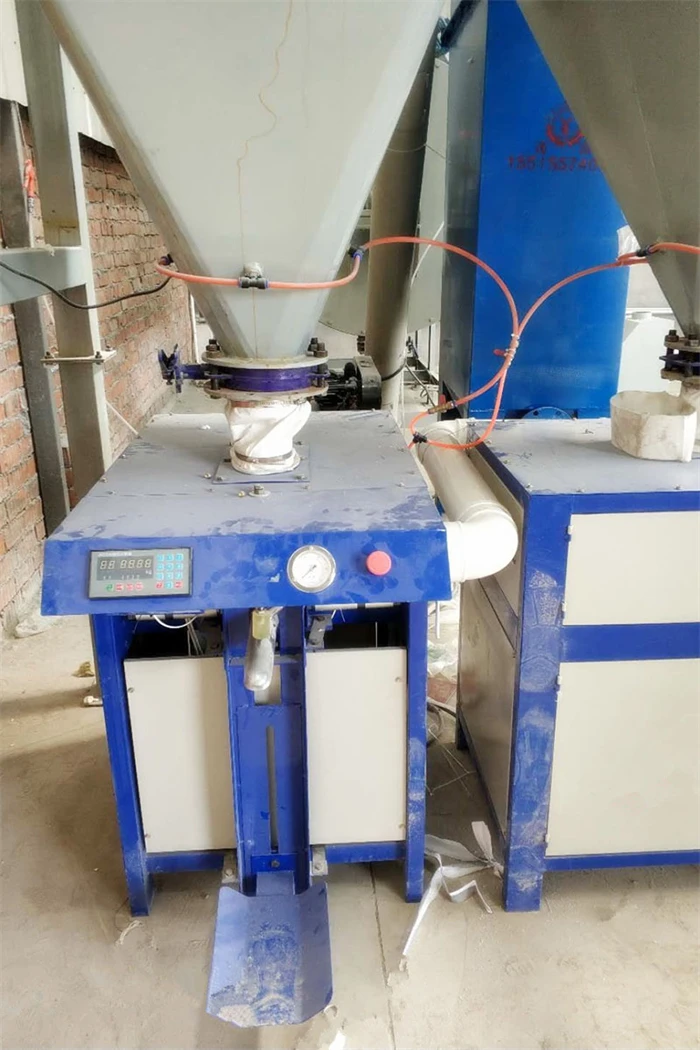

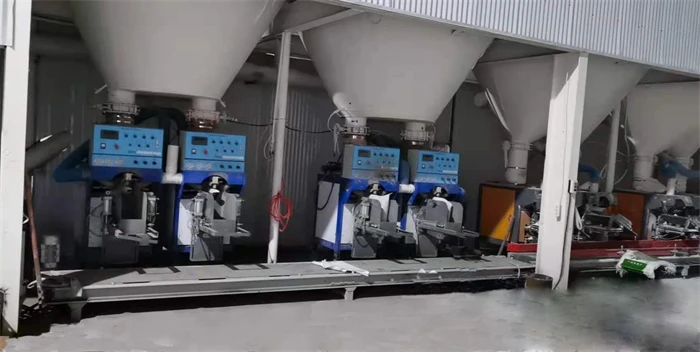

Outer Air Flow Packing Machine
Outer Air Flow Packing Machine is suitable for the packaging of powders with good fluidity or fine particles (≤5mm), using compressed air as power. The compressed air passes through the atomizer (air cushion) to fluidize the material in the closed container, so as to achieve the function of conveying and feeding.Pneumatic rubber valve is used for airtight, and the flow area of the valve is controlled to achieve the control of the feeding amount of the packaged materials, and to achieve effective and stable packaging accuracy and speed.It can be used for packaging thermal insulation mortar, bonding mortar, anti-cracking mortar, dry powder binder, self-leveling mortar, dry powder putty and other dry powder materials.
Features of air-flow packaging machine
1.The feed end is equipped with a pressure holding chamber, with a pneumatic butterfly valve or a pneumatic plug valve at the top, which ensures the filling rate of the pressure chamber and improves the reliability of the quantitative accuracy;

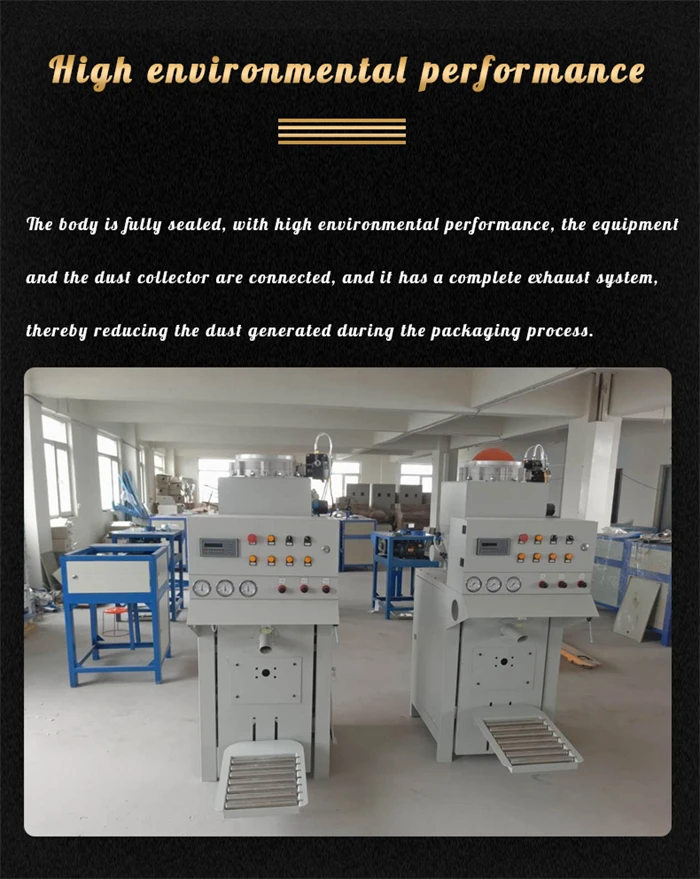

2. The equipment has a built-in dust collector, which reduces the dust in the environment, which is beneficial to the protection of the operator and the protection of the environment;
3. Fast packaging speed and stable accuracy;
4. Especially suitable for the packaging of building materials dry powder mortar
2. The equipment has a built-in dust collector, which reduces the dust in the environment, which is beneficial to the protection of the operator and the protection of the environment;
3. Fast packaging speed and stable accuracy;
4. Especially suitable for the packaging of building materials dry powder mortar
Components of full automatic valve bag packing machine
Frame, Power head, Motor, Control cabinet, Gauge Outfit, Discharge Port, Pallet, Cylinder, Barometer, Discharging switch, Weight measuring system.
Application
This kind of packing machine is widely used for filling and packing the dry powder materials, like: fly ash, coal powder, lime powder, mortar,cement and other materials.
Advantages

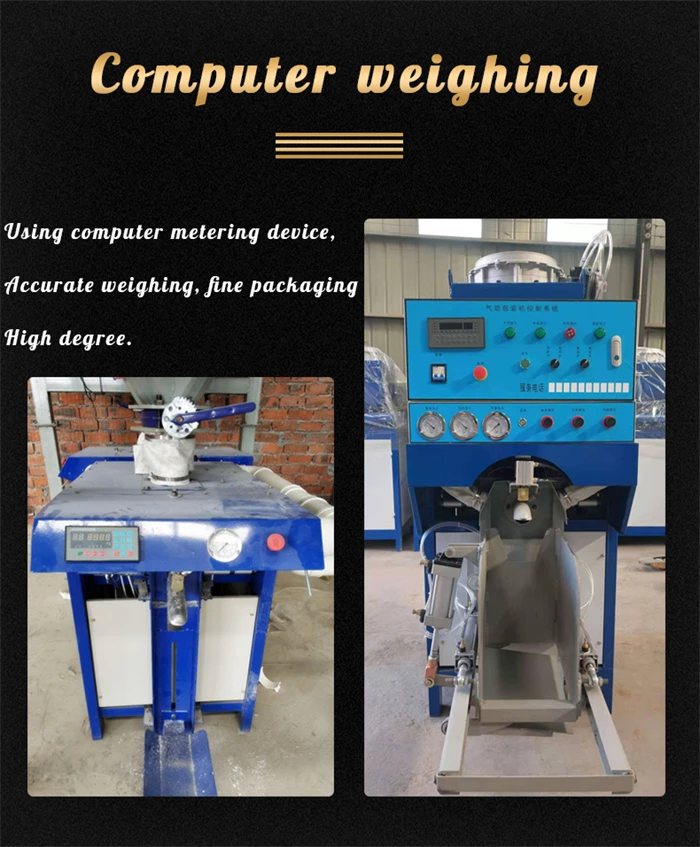

1.Automatic weighing and packing system, weighing accurately;
2.Small size and light quality, moving and installation conveniently;
3.Steady performance, easy to operate and maintenance;
4.High automation,saving labor and increase efficiency.
2.Small size and light quality, moving and installation conveniently;
3.Steady performance, easy to operate and maintenance;
4.High automation,saving labor and increase efficiency.
Henan Sparda Industrial Co., Ltd. is located in Xingyang Wulong Industrial Zone, Zhengzhou City, which is a collection of independent design, research and development, production, sales, as one of the professional machinery and equipment, dry mortar equipment, real stone paint mixer production line, packaging machine.
Our factory has 15 years of design and development experience, in the quality of survival, to the credibility of security, to service first, widely received by the industry.Our factory's products have been exported to Asia, Africa, North America, South America, such as: Kazakhstan, Armenia, Malaysia, Romania，Russia， and other countries, well received by foreign customers!
Our factory has 15 years of design and development experience, in the quality of survival, to the credibility of security, to service first, widely received by the industry.Our factory's products have been exported to Asia, Africa, North America, South America, such as: Kazakhstan, Armenia, Malaysia, Romania，Russia， and other countries, well received by foreign customers!
