manganese ore concentrate beneficiation plant
- Category: >>>
- Supplier: Jiangxi Gandong Mining Equipment Machinery Manufacturer
Share on (1600323479792):
Product Overview
Description
Product Description
Good price jig machine applied in manganese ore India
Jig machine is widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium, antimony, lead, tantalum, niobium and other minerals
Our sawtooth wave jig machine is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve--produced by sawtooth wave jig--is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.
The advantages of sawtooth wave jig machine are large capacity, big receptivity for wide range of particle size, easy operation and maintenance.
Jig machine is widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium, antimony, lead, tantalum, niobium and other minerals
Our sawtooth wave jig machine is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve--produced by sawtooth wave jig--is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.
The advantages of sawtooth wave jig machine are large capacity, big receptivity for wide range of particle size, easy operation and maintenance.
Model | JT0.57-1 | JT1-1 | JT2-2 | JT3-1 | JT4-2 | JT4-2S | JT5-2 | ||||||
Jig shape | Trapezoid | Trapezoid | Rectangle | Trapezoid | Rectangle | Rectangle | Trapezoid | ||||||
Jig area (m2) | 0.57 | 1.04 | 2.28 | 3 | 4 | 4 | 4.86 | ||||||
Stroke (mm) | 12-21 | 12-21 | 12-21 | 12-30 | 12-30 | 12-30 | 12-30 | ||||||
Frequency of stroke (r/min) | 80-180 | 80-180 | 80-180 | 50-125 | 50-125 | 50-125 | 50-125 | ||||||
Feeding size (mm) | <6 | <10 | <10 | <10 | <25 | <25 | <25 | ||||||
Make up water (m3/t) | 1-2 | 2-3 | 2-4 | 3-6 | 4-8 | 4-8 | 3-6 | ||||||
Make up water pressure (Mpa) | >0.05 | ||||||||||||
Capacity (t/h) | 1.5-3 | 2.5-5 | 5-10 | 7.5-10 | 8-20 | 8-20 | 12-25 | ||||||
Power (Kw) | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 4x2 | 7.5 | ||||||
Weight (Kg) | 610 | 900 | 1640 | 3085 | 3098 | 3500 | 4500 | ||||||

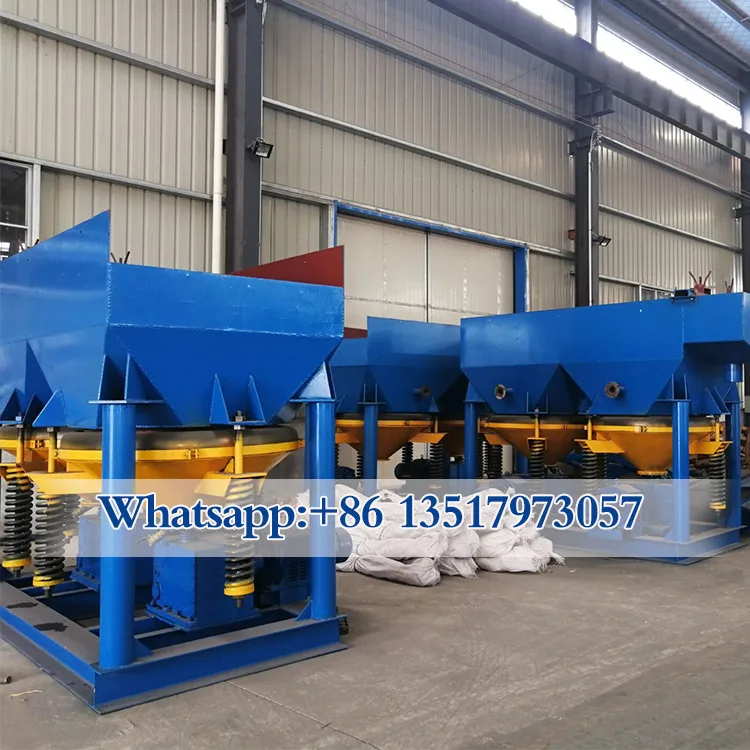

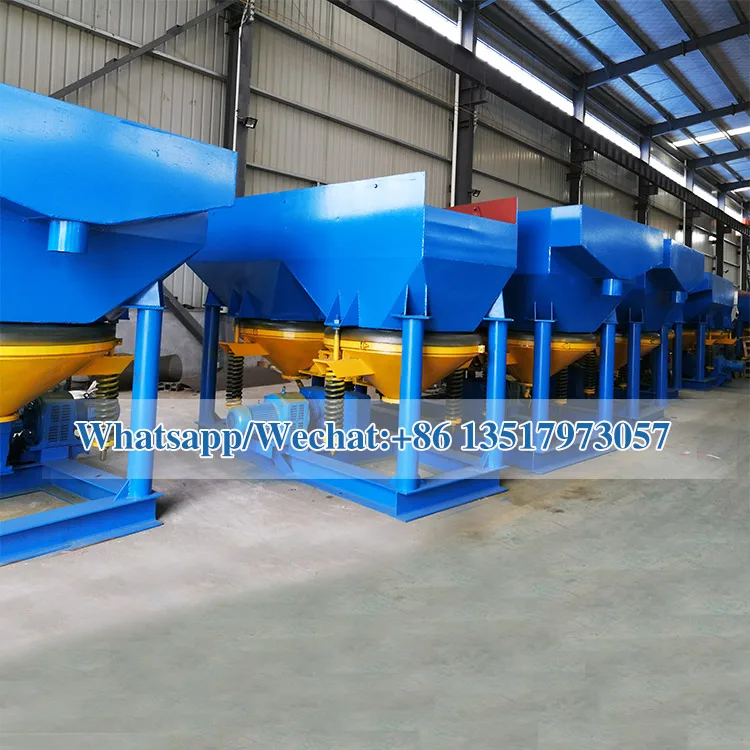

Products Show
High quality rubber diaphragm increase service life.
High quality stainless steel screen available.
High quality casting and precision finishing let our gear box can withstand heavy-duty service easily.
Customer Photo

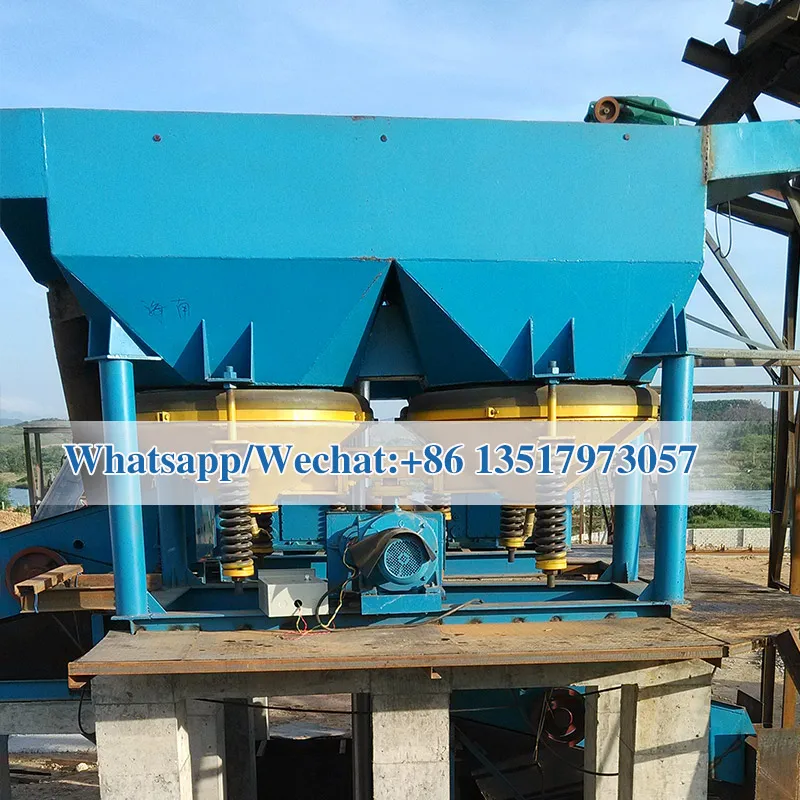

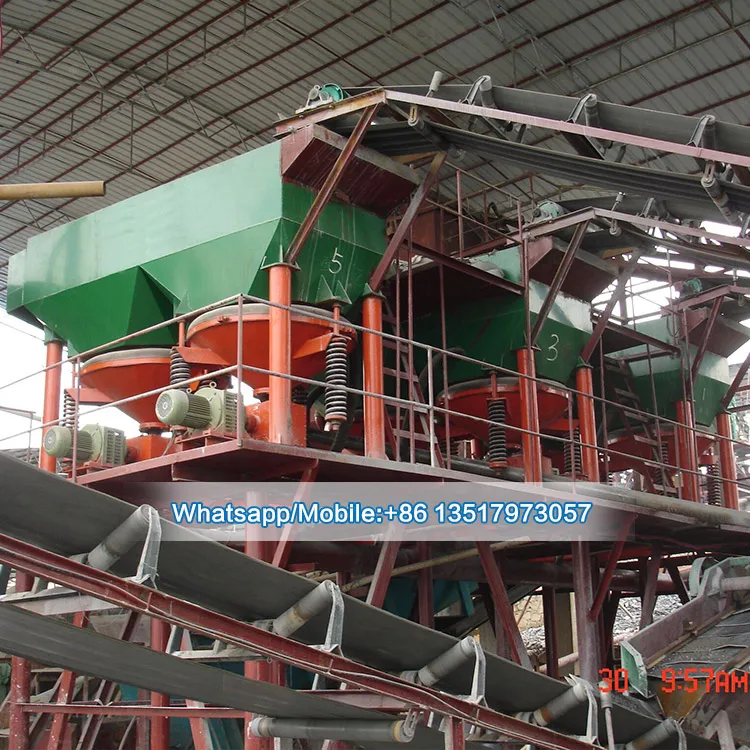

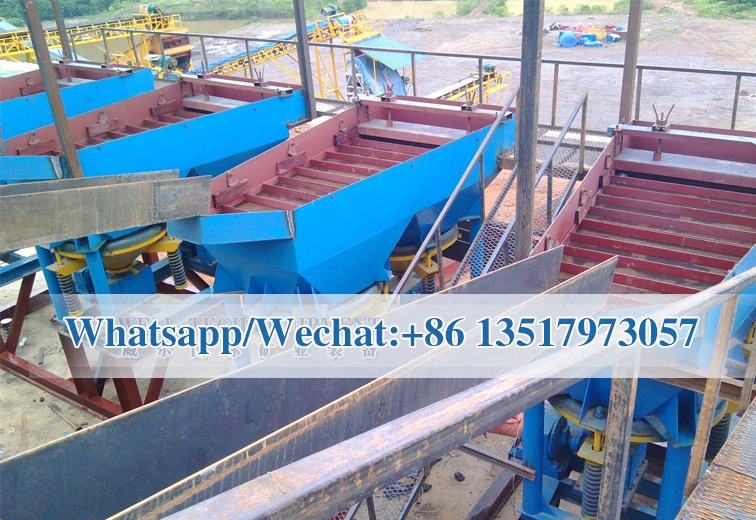

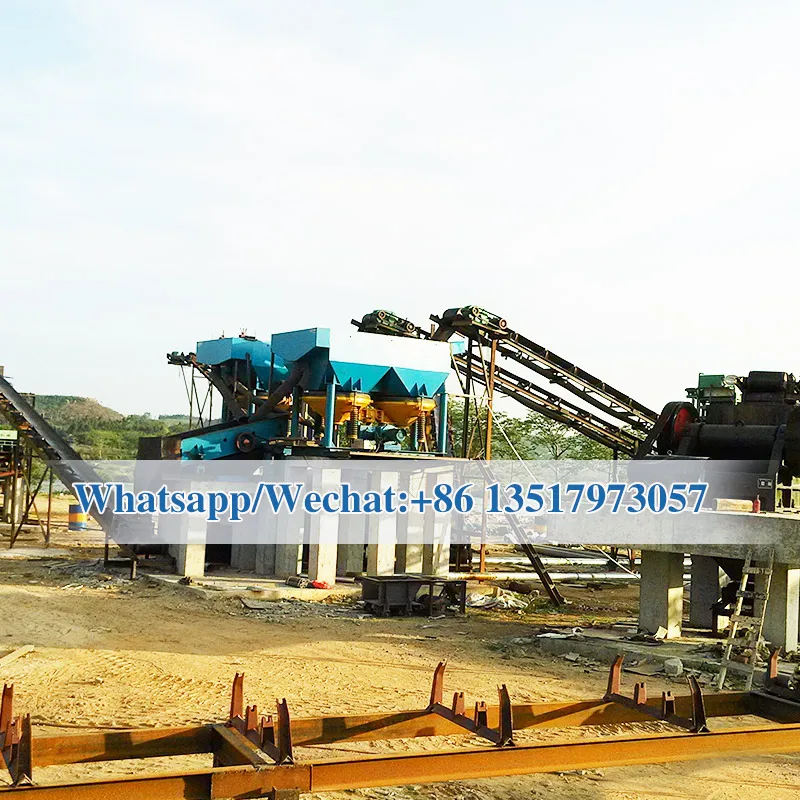

Application site
Application in production of manganese ore in Malaysia.
Application site
Application in production of iron ore in Hainan China.
Application site
Application in production of alluvial gold ore in Congo.

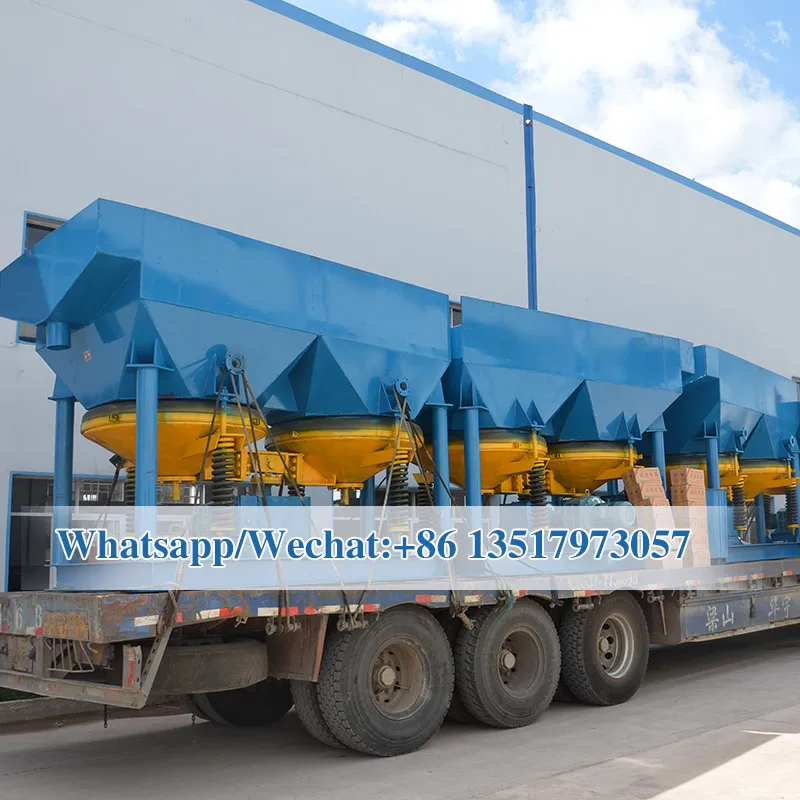

Packing & Delivery
Packing Details : Non-packed because its large size.
Delivery Details : 7-30 days after down payment.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Office
Our Office
Our Service
Mineral test service
Seek truth from facts, the effect speaks, dispel your misgivings. Save your money.
Layout design service
According to processing flow chart and site condition to design professional reasonable layout by direct-view 3D. Save your time.
Installation service
Our professional technicians will come to customer's site to install and debug the machines, and train the workers. Save your money and time.
FAQ
1. Q: Can you provide production flow chart?
A: Yes we can. Our experienced and professional engineers can design scientific and reasonable flow chart for various ores, such as iron ore, tin ore, manganese ore, gold ore, tungsten ore, tantalum ore, etc.
2. Q: Can you test our sample ore to see what result can we get?
A: Yes we can. We have professional laboratory to offer ore test for customers by free charge.
3. Q: How do you provide after-sales service?
A: We can send our professional technicians to the working site for equipment installation, adjustment, and operation training. All of our technicians have rich overseas installation experiences. Anything you need in future we have professional person to follow up.
4. Q: What is your terms of payment?
A: T/T 30% paid in advance, and 70% before the shipment. You come personally or assign SGS for products inspection or we show product photos before you pay the balance.
5. Q: How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
6. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we supply spare parts also.
7. Q: Can I visit your factory?
A: Of course welcome. Many domestic and overseas customers visited our factory every year.
8. Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit, and we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Warmly welcome you come to visit our factory! Our factory located at Ganzhou city, Jiangxi province, China. Please take flight from your country to Guangzhou or Shanghai or Beijing airport in China, then transfer to Ganzhou airport, and then we will send our car to pick you up at Ganzhou airport.
