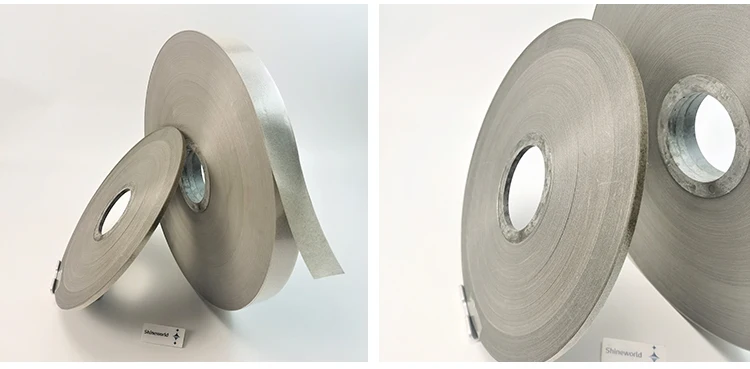

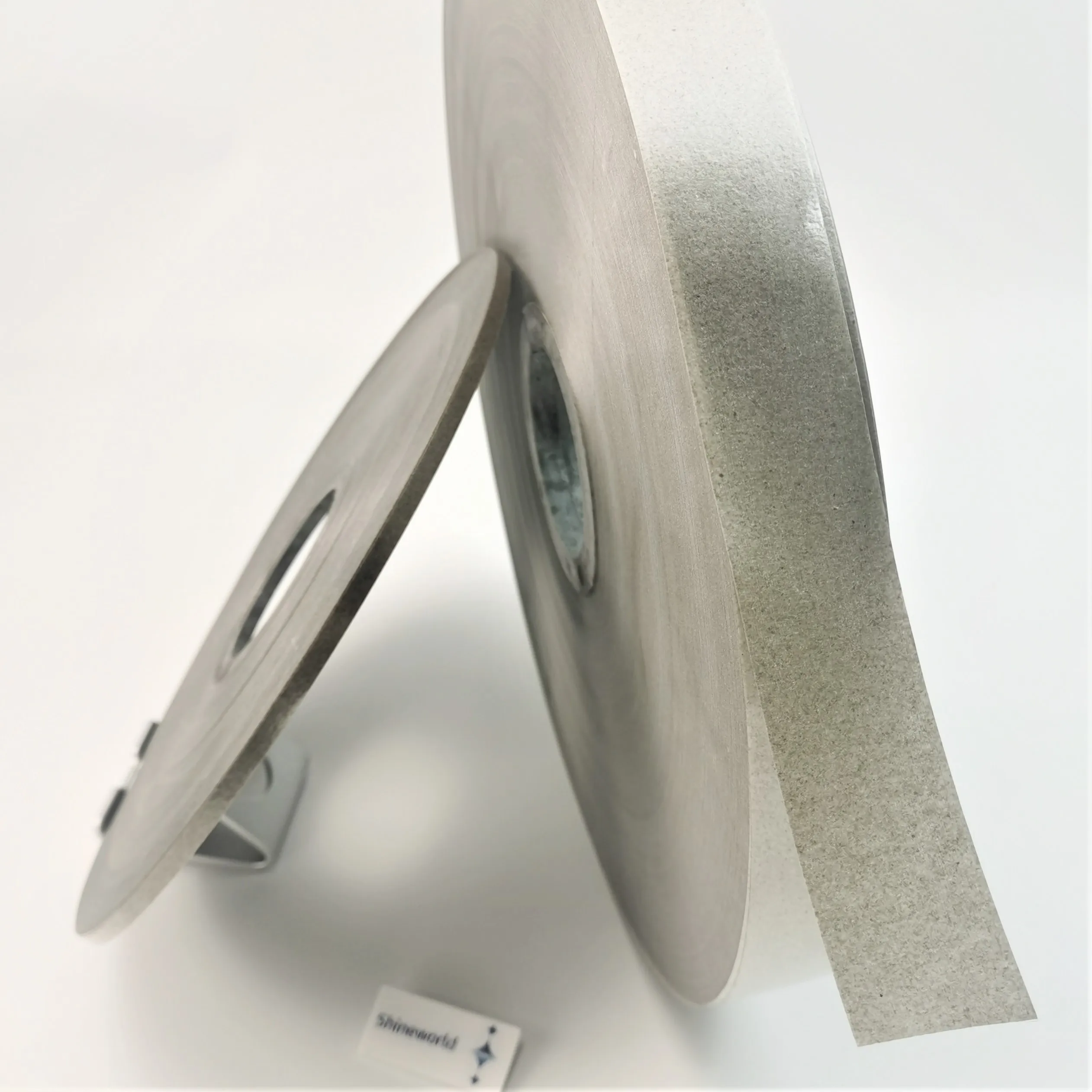

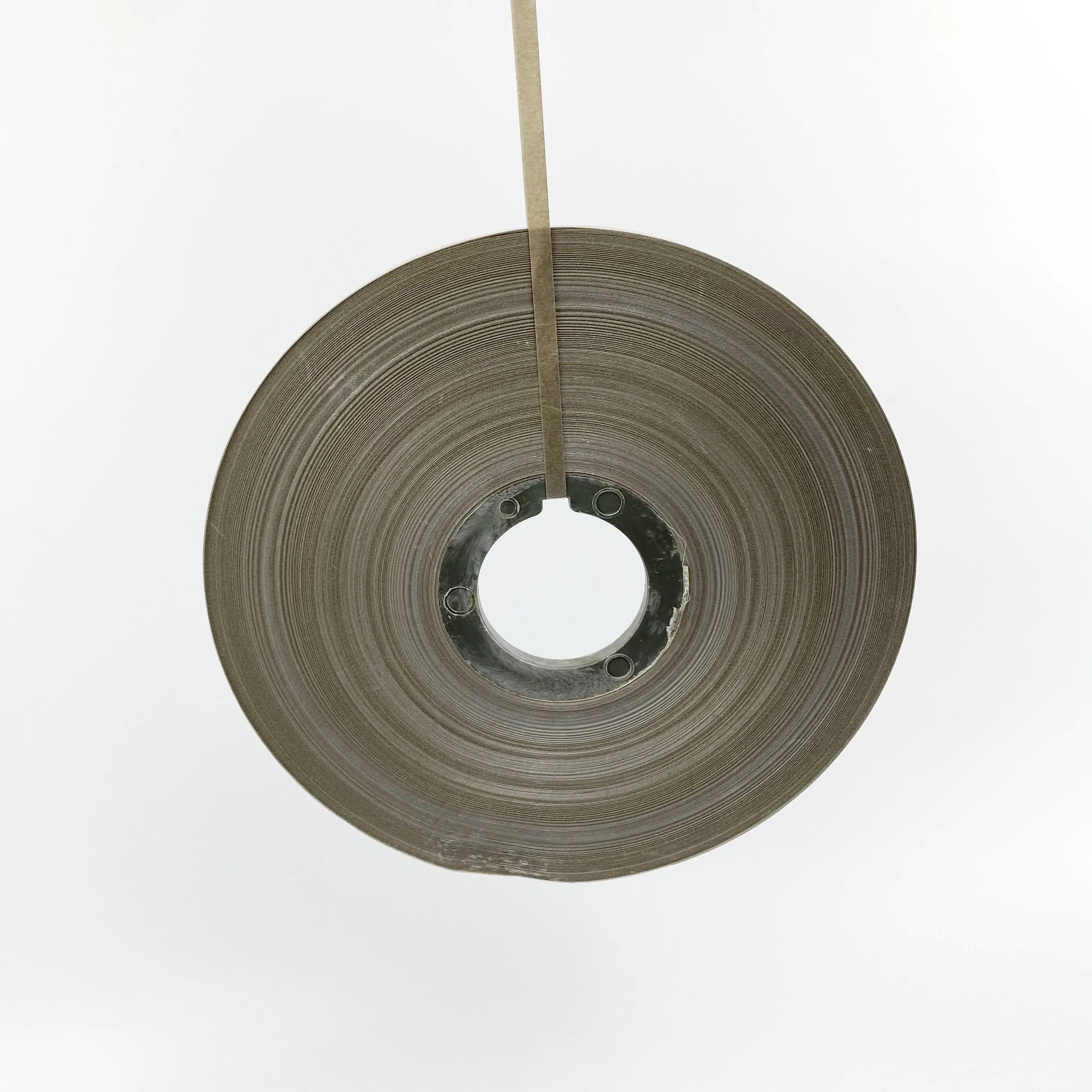

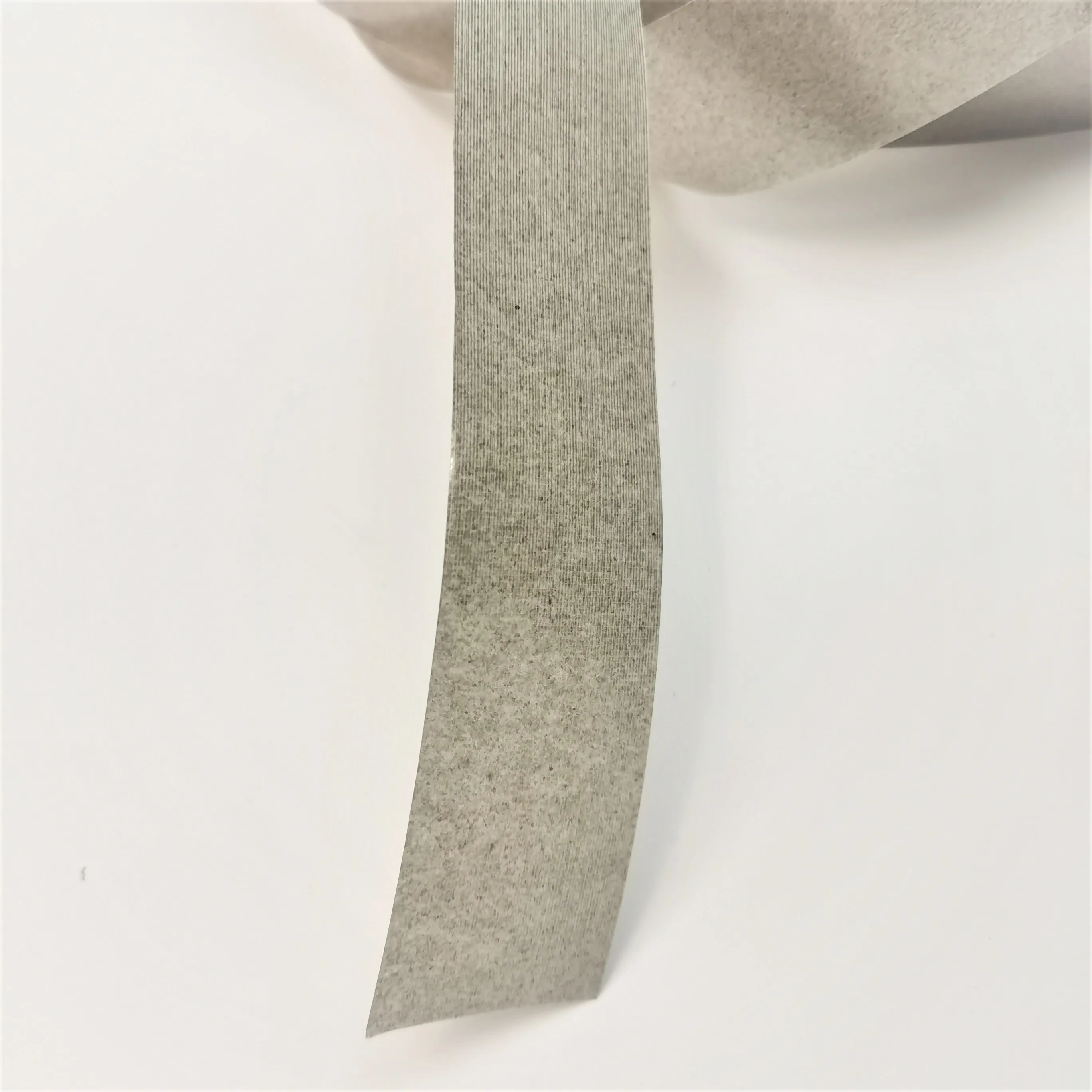

Mica Sheet Insulation Material Alkali Free Glass Fiber High Temperatureresistant Fireresistant Mica Tape
- Category: >>>
- Supplier: Changzhou Shineworld Industry Co. Ltd.
Share on (1600323540697):
Product Overview
Description
Product Introduction
1. Application:
Based on the standard U.L.2196 and Nec 760-2b is mainly used in the wrapping of the conductor or assembled insulated cable cores. It has good properties of tensile strength, elongation at break and peeling strength.
2.Standards Reference:
Test Standards | Duration of test(mins) | Voltage | Temp. | Test condition | Type of Mice Tape to be advised to pass each test standard | Min no. Of Layers | Min. overlapping |
Mil-C-25038/3 | 5 | 115V | 1100℃ | After fluid immersion | High quality synthetic mica tape | 3 | 50% |
U.L.2196 | 240 | 480V | 1100℃ | Exposed to flame with Water Spray | High quality synthetic mica tape |
3 | 50% |
Nec 760-2b | 120 | At utilization | 1100℃ | Exposed to flame with Water Spray | High quality synthetic mica tape |
3 | 50% |
NBN 713020 | 60-90 | 400V | 1100℃ | Exposed to flame | High quality synthetic mica tape |
3 | 50% |
Product Feature
High Temperature Resistance Up To 1100℃ | Great Flexibility |
 | |
High Tensile Strength | Excellent Flatness And Resistance To Friction |
 | |
3.Specification:
Tapes should be of adequate tensile strength and elongation such that no cracks or damage may occur during the processing.
Thickness mm | Tolerance mm | Mica Content(g/m²) | Tensile Strength (N/10mm) | Electrical Breakdown Strength 50HZ MV/m | Volume Resistivity 20℃ Ω·m | Width (mm) | |
GM,GP,GS, FMG,FPG,FSG: | GMG,GPG,GSG | ||||||
| 0.10 | ±0.015 | 100 | ≥60 | ≥100 | ≥10 | ≥1×1010 | 20~65 |
| 0.13 | ±0.015 | 120 | |||||
| 0.16 | ±0.02 | 140 | |||||
4.Packing & Delivery
| No. | Size | Inner Diameter/Out Diameter | length(m) |
| Pad | 0.14mm*6mm | 52mm | 1200±20 |
| 0.14mm*8mm | 52mm | 1200±20 | |
| 0.14mm*10mm | 52mm | 1200±20 | |
| 0.14mm*16mm | 52mm | 1200±20 | |
| Spool | W≤100mm | 52mm | 3000-10000 |
Various specifications can be customized according to customer requirements

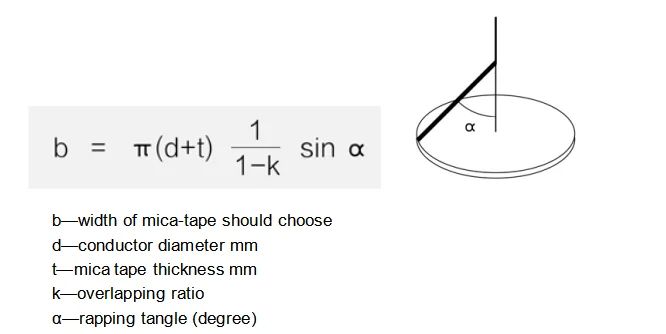

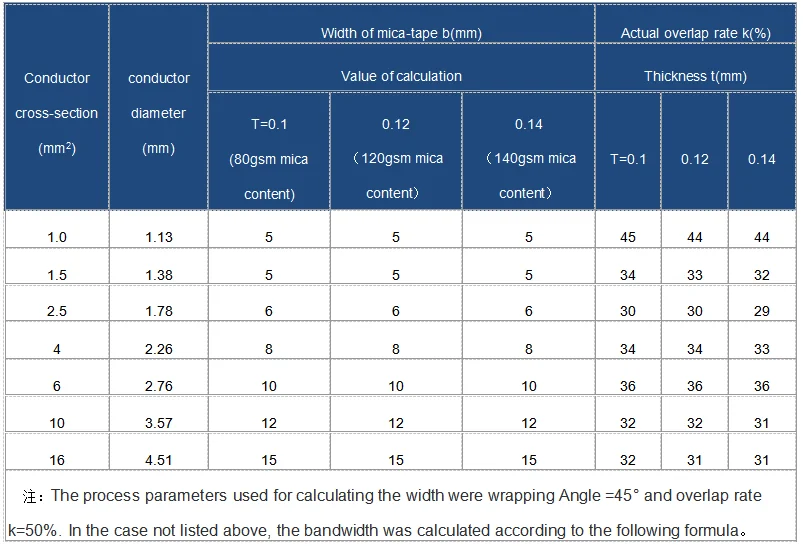

5.How to choose the width of mica tape
![CA{XXM~Q$]924Q~LQSA6970.jpg](http://sc03.alicdn.com/kf/Ha03da8bd17e04a1580a60f44f20a801eV/251313608/Ha03da8bd17e04a1580a60f44f20a801eV.jpg)
