PD 750W series high accuracy industrial intelligent display 4 20ma liquid air differential pr Differential pressure transmitter
- Category: >>>
- Supplier: Doweston (china) Co. Ltd.
Share on (1600323601108):
Product Overview
Description
Product Description

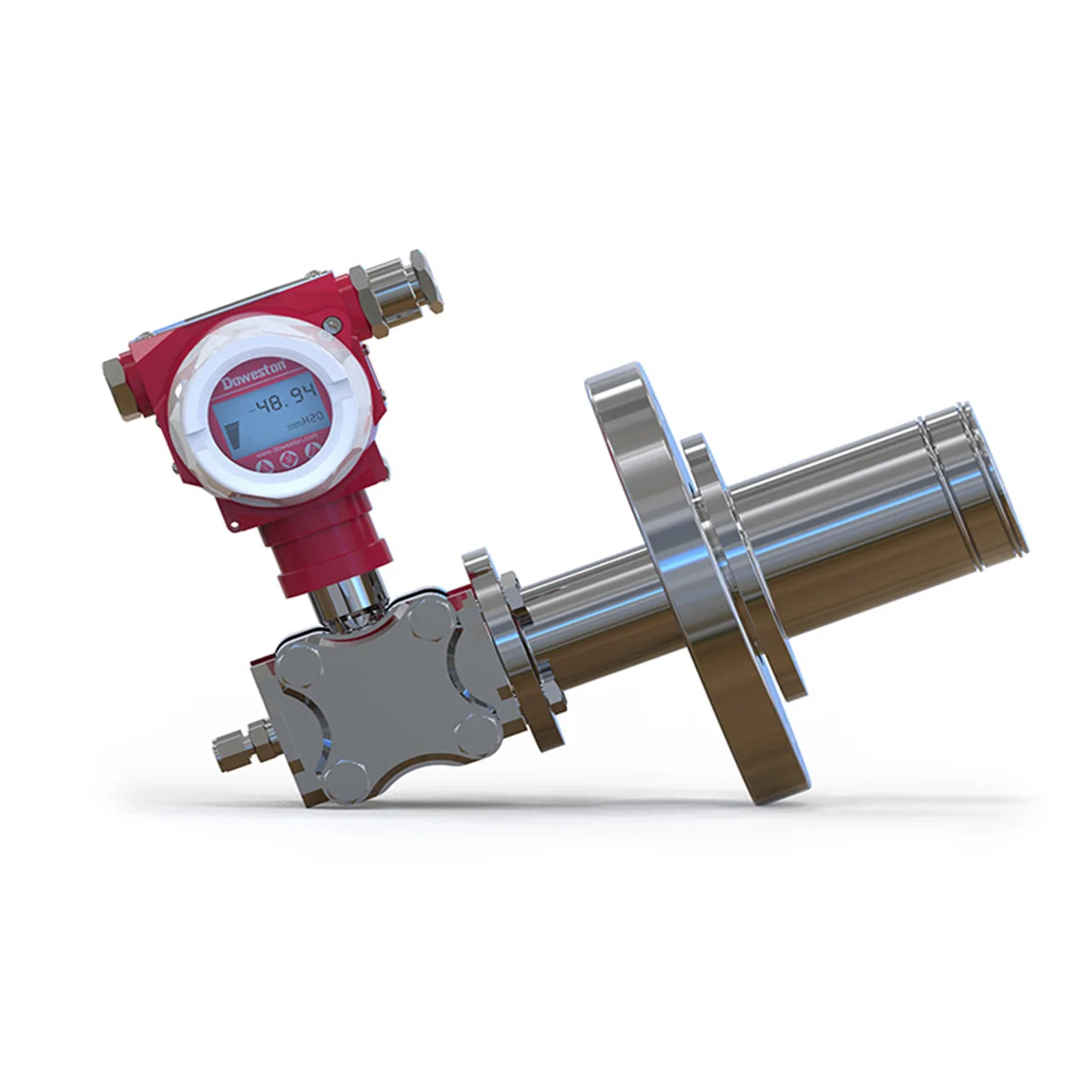

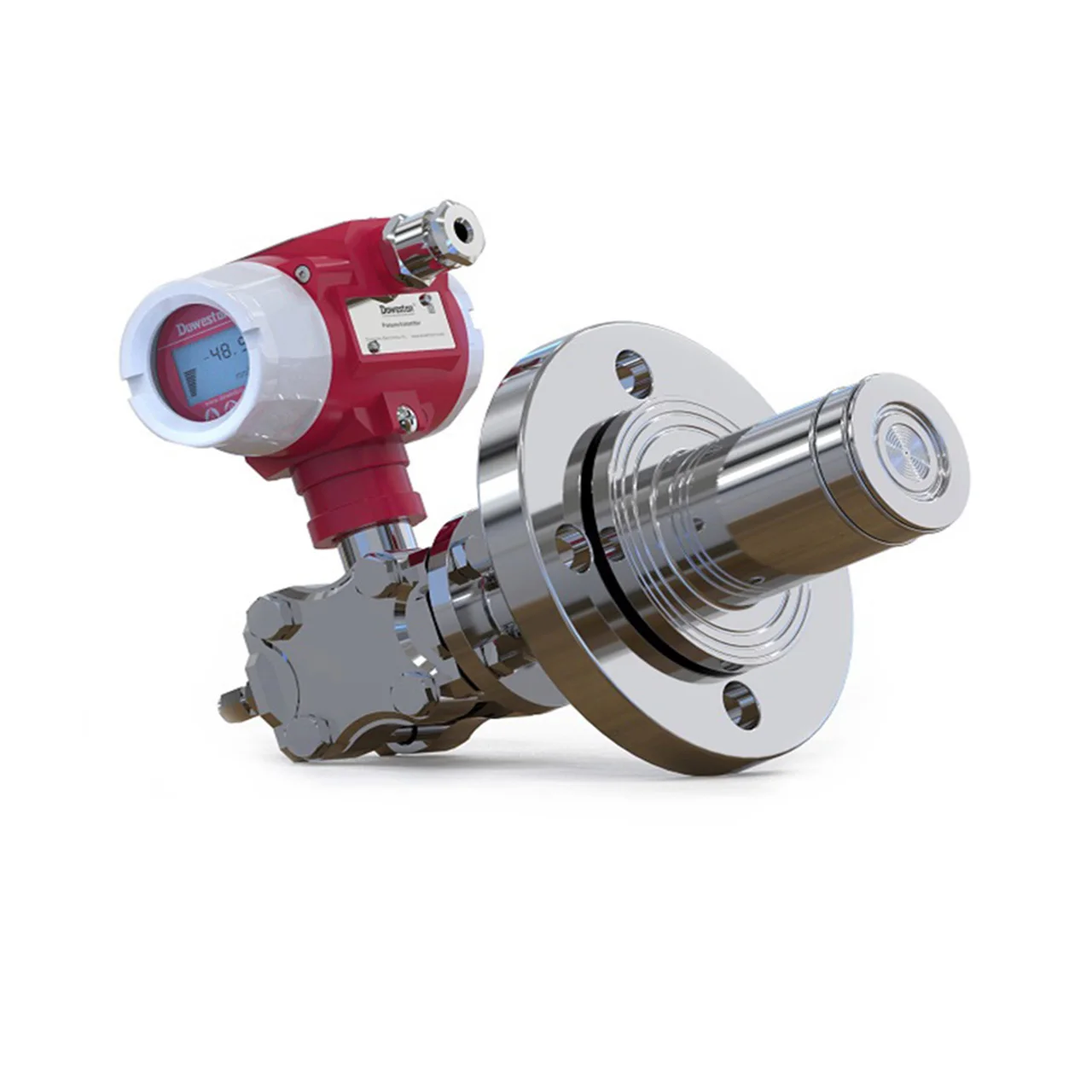

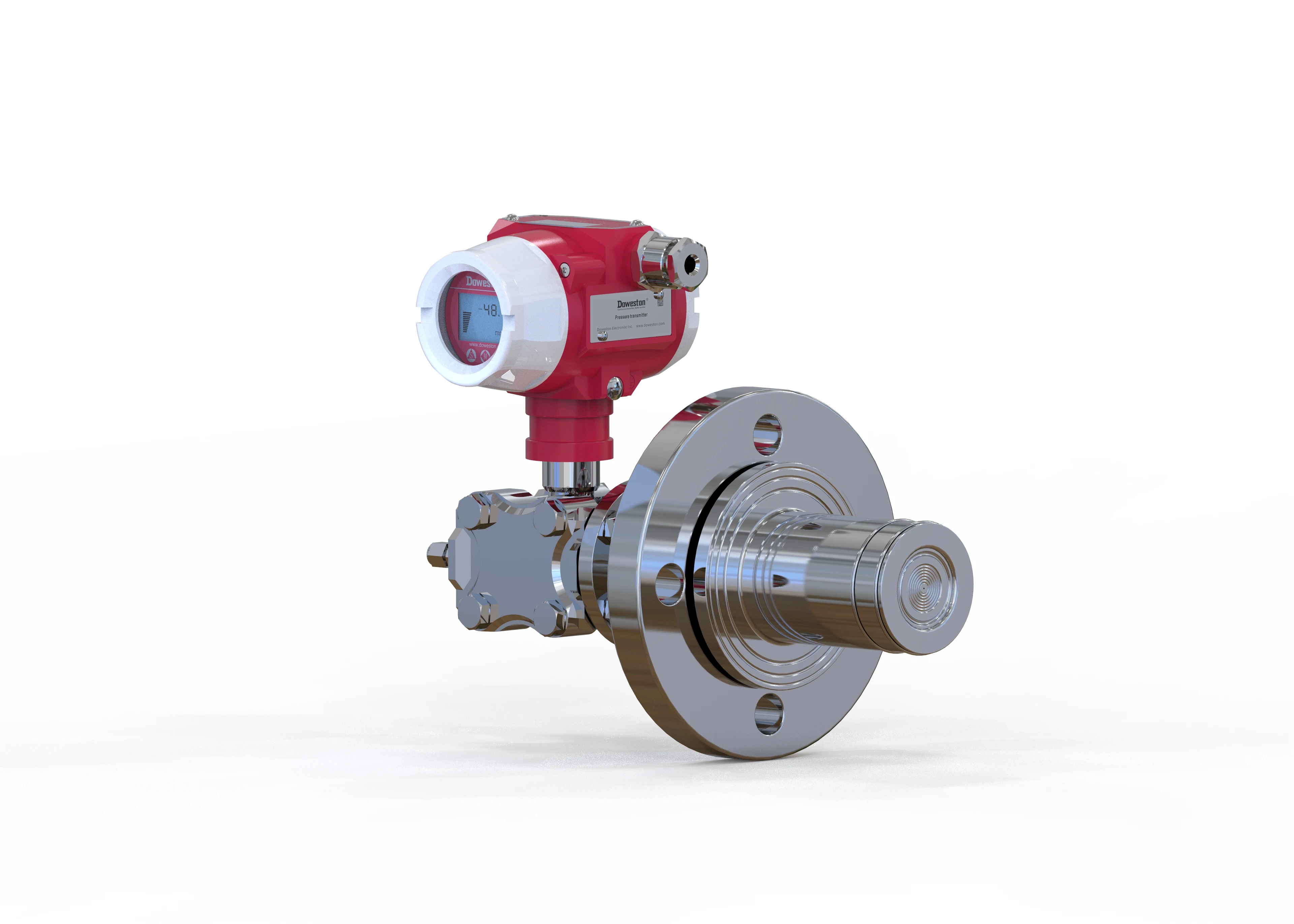

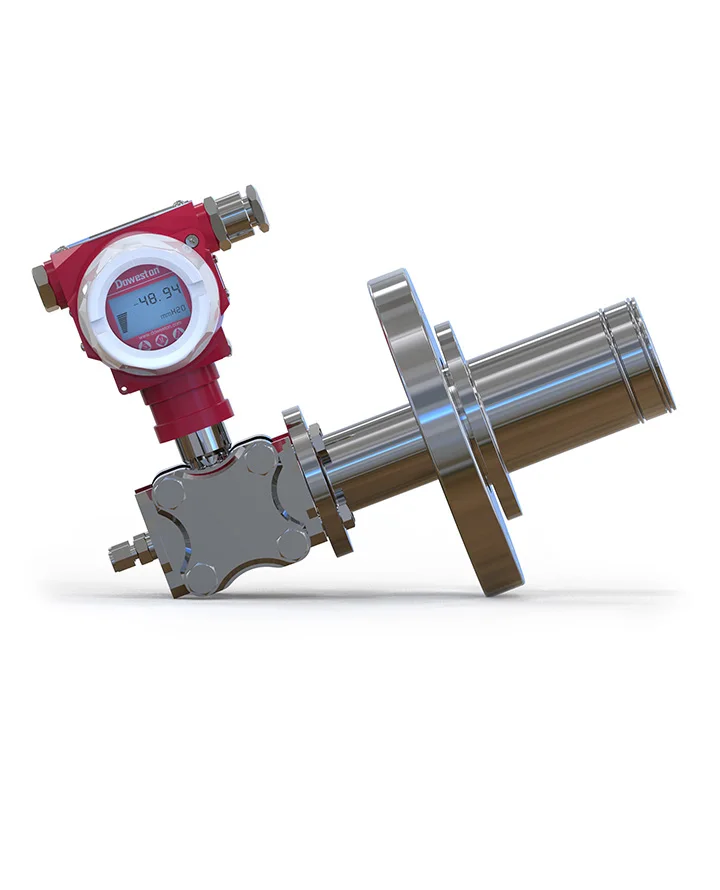

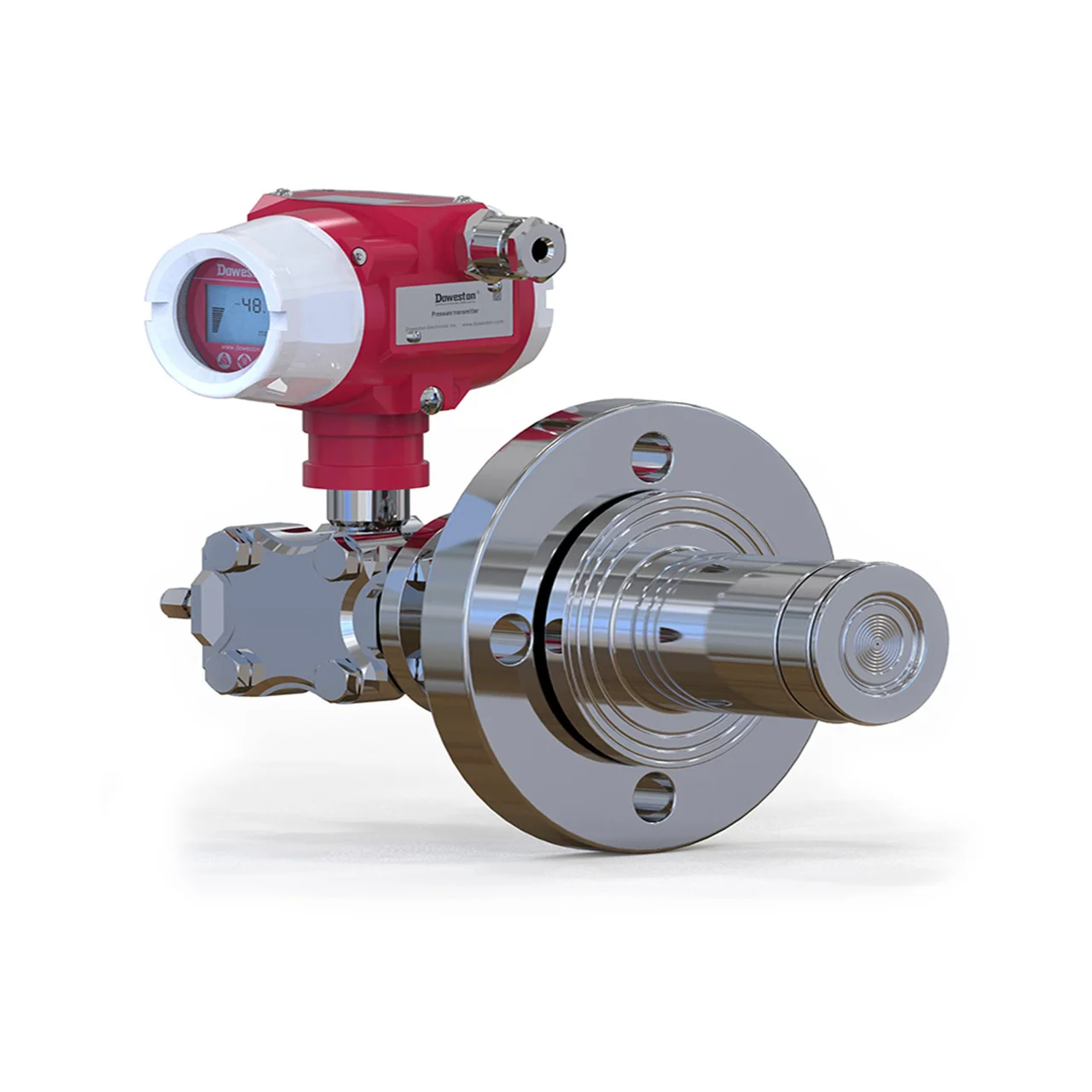

PD-750W single flange differential pressure transmitter is the first choice for multi-parameter measurement of conventional mechanical engineering and automation control
The PD-750W single-flange differential pressure transmitter combines the latest expanded monocrystalline silicon sensing element, comes standard with HART protocol and temperature compensation technology, and converts pressure changes into linear standard current or voltage signals. It has extremely high precision and Repeatability, vibration resistance, wide measurement range, suitable for various mechanical equipment, fluid and gas medium pressure, liquid level, density measurement of project engineering, equipped with on-site programming and display functions, diversified information output, to meet different working conditions Demand.
The PD-750W single-flange differential pressure transmitter combines the latest expanded monocrystalline silicon sensing element, comes standard with HART protocol and temperature compensation technology, and converts pressure changes into linear standard current or voltage signals. It has extremely high precision and Repeatability, vibration resistance, wide measurement range, suitable for various mechanical equipment, fluid and gas medium pressure, liquid level, density measurement of project engineering, equipped with on-site programming and display functions, diversified information output, to meet different working conditions Demand.
Specification
item | value |
Warranty | 3 years |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Brand Name | Doweston |
Model Number | PD-750W |
Performance characteristics
The PD-750W single-flange differential pressure transmitter can convert the physical pressure parameters of gas, liquid, etc., felt by the load cell sensor into standard electrical signals (such as 4-20mA, Hart, etc.) to provide indicator alarms, Secondary instruments such as recorders and regulators perform measurement, indication and process adjustment. It is widely used in various industrial automation environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil well, electric power, ships, machine tools, pipelines and many other industries..
Technical parameter
Measuring medium | dry gas, gas, liquid, slightly corrosive liquid, viscous liquid | ||||||
Measuring range | 1-100pa, 6-41000kpa, -1-60MPa | ||||||
Comprehensive accuracy | ±0.075%FS, ±0.1%FS, ±0.25%FS, ±0.5%FS | ||||||
Working temperature | -35-125℃ | ||||||
Output | 4-20mA, RS485, Hart, etc. | ||||||
Electrical connection | Terminal wiring, M20*1.5 screw hole*2 | ||||||
Installation method | G1/2, G1/4, NPT1/2, NPT1/4, M20*1.5 internal and external thread, national standard flange (GB/T 9119-2010) | ||||||
Weight | about 3.0kg | ||||||
Company Profile
Dow Weston (China) Co. , Ltd. to the instrumentation and sensors as the core business. Our products cover flow, pressure, liquid level, temperature, position, display, and we also provide you with products, solutions and service support in the field of industrial processes based on our products. From 2013 in China to date, Dao Weston forge ahead, with a dedicated spirit to pursue excellent service quality, to provide each customer with accurate measurement program, to become a customer to solve the field of AUTOMATION PROBLEM RELIABLE PARTNER!
We are a customer-centric supplier of high-end sensors and automation control systems. Is committed to bringing users high-end, intuitive easy to use, effective products
We are a customer-centric supplier of high-end sensors and automation control systems. Is committed to bringing users high-end, intuitive easy to use, effective products
FAQ
1. who are we?
We are based in Sichuan, China, start from 2018,sell to Domestic Market(1.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flow meter,Pressure transducer,Level Gauge,Temperature sensor,Sensors
4. why should you buy from us not from other suppliers?
Our products cover flow, pressure, liquid level, temperature, position and display. We also provide you with products, solutions and service support in the industrial process area based on our products.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Sichuan, China, start from 2018,sell to Domestic Market(1.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flow meter,Pressure transducer,Level Gauge,Temperature sensor,Sensors
4. why should you buy from us not from other suppliers?
Our products cover flow, pressure, liquid level, temperature, position and display. We also provide you with products, solutions and service support in the industrial process area based on our products.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
