1/2/3/4/6/7/8s Lithium battery meter display module three string LED lithium battery indicator board
- Category: Character Display >>>
- Supplier: Shenzhen RLD Technology Co. Ltd.
Share on (1600323601119):
Product Overview
Description
Product Description
1-8S Lithium battery meter four level display module
Product Model: 1-8S blue/green
Working voltage: 3-34V
Working voltage: 3-34V
Operating current: 5mA
Operating temperature :-20°C to 50°C
Voltage error :2%

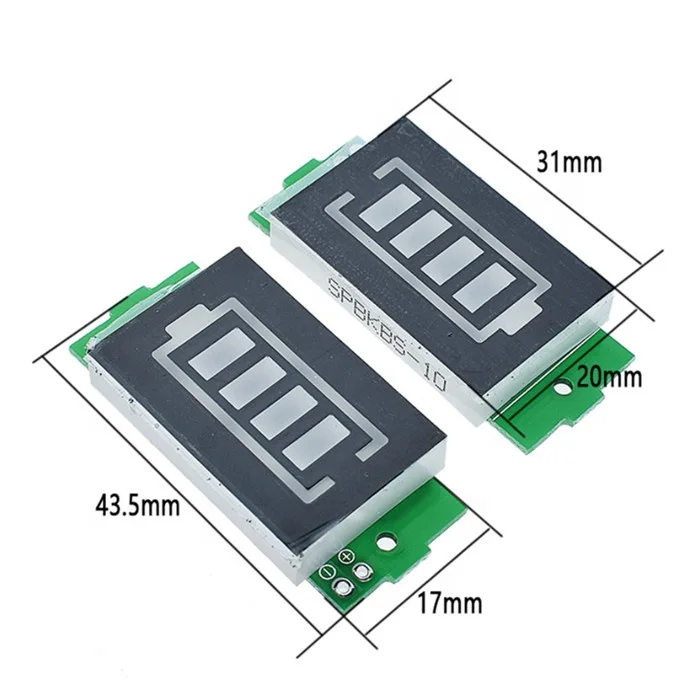

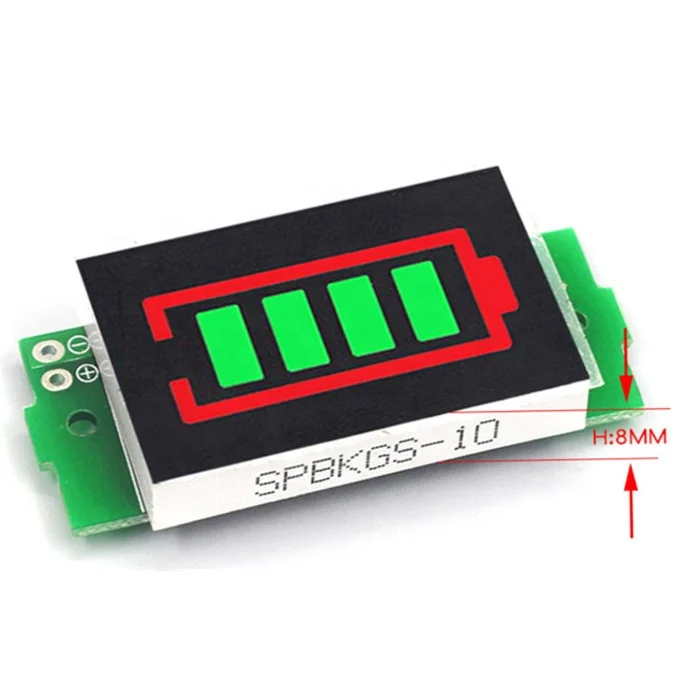

Size :43.5 * 20 *8mm
Operating temperature :-20°C to 50°C
Voltage error :2%
Size :43.5 * 20 *8mm

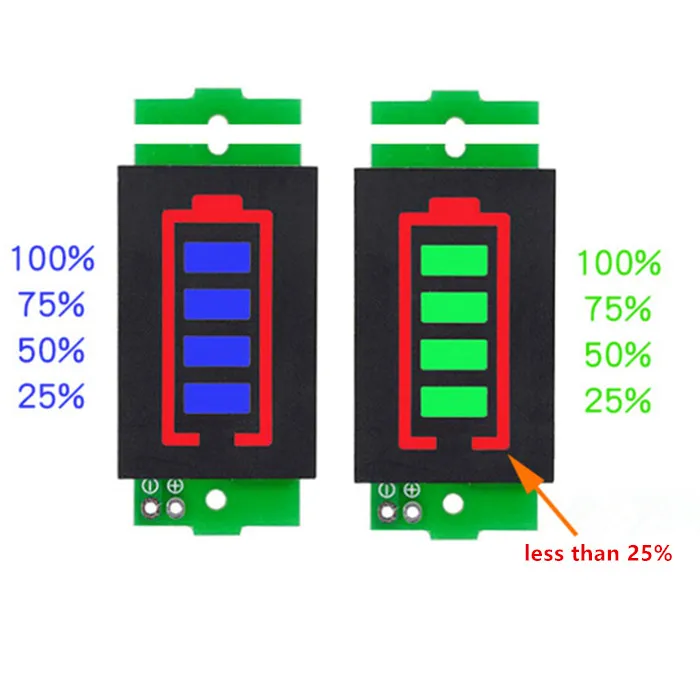

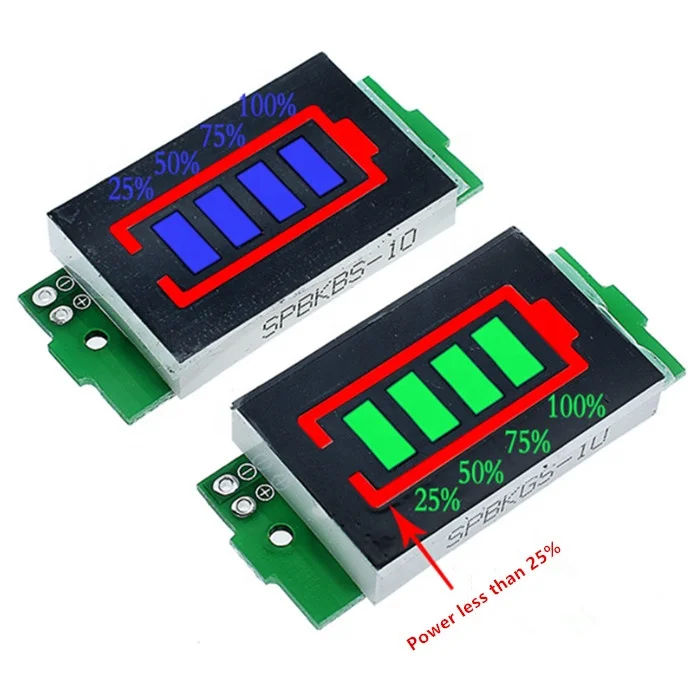

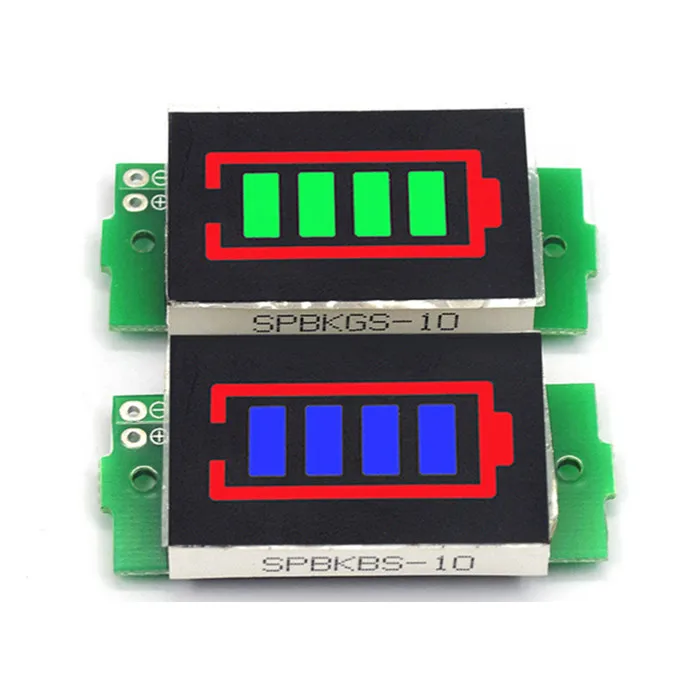

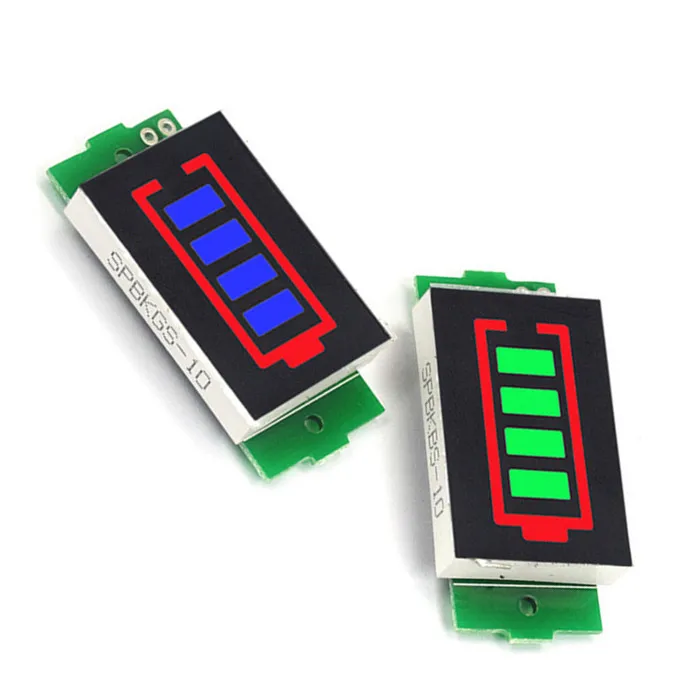

Level 4 power display (blue/green optional)
HOW TO USE

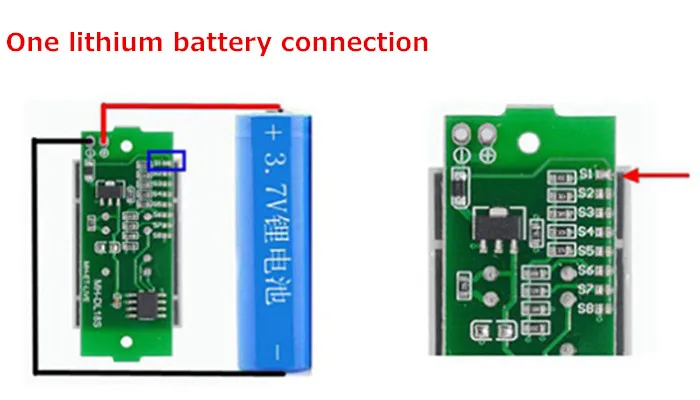

A. Connect the positive and negative terminals of the display board to the positive and negative terminals of the tested battery, and the digital tube will display the real-time battery quantity .
Battery type electric quantity display ，Select the corresponding solder plate tin, can detect 1S~8S corresponding The battery pack voltage is very convenient.

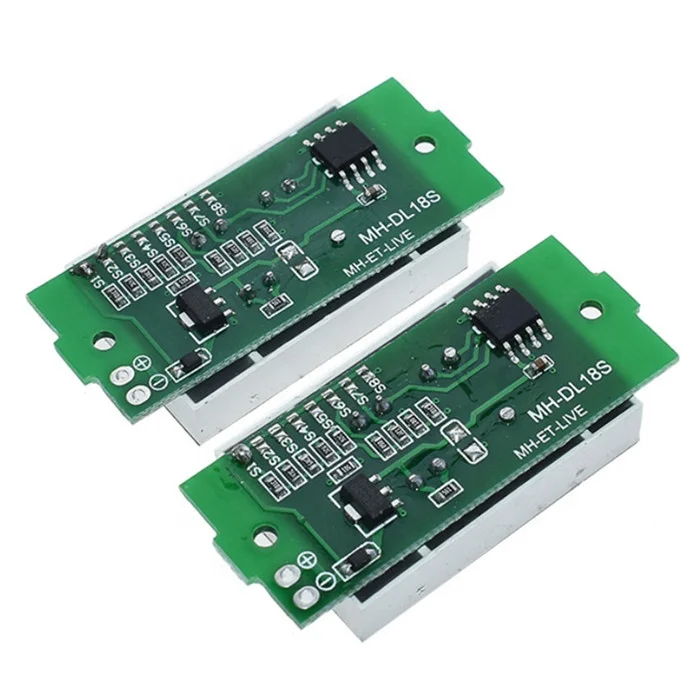

S1 to S8 Optional pads Can only be connected to one type ,two or more short-circuits occur simultaneously.
Application : 1s to 8S lithium battery
25% | 50% | 75% | 100% | |
1S | 3.3V | 3.5V | 3.7V | 3.9V |
2S | 6.6V | 7.0V | 7.4V | 7.8V |
3S | 9.9V | 10.5V | 11.1V | 11.7V |
4S | 13.2V | 14V | 14.8V | 15.6V |
5S | 16.5V | 17.5V | 18.5V | 19.5V |
6S | 19.8V | 21V | 22.2V | 23.4V |
7S | 23.1V | 24.5V | 25.9V | 27.3V |
8S | 26.4V | 28V | 29.6V | 31.2V |
2. Connect the positive and negative ports of the display board with the positive and negative ports of the battery under test, and the digital display tube will display the real-time battery quantity. Note that the connection is a few series of series of lithium batteries, it is necessary to connect tin in the corresponding pad.
For example: the test is 2S battery (that is, two 3.7V lithium batteries in series), the tin short circuit on the corresponding
pad of S2 of the board is required
For example: the test is 2S battery (that is, two 3.7V lithium batteries in series), the tin short circuit on the corresponding
pad of S2 of the board is required

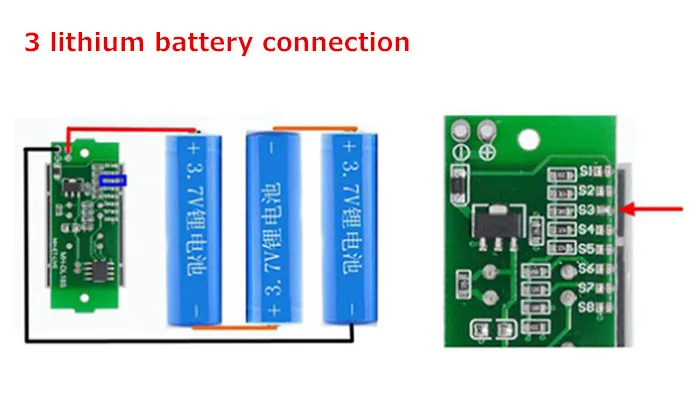

3.Pay attention to the selection of the corresponding battery string number, to be used within the corresponding voltage range. The maximum voltage should not exceed 4.3*N. (For example, if tin is selected on THE pad of S3, the maximum voltage of module detection shall not exceed 43*3=129V)
The battery voltage is greater than NX3.3V, and 1 battery is on (note :N is the number of large batteries)
Display quantity parameter of battery (N indicates number of batteries) | ||||||||
When the battery voltage exceeds N*3.3V, it will illuminate 1 battery | ||||||||
When the battery voltage exceeds N*3.5V, it will illuminate 2 battery | ||||||||
When the battery voltage exceeds N*3.7V, it will illuminate 3 battery | ||||||||
When the battery voltage exceeds N*3.9V, it will illuminate 4 battery | ||||||||
When the battery voltage is less than N*3.5V, the four display panels will close | ||||||||
When the battery is less than 3.3V, it needs to be recharged | ||||||||
