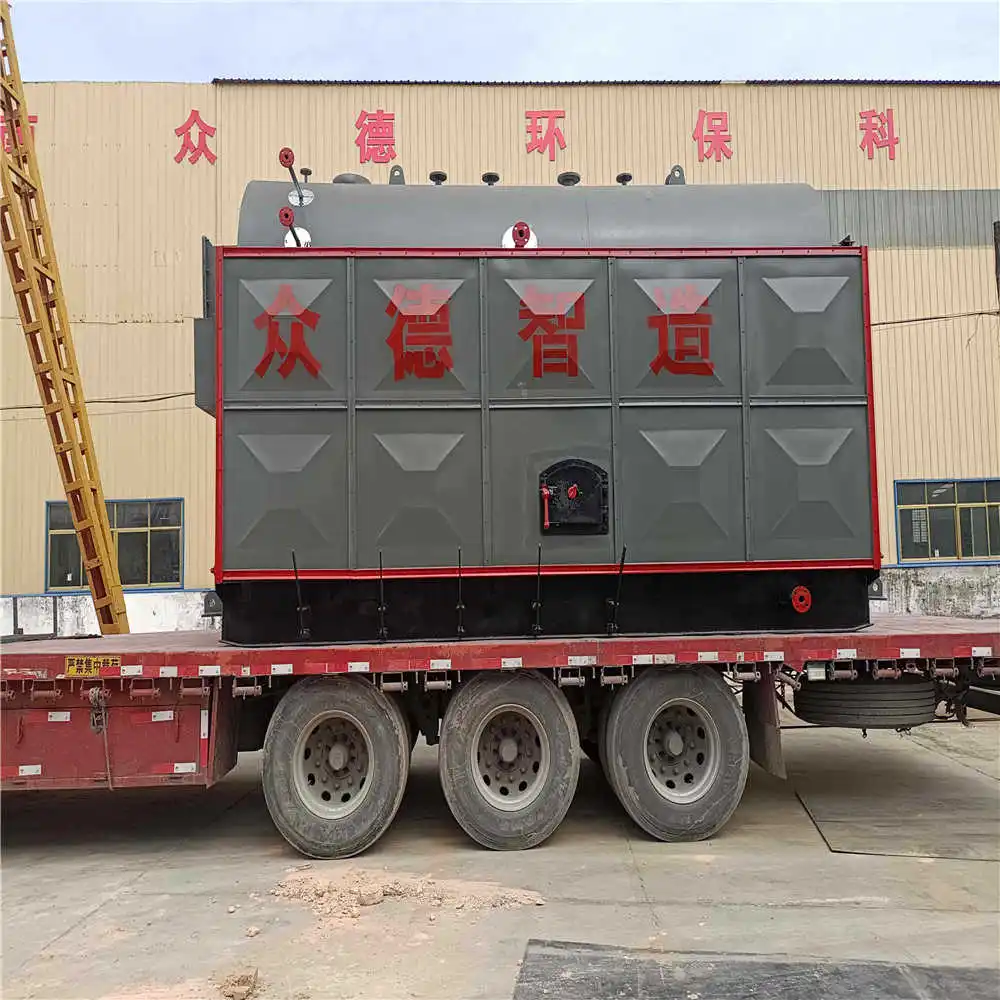

Industrial Cheap Coal And Wood Pellet / Waste Jute Or Fabric Fired Steam Boiler Use In Plywood Industries Or Textile Mill Buy
- Category: >>>
- Supplier: Henan Zhongde Environmental Protection Technology Co. Ltd.
Share on (1600323639448):
Product Overview
Description
Product Description

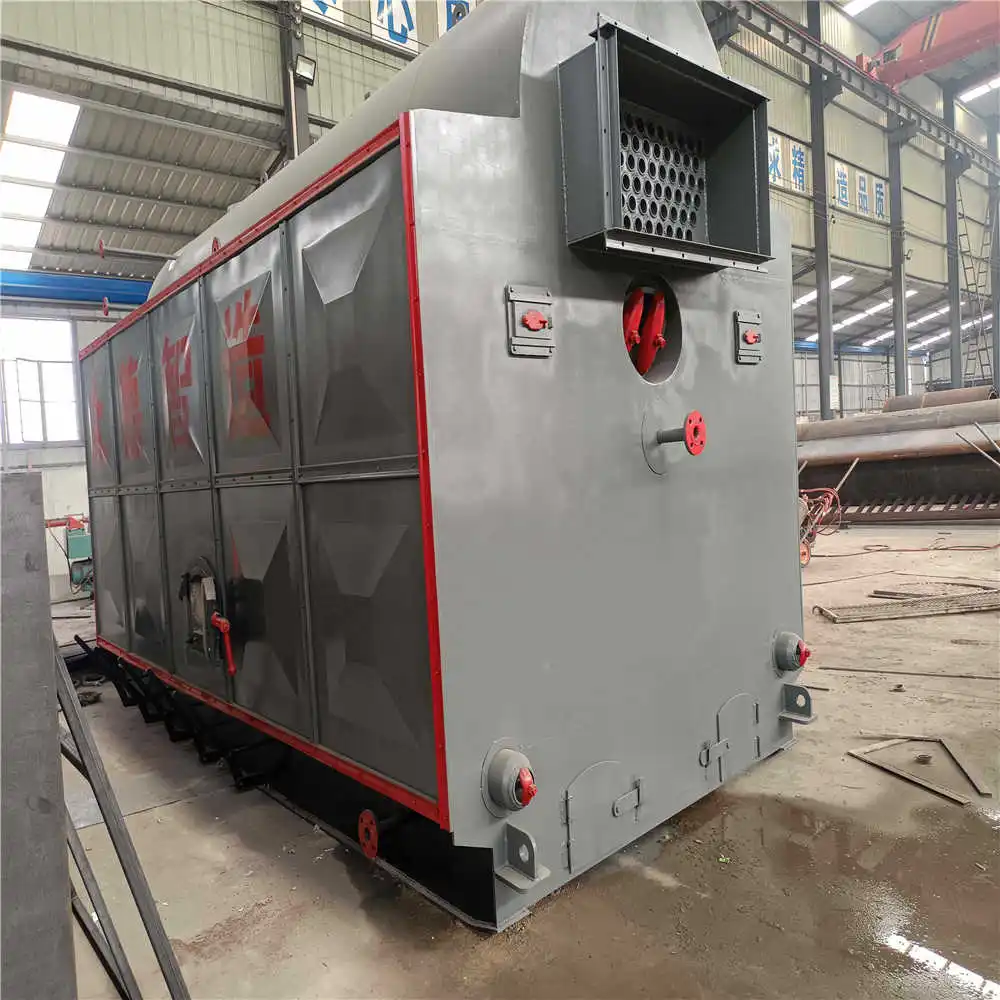

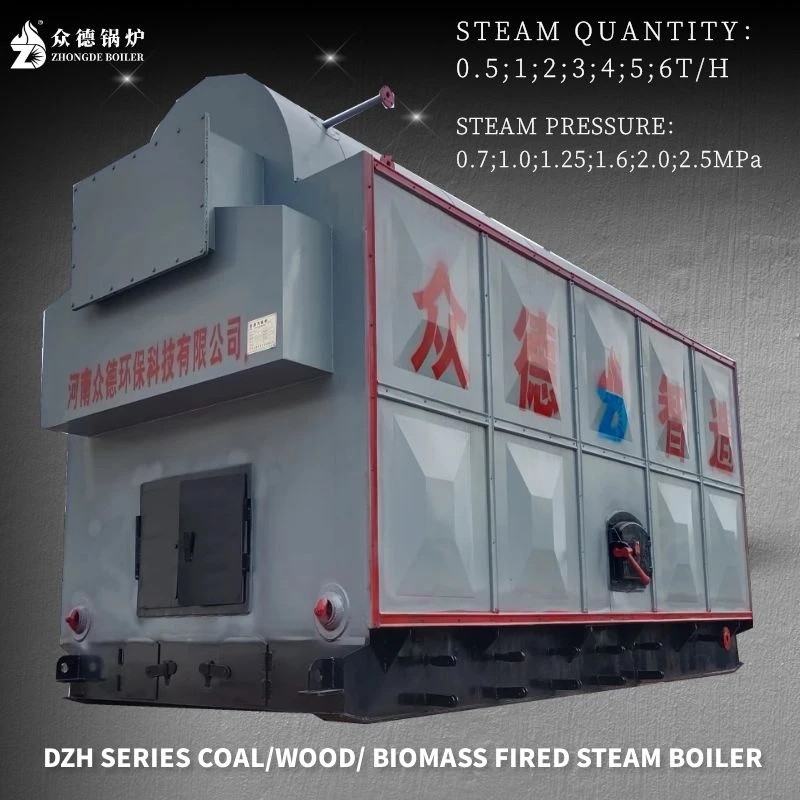

DZH series boiler is manual operation boiler which adopting manual fuel feeding, manual slag removing. The fuel can be firewood,wood logs, biomass pellets, peanuts shell, grain shell, etc. Equipped with special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.), it can realize automatic fuel feeding, automatic ash removing.

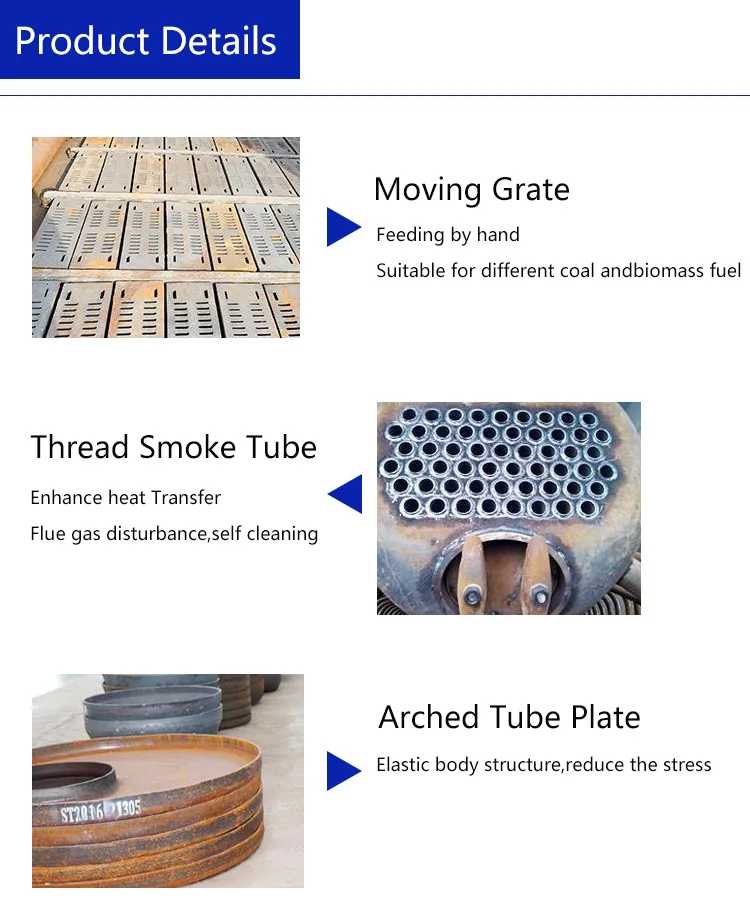

Product Details
Product specification
Model | DZH0.5 | DZH1 | DZH2 | DZH3 | DZH4 | DZH6 | |||||
Rated evaporation capacity (t/h) | 0.5 | 1 | 2 | 3 | 4 | 6 | |||||
Working pressure(MPa) | 0.4/0.7/1.0/1.25/1.6/2.0/2.5 | ||||||||||
Rated steam temperature(℃ ) | 151/170/184/194/204/215/226 | ||||||||||
Weight of biggest part for transportation（t） | 8 | 12 | 15 | 18 | 22 | 30 | |||||
Overall dimension part for transportation L×W×H（mm） | 3230× 2000× 2660 | 4110× 2200× 2920 | 4700× 2300× 3300 | 5670× 2300× 3300 | 5600× 2550× 3565 | 6500× 2950× 3625 | |||||
Application & Boiler case
DZH steam boiler has high heating temperature, low working pressure, energy saving, and can be widely used in various industrial heating processes. Such as petrochemical industry, synthetic fiber industry, textile printing and dyeing, plastic rubber, paper industry, wood industry, building materials, machinery industry, food industry, electrical equipment, coking industry, metal and foundry industry, detergent industry, fat and coating industry, carbon Su industry.
2TON/H Manual Type Steam Boiler
Fuel: Firewood
User’s site: Bangladesh
Steam capacity: 2000kg/hr
Working pressure: 1.25Mpa
Application: Packing industry
User’s site: Bangladesh
Steam capacity: 2000kg/hr
Working pressure: 1.25Mpa
Application: Packing industry
6TON/H Manual Type Steam Boiler
Fuel: Peanuts Shell
User’s site: Philippines
Steam capacity: 6000kg/hr
Working pressure: 1.25Mpa
Application: Textile dyeing
User’s site: Philippines
Steam capacity: 6000kg/hr
Working pressure: 1.25Mpa
Application: Textile dyeing
4t / h Chain Grate Steam Boiler
Fuel: Coal
User’s site: Pakistan
Steam capacity: 4000kg/hr
Working pressure: 1.25Mpa
Application: Rubber industry
User’s site: Pakistan
Steam capacity: 4000kg/hr
Working pressure: 1.25Mpa
Application: Rubber industry
15t / h Chain Grate Steam Boiler
Fuel: Rice Husk
User’s site: Thailand
Steam capacity: 15000kg/hr
Working pressure: 1.6Mpa
Application: Food industry
User’s site: Thailand
Steam capacity: 15000kg/hr
Working pressure: 1.6Mpa
Application: Food industry
Company Profile

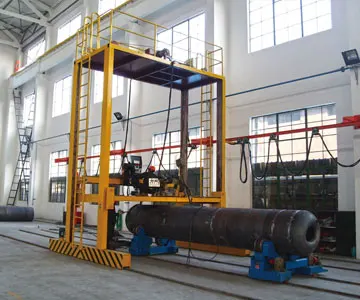

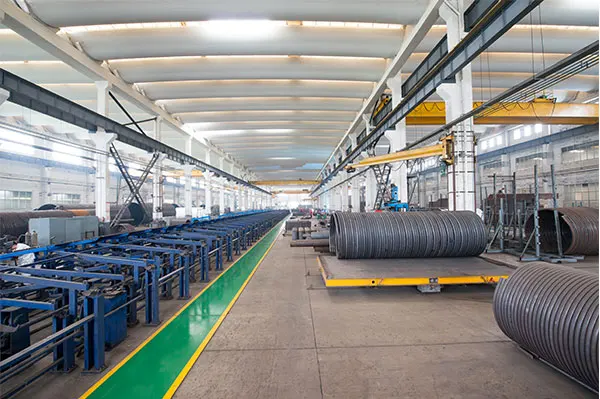

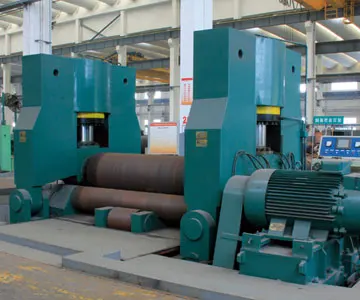

Henan Zhongde Environmental Protection Technology Co., Ltd. is located in the beautiful Fu Cao Lou Industrial Park, Taikang County, on the Eastern Henan Plain. The company has a plant area of 80,000 square meters and more than 100 employees. It mainly engages in the R&D, manufacturing and sales of hot water boilers, steam generators, electric heating boilers, oil-fired gas steam boilers, and high and medium temperature hot blast stoves. Based on the manufacture of hot water boilers and steam generators, the company has established an industrial system integrating product development, engineering project design, equipment manufacturing, engineering installation, system commissioning, pre-sales, in-sales, and after-sales services. The company's products are not only sold in the domestic market, but also exported to more than 10 countries and regions including South Korea, Vietnam, Myanmar, Mongolia, the Philippines, and Indonesia. Excellent employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company's continuous development and expansion and the products that can win the dependence of users.
Certifications
CE
CE
Boiler Manufacturing License
ISO9001
ISO14001
ISO45001
Our survice
Pre-sale service:
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
FAQ
1. What is the difference between a vertical boiler and a horizontal boiler of the same capacity?
Vertical:
1. The vertical boiler has a compact structure and a small area.
2. Easy to install and disassemble.
3. Low cost of infrastructure and low investment. The steam runs out quickly and adequately.
Horizontal:
1. The horizontal combustion space is large, and the fuel can be completely burned.
2. The thermal efficiency is higher than that of a vertical boiler,
3. Horizontal type: less heat loss, stronger output and higher steam quality.
2. What are the limits (size, humidity, chemical element concentration) of coal fuel/solid fuel/wood fuel?
Coal size requirements: 6-25mm
Coal blending particle size requirements: <50mm (the amount of coal less than 6mm should be less than 30%)
Biomass particle diameter: 6~10mm, length: 25~50mm, water content<15%, ash content<2%, sulfur content<0.07%, chlorine content<0.07%, nitrogen content<0.5%
3. What are the dimensions of the furnace door and blower hopper?
Door size:
Standard oval furnace door: 300*800*1500
Blower hopper size:
2 ton cone hopper: 1400*800*1500
4 ton cone hopper: 2200*1400*1500
4. What is the combustion method of coal/biomass boiler?
The combustion method of coal/biomass boiler is stratified combustion. The flue is placed on a fixed or mobile grate to form a uniform fuel bed with a certain thickness. Air enters from the bottom of the grate and burns on the fuel bed.
Vertical:
1. The vertical boiler has a compact structure and a small area.
2. Easy to install and disassemble.
3. Low cost of infrastructure and low investment. The steam runs out quickly and adequately.
Horizontal:
1. The horizontal combustion space is large, and the fuel can be completely burned.
2. The thermal efficiency is higher than that of a vertical boiler,
3. Horizontal type: less heat loss, stronger output and higher steam quality.
2. What are the limits (size, humidity, chemical element concentration) of coal fuel/solid fuel/wood fuel?
Coal size requirements: 6-25mm
Coal blending particle size requirements: <50mm (the amount of coal less than 6mm should be less than 30%)
Biomass particle diameter: 6~10mm, length: 25~50mm, water content<15%, ash content<2%, sulfur content<0.07%, chlorine content<0.07%, nitrogen content<0.5%
3. What are the dimensions of the furnace door and blower hopper?
Door size:
Standard oval furnace door: 300*800*1500
Blower hopper size:
2 ton cone hopper: 1400*800*1500
4 ton cone hopper: 2200*1400*1500
4. What is the combustion method of coal/biomass boiler?
The combustion method of coal/biomass boiler is stratified combustion. The flue is placed on a fixed or mobile grate to form a uniform fuel bed with a certain thickness. Air enters from the bottom of the grate and burns on the fuel bed.
