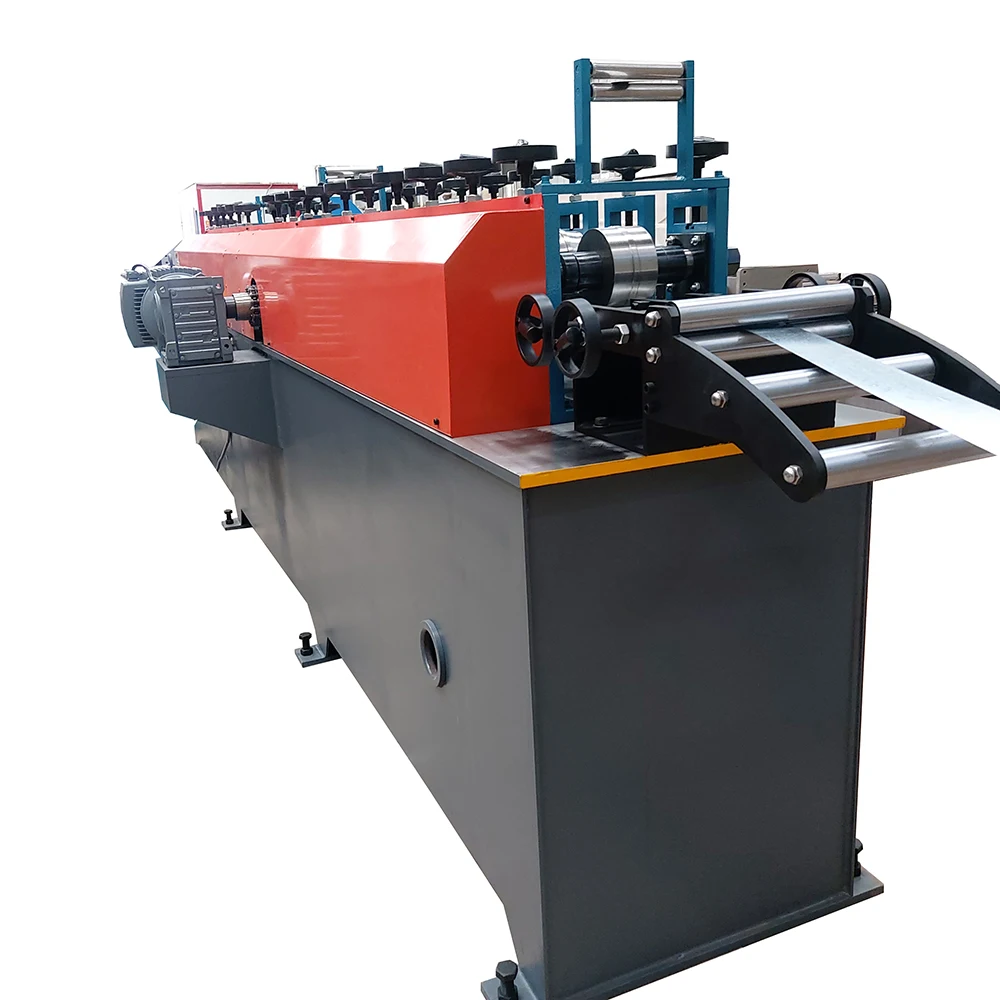

Ceiling T Grid machine

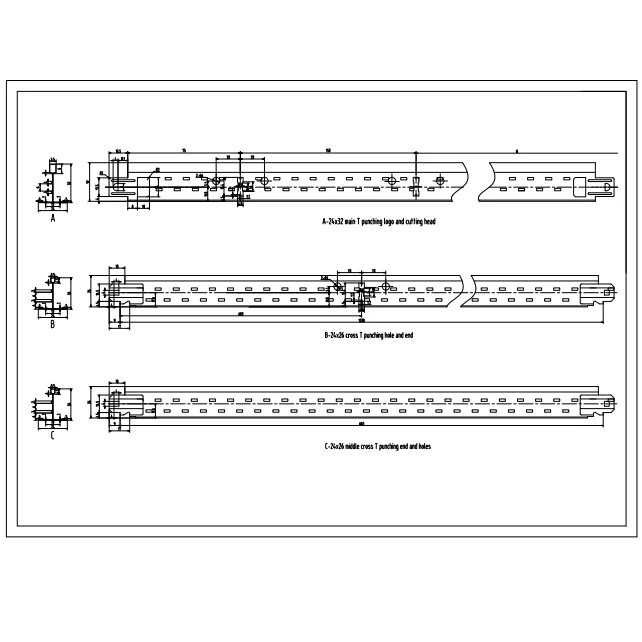

The T-bar is a technical profile for supporting suspended ceiling panels (cell grid suspended ceiling) generally sized 60x60cm and 60x120cm. This highly technical system consists of three different profiles with length 600, 1200 called Cross Tees and 3600mm called Main Runner although many other sizes exist on the market. A galvanised sheet metal base gives structure and strength to the profile, but all that can be seen once the ceiling is assembled is a pre-painted sheet metal profile. Special machining and hooks or connectors are to be found on the profile body and the ends, which allow the profiles to be fastened to the ceiling and to each other.
Products Display
Furring Hat channel roll forming machine | ||||||||
No. | Name | Unit | Quantity | Remark | ||||
Part 1 | 3T decoiler | set | 1 | Manual | ||||
Part 2 | Main forming machine | set | 1 | High speed | ||||
Part 3 | PLC control station | set | 1 | Mitsubishi brand | ||||
Part 4 | punching system | set | 1 | Hydraulic | ||||
Part 5 | Product table | set | 1 | Regular | ||||
Parts to introduce
Technical parameters | ||||||||
Series | Details | Parameter | ||||||
Product | Raw material | GI | ||||||
Material thickness | 0.5-1.5 mm | |||||||
Feeding width | 148 mm & 243mm around | |||||||
Cutting length | Adjustable | |||||||

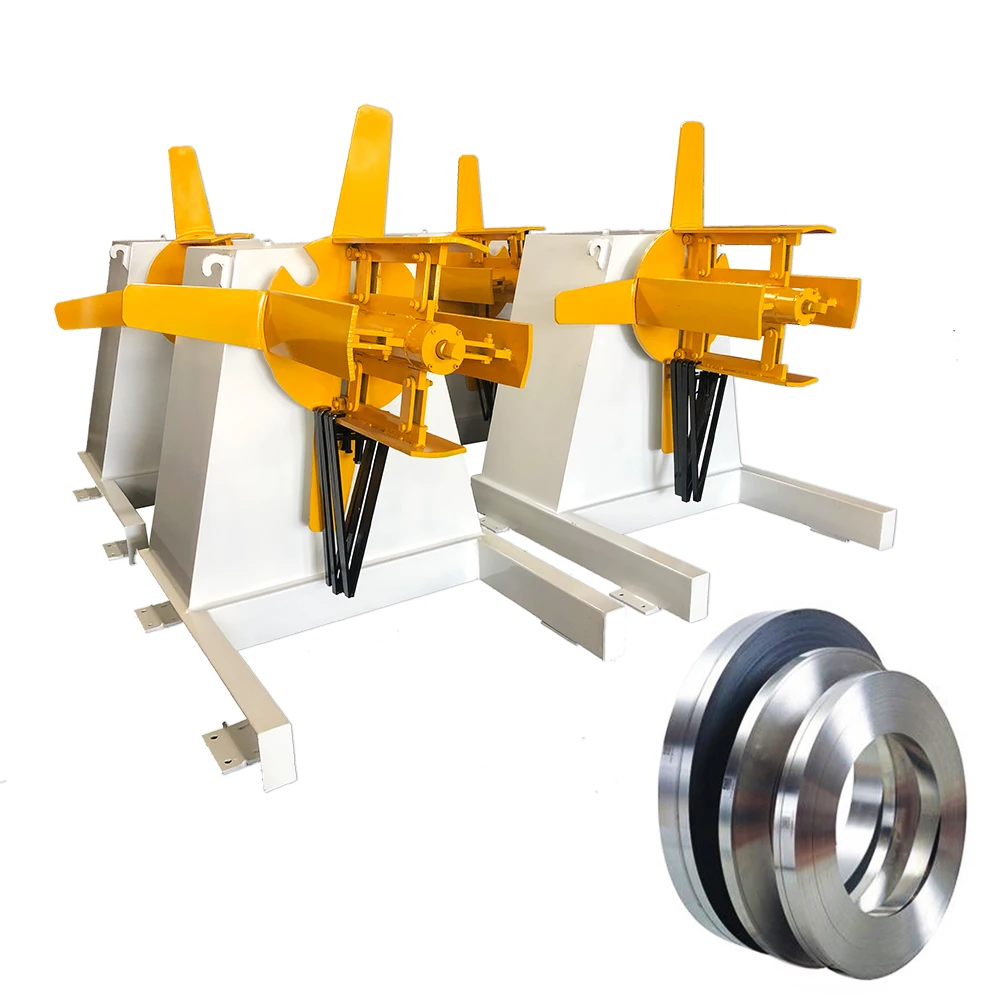

Part 1: Manual Decoiler (3 Ton) | ||
Type: passive | passive | |
Coil width: | max 400 mm | |
Loading capacity: | 3 tons | |
Inner diameter: | 450-550mm | |

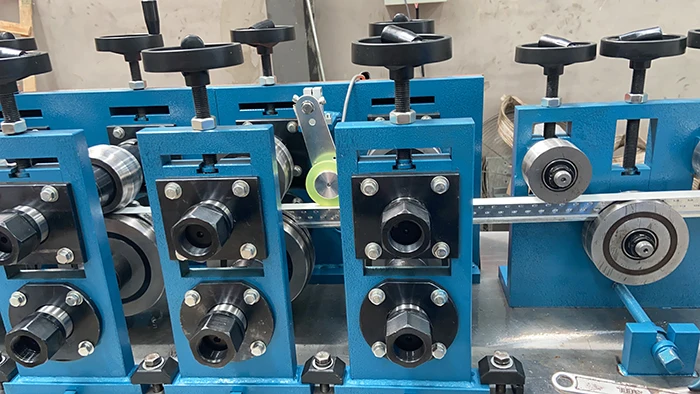

Part 2: Main roll forming machine | ||
Feeding device | With three rollers | |
Rolling shaft | Shaft material: 45# STEEL | |
Shaft diameter:80 mm | ||
Tempering treatment | ||
Roll station No | 16 stations | |
Work speed | 15 m/min | |
Machine frame | Vertical arch frame structure | |
Bearing | Chinese famous brand Harbin | |
Work power | 7.5 KW | |

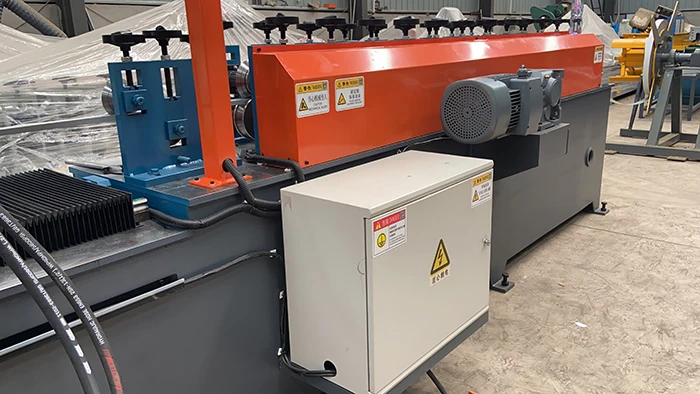

Part 3: PLC control system | ||
Frequency brand | Siemens | |
PLC brand | Delta | |
Screen type | Touch screen | |
Screen language | English/Chinese/As required | |
Encoder | Omron | |
Low pressure electrical part | Schneider | |
Function | Control the cutting length and quantity, speed adjustment | |
Part 4: Punching system | ||
Hydraulic motor Power: | 3 KW | |
Hydraulic oil: | 46# | |
Components: | The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. | |
Valves: | They are all large valves, and the meters are also high-quality meters, which are more durable. | |
Part 5: Product table | ||
Table | Table length: 3000 mm | |
Table total width: 500 mm | ||
Table material: square pipe welded | ||
Product Advantages

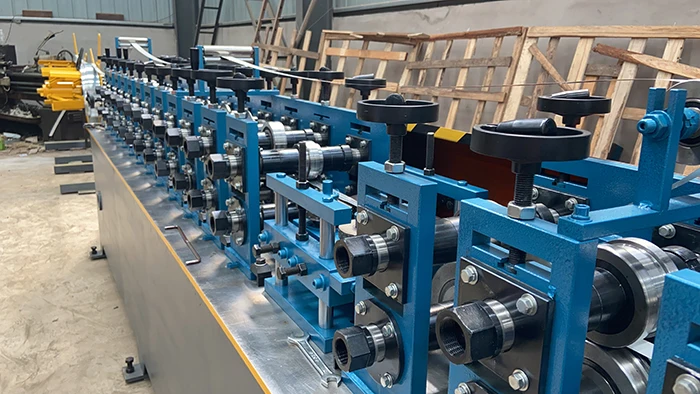

Machine structure
The thickness of the steel frame has reached 30mm, making the machine stable and firm
Shape straightening part
333

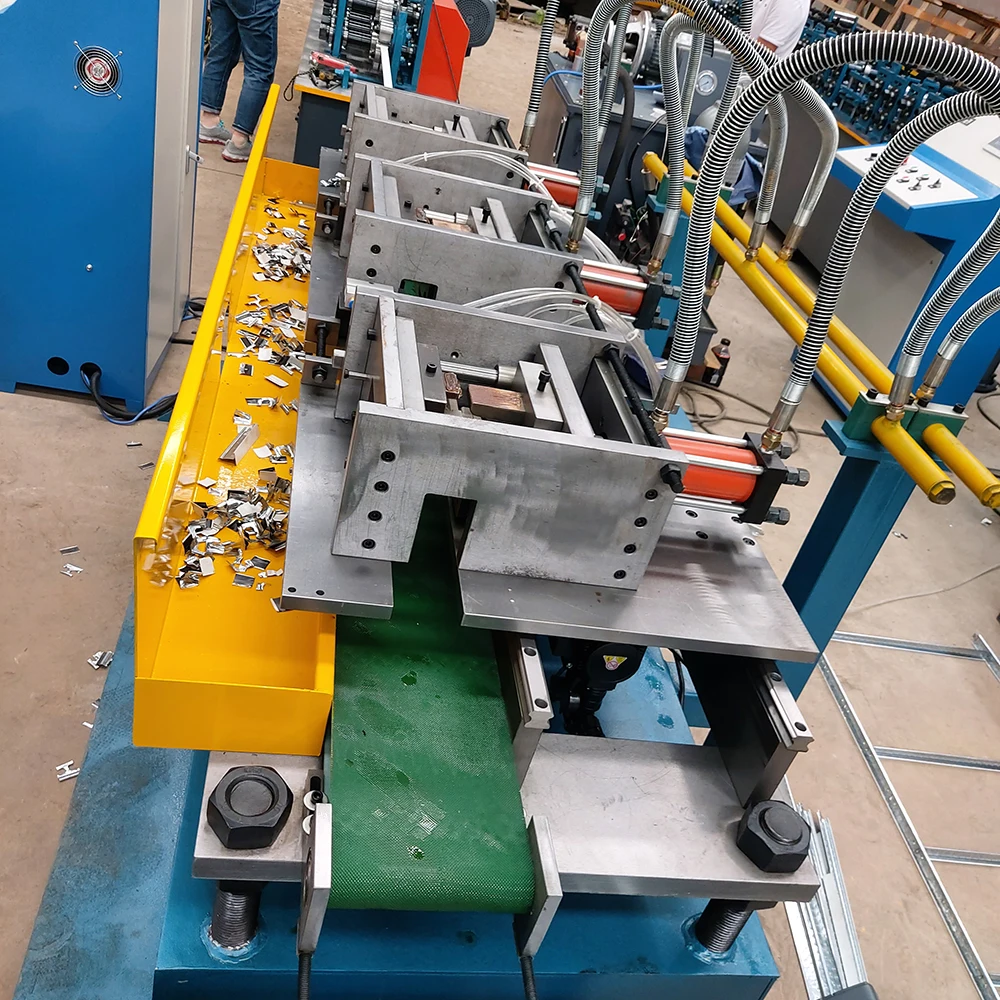

Punching part
After T bar finished we also need punch it.
Punching details

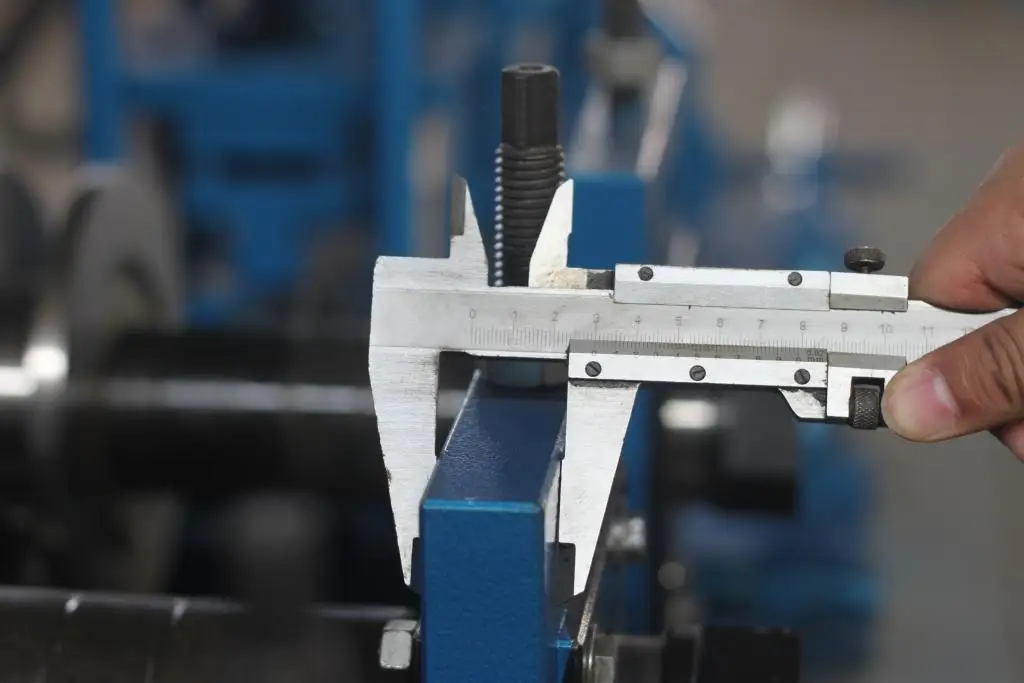

The punching knife is very fine, the error is within 0.1mm

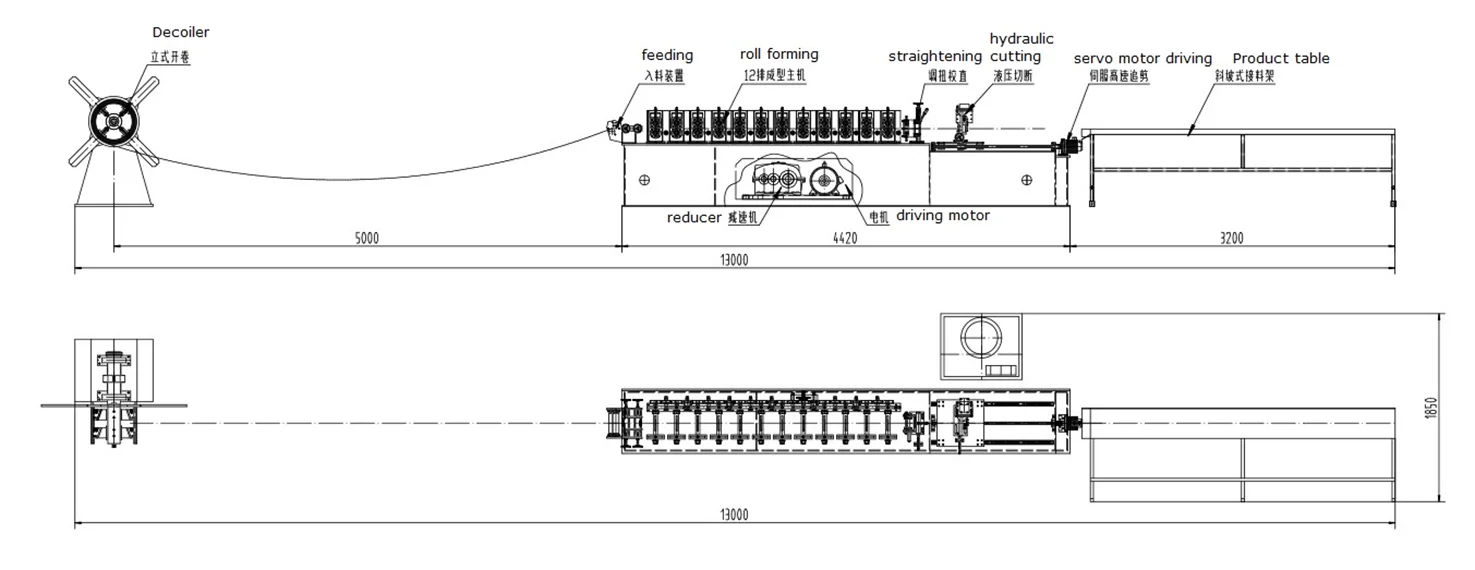

Machine architecture overview
1.The upper handle makes it easy to adjust the machine structure.
2.Multi-bolt fixed machine structure to make it more stable.
3.There is a more stable metal base.
