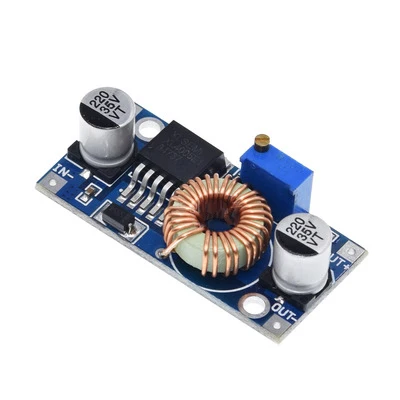

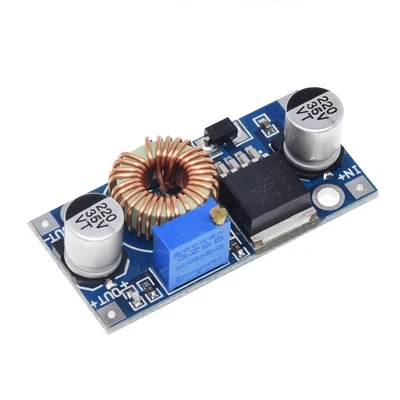

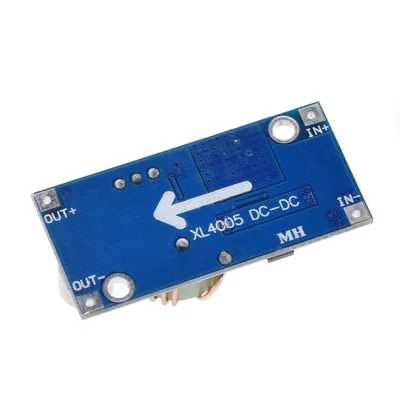

XL4005 DSN5000 Beyond LM2596 DC DC adjustable step down 5A 75W power Supply module Large current Large power

Application areas:
DIY mobile power supply, vehicle power supply, power supply for communication equipment, etc

technical parameter:
Model Name:DC-DC 5A high current step-down power supply module

Module nature:Non-isolated buck

Rectification method:Asynchronous rectification

Input voltage:5V-32V

The output voltage:0.8V-24V

Output current:Peak value 5A (work above 3.5A should strengthen heat dissipation)

Conversion efficiency:Up to 90%

operating frequency:300KHz

Output ripple:30mV (when no load)

Load Regulation:±0.5%

Voltage regulation rate:±2.5%

Operating temperature:-40℃ to +85℃

Peripheral size:42*21*14 (length * width * height) (mm)

Features: Using high-power magnetic surround inductor and high-current control chip, small size, high power and high efficiency.
