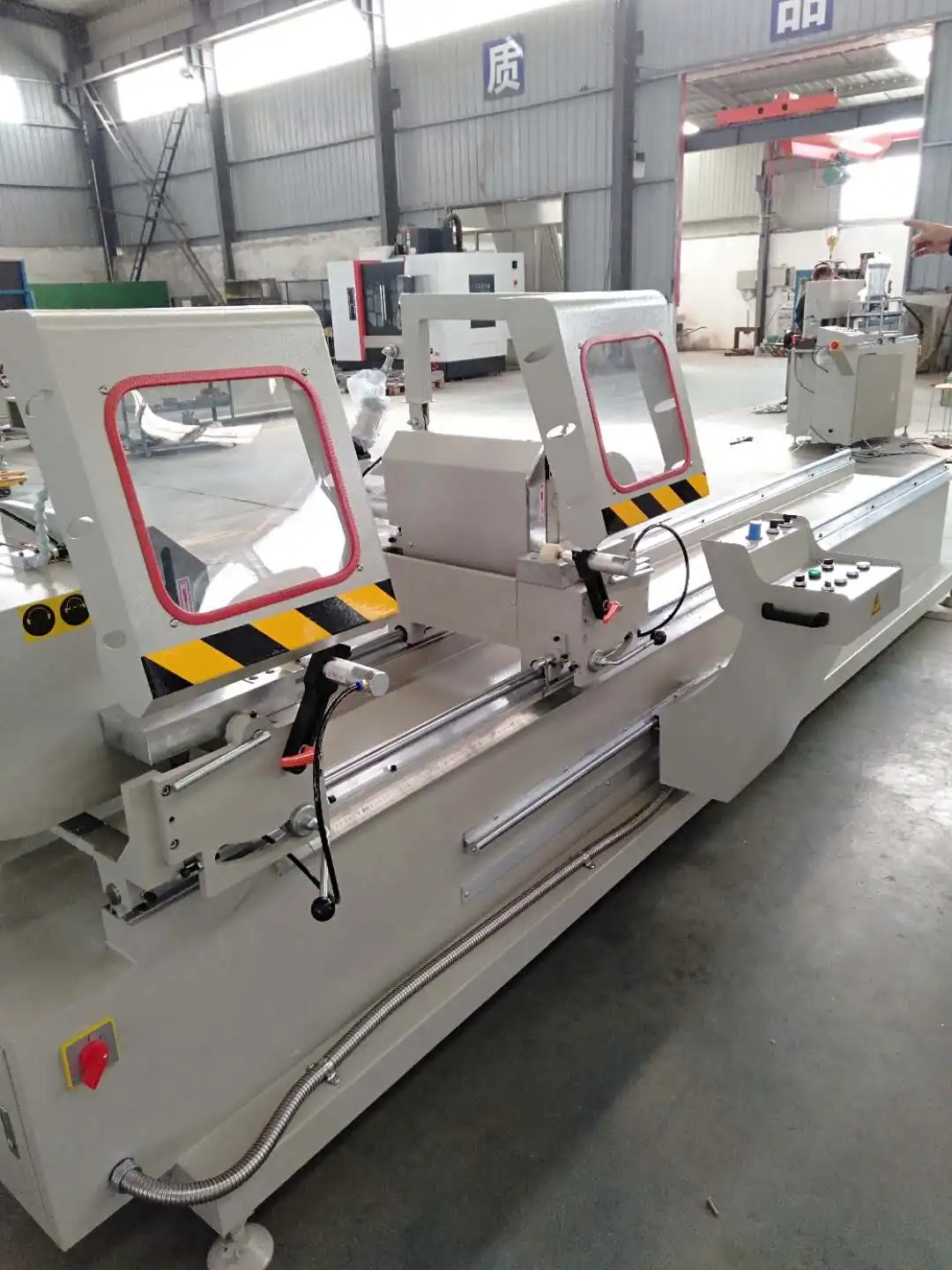

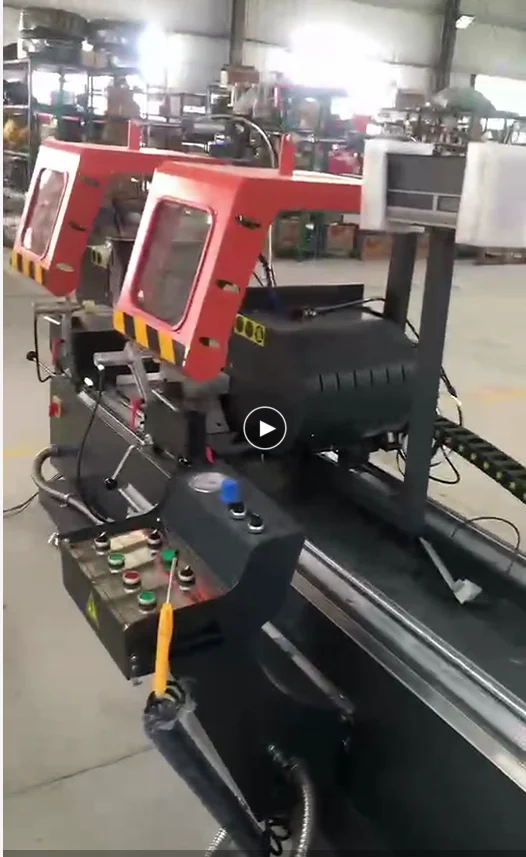

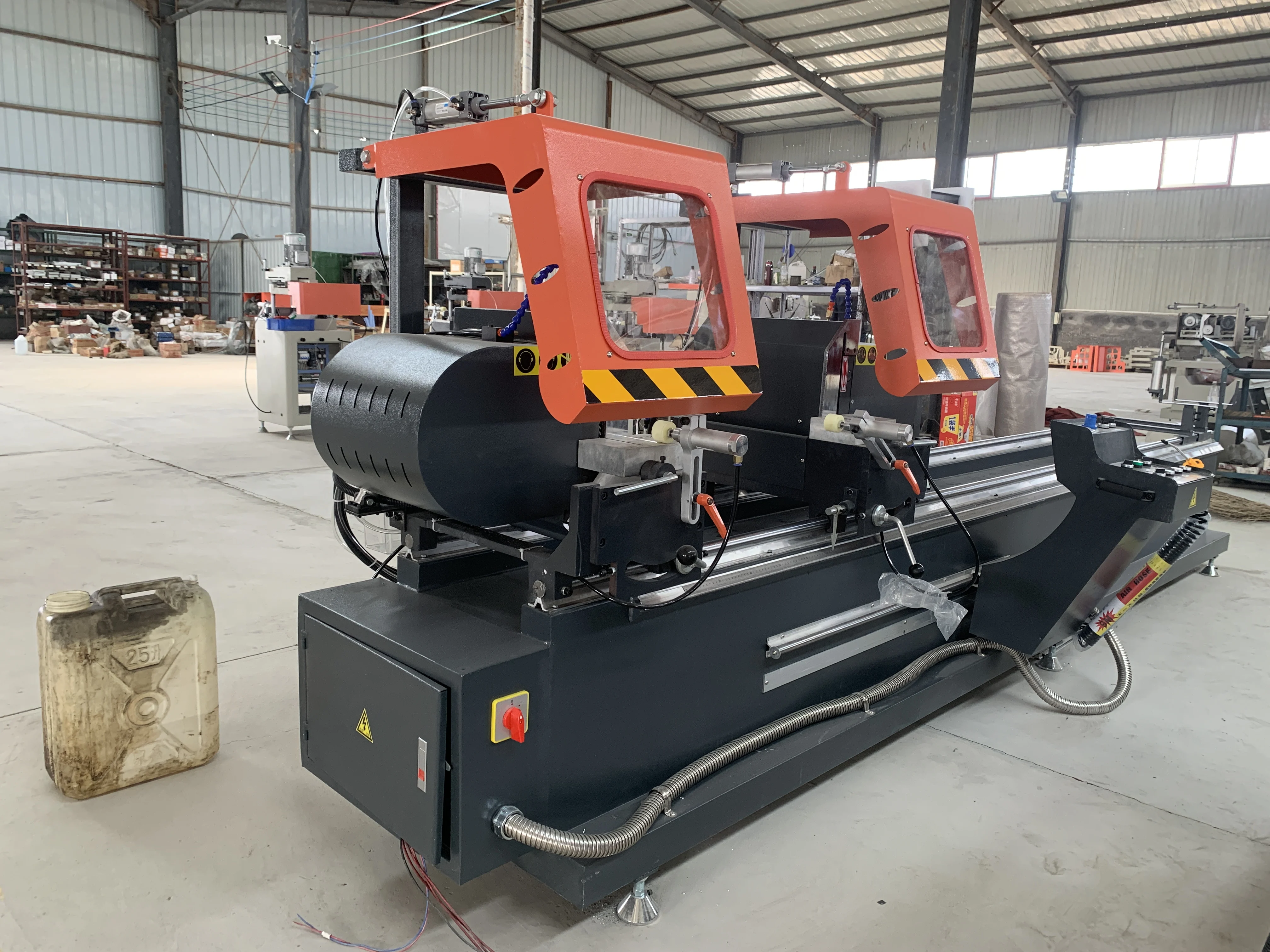

Best Price Aluminum Profile Cutter/UPVC Profile Cutting Machine Window and Door Making Machinery
- Category: >>>
- Supplier: Qihe Zhenfei Machinery Co. Ltd.
Share on (1600323713091):
Product Overview
Description
Equipment Features
1. For double-head cutting of aluminum profiles 45°, 90°, -45°.
2. Special carbide saw blade to ensure the quality and durability of the cutting surface.
3. High-precision spindle, which makes the saw blade move smoothly and the maximum cutting section: 100mm×100mm
4. The two saw heads can work alone or at the same time.
5. Profile cutting angle error: ± 5'
6. Flatness of cutting profile: ≤0.05mm
7. Roughness of cutting profile: Ra12.5um
2. Special carbide saw blade to ensure the quality and durability of the cutting surface.
3. High-precision spindle, which makes the saw blade move smoothly and the maximum cutting section: 100mm×100mm
4. The two saw heads can work alone or at the same time.
5. Profile cutting angle error: ± 5'
6. Flatness of cutting profile: ≤0.05mm
7. Roughness of cutting profile: Ra12.5um
WhatsApp/WeChat：+86 18764097781
Products Description
Voltage | 380V/50Hz |
Power | 1.5*2KW |
Motor Speed | 2800r/min |
Min Cutting Length | 220mm; |
Max Cutting Length | 3500mm; |
Max Cutting Width | 100mm |
Cutting Angle | 90°；45° |
Machine size | 4200*1300*1600mm |
