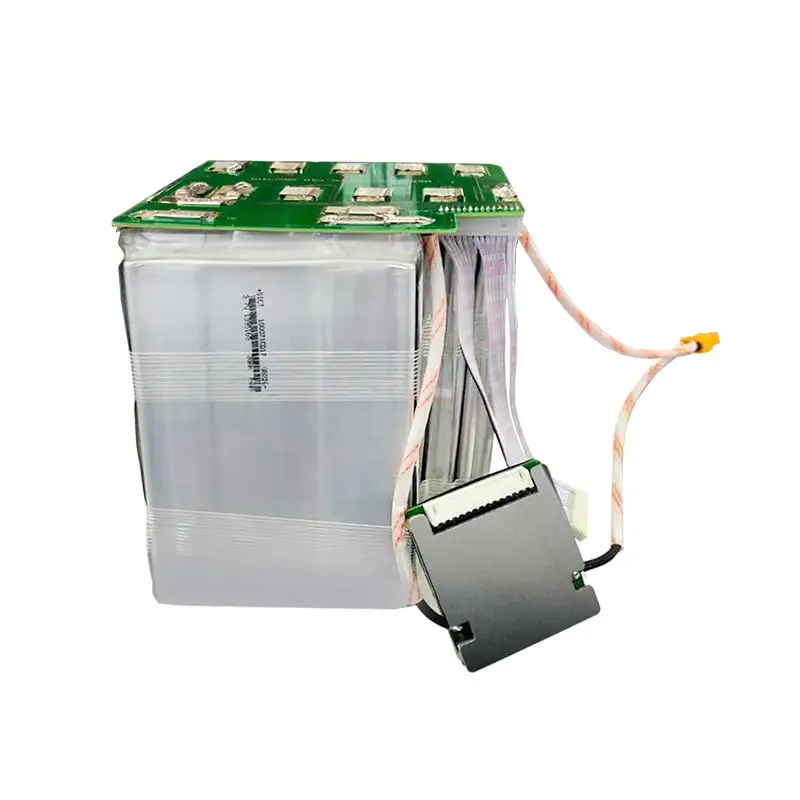

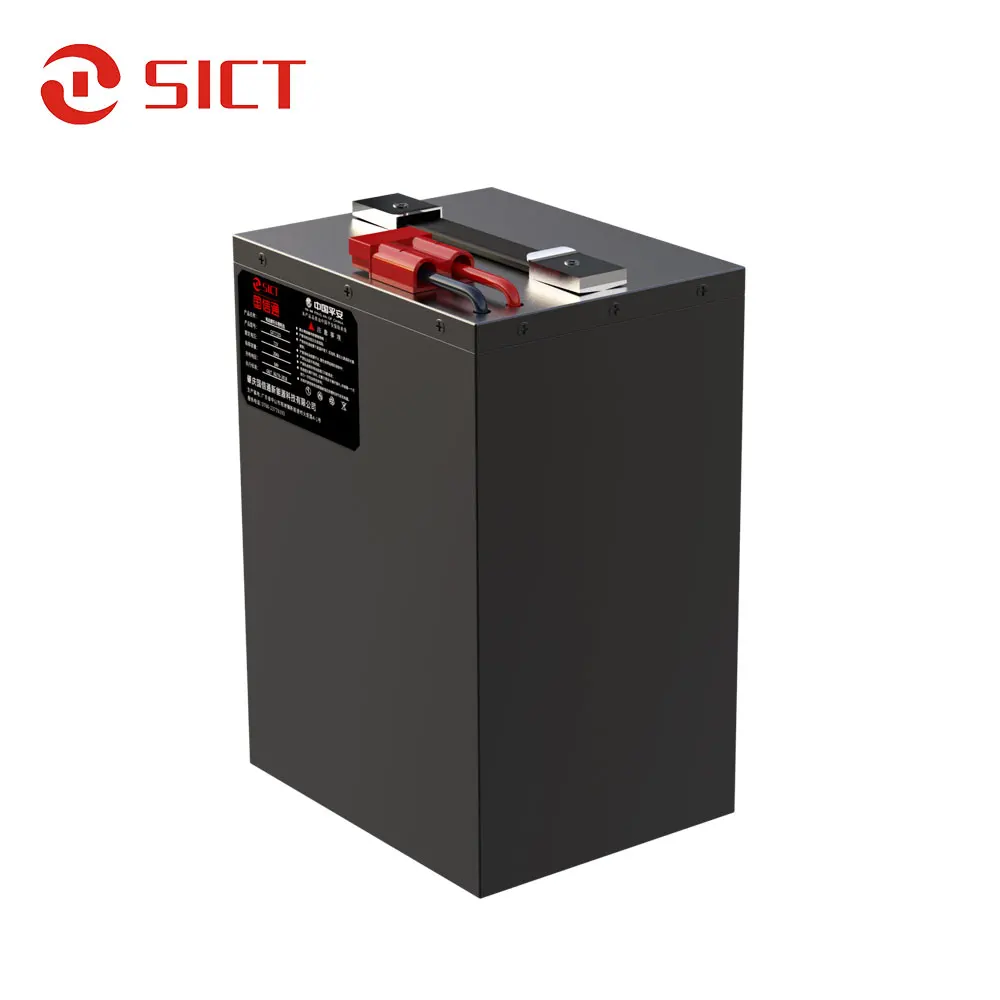

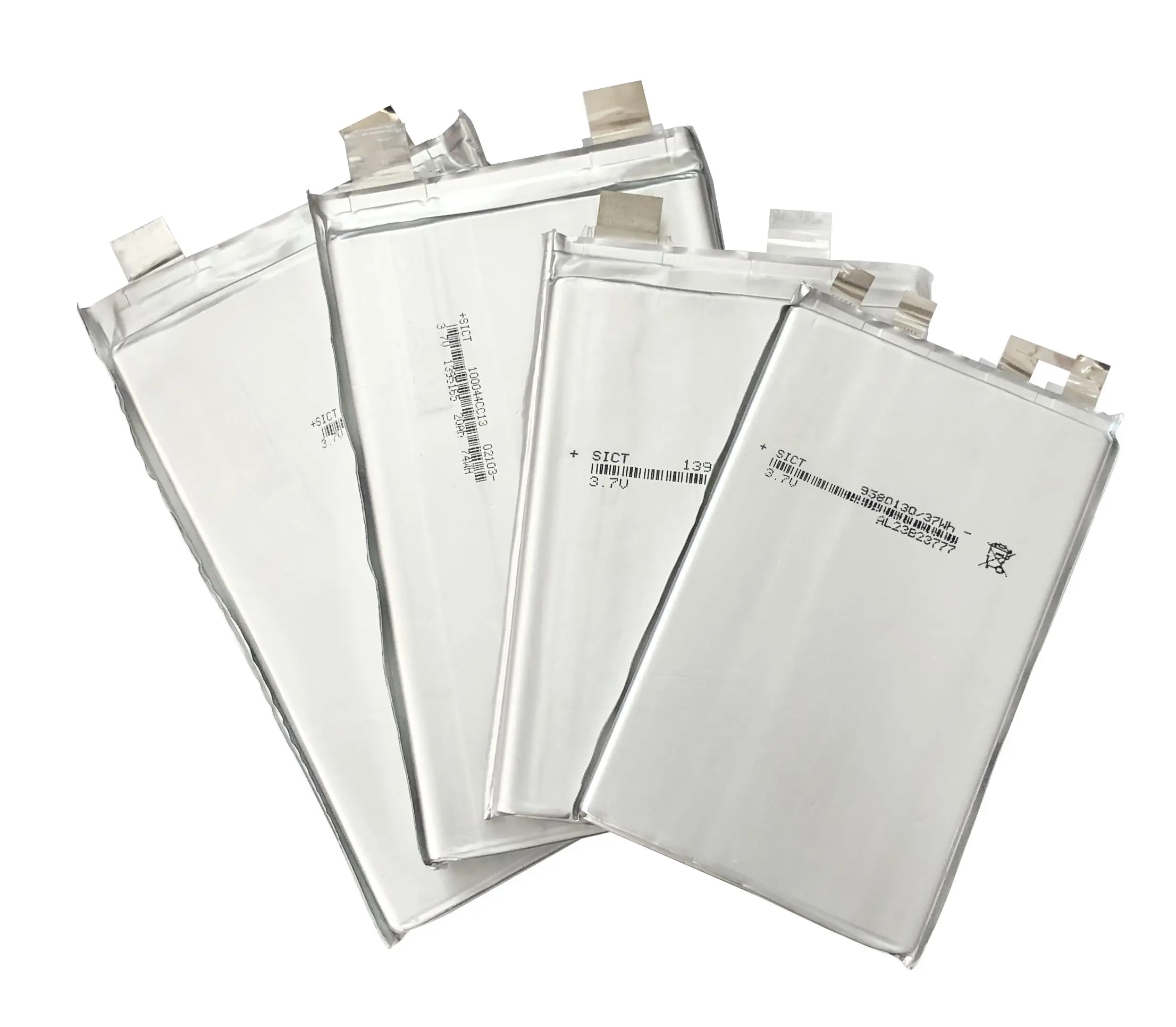

Customized 48V 60V 72V 20Ah 25Ah 30Ah 40Ah battery cell lithium ion batteries 72v electric scooter lithium battery for e ricshaw

Item No.

Items

Specifications

NOTES

1

 Model

72v30Ah

        30Ah

2

BMS Model

20 series 50A

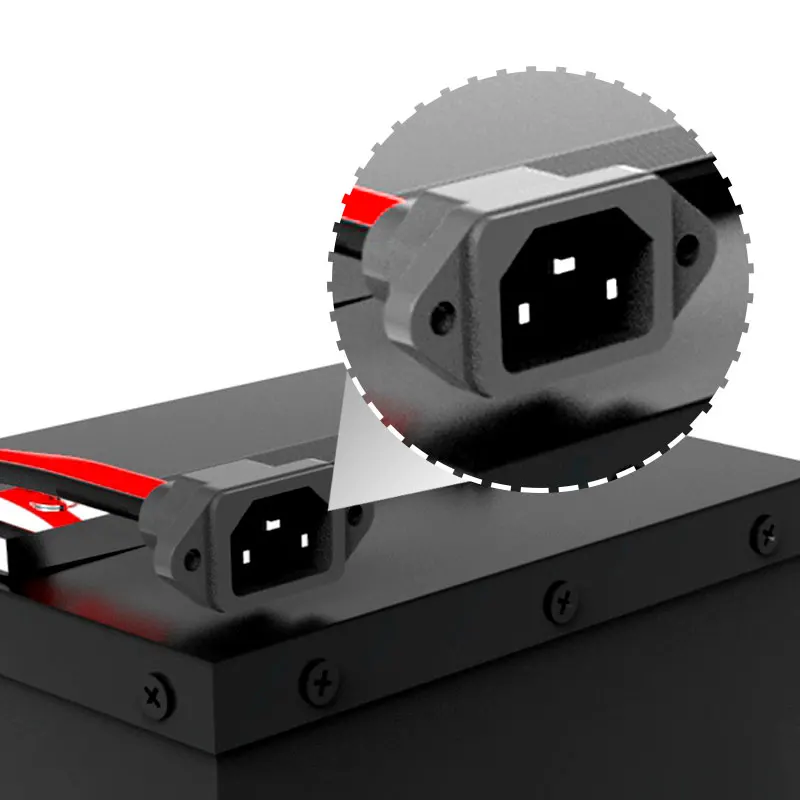

 The Same Port of Charge and Discharge at 50A

3

Min capacity

25Ah

 Discharge from 84V/0.5 C to 60V

4

Rated voltage

72V

5

Charge voltage

84V

Charger output voltage

6

     Max.Charging current

30A

Max Continuous charging Current

7

Discharge end voltage

51.8V

8

Max.Discharge Current

35A

Max Continuous Discharge Current

9

Operating Temperature

0~ +45℃

Charge

-20°C ~ +60°C

Discharge

10

Storage Temperature

1 month

3 months

1 year

-20°C ~ +60°C

-20°C ~ +45°C

-20°C ~ +25°C

11

             Cycle Life

≥1500Cycles

Charge @0.2C Discharge @0.2C

Capacity≥80%

12

Impedance

≤200mΩ

13

Battery Weight

Approx:8.8Kg

14

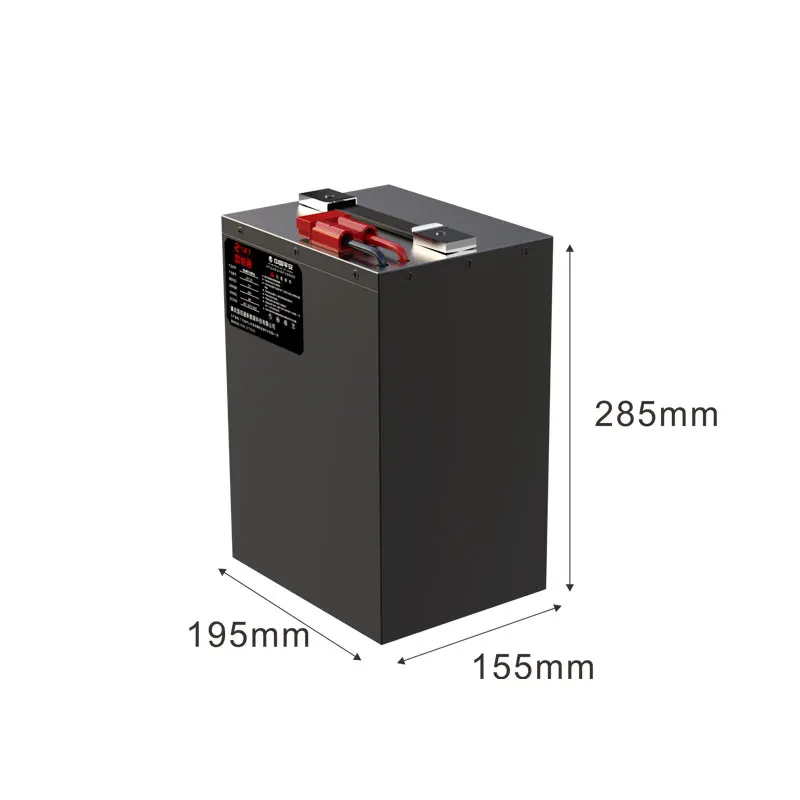

Battery Dimension (mm)

Length

Customized

Width

Customized

Height

Customized

15

As of Shipment Voltage

≥60V
