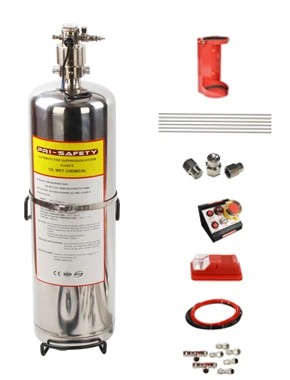

Capacity 6L Fire Suppression Systems For School Bus

Share on (1600323747646):


Price:

Quantity:


Product Overview

Description



Product Description




Background
Engine compartments of buses are more tendency to catch fire than other enclosures due to the following: short circuit, engine wear, hot surfaces, reduced durability of materials, use of plastics, encapsulation of the engine, oil, and debris. It is not surprising that more than 70% of all bus fires occur in the engine compartment. Since buses are used for every day transport of people, the fire protection of buses should be top priority of every bus operator or manufacturer.


1. Temperature Sensor Model/Solenoid Valve
2. Detection Tube Model/Pneumatic Valve


Product Activated Principle

1.Temperature Sensor Model/Solenoid Valve

Step1: There is 3 temperature sensor installed in the engine room, temperature sensor feedback the the temperature to the control panel. The control panel can indicate the temperature at anytime. The control panel was installed in the driver room, driver can see the temperature at anytime.

Step2: Once the Temperature of engine room increase to 100℃, the control panel will activate the fire alarm. Driver will stop and check the situation. If necessary, driver will push the manual button on the control panel to activate the system.

Step3: Once the temperature still increasing, and reach to 140℃, the temperature sensor feedback the signal to control panel, the control panel will activate the solenoid Valve, the solenoid Valve open and discharge agent to extinguish fire.




Drawing for reference
The temperature sensor send temperature signal to control panel, the control panel can indicate the temperature at anytime, once temperature reach 100 ℃, the fire alarm was activated. Once the temperature reach 140℃, control panel will send signal to electric valve to open it. Then the agent was discharged from dischange tube and nozzles. On the control panel, there is a manual button and test button, reset button, in Emergency pushing the manual button can activate the fire system too.




Diagram of R107 Systems for Temperature Sensor Model.
Single Bottle
Temperature Sensor

2~3 Bottle
Temperature Sensor

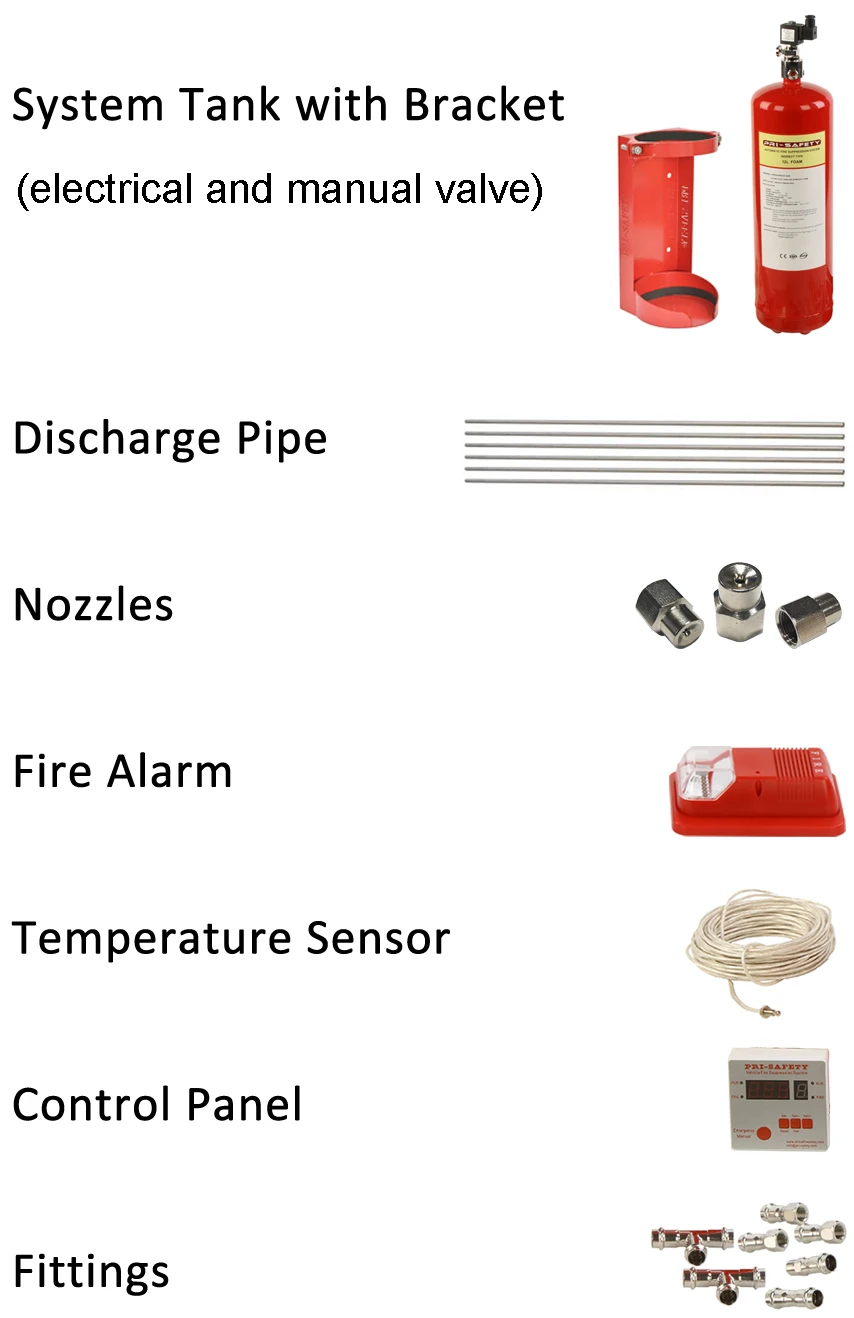

Main components of R107 Systems for Temperature Sensor Model.


2. Detection Tube Model/Pneumatic Valve
Step1:
Detection Tube ruptures to hole when temperature reach 140℃, and release pressure through the hole.(Or pushing the manual button of detection tube,pressure releasing from themanual button.)

Step2:
The resulting drop in pressure causes the head valve to be activated. At the same time the fire arlar was activated.
Valve was opened and agent was discharged through the discharge tubing to the nozzles.
Step3:
Agent covering the area and suppressing the fire quickly and thoroughly.
This system is totally automatic and is totally independent of electricity.

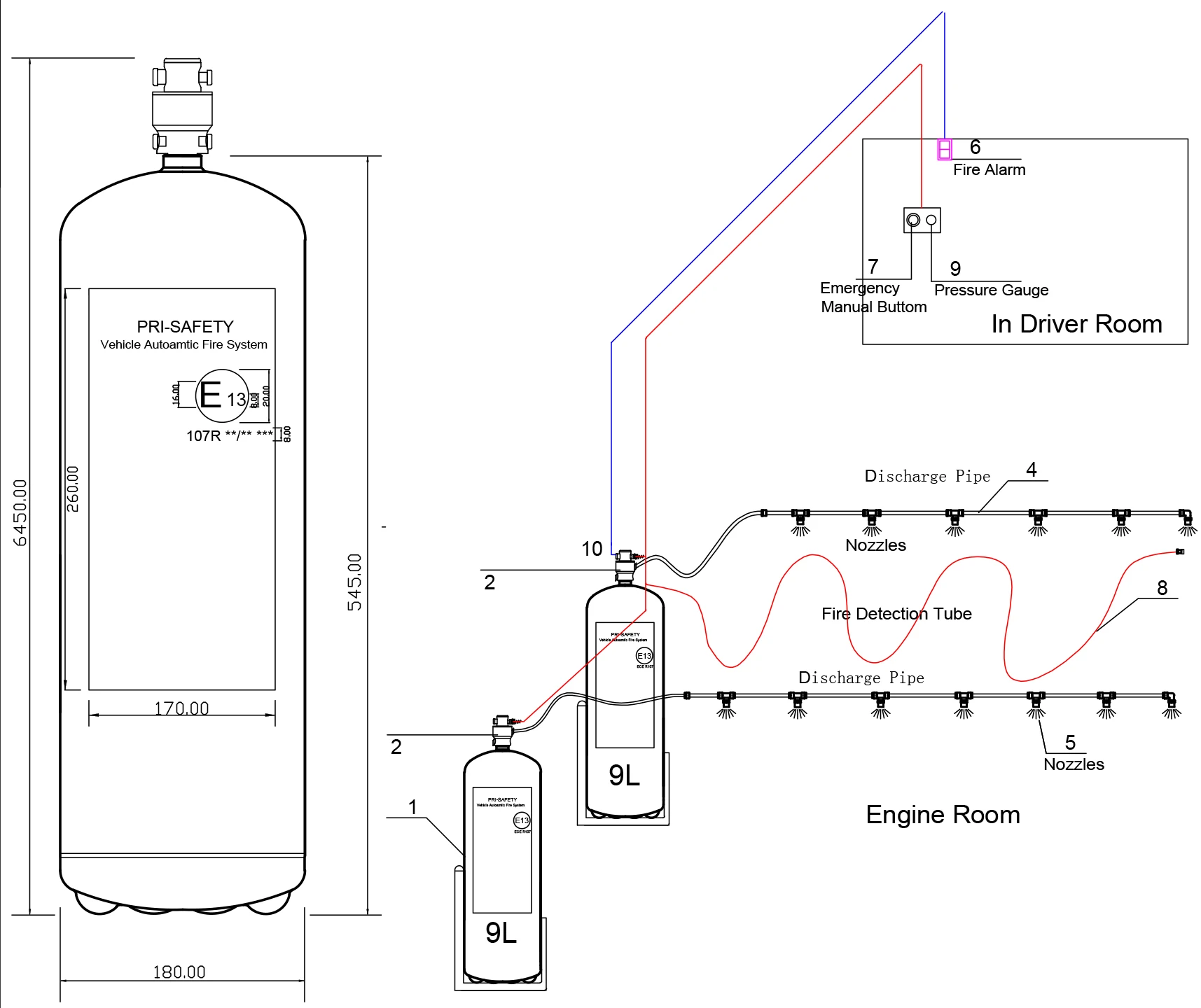

Drawing for reference
Inside the Pneumatic valve there is a piston, it divide the valve cavity to 2 parts. The upper cavity connect to detection tube, the lower cavity connect to bottle. The pressure of the 2 side of the piston is same. During the fire, Once the detection tube detected fire and ruptured one hole to release the pressure. Then the pressure of 2 side of the piston happen different, the piston was moved to up, and the outlet port of the valve was opened, and agent was discharged from the pipe and nozzles. At the same time, the pressure switch send final to fire alarm, the fire alarm was activated. On the control panel, there is a manual button and test button, reset button. In emergency Pushing the manual button can activate the fire system too.


Diagram of R107 Systems for Detection Tube Model.
Single Bottle
Fire Detection Tube
2~3 Bottle
Fire Detection Tube

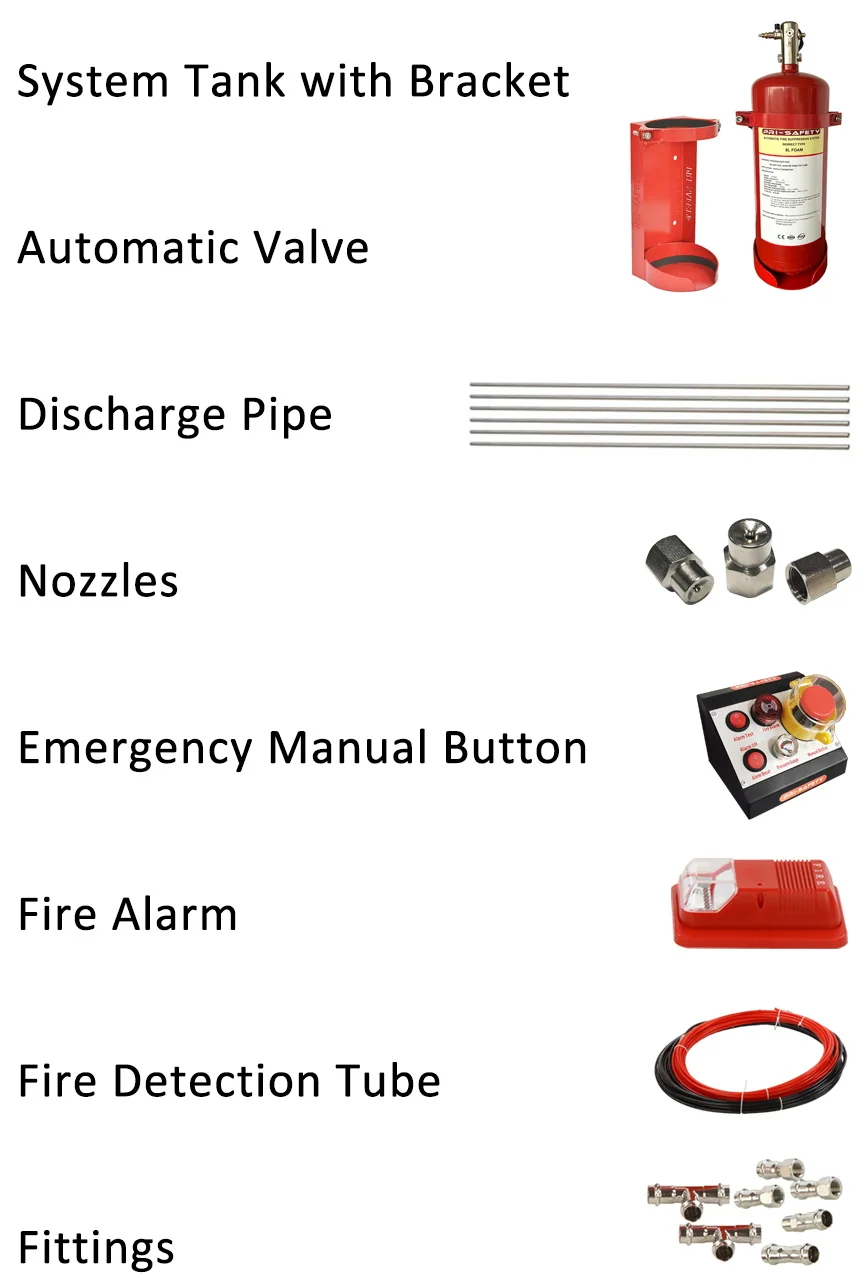

Main components of R107 Systems for Detection Tube Model.


Specification


PRI-SAFETY Buses Fire Suppression Systems
Brand Name
PRI-SAFETY
Capacity
6L, 9L, 12L, 18L, 20L, 25L, 50L 6kg, 9kg, 12kg, 18kg, 25kg, 50kg
Agent
Water Mist / Foam / Dry Powder / Novec1230/ FE-36 /FM200
Working Pressure
14Bar
Testing Pressure
27Bar
Cylinder Material
St12 red painting Or Stainless Steel 304
Certificate
UN ECE R107 , CE
System Activated Temperature
140℃ or Customized Temperature


Note:
For Vehicle Engine Room, we can choose different fire agents, such as Water, AFFF3% Foam, FM200, or Dry Powder agents.
The different systems are with different discharge tube and nozzles.


Advantages
*Totally automatic system
*Independent of power supply
*Fast detection and high efficiency
*Available in many agents: foam,novec1230, water mist, dry powder, FM200,ect
*Adapted to harsh environments
*Universal to be installed in any bus
*Cost-effective
*Eco-Friendly
*Rechargeable
*Less damage to buses
*Reduction of societal costs
*Secure business continuity


Certifications


Certificate for Dry Powder Agent
Certificate for Foam Agent
UNECE R107 and CE Approved

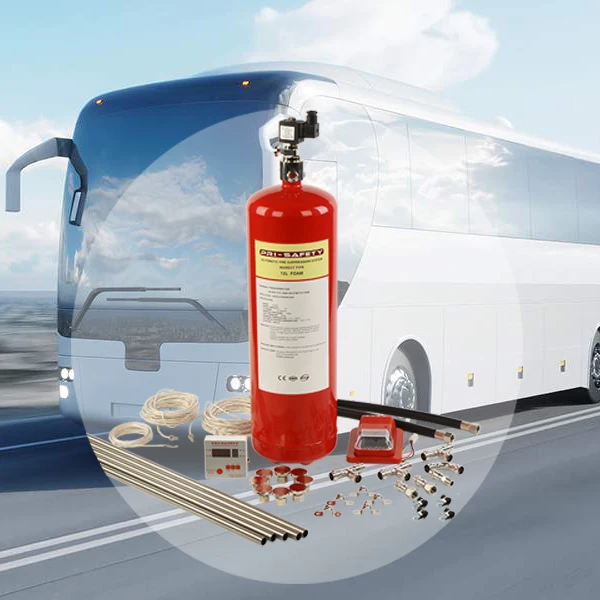

Application






Applicable To All Vehicless
Automatic fire suppression system can be used for all models of vehicles. We give customized designs for different models. All systems componnet depend on different requirement. We totally support OME service.



Company Profile




PRI-SAFETY specializes in the manufacture and exportation of Automatic Fire Systems, Throw Type Fire Extinguishers, CAFS Compressed Air Foam Fire Systems, Fire Extinguishers, Fire Hose Reels, Fire Hoses, Fire Cabinets, Valves, Pressure Gauges, Couplings, Smoke Alarms, Fire Blanket and other fire equipment, etc. We focus on providing one-stop fire-fighting products and professional service.

We have attained ISO9001:2000, CE, EN3, EN1869 and EN694 certifications. Almost all products that we provide are manufactured and tested according to the international standard. We also supply OEM service, we can design and produce the products as client's special request.

PRI-SAFETY also has very good after-sales service, we have one professional,high efficient and warmly sales team. We promise that all feedbacks from clients would be replied within 8 hours during working days. We always try our best to provide better service to meet our clients' demands.

Our company rule is saving time and cost for clients, taking good profit and well development for clients. We supply well growing space and training for each staff, help staffs to achieve their dreams. Then clients and staffs push our company development.


Exhibition




Packing & Delivery






FAQ


Q1. May I get a sample before placing an order?
A1. Yes, no problem.


Q2. Are your company PRI-SAFETY a manufacturer or trading company?
A2. Manufacturer.


Q3. Can you print our logo on products?
A3. Yes, no problem. We also support OEM.


Q4. How long does it take to delivery?
A4. In 30-45 days after receipt of 30% deposit.


Q5. What's your MOQ?
A5. Fire extinguisher is class2.2 Dangerous Goods, it should be loaded with full container.
But if you have another goods shipping together or you need empty type, our MOQ is 100 sets.

Q6.What's your payment term?
A6:We support T/T,L/C,Western Union,D/A,D/P and Credit Card etc.
