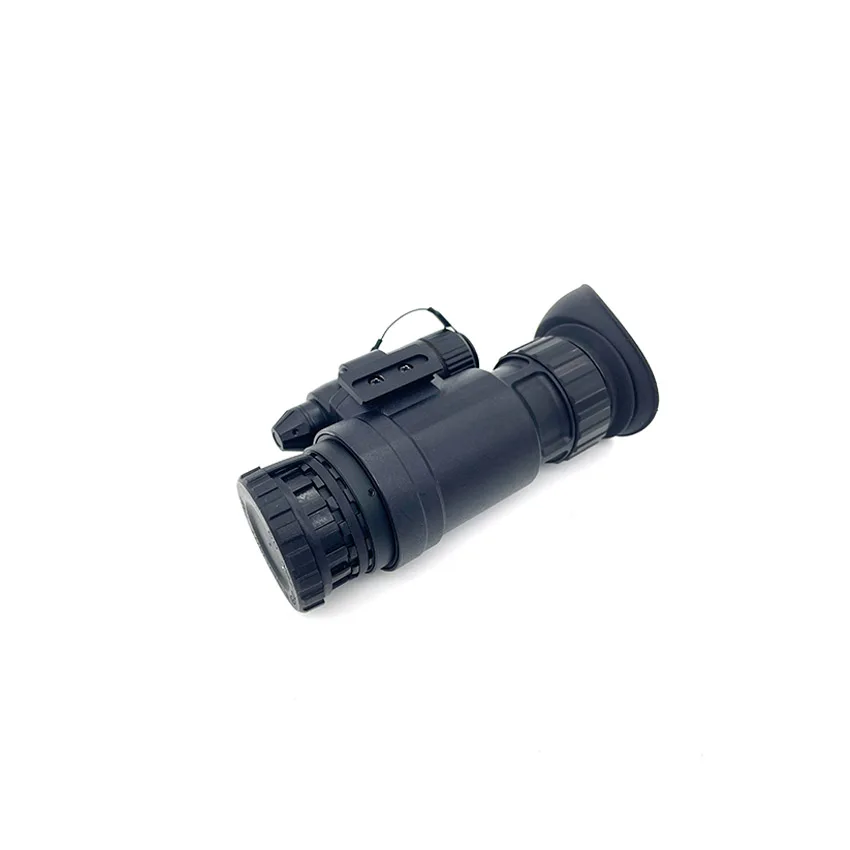

Visionking Gen2+ Helmet Mount Waterproof Military mini Night Vision Monocular Night-Vision 1x for Hunting

The PVS-14 night vision is a new product developed based on the latest optoelectronics technology with a field of view of 40 degrees. The imaging is clear, the operation is simple. The magnification can be changed by replacing the objective lens. The night vision device has a built-in infrared Illuminator and an auto- gain system. The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting. It is equipment for public security departments, armed police forces, special police forces, and guarding patrols
Technical specifications:
MODLE | pvs-14 |
Image intensifier | Gen 2+ |
Magnification | 1X |
Resolution ( lp/mm) | 51-57 |
Photocathode | S25 |
S/N (dB) | 15-21 |
Luminous sensitivity(uA/lm)
| 450-500 |
MTTF | 10,000 |
FOV(degree) | 42+/-3 |
Detection distance(M) | 180-220 |
Graduation cursor | Internal(optional) |
Diopter range | +5/-5 |
Optical system | F1.2, 25mm |
Coating | Multilayer broadband coating |
Distance range(M) | 0.25--∞ |
Auto anti strong light | High sensitivitybroadband detection |
Rollover detection | Solid non-contact automatic detection |
Dimensions(mm) | 110*65*45 |
Materials | plastic |
Weight(no battery) | 240g |
Battery Voltage | 2.6-4.2V |
Battery type | CR123(A)x1 |
Battery life(H) | 80(IR OFF) 40(IR ON) |
Temperature range(℃) | -40/+50 |
Humidity range | 5%-98% |
Waterproof | IP65(IP67optional) |
Detail Images:






1. Professional designer and manufacturer ;
2. High quality, optical system and mechanism design at reasonable and competitive price;
3. Any inquiries will be replied within 24 hours;
4. OEM/ODM service:
a) Customized night vision ,riflescope, binoculars appearance
b) Customized color box or gift box
c) Imprint your logo or label on products
d) We help to design your ideas and put it into production
About us:
K-Lin Yuan Technology Co., Limited is a professional manufacturing and trading company. We focus on Nihgt Vision and Optics products etc.
Insisting on pursuing advanced technology and good service, we have won a great support from all over the world. Our company goal is to provide good quality, reasonable price and excellent service to all customers. Thus, we have established long-term, stable and good business relationships with many wholesalers and distributors home and abroad, such as Australia, Germany, Italy, Russia, Sweden, Singapore, South Korea, Saudi Arabia, Taiwan, UK and the United States.
