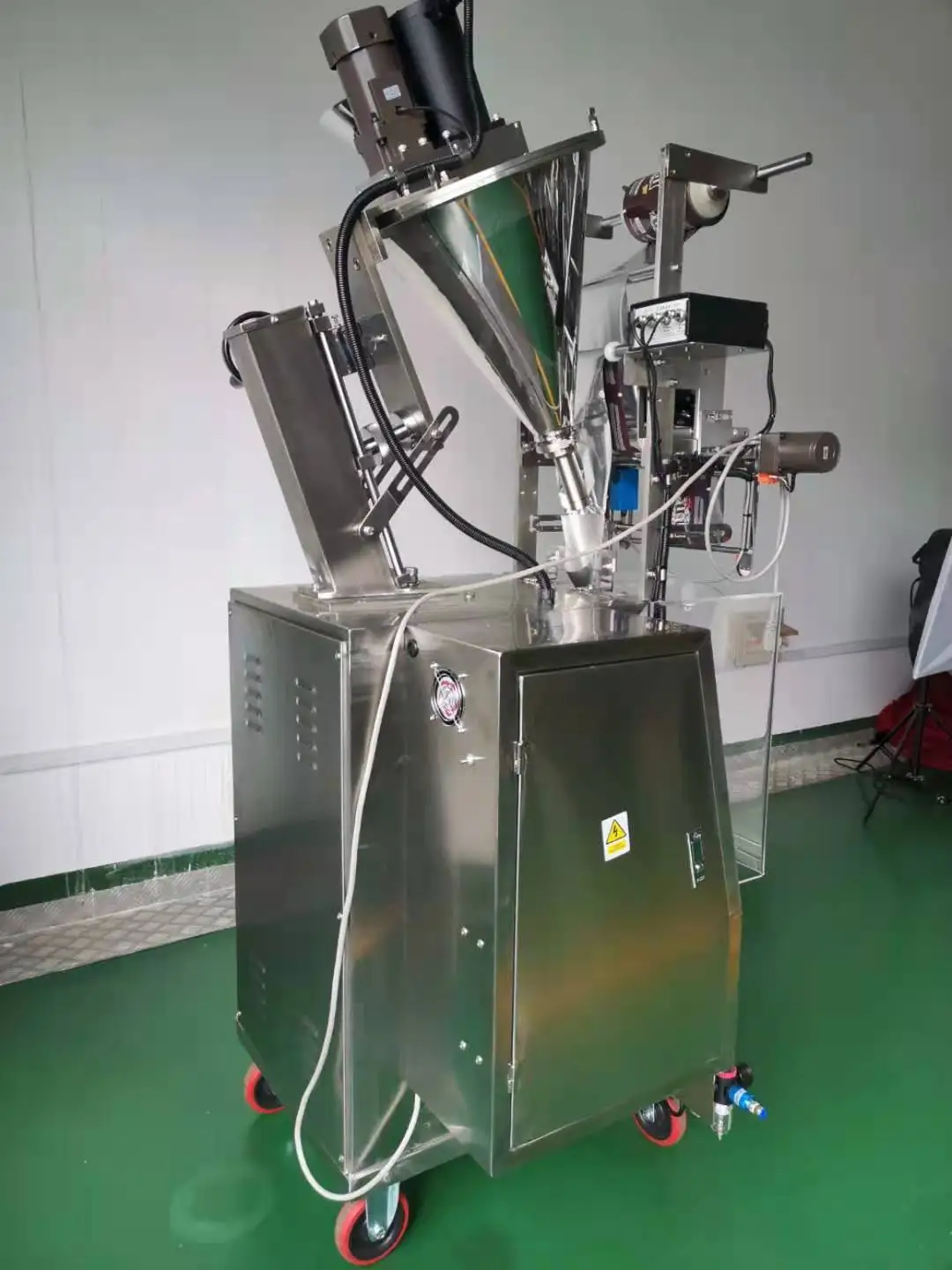

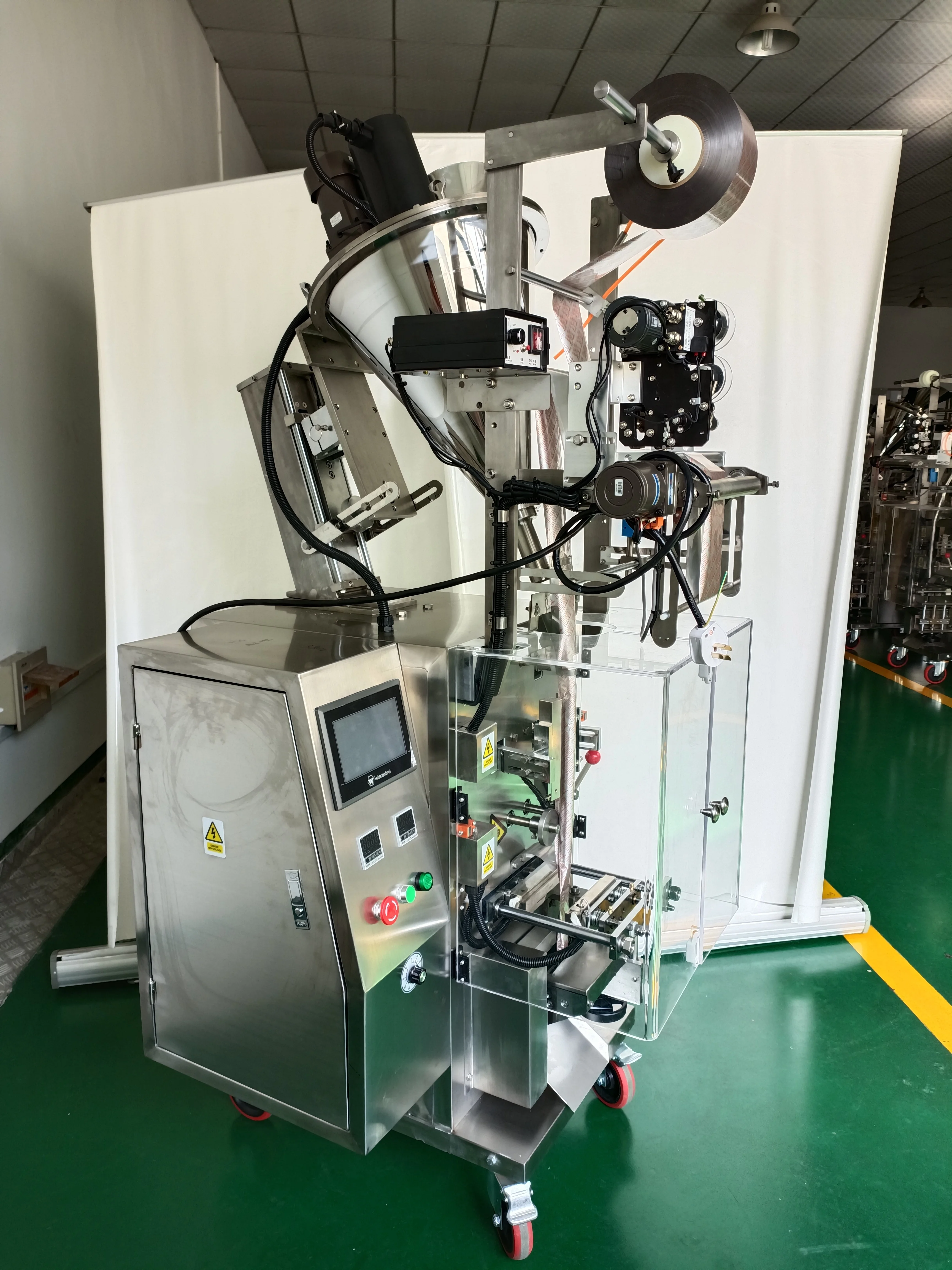

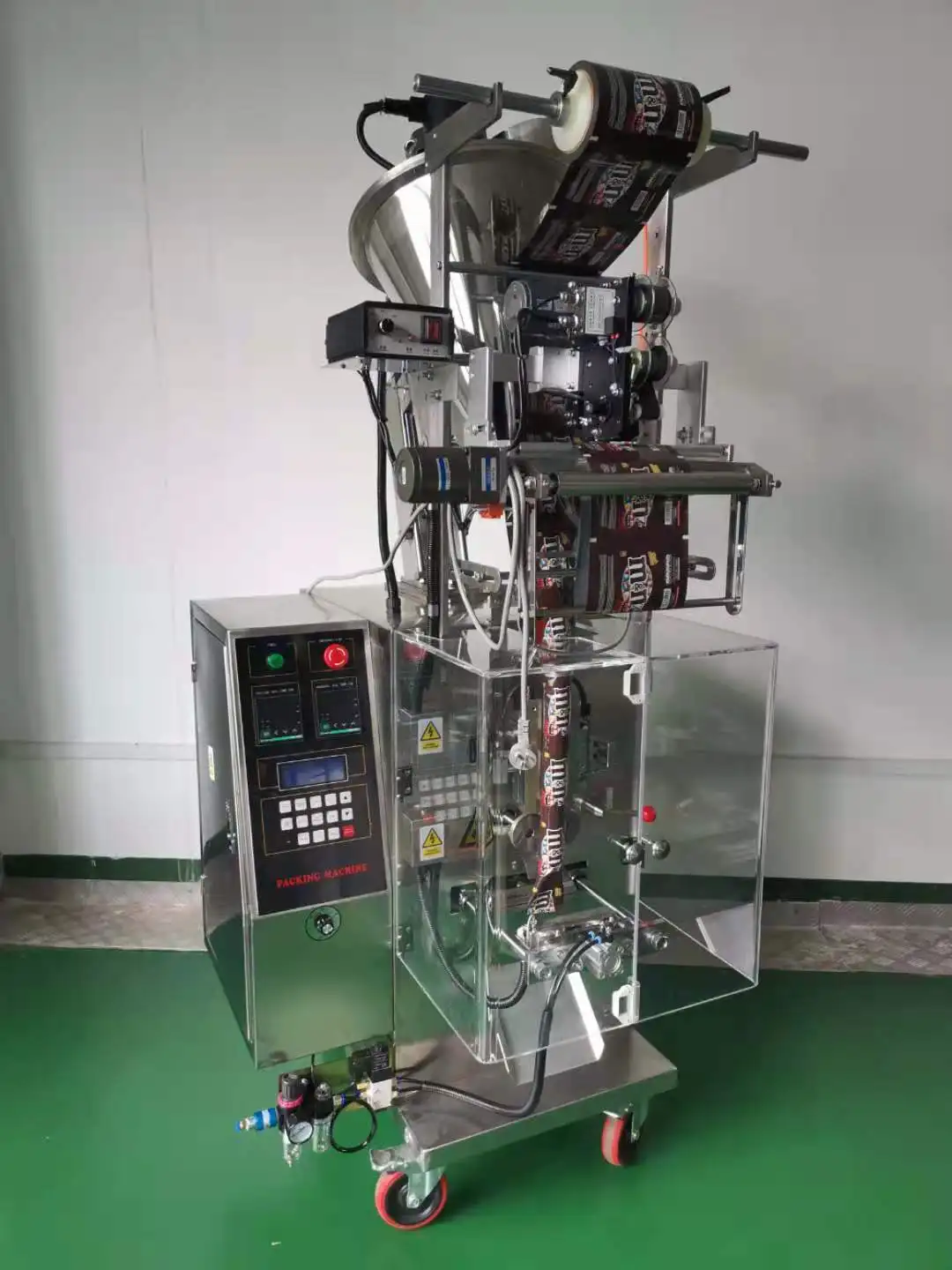

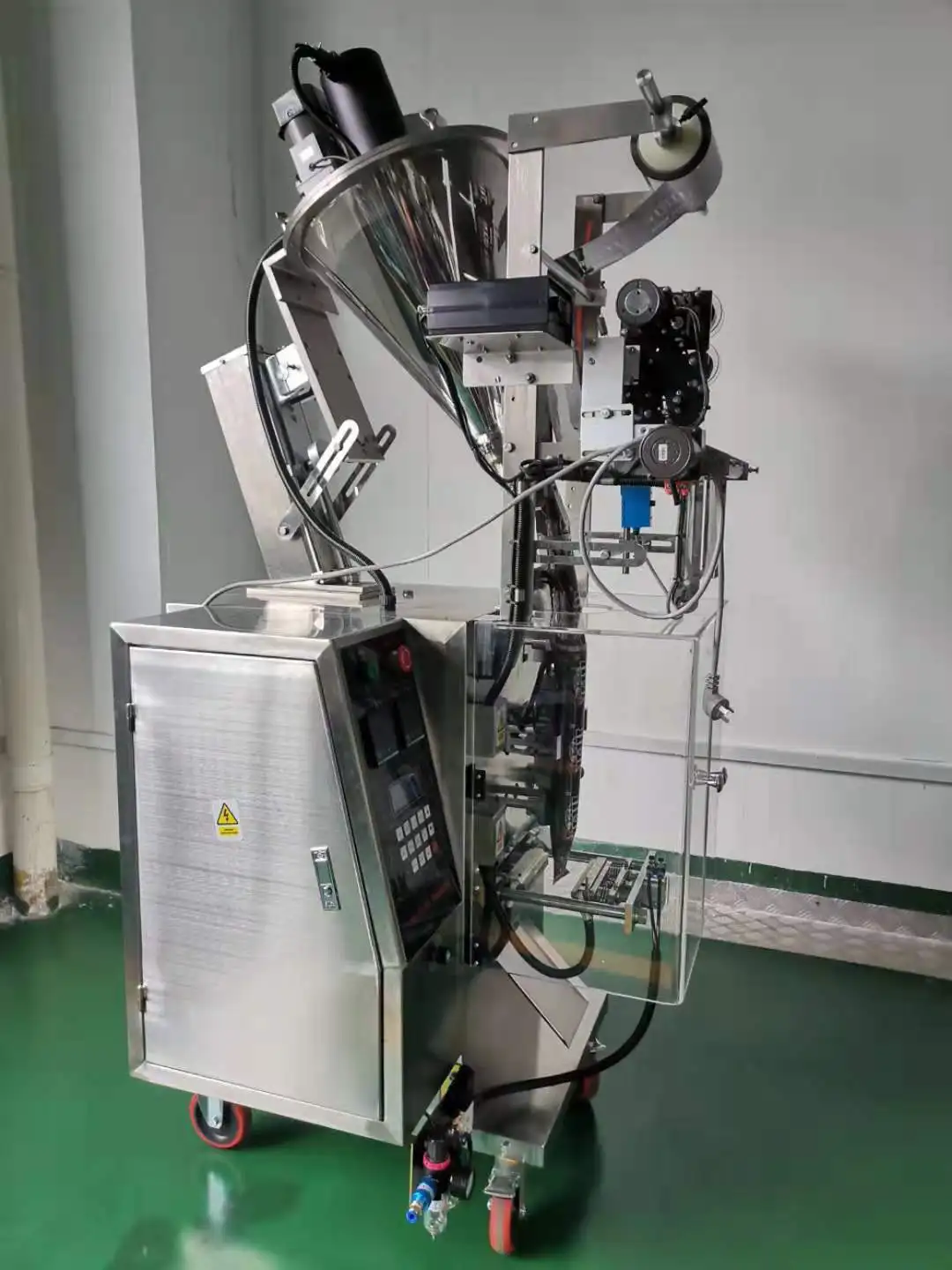

Seasoning Powder Sachet Filling Packing machine
- Category: >>>
- Supplier: Shanghai Dahe Packaging Machinery Co. Ltd.
Share on (1600323885458):
Product Overview
Description
Products Description
The machine adopt auger filler to measure and filling, suitable for packing various kinds of powder and granule, such as spice, coffee, cocoa, milk, salt, sugar etc.
Application
Product Parameters

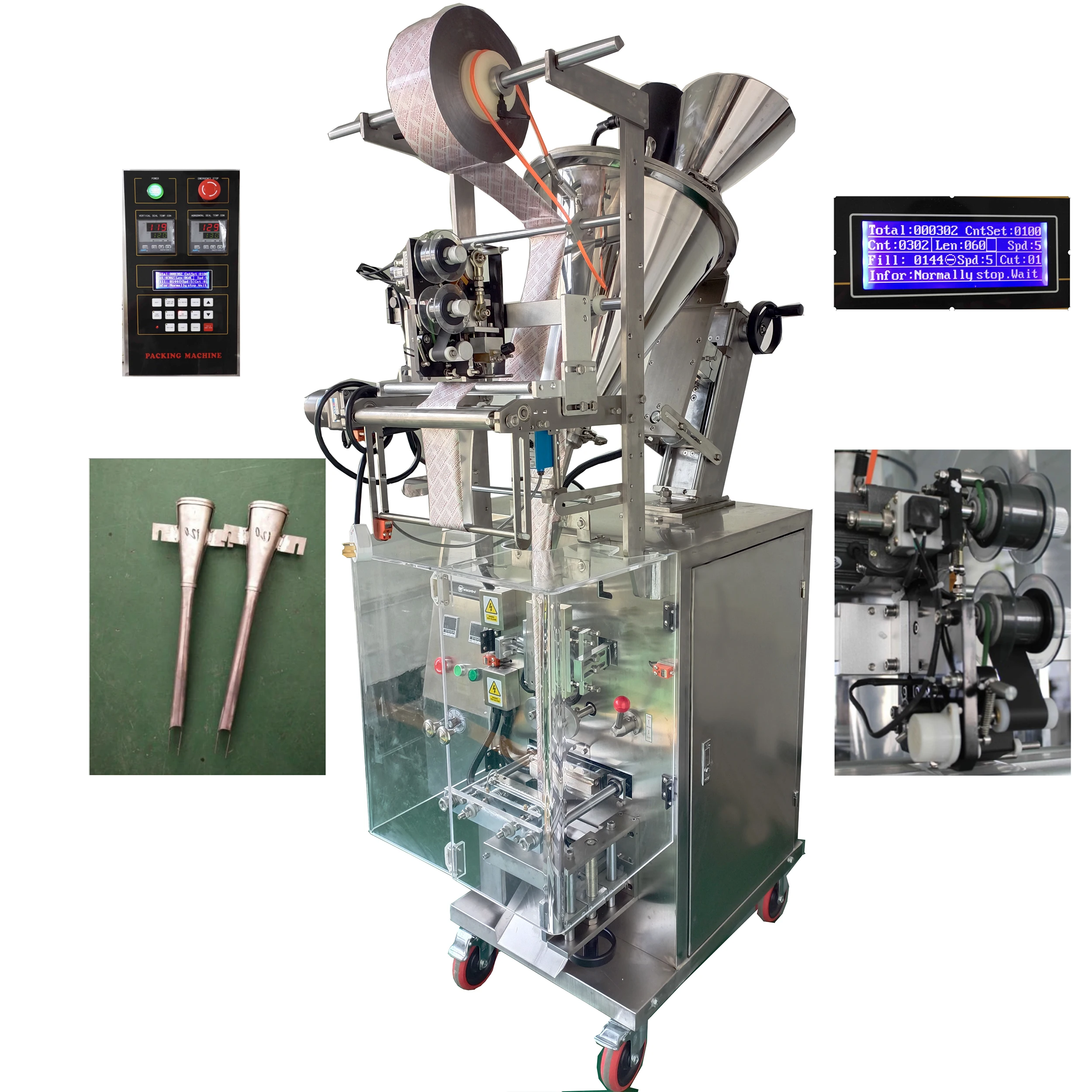

DHP-300 POWDER PACKING MACHINE
This series is installed with powder auger dosing system. It can pack powder products such as milk powder, protein powder, medicine and chemicals powder, etc.
Features
1.Bag-making, measuring, filling, sealing, cutting and counting are all finished automatically.
2.Either under set length control or photo-electronic color tracing, we set bag length and cut in one step. Time and film saving.
3.The temperature is under independent PID control, more suitable for different packing materials.
4.The driving system is simple and reliable, and maintenance is easy.
5.Applicable material should be composite films like: PET/PE, Paper/PE, PET/AL/PE, OPP/PE.
This series is installed with powder auger dosing system. It can pack powder products such as milk powder, protein powder, medicine and chemicals powder, etc.
Features
1.Bag-making, measuring, filling, sealing, cutting and counting are all finished automatically.
2.Either under set length control or photo-electronic color tracing, we set bag length and cut in one step. Time and film saving.
3.The temperature is under independent PID control, more suitable for different packing materials.
4.The driving system is simple and reliable, and maintenance is easy.
5.Applicable material should be composite films like: PET/PE, Paper/PE, PET/AL/PE, OPP/PE.
Item | Automatic Powder Bag Filling machine |
Model | DHP-300 |
Control | By PCB Panel |
Sealing type | Center sealing pillow bag |
Measurement | Auger type （0-2g, 3-10g, 11-25g, 25-50g, 50-100g, machine only matches one set） |
Sealer | Horizontal sealing: line typeVertical sealer: mesh type |
Cutting type | Zigzag cutter |
Packing speed | 30 - 40bag/min （Depend on Products） |
Bag size | W: 10-140mm(through changing bag former);L: 30-170mm (adjustable) |
Total power | 1600W |
Voltage | 220V or 380V |
Weight | 250Kg |
Machine size | L×W×H： (1010x730x1780)mm |
Material | SS 304 |
Includes | Inverter, photo sensor, one bag former and one auger set, and one vibrator, one date coding ribbon printer |
OptionalPart | PLC touch screen (China Xinje brand) |
QVC-1 Vacuum feederCapacity:350L/HAir comsuption:180L/minMachine size:φ140*560mm | |
SLJ-1 Screw feederMaterial: SS304Feeding speed:1-1.5m3/hHopper volume: 120L | |
200L Storage tank (SS304 material) |
