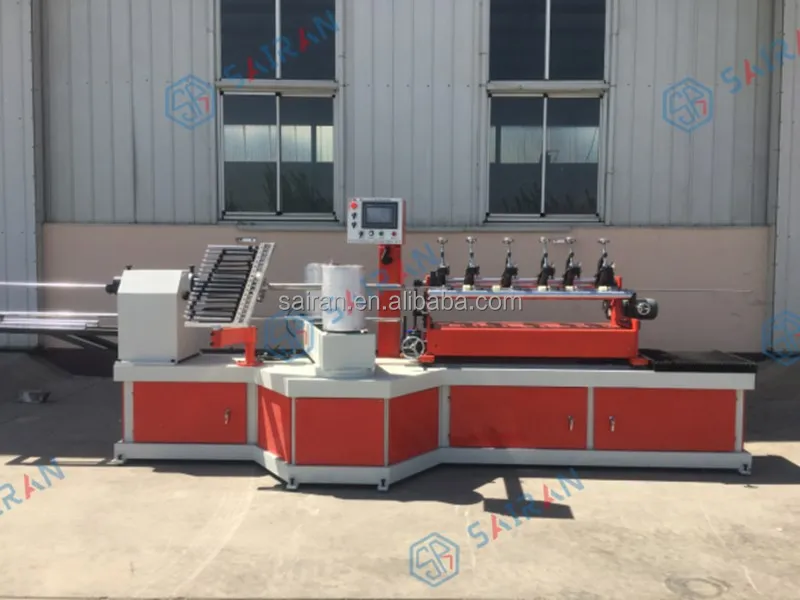

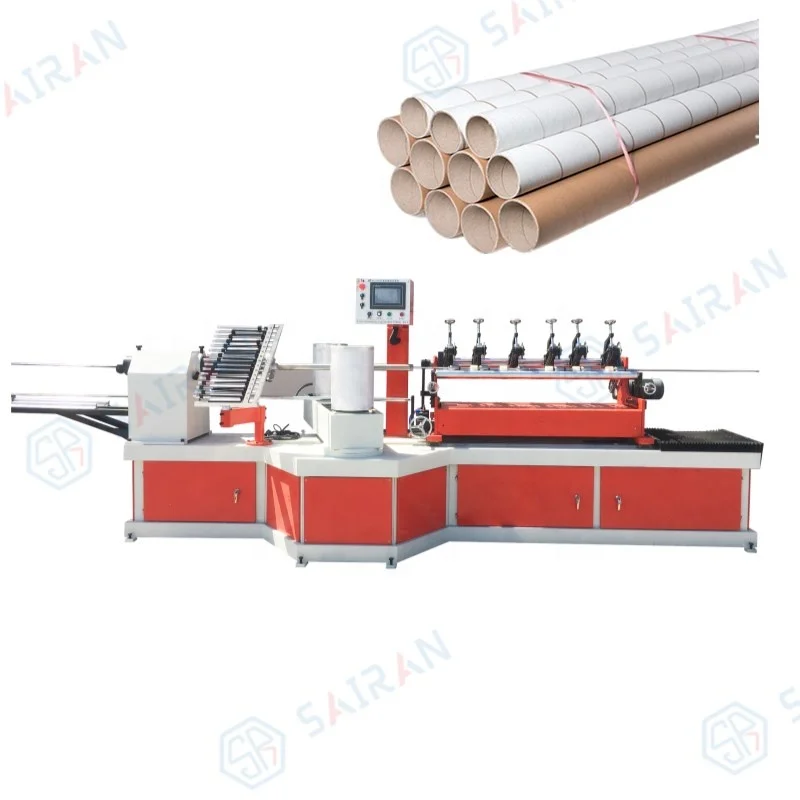

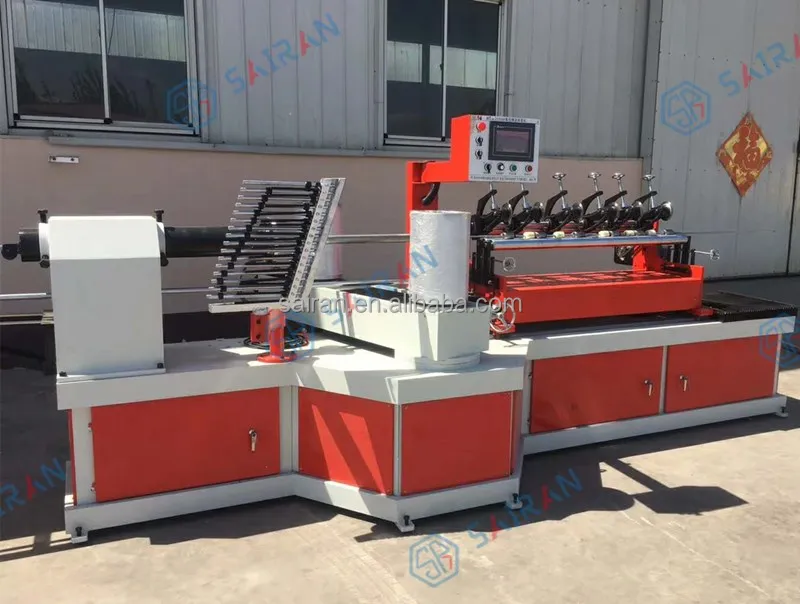

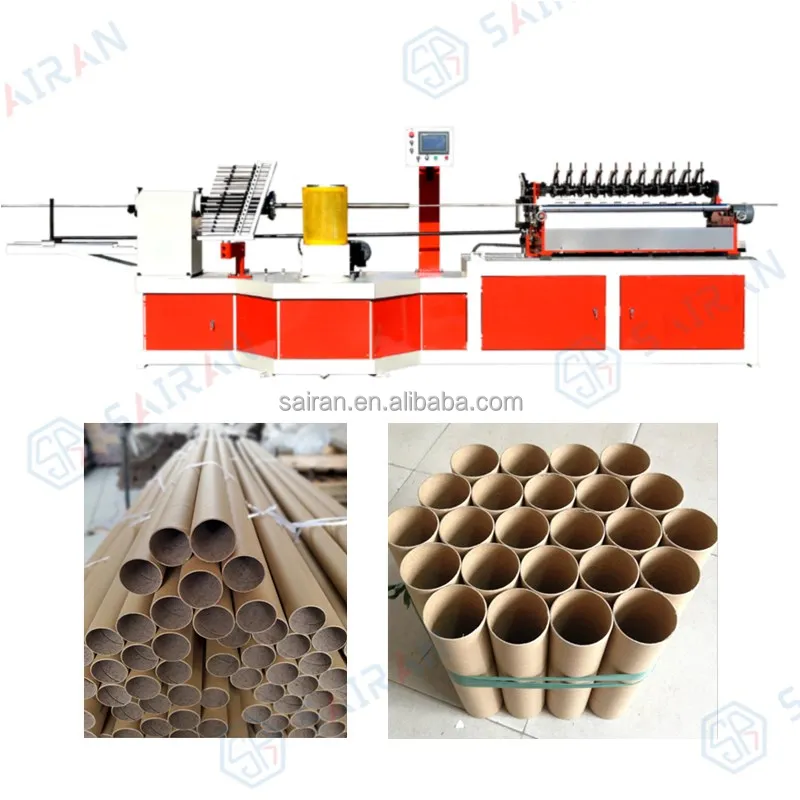

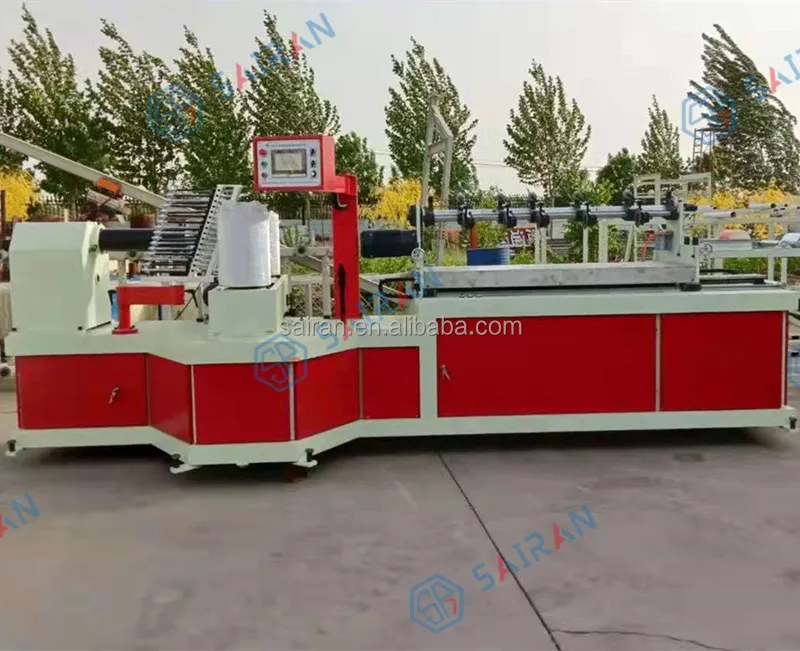

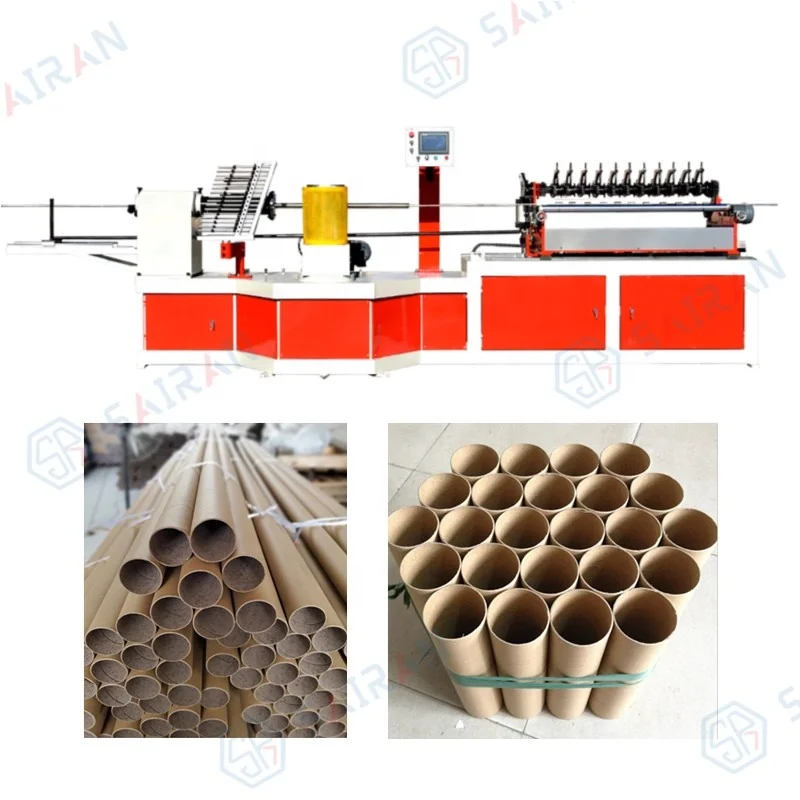

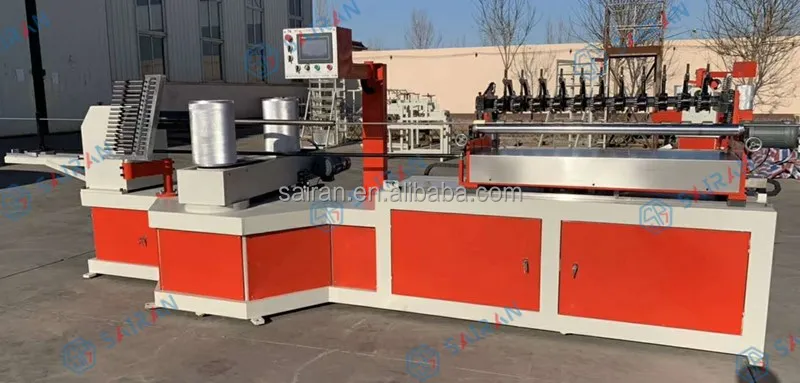

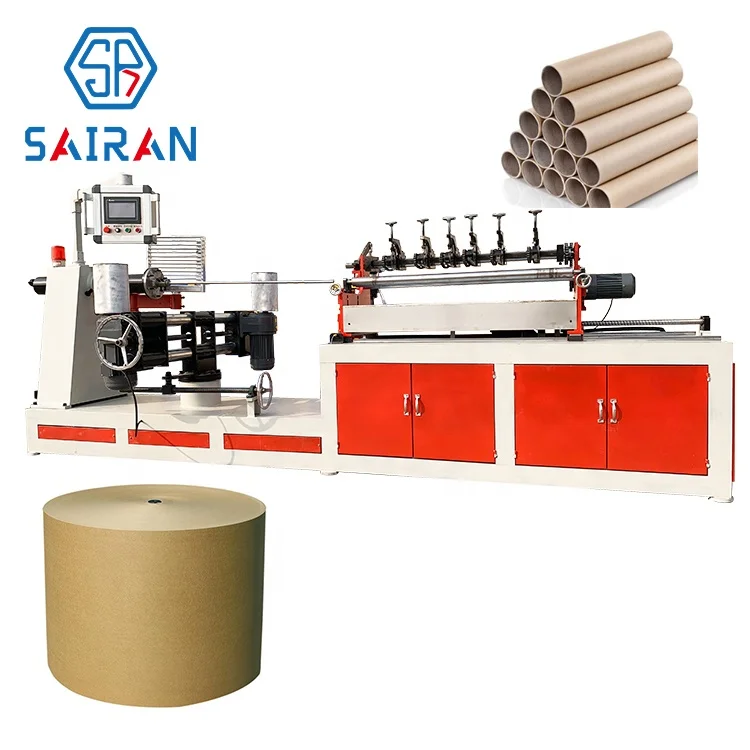

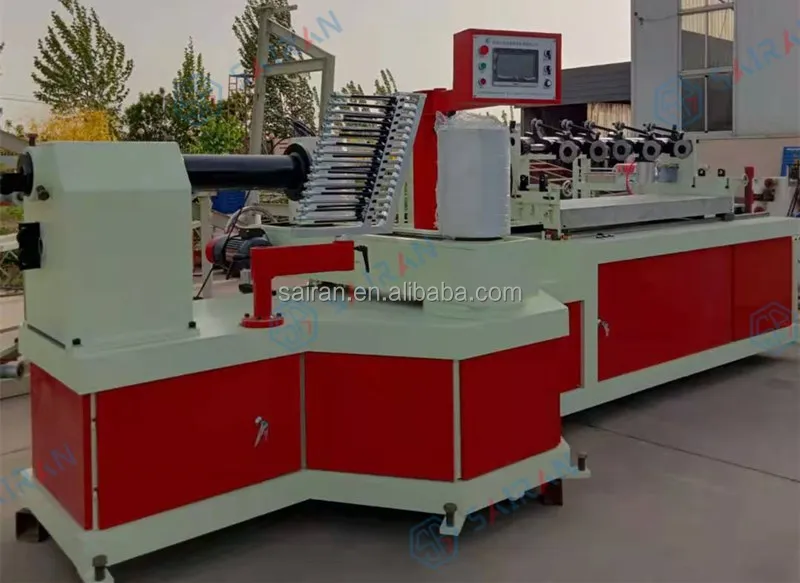

Durable perfect service multiple knives toilet paper roll core making machine
- Category: >>>
- Supplier: Zhengzhou Sairan Machinery Equipment Co. Ltd.
Share on (1600323920069):
Product Overview
Description
Product Description
Application:

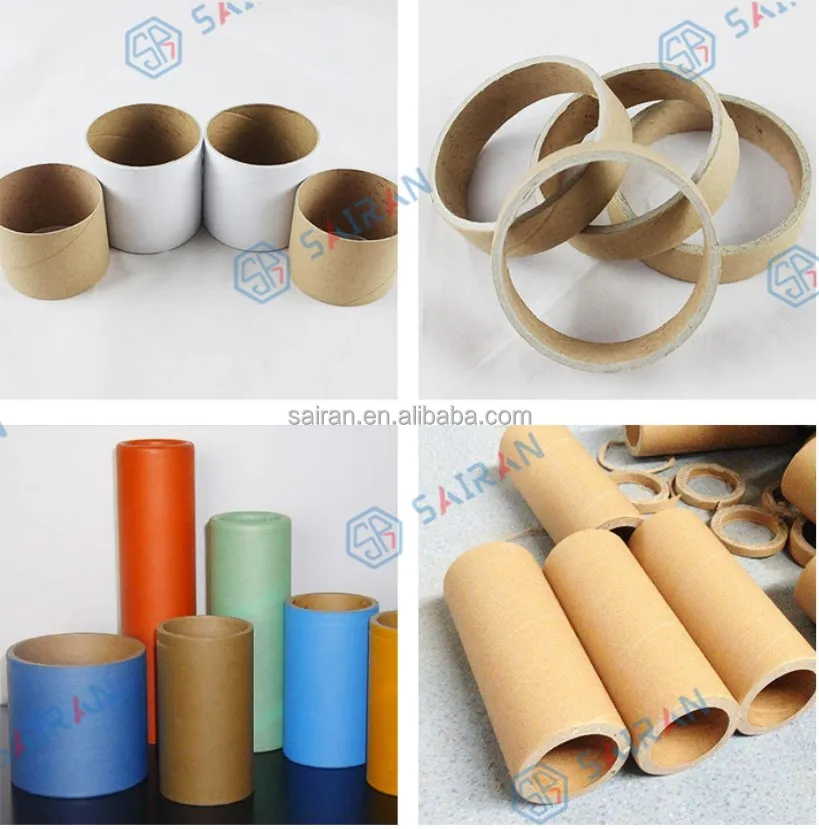

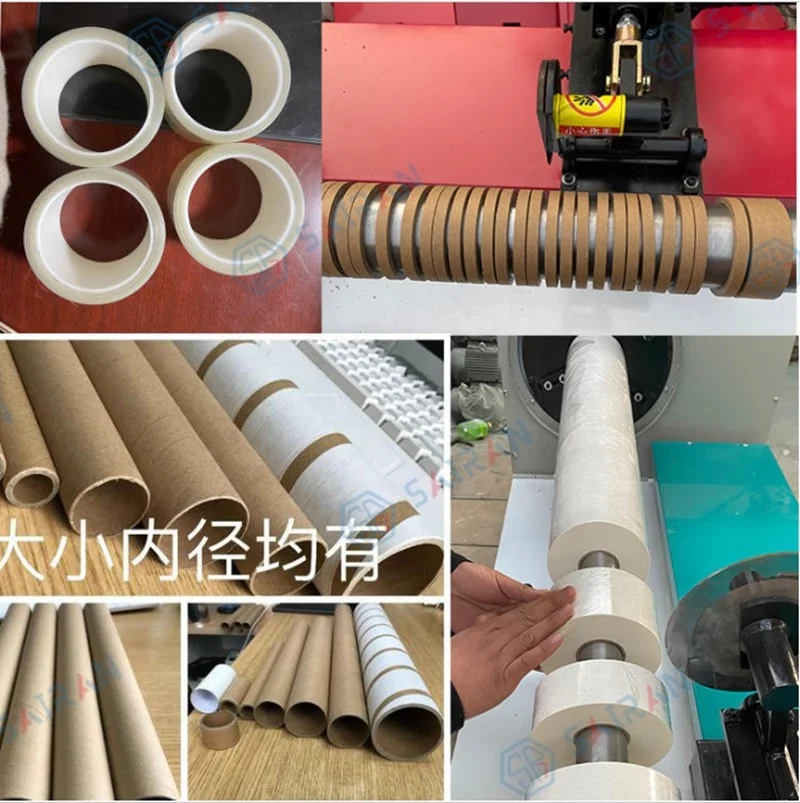

Paper tubes are for chemical fiber, various packaging composite tanks, various small industrial paper core tubes.
The production of spiral paper tubes from gluing, winding, to multi knife cutting as required is completed at one time.
The production of spiral paper tubes from gluing, winding, to multi knife cutting as required is completed at one time.
Features:
1. The main body is made of thick and heavy steel plate after CNC cutting and welding, the frame is stable and not easy to deform, and the vibration is small.
2. The main drive adopts hard-tooth surface full oil bath chain drive, low noise, low heat, high speed and large torque.
3. The main motor adopts vector type high torque frequency converter for speed regulation.
4. CNC synchronous follow-up shearing system, the cutting table is driven by precision ball screws and high-performance servo motors.
5. Equipped with pulse fixed-length control and feed-forward compensation function to ensure consistent cutting length under different host operating speeds.
6.The imported PLC numerical control system is adopted to accurately improve the overall efficiency.
7. Equipped with a new type of operation panel and large-size color touch screen man-machine interface operation. .
8. The integrated linkage device of the integral paper feeder, glue feeder, and paper guide device increases the efficiency by 60%.
9. Modular electrical layout design makes use, maintenance and repair more convenient and scientific.
2. The main drive adopts hard-tooth surface full oil bath chain drive, low noise, low heat, high speed and large torque.
3. The main motor adopts vector type high torque frequency converter for speed regulation.
4. CNC synchronous follow-up shearing system, the cutting table is driven by precision ball screws and high-performance servo motors.
5. Equipped with pulse fixed-length control and feed-forward compensation function to ensure consistent cutting length under different host operating speeds.
6.The imported PLC numerical control system is adopted to accurately improve the overall efficiency.
7. Equipped with a new type of operation panel and large-size color touch screen man-machine interface operation. .
8. The integrated linkage device of the integral paper feeder, glue feeder, and paper guide device increases the efficiency by 60%.
9. Modular electrical layout design makes use, maintenance and repair more convenient and scientific.
Technical Specification
Model | SR-2150SF |
Winding ply quantity | 3-16ply |
Max. diameter | 120mm |
Min. diameter | 20mm |
Max. thickness | 8mm |
Min.thickness | 1mm |
Operator | 1-2persons |
Winding speed | 3-30m/min |
Wheel speed | 47r/min |
Host power | 7.5kw |
Voltage | 380V50hz 3 phase |
Dimension | 4500*1800*1750mm |
Weight | 3200kg |
Accessories
Paper Reel Stand
Bottom Paper Reel Stand
Glue Unit
Paper Core Stand
Related Products
Packing & shipping

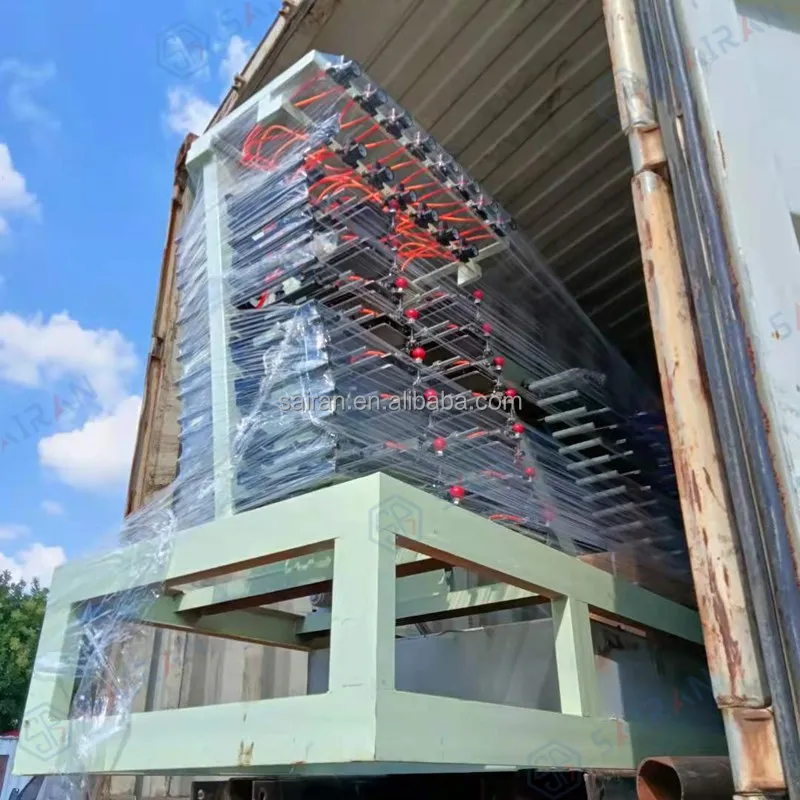

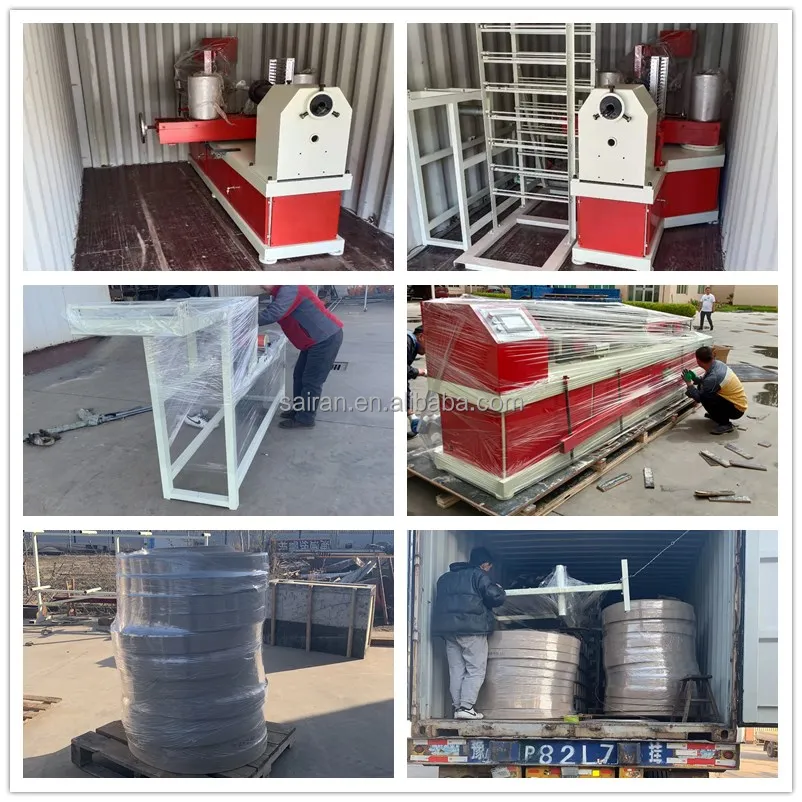

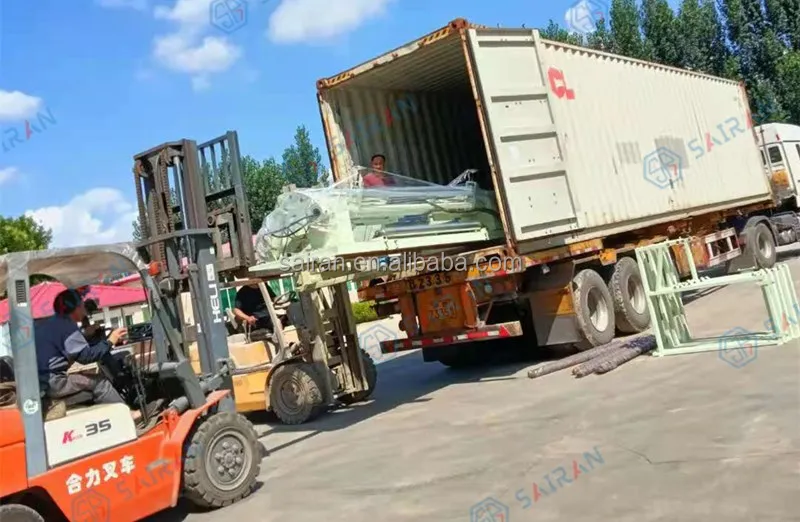

We will use the film wrapping before loading the container for anti-corrosion and anti-collision treatment. If you need to use wooden box packaging, we will strictly follow the relevant export wooden box packaging regulations, and will do anti-collision fixation of machinery and equipment before wooden box packaging. The box board packaging has tight seams, and the box board combination is flat and without misalignment.
Company Introduction
Zhengzhou Sairan Machinery Equipment Co., Ltd., located in Central China，is a professional machinery manufacturer and supplier of paper product machinery, food machinery and packaging machinery.We are a young company with young team,more innovative concepts and creative ideas, and we have built good and stable cooperation with clients from American,Europe, Africa, Southeast Asia, etc. Customer satisfaction is our target. Relying on advanced technologies,perfect services and inexpensive products of high quality, we have the ability to provide satisfying machinery and services.Also we have won the recognition of international markets and clients.Welcome new and old customers to contact us for business negotiation.
Certifications
FAQ
1- What is the machine voltage ?
380v50hz, can be customized, like 220v60hz.
2 - Is the cutting length adjustable ?
Yes, can be adjustable as demand.
3 - What’s the order process ?
Inquiry- provide us all clear requirements
Quotation- official quotation form with all clear specifications from our professional team
Payment terms--T/T 30% deposit before production, 70% balance against our product photos before shipment.
Production--Prepare for production
Shipping-- by sea or by road
4 - What terms of payment do you use ?
As for the payment terms, it depends on the total amount.
1. Payment method: T/T or Western Union
2. Total amount is less than 2000$, 100% pre-paid by T/T or western union, the buyer could avoid second time bank service charge.
3. Total amount is over 2000$, T/T 30% deposit before production, 70% balance against the seller’s photos before shipment.
5 - What is the package for shipment ?
Usually standard export plywood package or 20GP/40GP container.
380v50hz, can be customized, like 220v60hz.
2 - Is the cutting length adjustable ?
Yes, can be adjustable as demand.
3 - What’s the order process ?
Inquiry- provide us all clear requirements
Quotation- official quotation form with all clear specifications from our professional team
Payment terms--T/T 30% deposit before production, 70% balance against our product photos before shipment.
Production--Prepare for production
Shipping-- by sea or by road
4 - What terms of payment do you use ?
As for the payment terms, it depends on the total amount.
1. Payment method: T/T or Western Union
2. Total amount is less than 2000$, 100% pre-paid by T/T or western union, the buyer could avoid second time bank service charge.
3. Total amount is over 2000$, T/T 30% deposit before production, 70% balance against the seller’s photos before shipment.
5 - What is the package for shipment ?
Usually standard export plywood package or 20GP/40GP container.
