Share on (1600323964008):


Price:46 000,00 $

Quantity:


Product Overview

Description



Specification


item
value
Applicable Industries
Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Other, cement industry, Metallurgical industry, Construction industry
After Warranty Service
Video technical support, Online support, Field maintenance and repair service
Marketing Type
New Product 2020
Warranty of core components
3 years
Core Components
Pump, bag
Condition
New
Place of Origin
Hubei,China
Brand Name
Whclear
Dimension(L*W*H)
1000*1000mm
Weight
2000kg
Warranty
3 years
After-sales Service Provided
Online support
Name
DMKY Dust Collector on top of silo
Model
DMKY50-DMKY200
Treatment air volume
5000m3/h--20000m3/h
Filtration wind speed
0.8m/min
Materials
Carbon Steel
Medium
Dusty Gas
Temperature
Normal Temperature
Supply Capacity
1000 sets per month

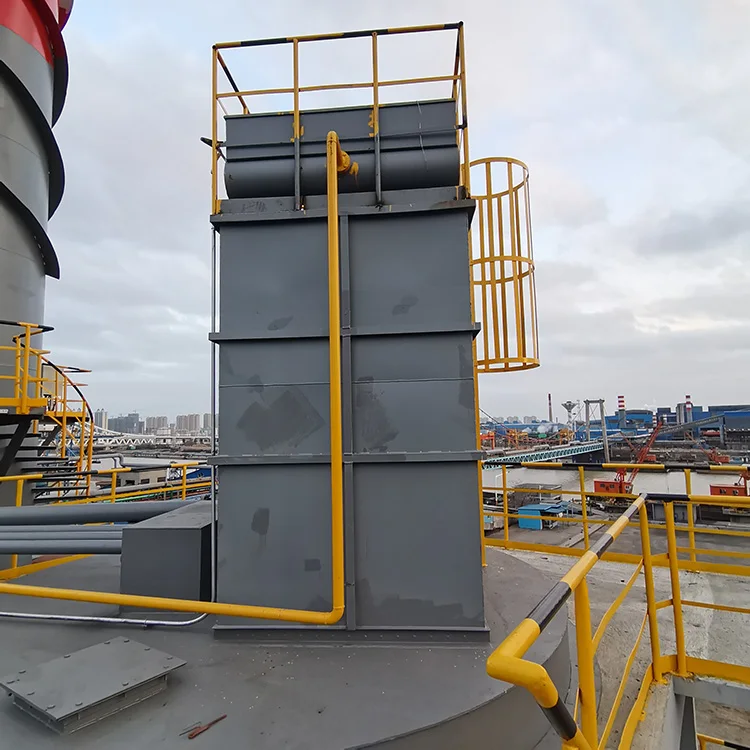

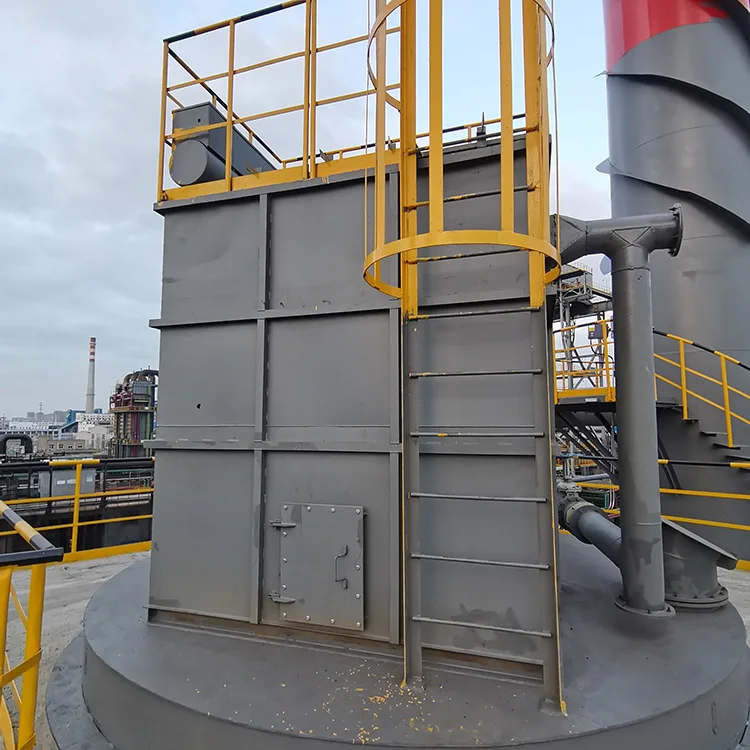

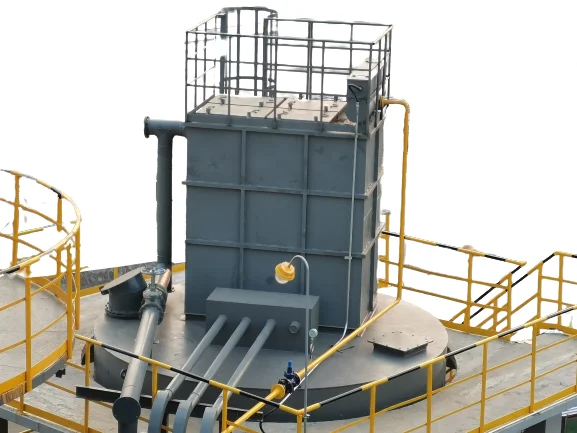

Details Images




Products Description

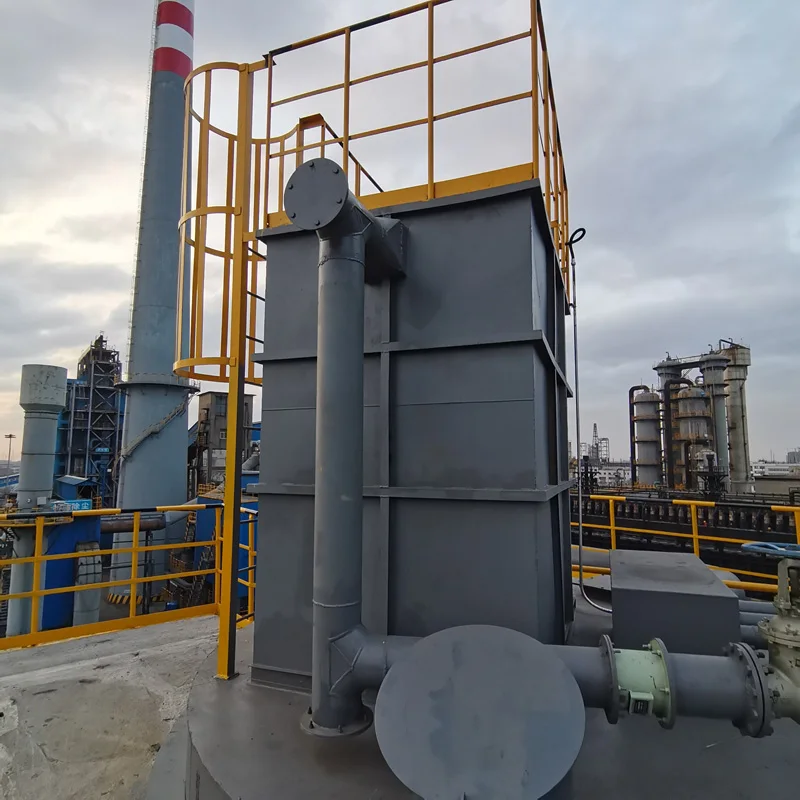

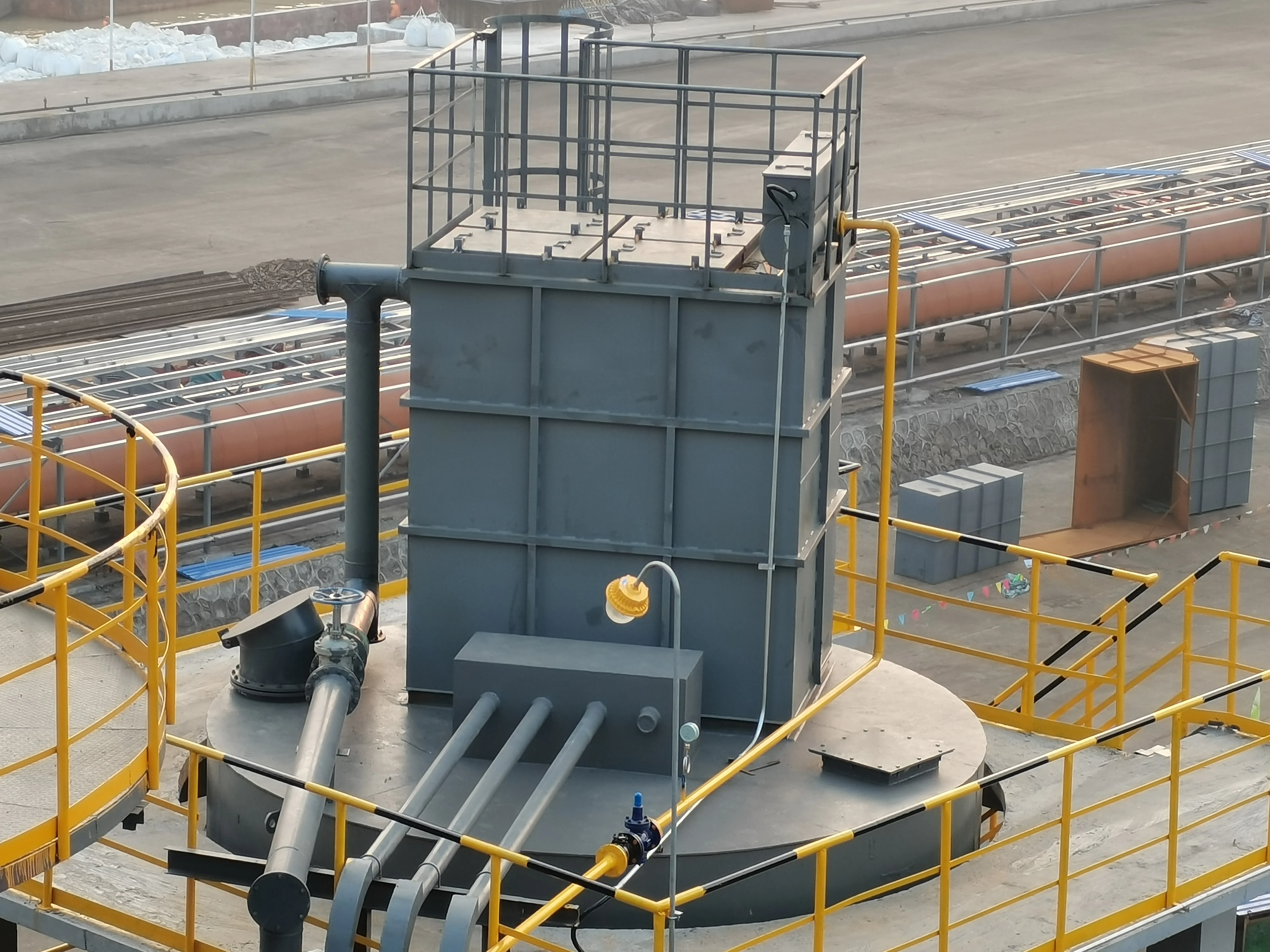

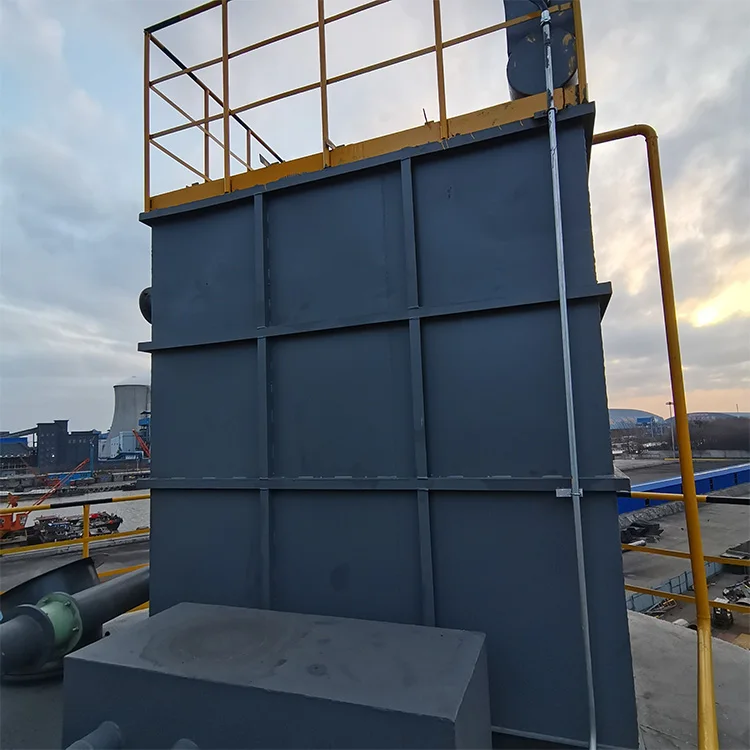

The emission dust collector is a kind of dust removal equipment used on the top of the silo. It is mainly used in mining, metallurgy, building materials, machinery, chemical industry, grain processing and other industrial and mining enterprises. It is widely used to filter fine, non-fibrous dry dust in gas or retrieving dry powder in process.




The dust containing gas enters into the dust collector box from the air inlet. Due to the various function of the bag, the fine dust particles are stuck on the outer wall of the bag. The purified gas is discharged through the air outlet of the box on the cloth bag. With the increase of the using time, the dust adsorbed on the surface of the bag increases, the air permeability of the bag decreases, and the resistance of the dust collector increases. In order to ensure that the resistance of the dust collector is controlled within the limited range, the pulse controller sends out a signal, opens the electromagnetic pulse valve in sequence, and thus the compressed air in the air bag is injected into the filter cylinder by the spray pipe orifice, which causes the rapid expansion of the cloth bags. Because of the impact effect of the reverse pulse air flow, the bag shrinks rapidly, and thus the dust accumulated on the outer wall of the bag is cleaned Remove the dust from the dust and enter the ash silo.


Company Profile




Wuhan clear Solenoid Pulse Valve Science &Technology Co., Ltd. is a high-tech enterprise for research & development and production of various solenoid pulse valve, integrating processing and sales of accessories of environment- protection dedusting equipments.The office and industry base are located at Miaoshan economic development zone, Jiangxia District, Wuhan City. With favorable geographical condition that Wuhan is the thoroughfare connecting nine provinces, there are convenient transportation and great market penetration capacity.
The Company has been taking the quality of products as the fundamentality for serving market since its establishment. The solenoid pulse valves researched, developed and produced by the Company with the advantages such as low removal energy consumption, low investment, long service life of diaphragm, stable & reliable operation, etc. have obtained the national patent and national key &new products, and many other awards with performance of products comparable to similar domestic & foreign products. They are now widely used in iron and steel, smelting of building materials, chemicals, power and other industries.
"One must have good tools in order to do a good job." With pulse valve production line workshops as well as professional engineering design and manufacturing & installation teams, the Company is able to provide customers with high-quality products and after-sales service. In recent years, based on the existing technology, the Company has constantly increased financial & human investment and introduced new technologies & equipments with research and development of various new products; meanwhile, it successfully cooperates with many domestic design institutes, iron & steel enterprises and large dedusting equipment manufacturers with unanimous praise from customers.

Customers' satisfaction is our constant pursuit! We are willing to establish long-term friendly cooperation relationship with customers! Adhering to the business philosophy of "quality first, honesty first", we will make every endeavor to provide high-quality products and services to our customers!


Packing & Delivery






FAQ


Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
