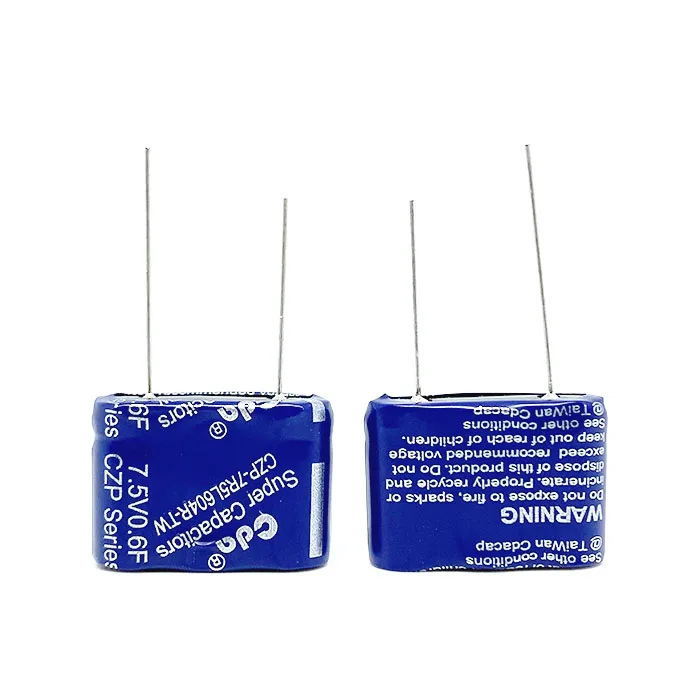

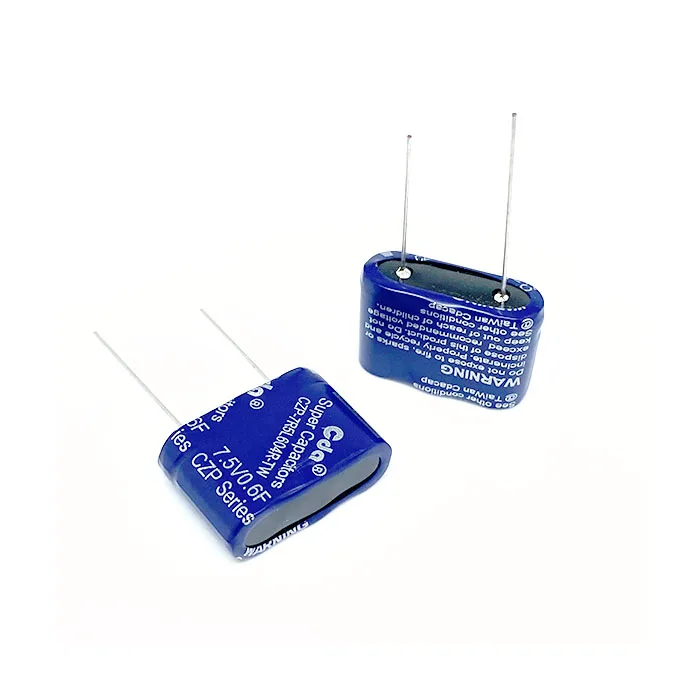

item | value |
Model Number | 7R5L604R-TW |
Type | Lithium Ion Capacitor |
Place of Origin | Taiwan, China |
Brand Name | CDA |
Supplier Type | Original manufacturer, Retailer |
Capacitance | 06F |
Media Available | datasheet |
Tolerance | -0% to+100% |
Package Type | Through Hole |
Rated Voltage | 7.5V |
Operating Temperature | -40°C to +65°C |
Specification | 7.5V 0.6F |
ESR (Equivalent Series Resistance) | 225mΩ |
Applications | Back up power,Stand alone or augment existing |
Circuit Type | Bussed |
Current - Leakage | 0.009mA |
Voltage - Breakdown | Not Applicable |
Application | Automotive |
Product name | Lithium Ion Capacitor |
Size | 24*8*18mm |
Max Current | 1.77A |
