Высококачественное круглое термоприспособление серии CH50 для универсальной дневной оптики

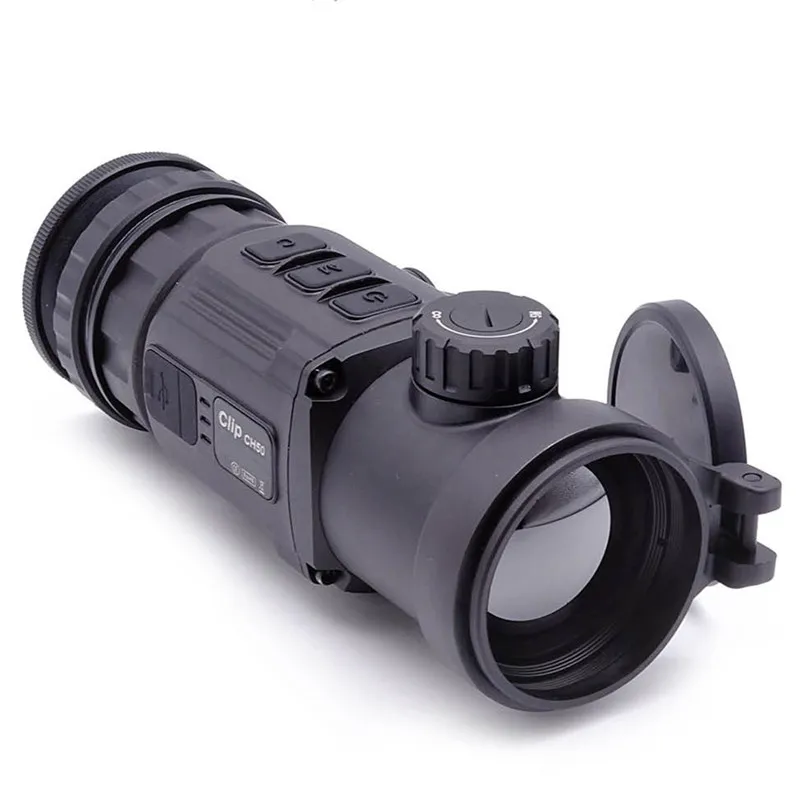

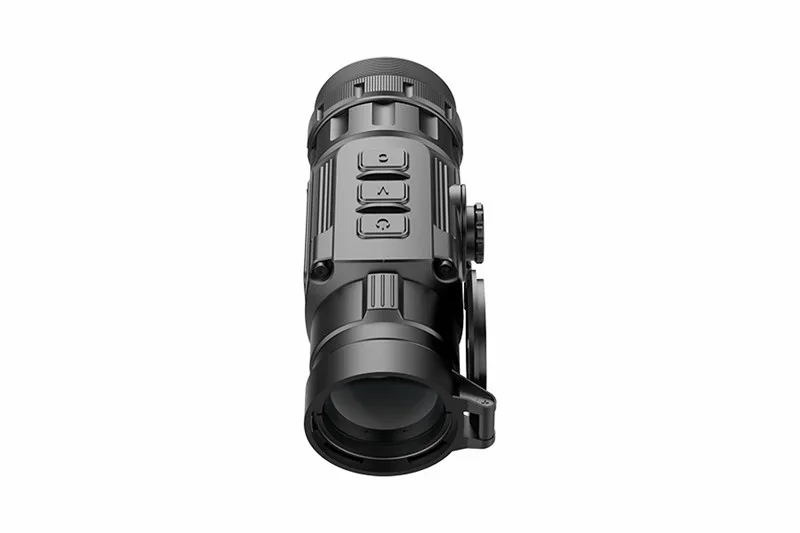

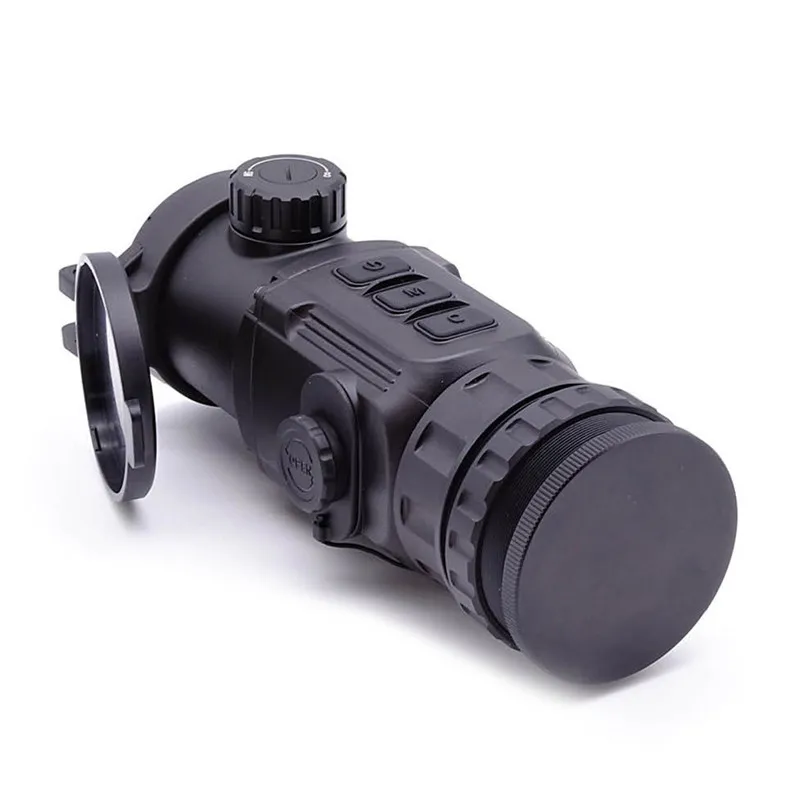

InfiRay CH50

The new CH50 thermal imaging attachment has an extremely highresolution detector with 640 x

512 pixels. The new sensor technology with a 12 µm pixel interval creates a brilliant image. With

an observation distance of up to 2,597 m, the thermal imaging camerais ideally designed. A high-resolution OLED display with 1,024 x 768 pixels is built into the device. The objective diameter is

50 mm. Infiray offers a unique experience during use by knowing the sensor, display and image of the thermal imaging cameras.

The CH50 has the following technical characteristics:

Sensor: VOx
Resolution: 640x512 px
Hz: 50 Hz
Pixel size: 12 µm
NETD: <50 mK
Focal length: 50 mm
Protection class: IP66
Size: 68 x 60 x 166 mm
Weight: 420 g

Operating time: 3,5 Stunden
Operating temperature: -20° C / + 50 ° C
Power supply: 2x CR123A 3 V oder 2x Akku ICR16340 3,7 V
Standby Mode: ja
Magnification: 1 fach
Screen: OLED, 1024 x 768 px
Color settings: white hot, black hot, red hot, color, hot target highlight

Scope of delivery:

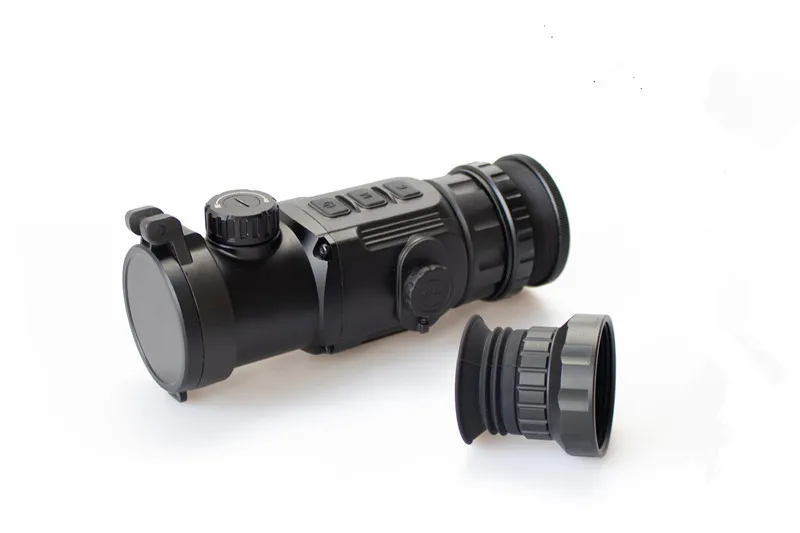

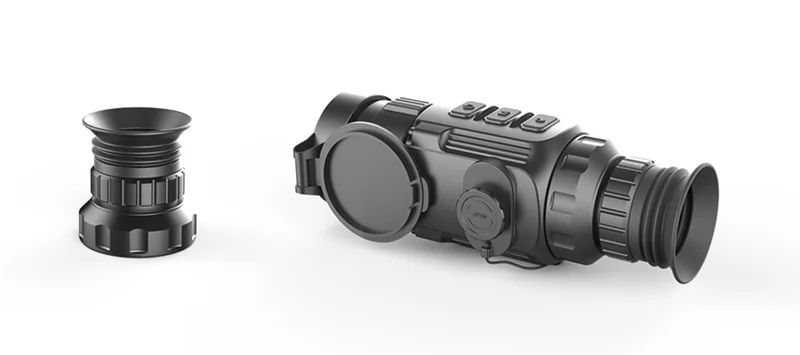

CH50 thermal imaging optics, screen magnification attachment, video and USB cable, bag, 2-way charger, 2x nitecore batteries, remote control (without battery)
