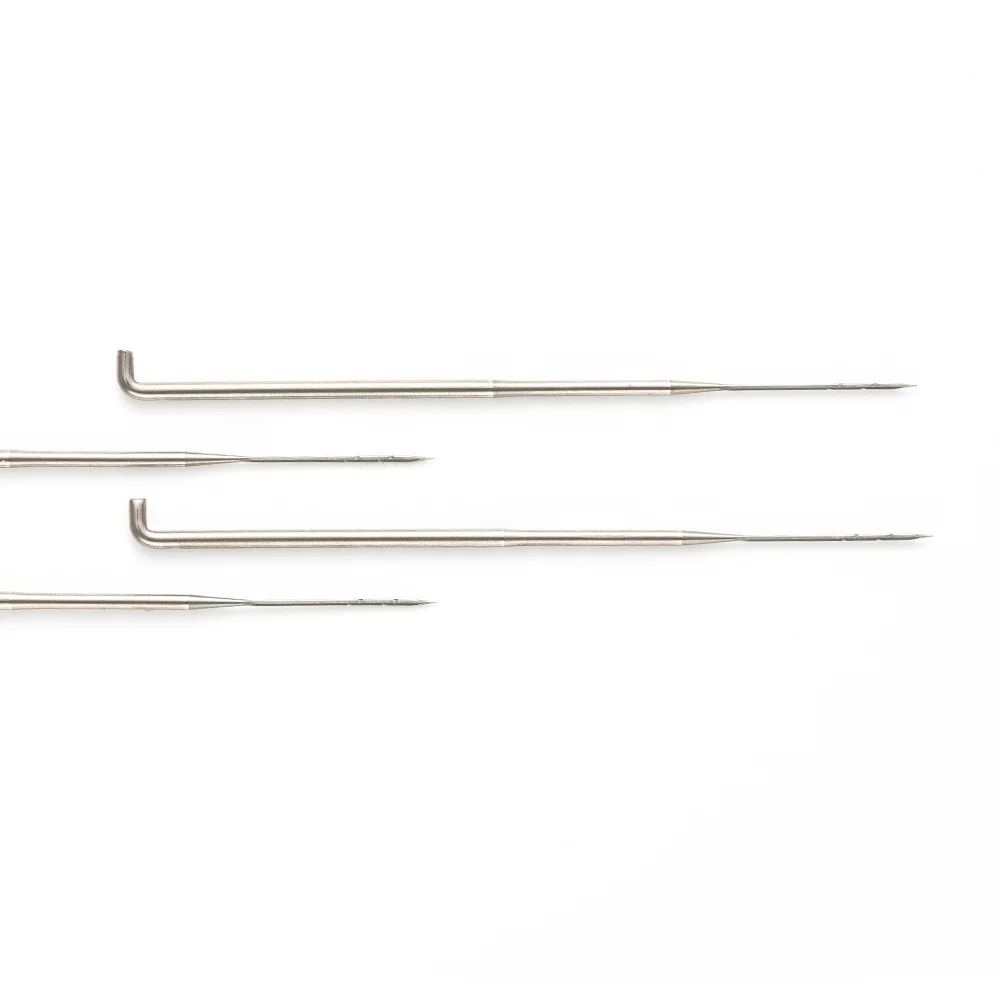

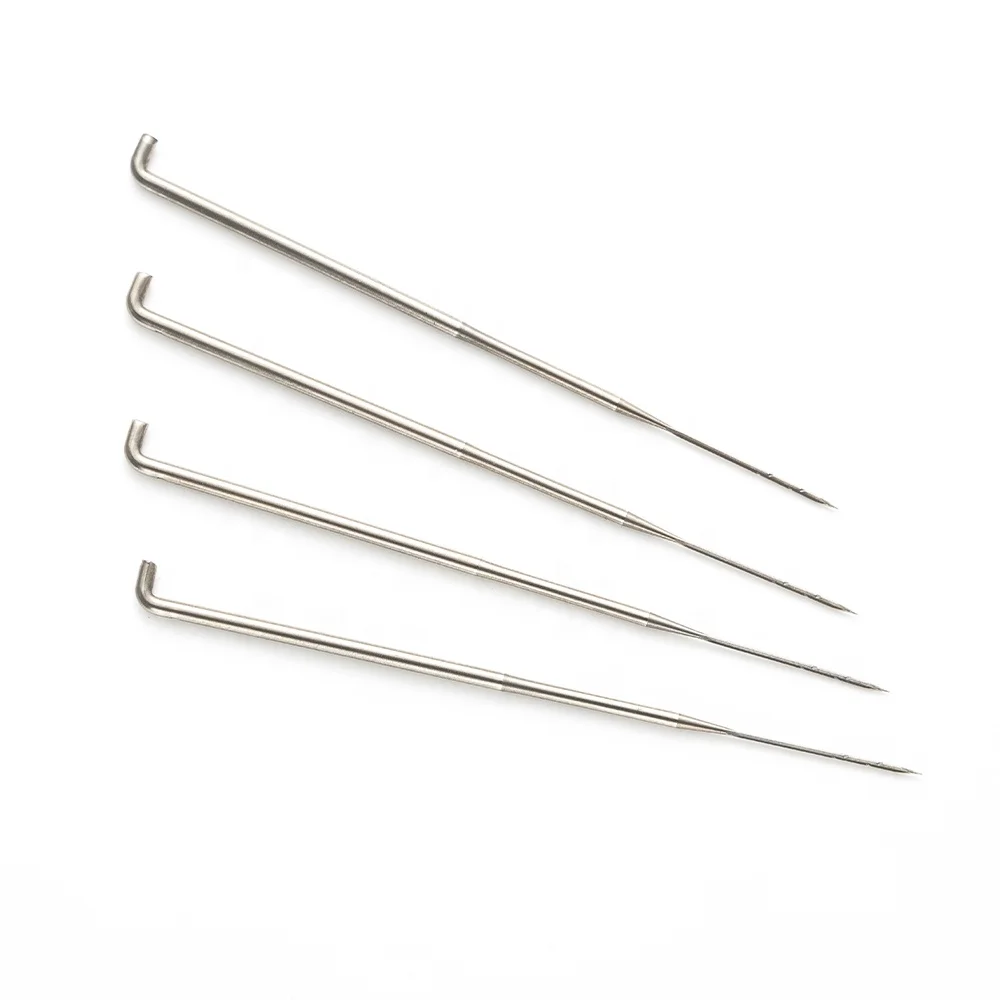

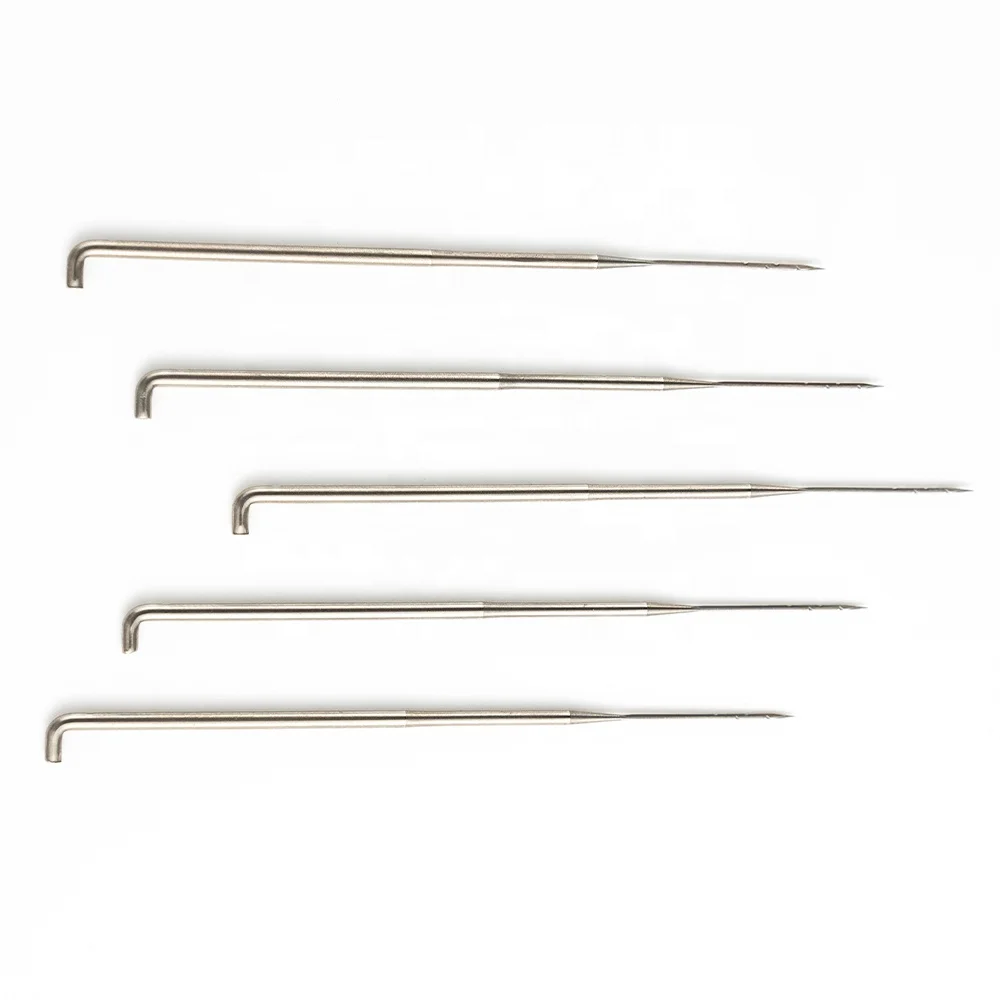

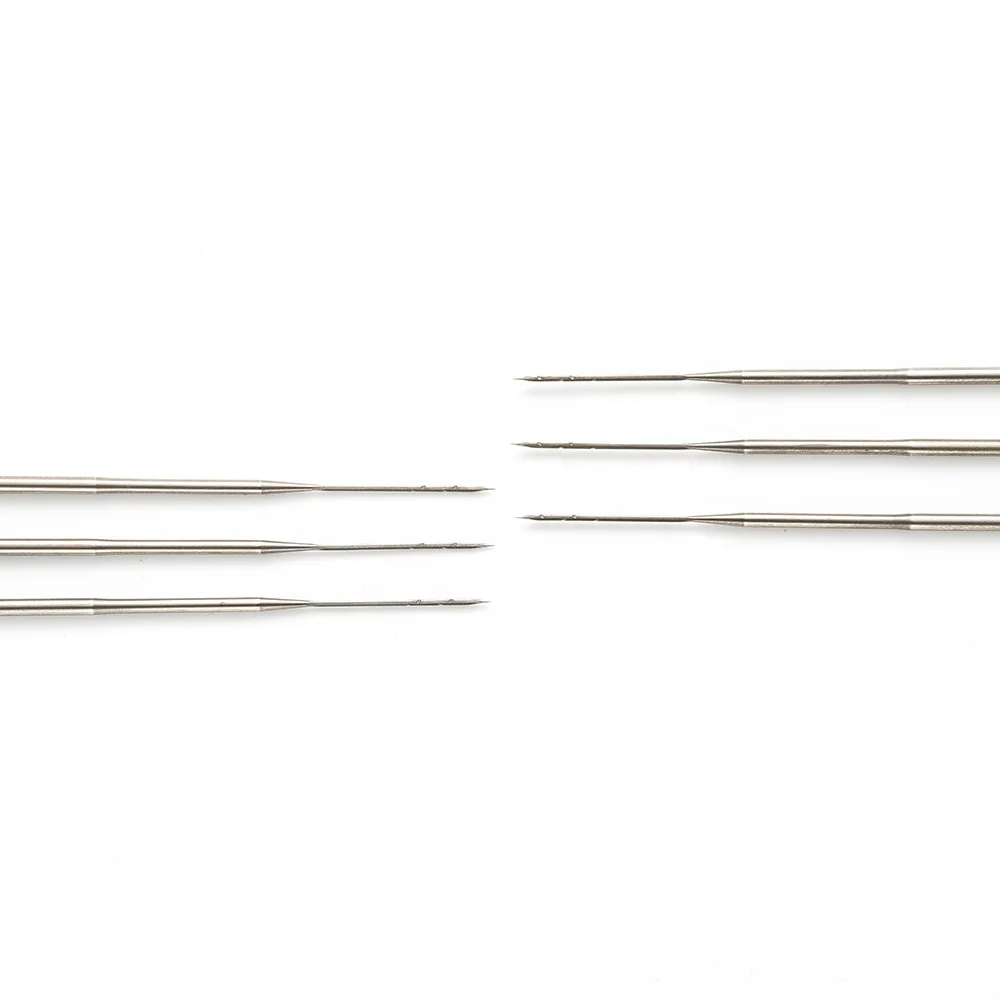

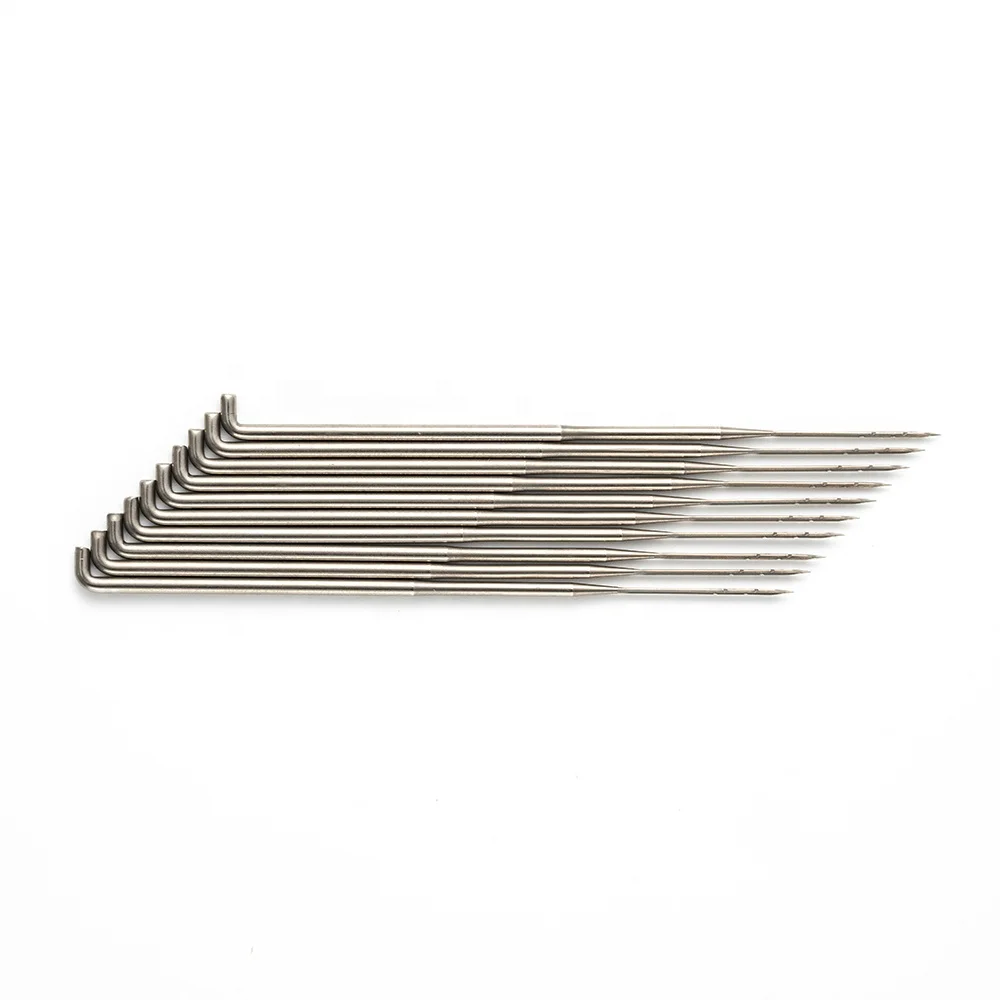

Tri Star Needles 15*16*36*3C24 GB222/C Y33201 needle felting needles
- Category: >>>
- Supplier: Taizhou Chengxiang Trading Co. Ltd.
Share on (1600324110604):
Product Overview
Description
Product Description

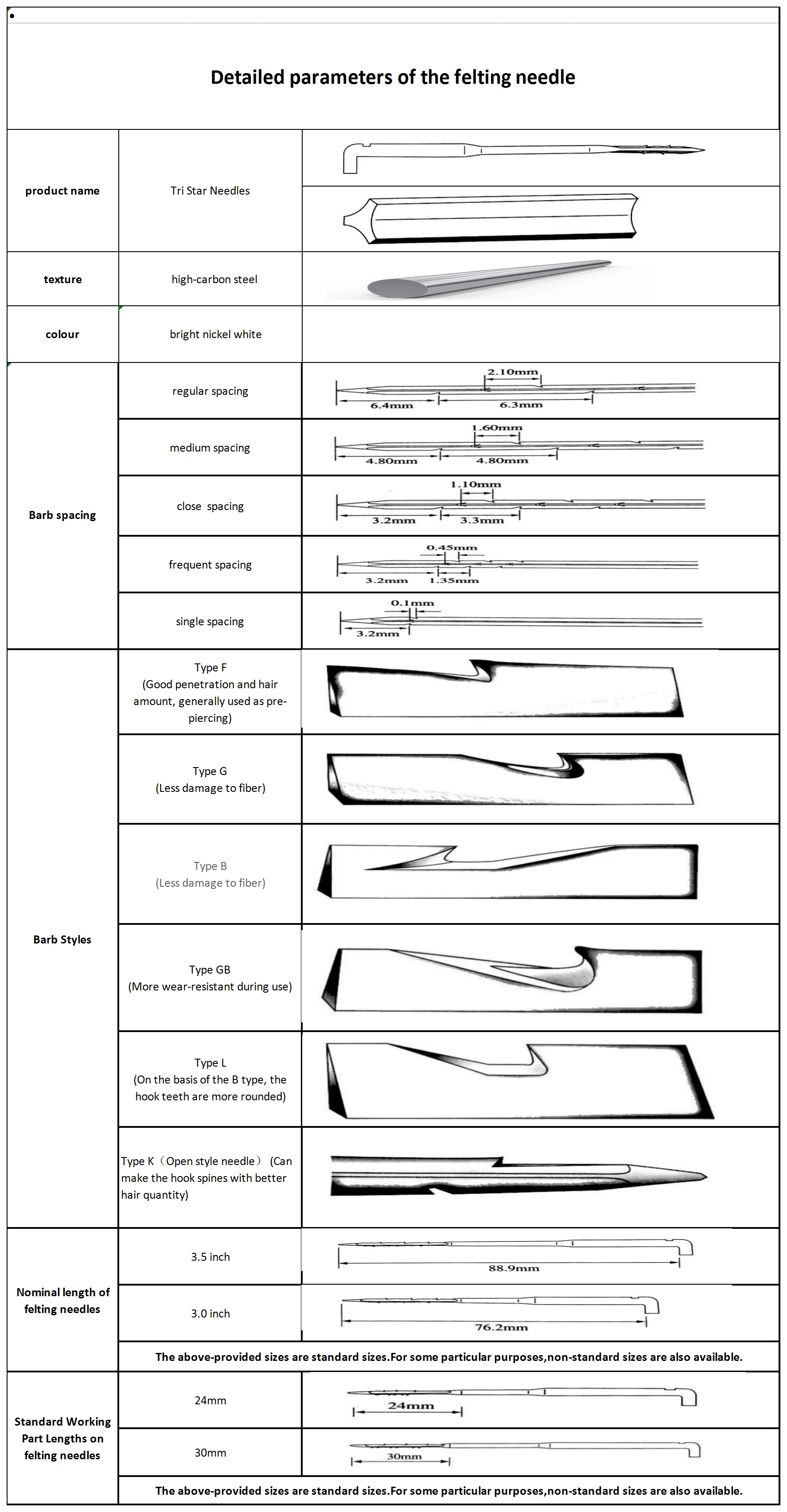

Product Paramenters
Gauge | Shank (mm) | Intermediate Section (mm) | Working part Triangular blade beight (mm) | |||
9 | 3.56 | |||||
10 | 3.25 | |||||
12 | 2.67 | |||||
13 | 2.35 | 2.50 | ||||
14 | 2.03 | 2.05 | ||||
15 | 1.83 | 1.75 | 1.95 | |||
16 | 1.63 | 1.55 | 1.65 | |||
17 | 1.37 | 1.35 | 1.45 | |||
18 | 1.21 | 1.20 | 1.30 | |||
19 | 1.15 | |||||
20 | 0.90 | 1.00 | ||||
22 | 0.95 | |||||
23 | 0.92 | |||||
25 | 0.80 | 0.90 | ||||
26 | 0.85 | |||||
28 | 0.80 | |||||
30 | 0.75 | |||||
32 | 0.65 | 0.70 | ||||
34 | 0.65 | |||||
36 | 0.60 | |||||
38 | 0.55 | |||||
40 | 0.50 | |||||
42 | 0.45 | |||||
43 | 0.40 | |||||
46 | 0.35 | |||||
The diameter of different parts of needle is indicated by gauge. The smaller gauge meams the larger diameter. When in the working part, the cross-section height is indicated by working part gauge. The cross-section height of conical working part is measured on the position of 5mm from needle point. The other cross-section shape is measured by their height. | ||||||
(available sizes – 38G)
Tri Star Needles is suitable for geotextiles with strict tear strength requirements (low weight in grams)
Application field

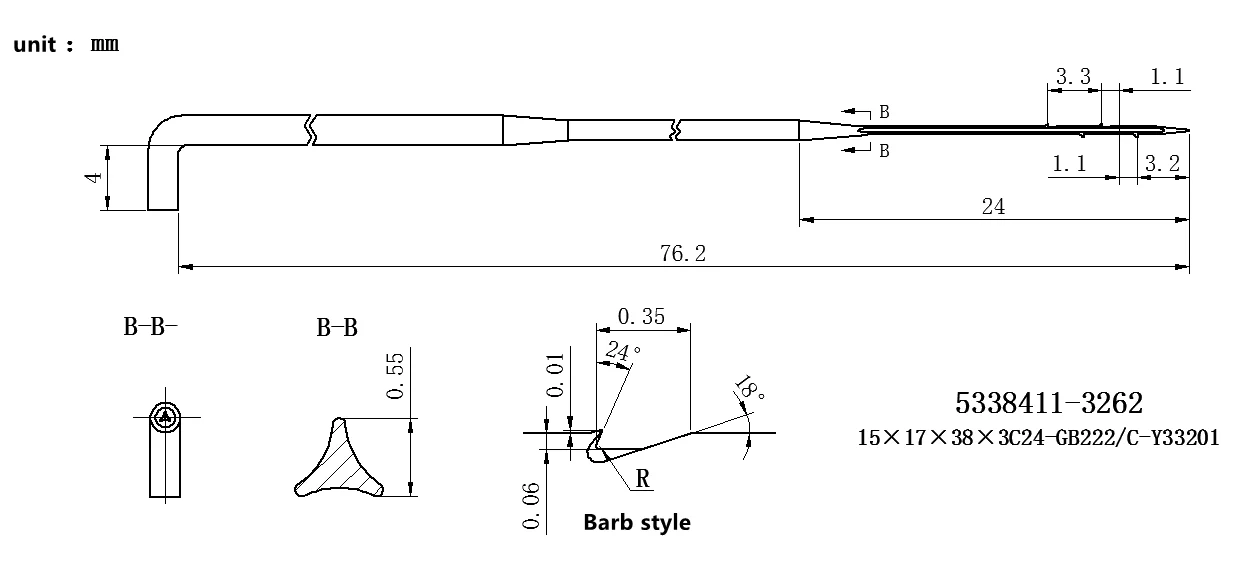

•The working area is equilateral triangle
•The working part is parallel from tip to tapered cone
•Hooks of the same size on all edges
•The most common number of barbs: two barbs per edge
•The shape of the working part is concave on the side so that the Angle of the edge is sharper
•The cross-sectional area of the working area is 8% smaller than that of standard needles
•The working part is parallel from tip to tapered cone
•Hooks of the same size on all edges
•The most common number of barbs: two barbs per edge
•The shape of the working part is concave on the side so that the Angle of the edge is sharper
•The cross-sectional area of the working area is 8% smaller than that of standard needles
• Better tangling effect of fibers in the area of the hook, and higher needling efficiency
• Reasonably increase productivity
• Reasonably increase productivity
factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are the appointed foreign trade agent for the factory.
A: We are the appointed foreign trade agent for the factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if in stock. 15-20 days customized making and shipment, depends on the product quantity, delivery destination and custom clearance time.
A: Generally it is 5-10 days if in stock. 15-20 days customized making and shipment, depends on the product quantity, delivery destination and custom clearance time.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How long do felting needles last?
A:if you are careful and learn how to use the needles correctly, a felting needle can lastfor months or even years with regular use and you can avoid painful puncture wounds.
A:if you are careful and learn how to use the needles correctly, a felting needle can lastfor months or even years with regular use and you can avoid painful puncture wounds.
Q:How can you tell felting needles apart?
A:Felting needles come in different gauges. The gauge number refers to the diameter of the needle. The higher the number, the finer the needle so a 40 gauge needle is finer than a 36 gauge. Different needles come with varying numbers of barb.
A:Felting needles come in different gauges. The gauge number refers to the diameter of the needle. The higher the number, the finer the needle so a 40 gauge needle is finer than a 36 gauge. Different needles come with varying numbers of barb.
Q:Is needle felting expensive?
A:Needle felting can be as cheap as expensive as you want it to be depending on how much you do and how big your projects are and how complex they are. Also, the wool you buy places a large part in the overall cost.
A:Needle felting can be as cheap as expensive as you want it to be depending on how much you do and how big your projects are and how complex they are. Also, the wool you buy places a large part in the overall cost.
Q:How long is the shelf life of the needle？
A:Unsplit can be stored for up to three years, if split, depending on the condition of preservation.
A:Unsplit can be stored for up to three years, if split, depending on the condition of preservation.
Q:How do I keep the needle？
A：Packed products should be kept in a dry place.Please oil the product if it has been disassembled, and keep away air and moisture.
A：Packed products should be kept in a dry place.Please oil the product if it has been disassembled, and keep away air and moisture.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 35% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 35% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
