Vertical Machining center DEED V850L CNC Milling Machine VMC
Vertical Machining center DEED V850L CNC Milling Machine VMC
Vertical Machining center DEED V850L CNC Milling Machine VMC
Vertical Machining center DEED V850L CNC Milling Machine VMC
Vertical Machining center DEED V850L CNC Milling Machine VMC
Vertical Machining center DEED V850L CNC Milling Machine VMC
Vertical Machining center DEED V850L CNC Milling Machine VMC

Vertical Machining center DEED V850L CNC Milling Machine VMC

Share on (1600324145653):


Price:

Quantity:


Product Overview

Description

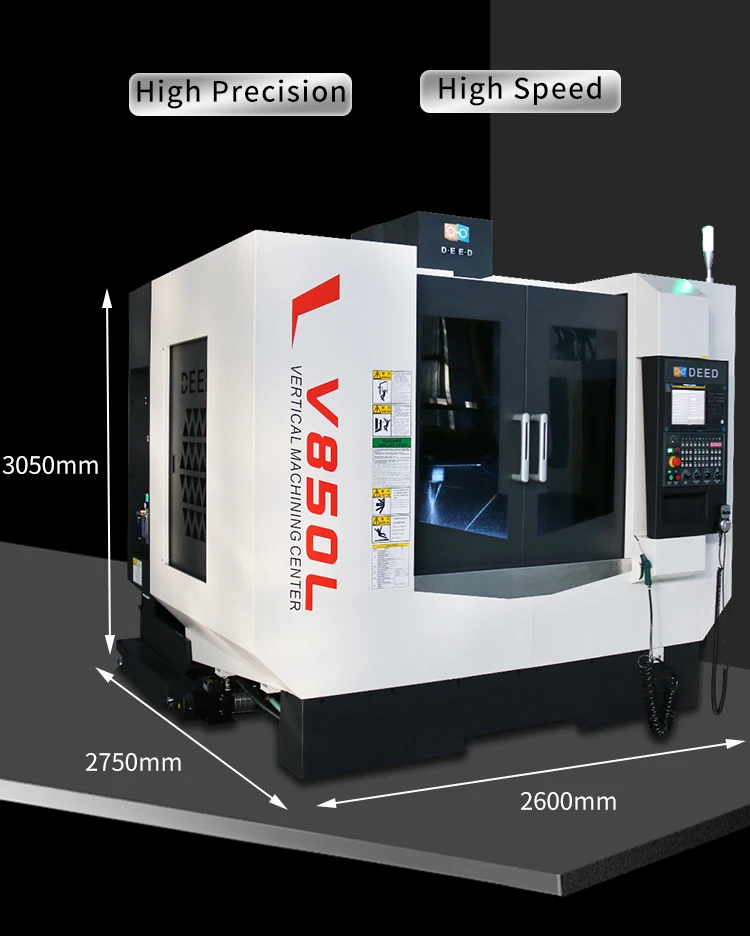

1_01 Product.jpg

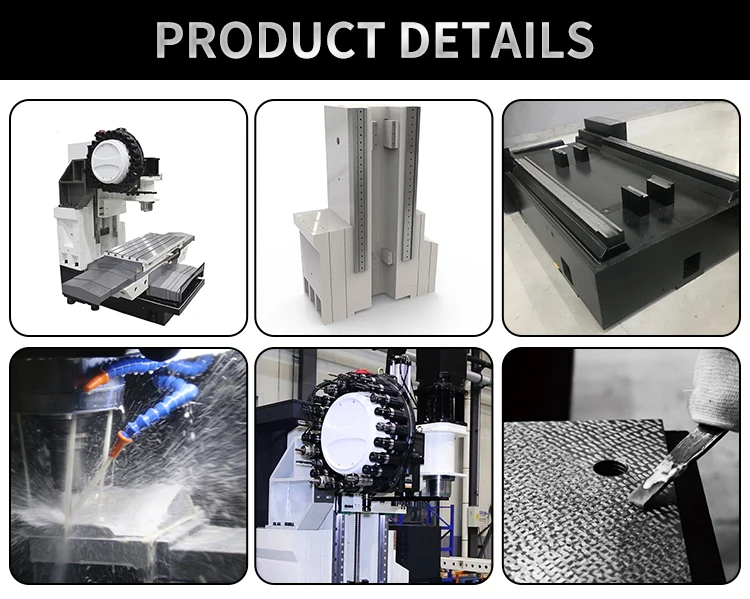

PRODUCT DETAILS


1_02 Details(V850-1370L).jpg








SPECIFICATION V850L





























































































































TRAVEL
X-axis travel850mm
Y-axis travel510mm
Z-axis travel510mm
Spindle nose to table surface 150~660 mm
SPINDLE
Drive typeBelt drive/Direct drive
Spindle taperBT40
Max. Speed8000 rpm / 10000 rpm
Spindle Power  11/18.5 kW
Spindle Torque52.5/118 Nm
TABLE
Size                  950x500mm
T-Slot (size * quantity * space)18x4x100mm
Max load                  500kgs
FEED
Max.cutting speed1-10000 mm/min
Rapid traverse36/36/24 m/min
ACCURACY
Positioning(half-closed loop)0.008mm
Repeatability(half-closed loop)0.005mm
ATC
TypeDisc type ATC 24T
Maximum tool size(full/unfull/length)Φ78/Φ150/ 300 mm
Maximum tool weight8kg
OTHERS
Air Pressure 0.65Mpa
Power Capacity25kVA
Machine Weight6000kgs

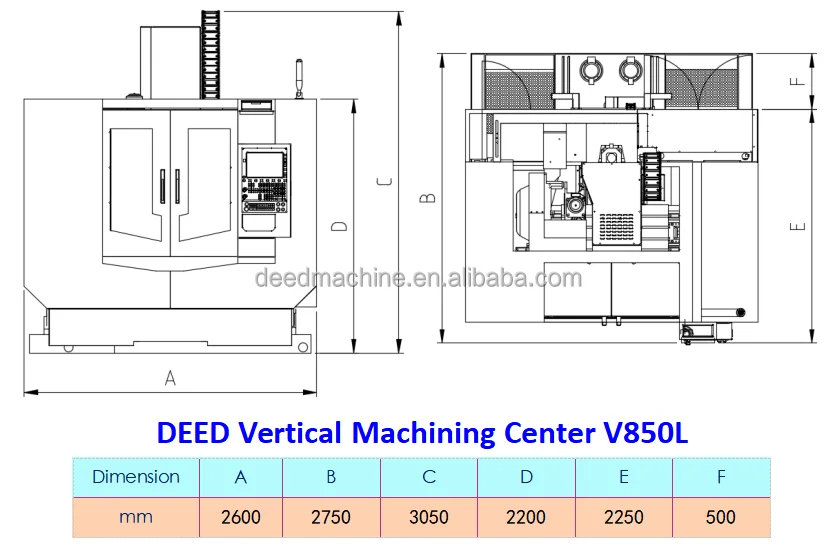

Machine Floor Space (L *W *H)2600x2750x3050mm

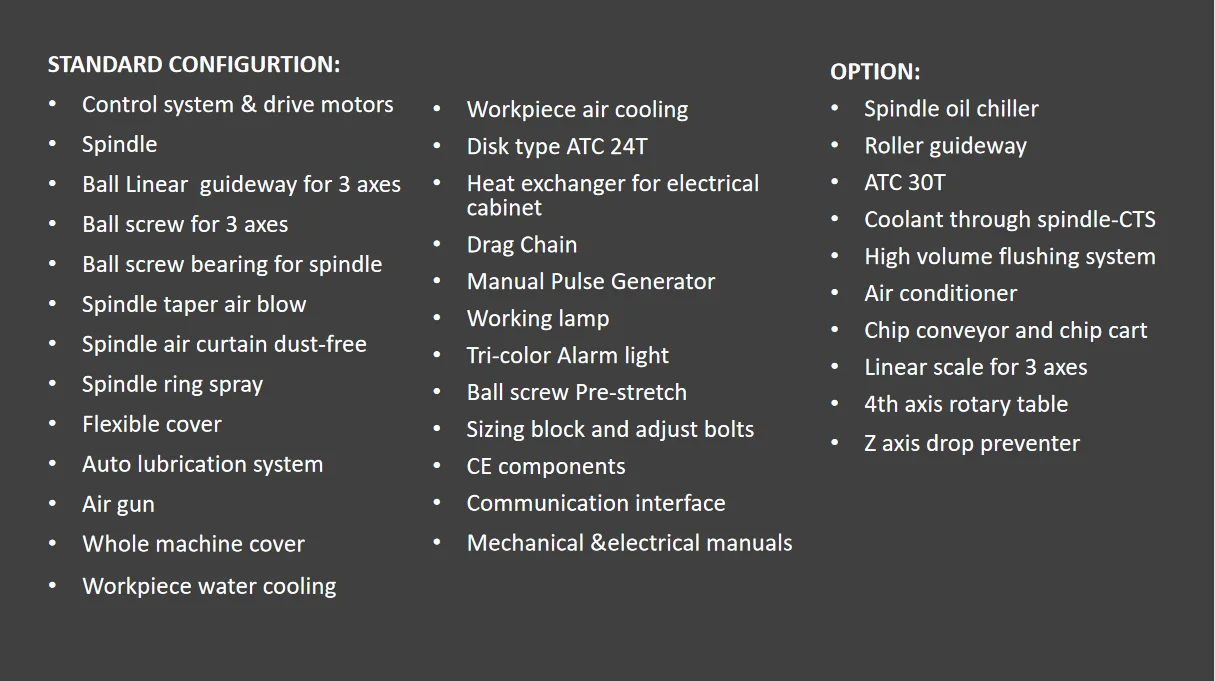

 V850L .png



PRODUCT APPLICATION


1_03 Products Application.jpg





EXHIBITION&CUSTOMER


1_04 Exhibition & Customer.jpg





COMPANY PROFILE


1_05 Company Profile.jpg





CERTIFICATE


1_06 Certificate.jpg





PACKING & DELIVERY


1_07 Packing & Delivery.jpg





FAQ


1_09 FAQ.jpg
