Transportable containerized 99% medical o2 equipment psa oxygen gas plant price
- Category: >>>
- Supplier: Hunan Eter Medical Co. Ltd.
Share on (1600324183262):
Product Overview
Description

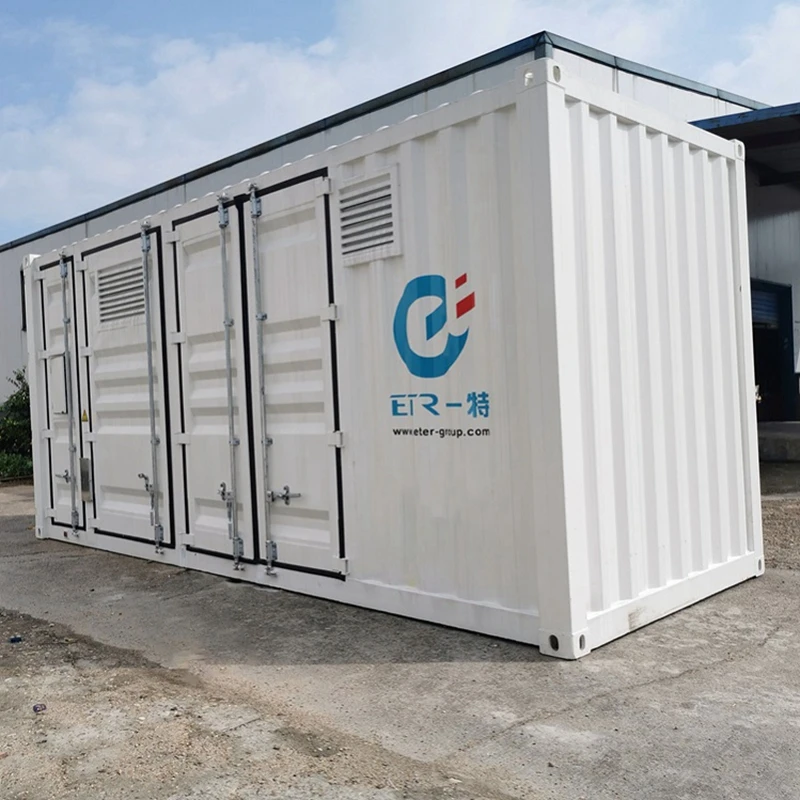

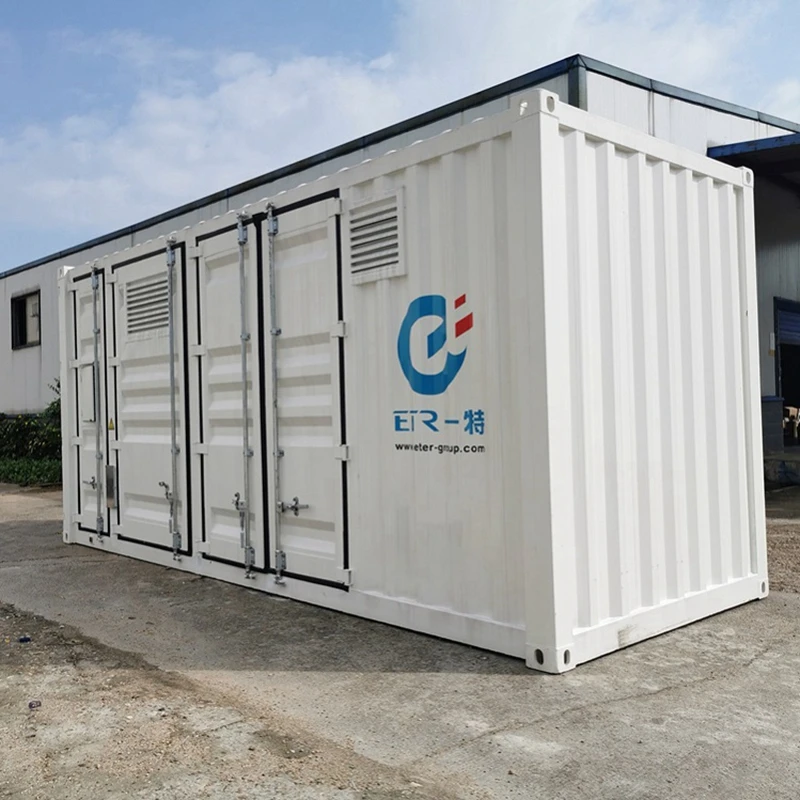

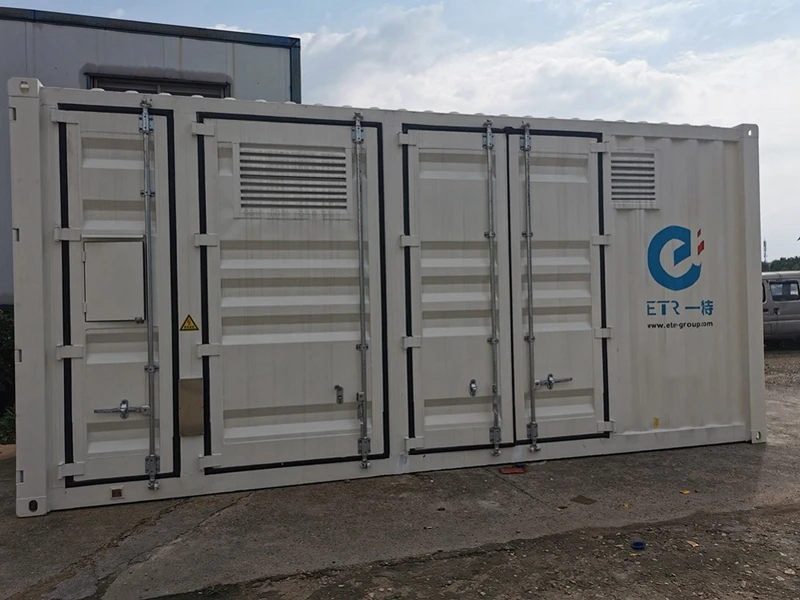

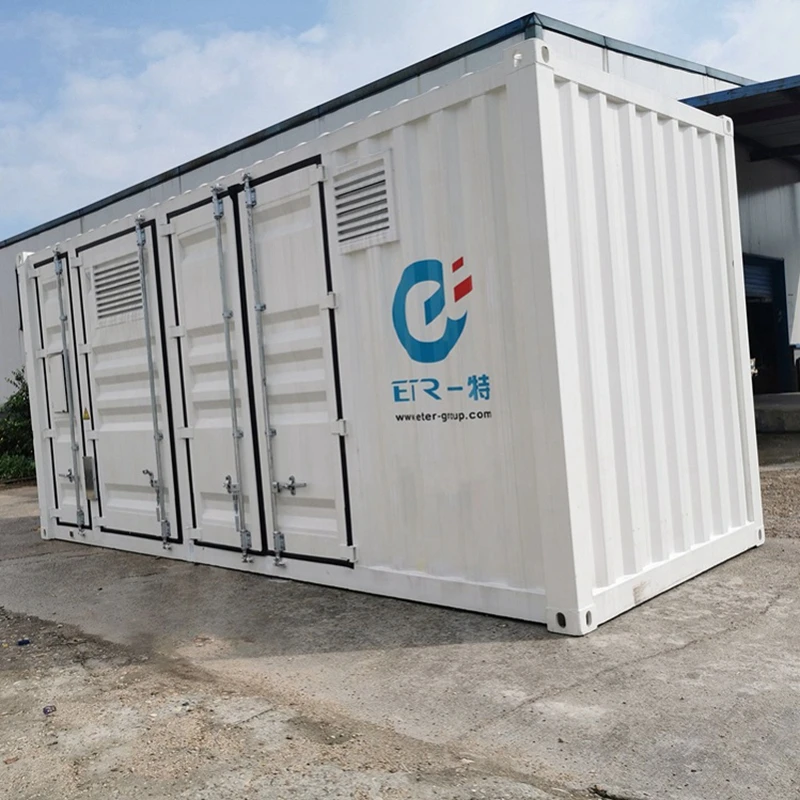

Transportable containerized 99% medical o2 equipment psa oxygen gas plant price
Product Description
Specifications of hot o2 plant medical oxygenator price medical equipment

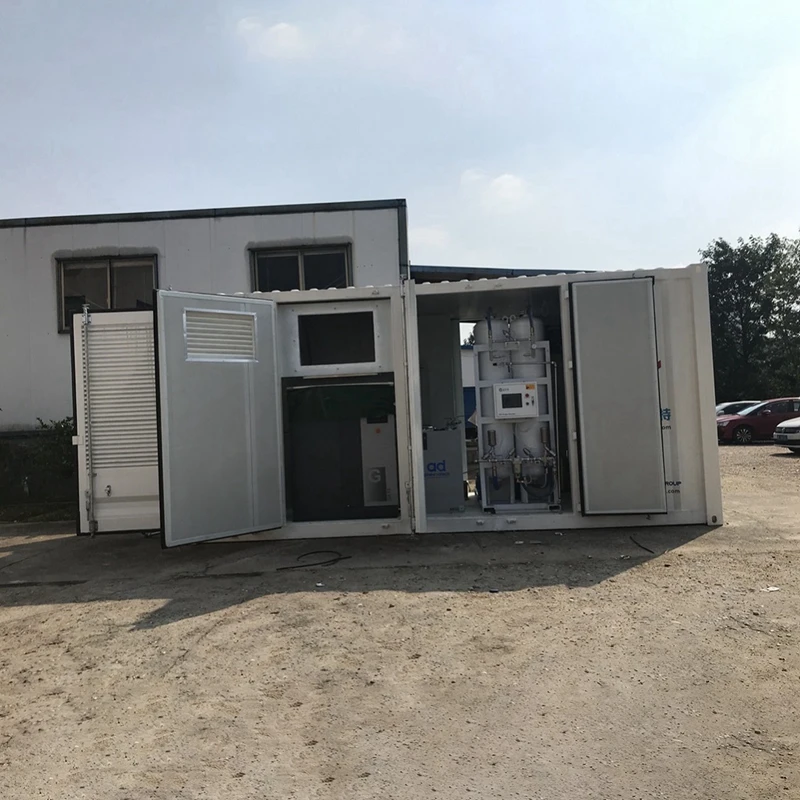

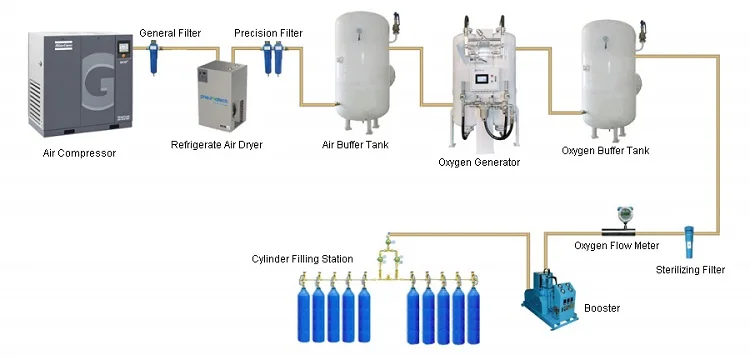

Removable oxygen generator system is consisted of the screw air compressor, air dryer, filters, buffer tanks, oxygen generator, electricity control system and the optional oxygen cylinder filling station.
For this system, the installation and commissioning shall be finished in factory in advance, delivery to customer as a turn-Containerized Oxygen Generator System project. plug in and operation, no need for additional jobs, easy for the customers.
For this system, the installation and commissioning shall be finished in factory in advance, delivery to customer as a turn-Containerized Oxygen Generator System project. plug in and operation, no need for additional jobs, easy for the customers.
Feature
Stable operation and highly reliable;
Compact in structure, small in floor area;
Heat and sound insulation treatment;
More convenient, quickly start, conveniently open and shut down;
Smart monitor and control system, support for remote data transfer;
Turn-key and removable, easy for installation and operation.
Technical Parameters For Containerized Oxygen Generator System
Inlet Pressurse :0.6Mpa | Output Pressure:0.35-0.45 Mpa |
| Oxygen Purity:93+3% | Frequency:50Hz/60Hz |
| Power:60W | Supply Voltage: AC220V |
| Working Presure:6 Bar | Outlet Dew Point:-70 ºC-40 ºC |
Model Select
Model of hot o2 plant medical oxygenator price medical equipment for choice
| Model | Oxygen Capacity (Nm3/h) | Oxygen Purity % | Filling Pressure (Mpa) | Filling Capacity (Cylinders/Day) |
| ETS- B3 | 3 | 93±3% | 15 (Can be customized) | 12 |
| ETS- B5 | 5 | 20 | ||
| ETS- B10 | 10 | 40 | ||
| ETS- B15 | 15 | 60 | ||
| ETS- B20 | 20 | 80 | ||
| ETS- B30 | 30 | 120 | ||
| ETS- B40 | 40 | 160 | ||
| ETS- B50 | 50 | 200 | ||
| ETS- B60 | 60 | 240 | ||
Note: Filling capacity based on 15Mpa pressures &40L cylinder volume &24 operation hours per day | ||||
| Product Comparison | ||
| Name | ETR Oxygen generator | Other Oxygen generator |
| Purity | 93+/-3% | 90+/-3% |
| Warranty | 18 months | 12 months |
| Maintenance | Low (we supply all spare parts without any profit) | It will be about 2. 5times of cost |
| Price | Low price | High price |
1,Nitric oxide and dew point monitoring 4,PSA oxygen plant, buffer tanks:stainless steel (optional) 5,fast delivery time 6,20 years experiences in manufacturing medical oxygen generator | ||
Why Choose Us
Comparing with other brands, why choose ETR?
1. Company is Reliable
ETR is a public listed company in china, with the stock code of 839074.
ETR established in 2003, is committed to be a glory century enterprise.
ETR is a state-level high technology and software eterprise.
ETR with almost all the certificate for this industry, international certificates including ISO/CE/SGS/TUV
ETR served for more than 9,000 customers around the world.
2. Product is Reliable
ETR with more than 200 employees and more than 1/3 are engineers for design and research.
ETR served for more than 9,000 customers with time-proved and customers-accepted products.
ETR central gas supply system support for the remote monitoring with an APP at smart cellphone.
ETR central gas supply system is good design with easy installation and operation and maintenance.
3. Service is Reliable
ETR with experienced after sales engineers are ready for the remote instruction or onsite service.
ETR with some local distributors can provide the after sales service in time.
Warranty
(a) ETR guarantees the proper functioning and operating of the Equipment for a period of 12 (Twelve) months from the date of testing and commissioning at the End User site, or 18 (Eighteen) months after delivery, whichever occurs first.
(b) If there be found any defects and malfunctioning during warranty period, ETR undertakes to make repairs of the Equipment at its own expenses including components and workmanship until they again function or operate properly.
Features
1) Highly efficient molecular sieves, making oxygen generation more efficient
2) Unique startup concentration maintenance function
3) Imported muffler, achieving an operating noise of less than 85 dB(A)
4) LCD touch screen interface, making setting of operating parameters more convenient
5) Integrated pipeline process, providing excellent air tightness
6) Intelligent control, enabling remote data transmission
7)Optional mobile phone APP monitoring system support for remote control.
Company Information
Packaging & Shipping
Our Services
1. Setting trace file for every sold product and survey it quarterly.
2. Providing remote instruction and training for free.
3. Providing on-site services and repairs for free under warranty if problems caused by Eter.
4. Spare parts and on-site services would be provided with best price out of warranty.
5. 7*24 hours online services for free, solution for any problems will be provided within 48 hours.
6. Professional engineer for on-site services will reach within 7 days when needed. (Visa apply should be considered.)
FAQ
1. Are you manufacturer or trade company?
We are the manufacturer of Oxygen Plant For Cylinder Filling Oxygen Concentrator, founded in 2003.
2. What's the order Oxygen Plant For Cylinder Filling Oxygen Concentrator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Contract confirmation---provide correct contract details.
e. Payment terms--- Negotiable.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
h. Installation and commissioning
3.What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation of Oxygen Plant For Cylinder Filling Oxygen Concentrator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours)
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application
6) Project Location:
