Air Filtration System H13 Replacement purifier Hepa Filter for Laminar Air Flow Hood
- Category: >>>
- Supplier: Guangzhou Bacclean Tech Co. Ltd.Guangzhou Ltd.
Share on (1600324202010):
Product Overview
Description
Product Information
All sizes and styles can be customized | ||||||||||
Model NO | Overall dimensions(mm) (WxHxD) | Rated airflow/ initial resistance (m³/h)/(pa) | Wind speed (m/s) | Filter area (m²) | Filtration efficiency | |||||
B57-001 | 484*484*69 | 610/165 | 0.72 | 6.3 | H13 | |||||
B57-002 | 610x610*69 | 1000/175 | 0.72 | 10 | H13 | |||||
B57-003 | 570*1170*69 | 1700/170 | 0.72 | 17.6 | H13 | |||||
B57-004 | 1170*1170*69 | 3500/165 | 0.72 | 36.6 | H13 | |||||
B57-005 | 320*320*96 | 500/230 | 1.36 | 4.4 | H13 | |||||
B57-006 | 484*484*96 | 1000/225 | 1.19 | 9.9 | H13 | |||||
B57-007 | 610*610*96 | 1500/215 | 1.13 | 15.6 | H13 | |||||
B57-008 | 610*122*x96 | 3000/215 | 1.13 | 30.8 | H13 | |||||
Beside the above standard sizes, it also can according the need to customize any size and efficiency(F5,F6,F7,F8,F9,H10, H11,H12,H13,H14,U15,U16,U17)
Product Display

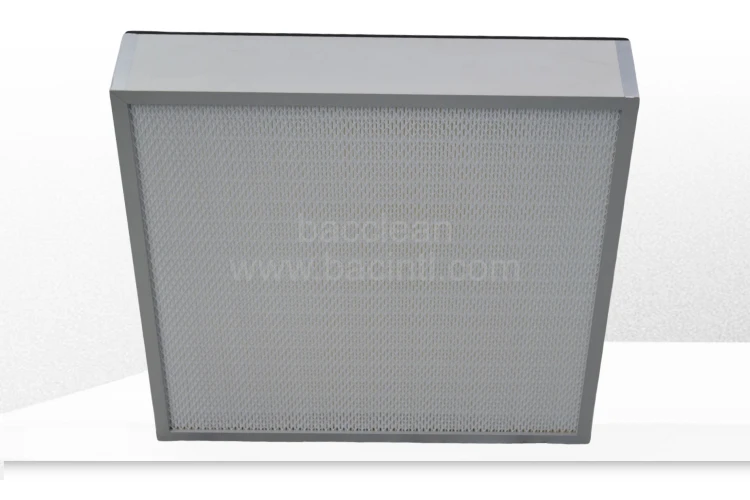

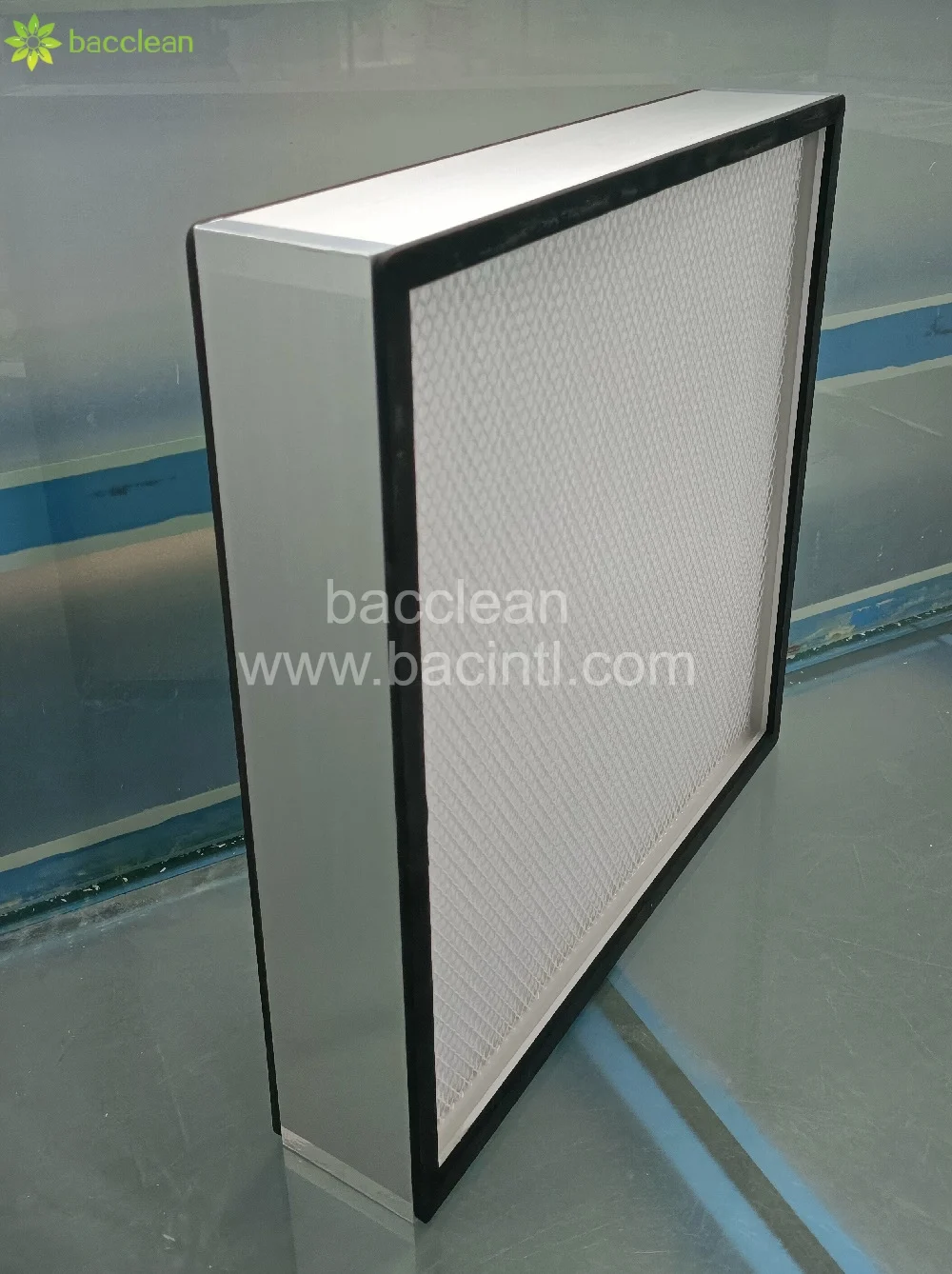

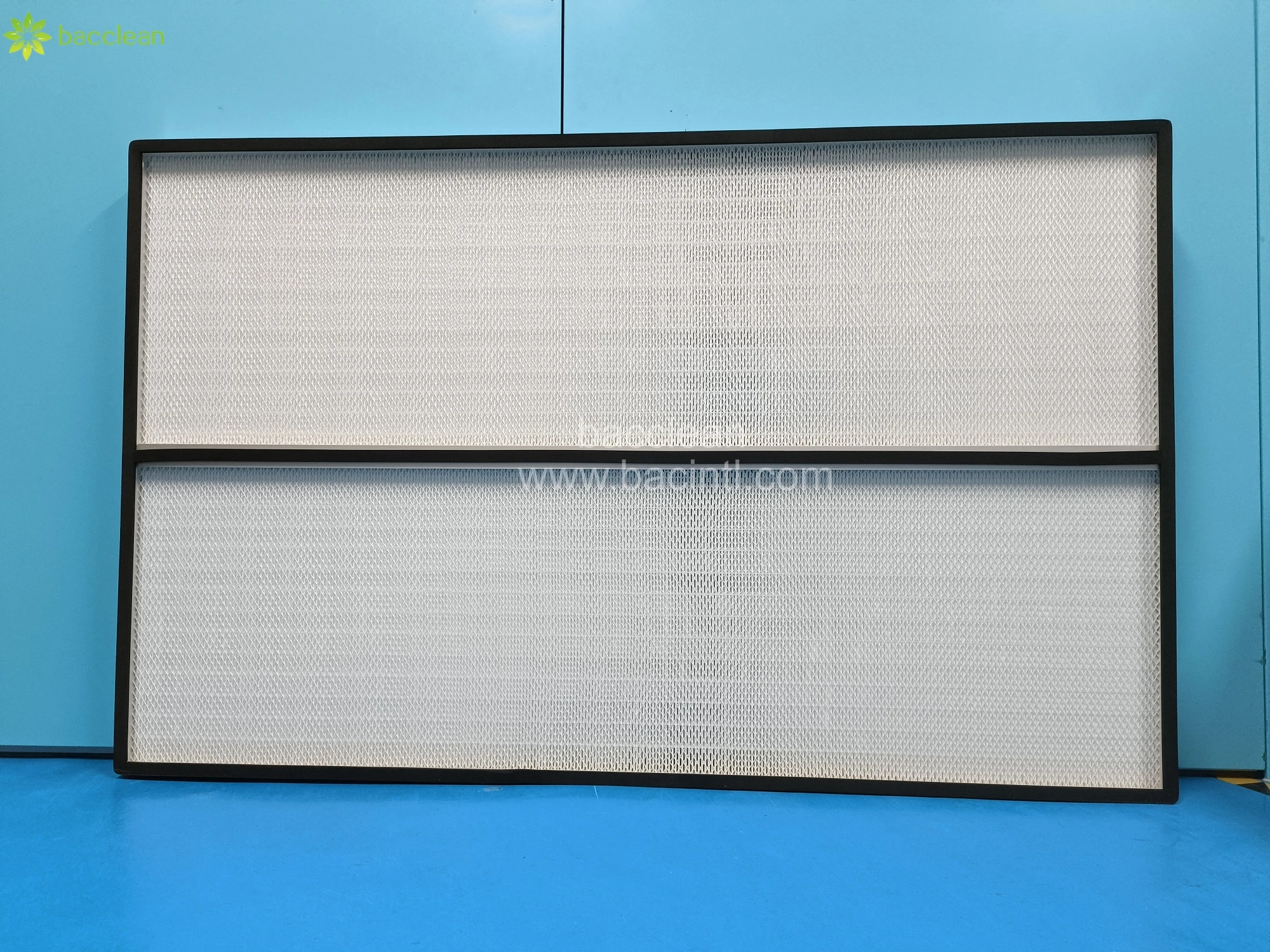

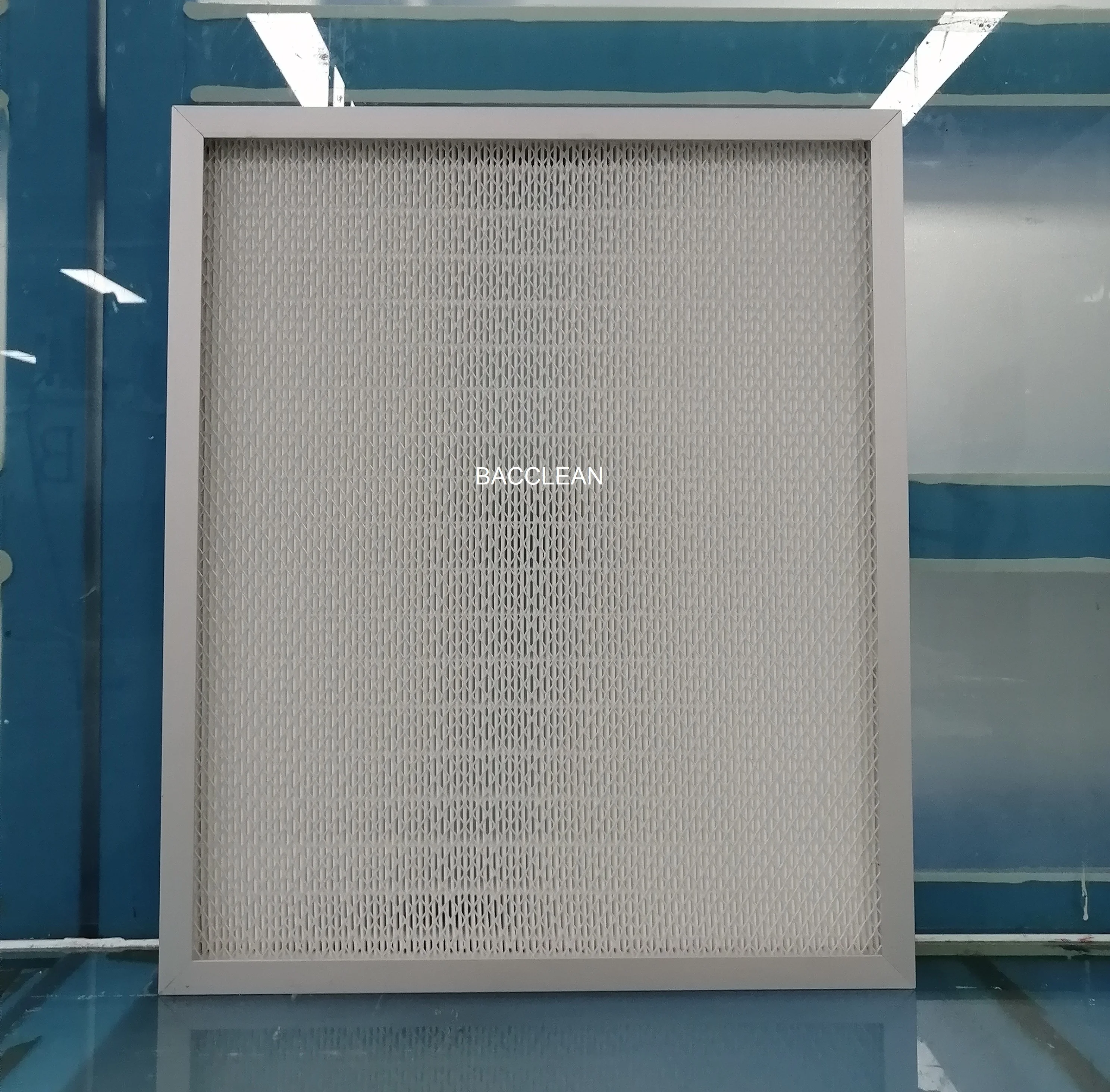

Mini pleat hepa filter
Mini-pleated HEPA filters are one kind of HEPA filters, which efficiency reach to 99.99% to 99.999%, are used for cleanroom HVAC system final filtration. Mini-pleated HEPA filter can effectively reduce the operating cost of the clean room. Through the effective leak detection and scanning test before leaving the factory, it can meet the strict requirements of special industries.As a mini pleat HEPA filter manufacturer, we test glass fiber media to make sure the airflow rate and pressure drop requirement firstly, then we test finished products to make sure the efficiency.
Following are the features of mini pleated HEPA filter
1)With unique seamless sealing technology, it sealls better , and it is more durable, not easy to leak.
2)Small size, light weight. Anodized aluminum alloy frame material is used to facilitate handling and installation.
3)The aluminum thickness is various.
4)The maximum efficiency of capturing 0.3 micron particles of MPPS by the laser scanning count is up to 99.995% (EN1822).
5)Micro-fine fiber glass paper is pleated fully automatically to produce filter pack of different sizes
2)Small size, light weight. Anodized aluminum alloy frame material is used to facilitate handling and installation.
3)The aluminum thickness is various.
4)The maximum efficiency of capturing 0.3 micron particles of MPPS by the laser scanning count is up to 99.995% (EN1822).
5)Micro-fine fiber glass paper is pleated fully automatically to produce filter pack of different sizes

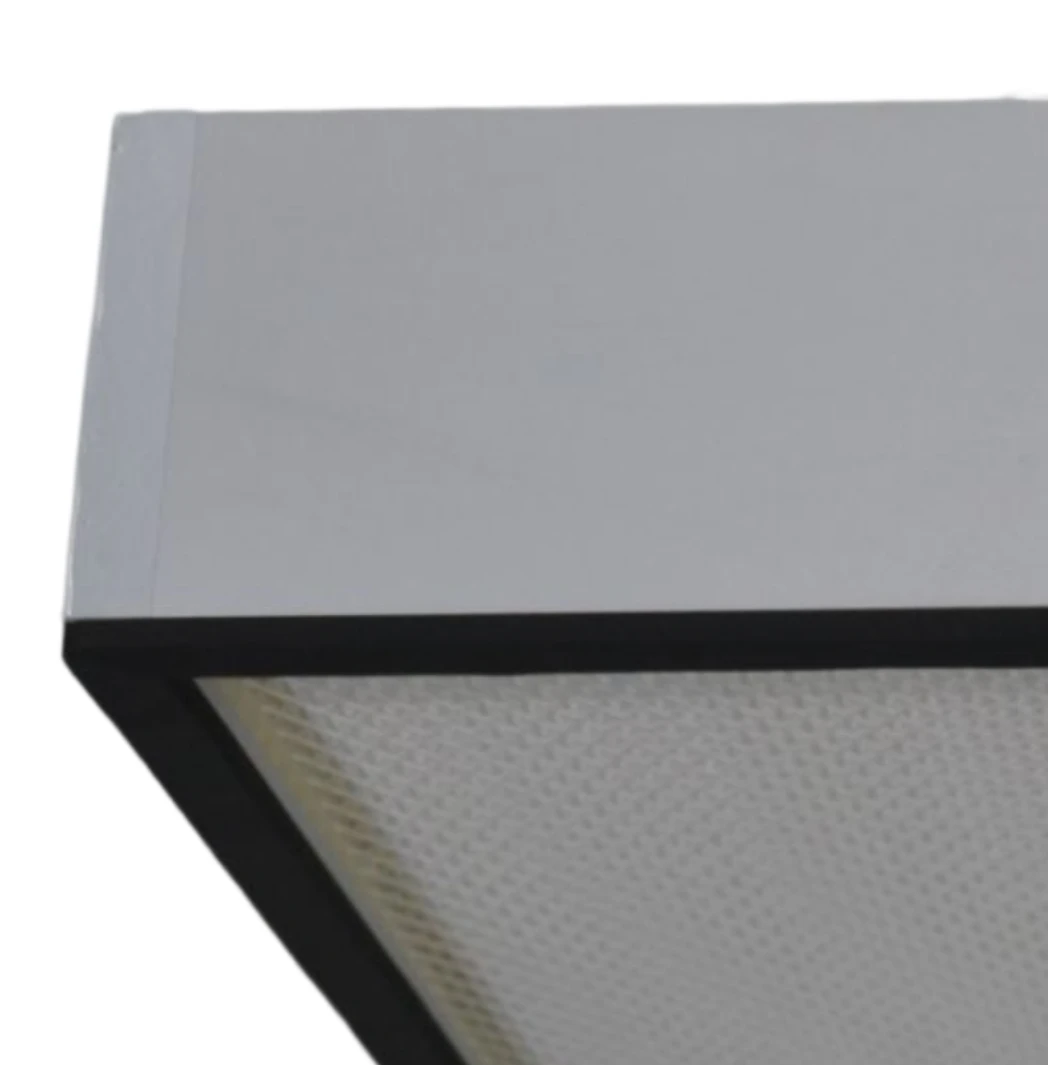

Aluminum/galvanized steel frame

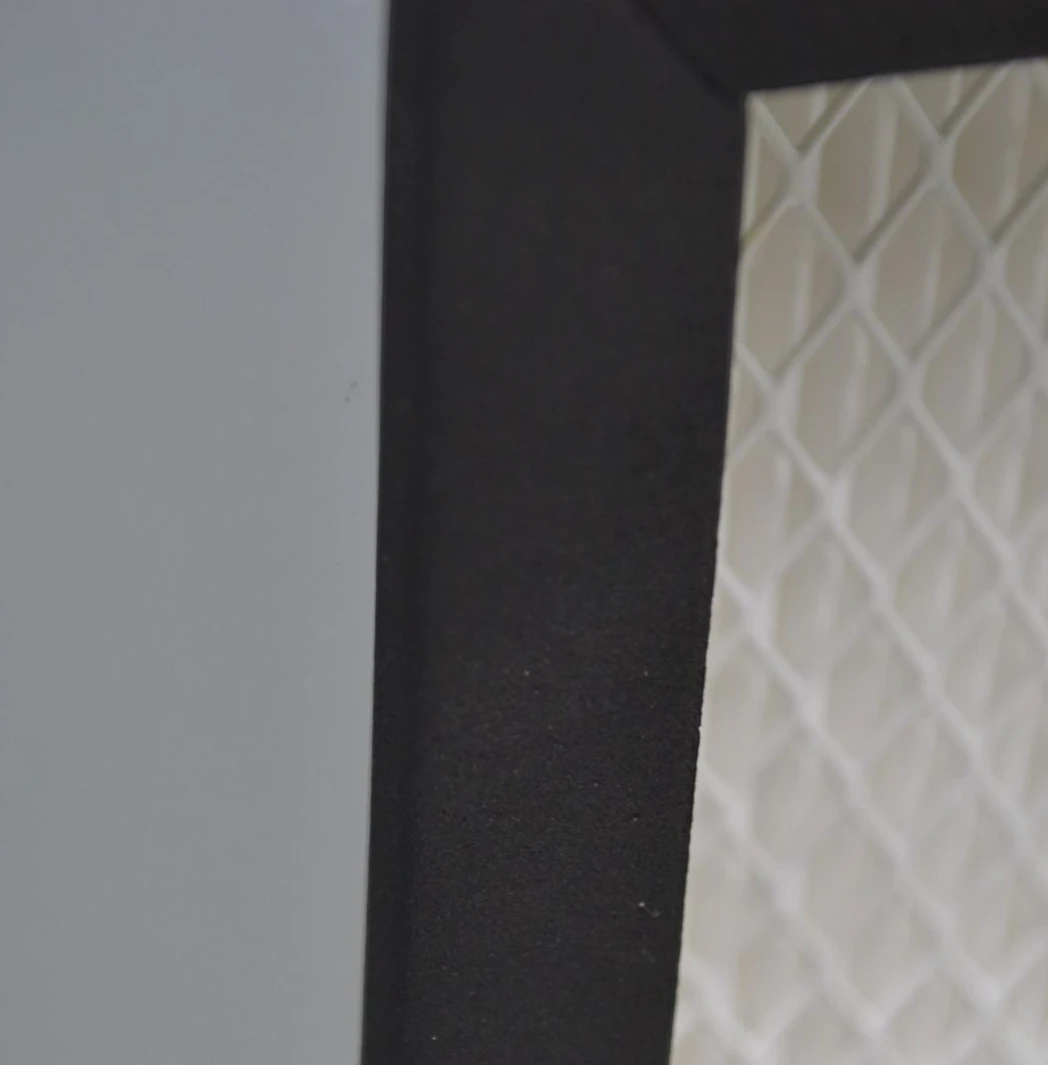

Black gasket in high quality

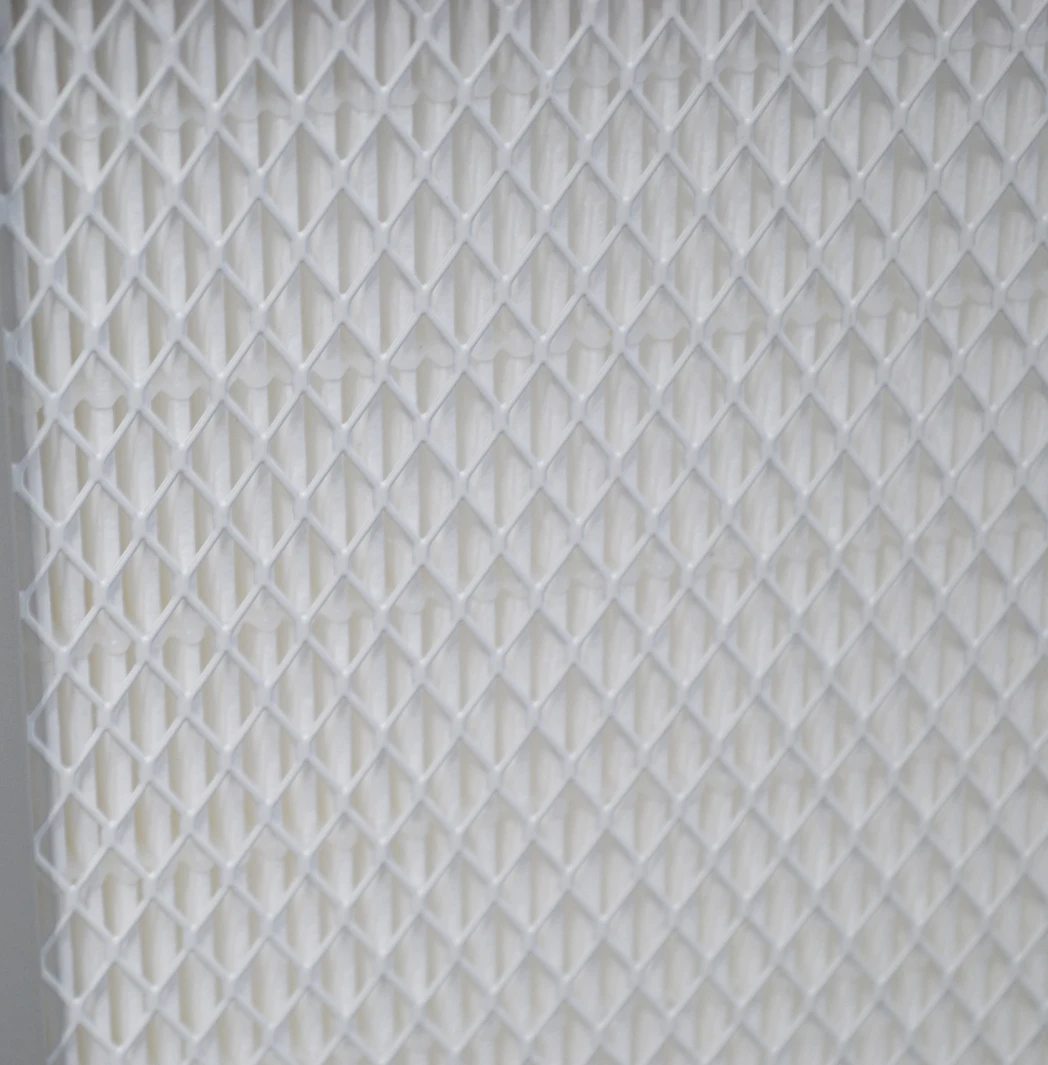

Fiber Glass Filter Paper with face guard, it has high efficiency media, high dust holding capacity, and low resistance.

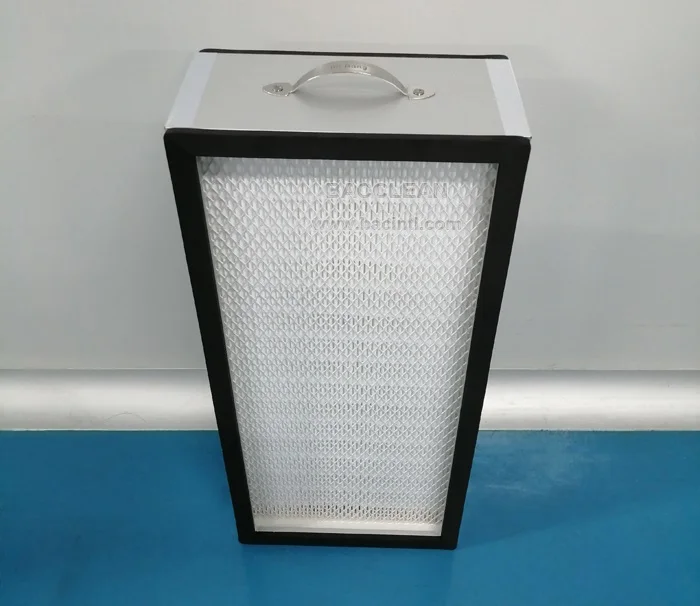

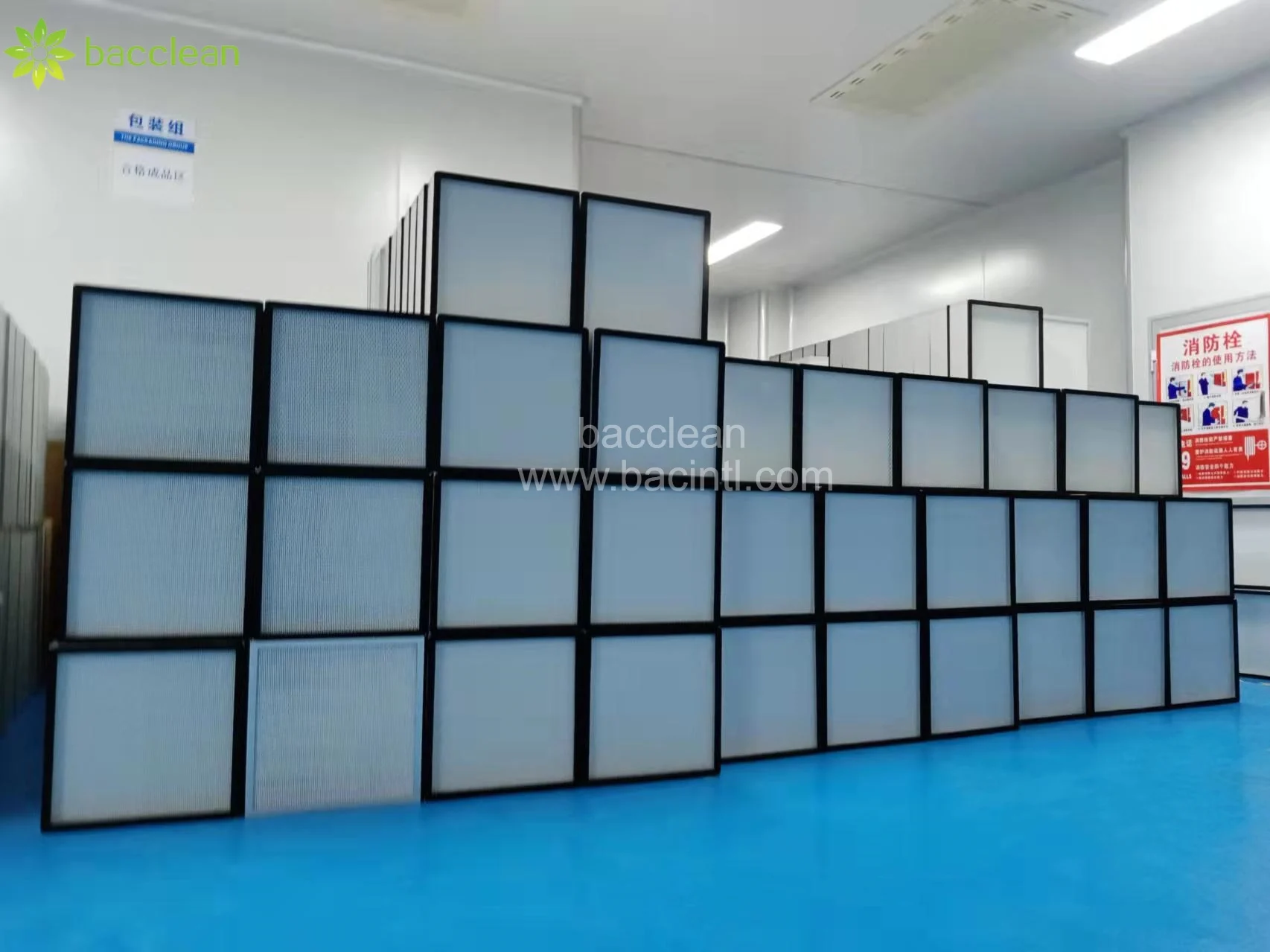

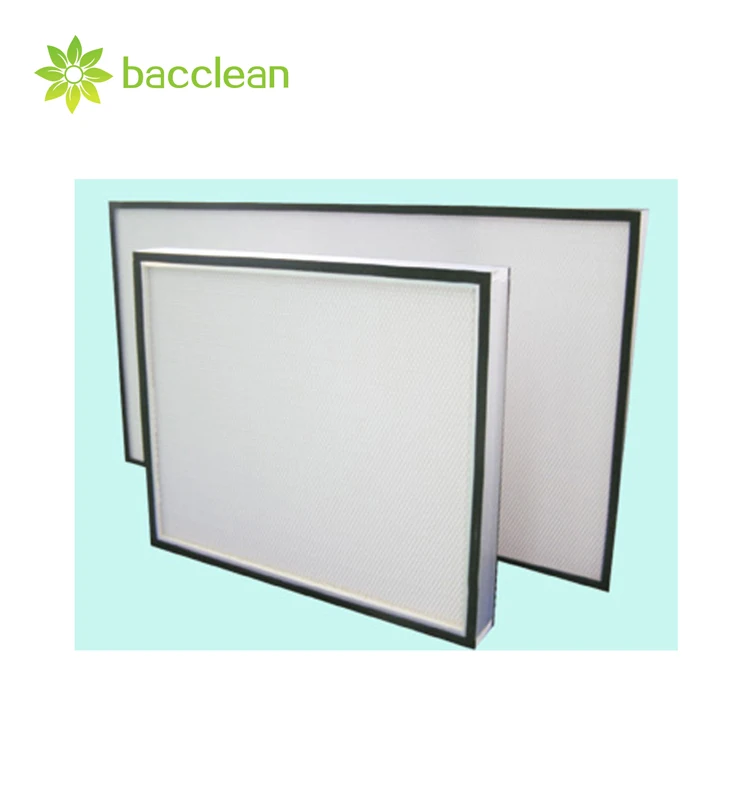

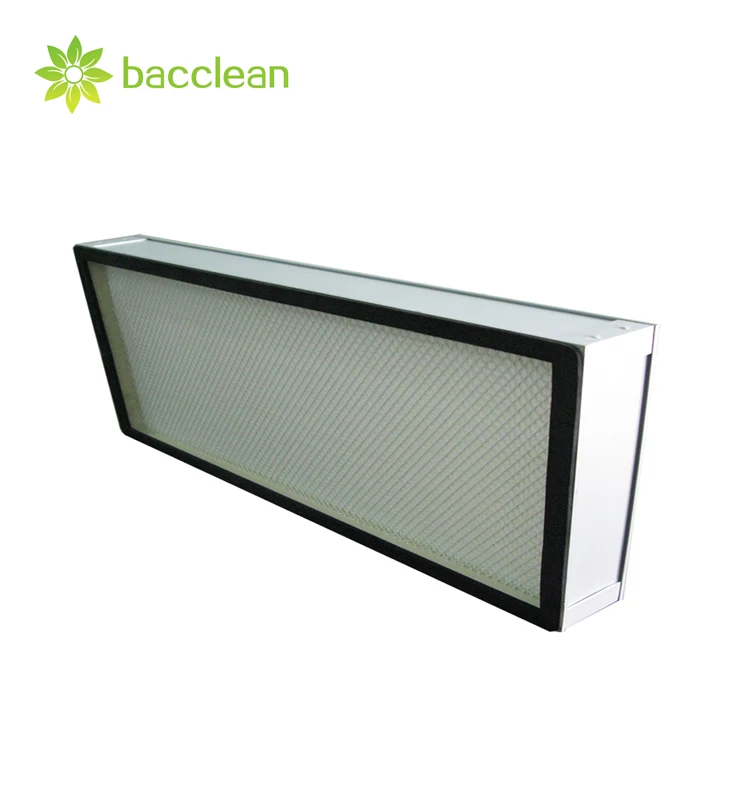

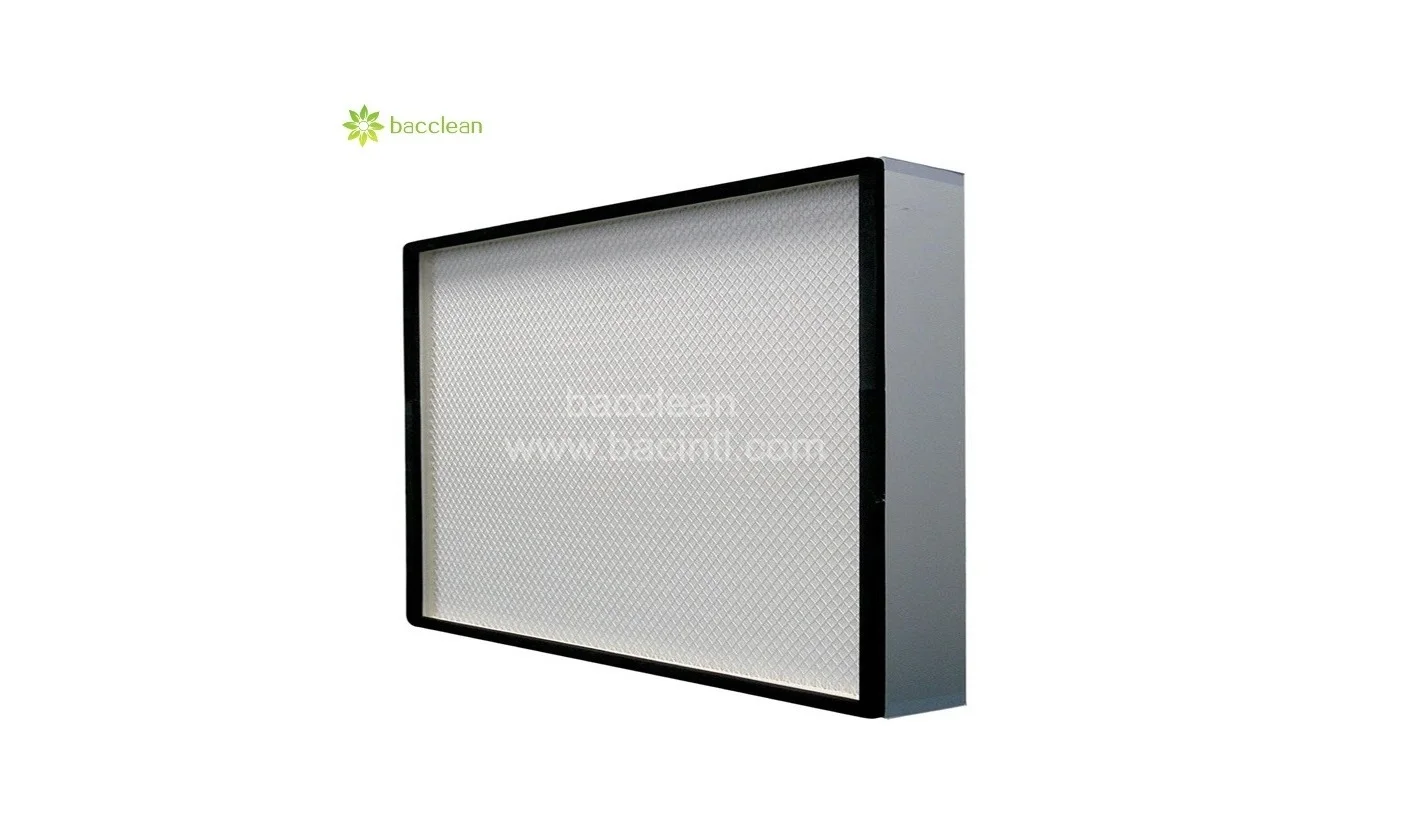

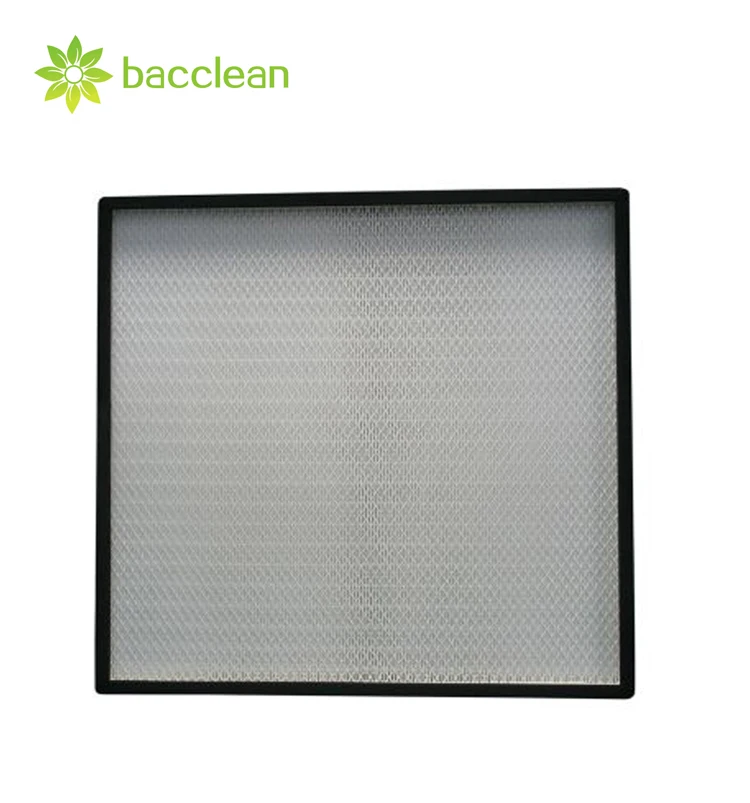

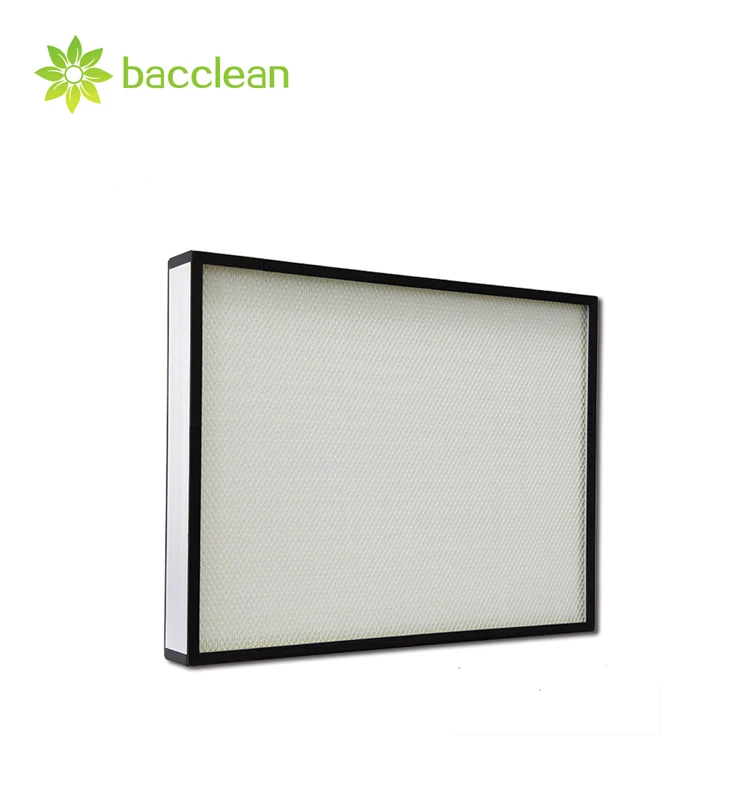

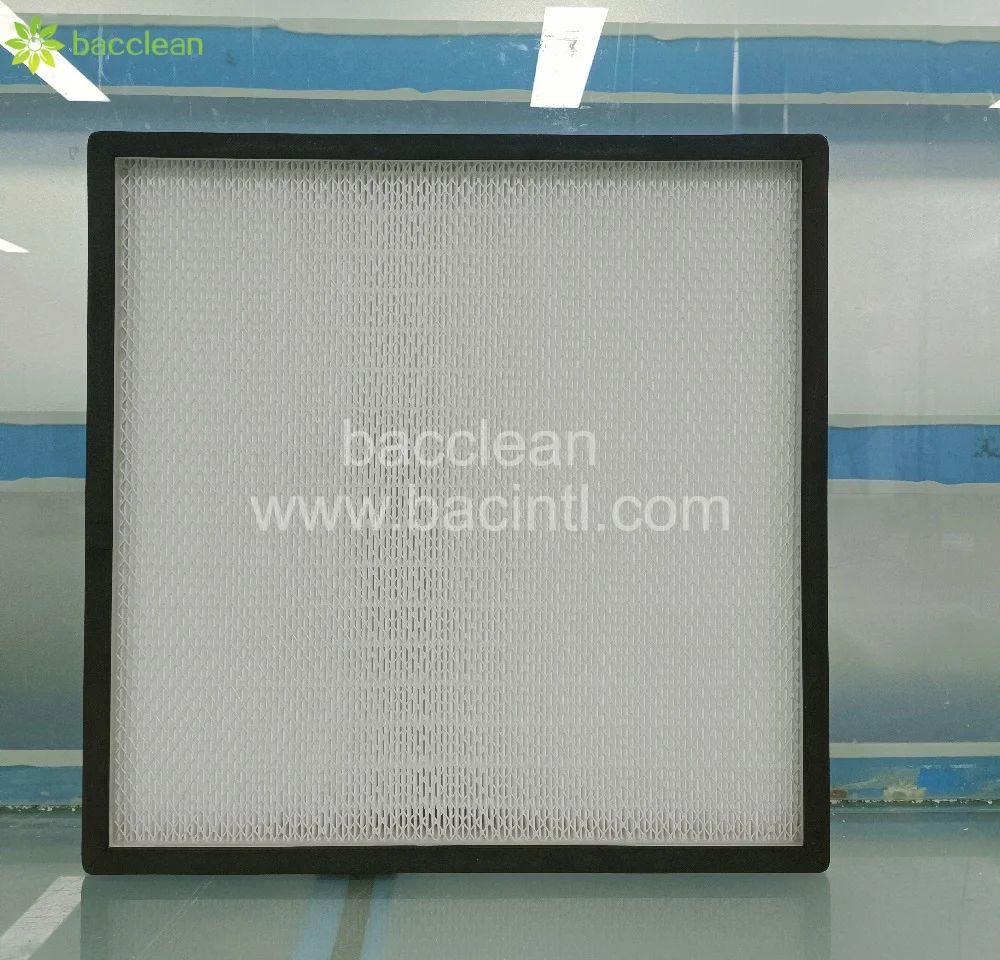

More pictures about mini pleat HEPA filter

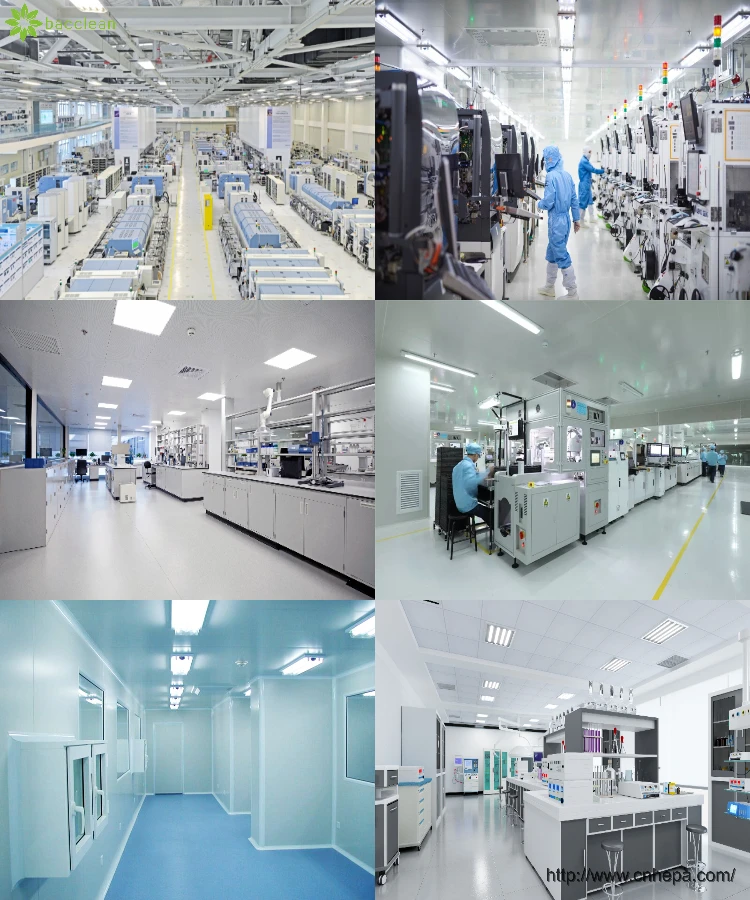

Application
Widely used in high cleanlinessroom, precision electronic, large scale integrated circuit.Bacclean mini-pleat high efficiency filter must pass strictly test and inspection before packing and shipping.
