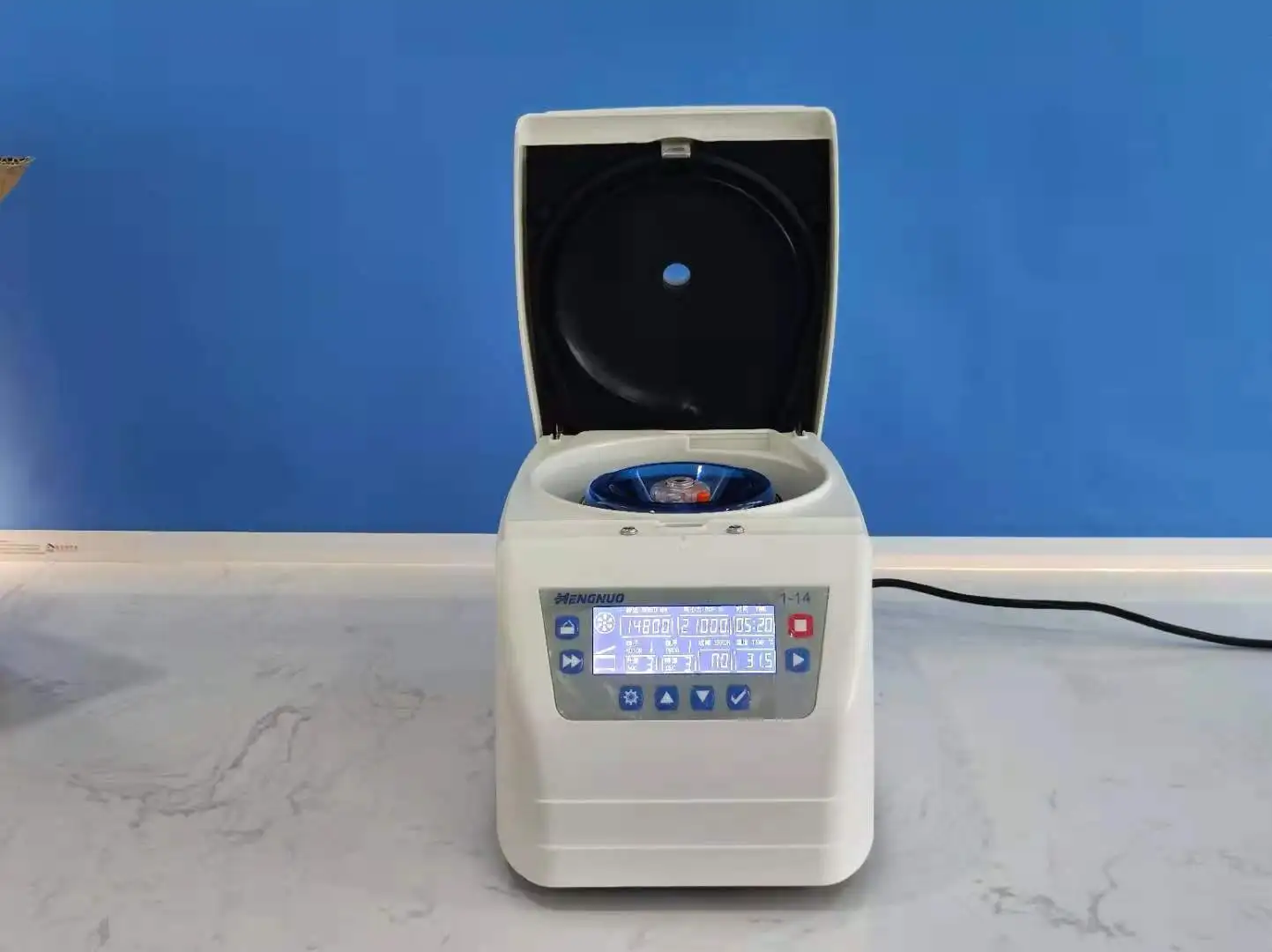

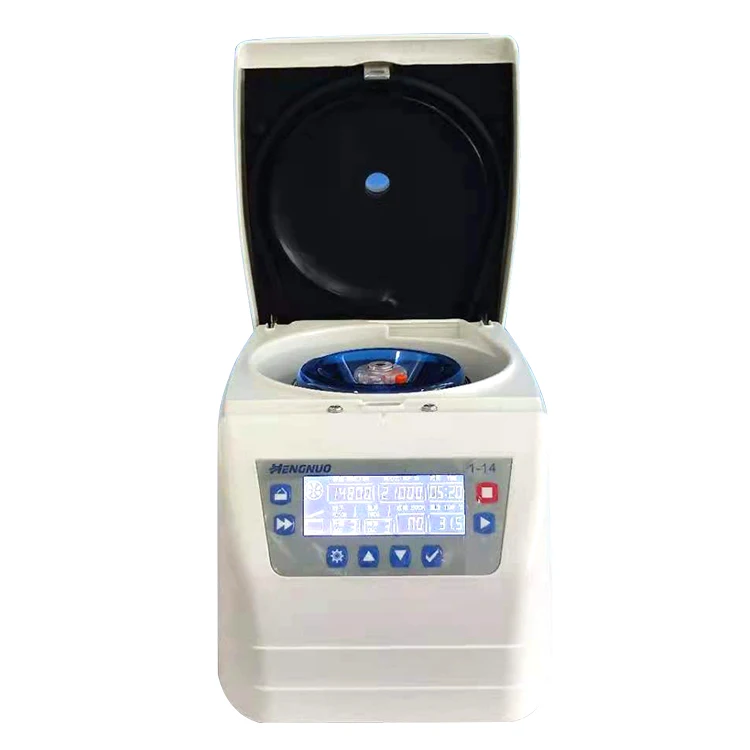

Maximum centrifugal force driven by variable frequency AC motor 21000 * g laboratory chemical laboratory centrifuge

Share on (1600324203399):


Price:

Quantity:


Product Overview

Description



Product Description


 Table type micro high speed centrifuge





1-14 table type high-speed micro centrifuge is suitable for centrifugation experiment of 5ml / 2.0ml/1.5ml/0.5ml/0.2ml centrifuge tube, which is widely used in life science, medicine and chemical engineering experiments.





Product introduction


1. LCD large display screen, showing all operating parameters


2. After the operation, the sound prompts and automatically opens the upper cover


3. The unique temperature display in the centrifugal chamber ensures the safety of the sample


4. Instantaneous centrifugal function, can set the maximum speed, expand the application


5. After reaching the set speed, the operation parameters can be modified


6. The operation panel has a unique dynamic icon to display the running status in real time


7. There is no need to switch between speed and centrifugal force to facilitate data reading


8. Faster acceleration / deceleration rate to separate more samples in a shorter time


9. Running process display and error code prompt


10. High strength and corrosion resistant rotor, which can withstand high temperature and high pressure disinfection (without rotor cover)


11. The unique design of circulating air duct can control the temperature rise within 5 degrees in the process of use, so as to better ensure the safety of samples.


 1-14.2





Technical parameter


































































MODEL



1-14



Voltage



220VAC±10% 50-60Hz  110VAC±10% 60Hz



Power



500W



Drive motor



AC variable frequency motor (or DC brushless motor)



Time setting



1 sec - 99 min 59 sec



Max speed



14800rpm(100-14800rpm)


increment 100rpm



Max RCF



21000×g(100-21000×g)


increment 100×g



Max capacity



24×1.5/2.0ml



Max centrifugal medium density



1.2 g/ml



Min Acc Time



14s



Min Dec Time



14s



Noise



≤60db(A)



Net/Gross Weight



12Kg/16Kg



Dimensions(L*W*H)



360×245×230(mm)



Packaging Dimensions



380×265×250 (mm)

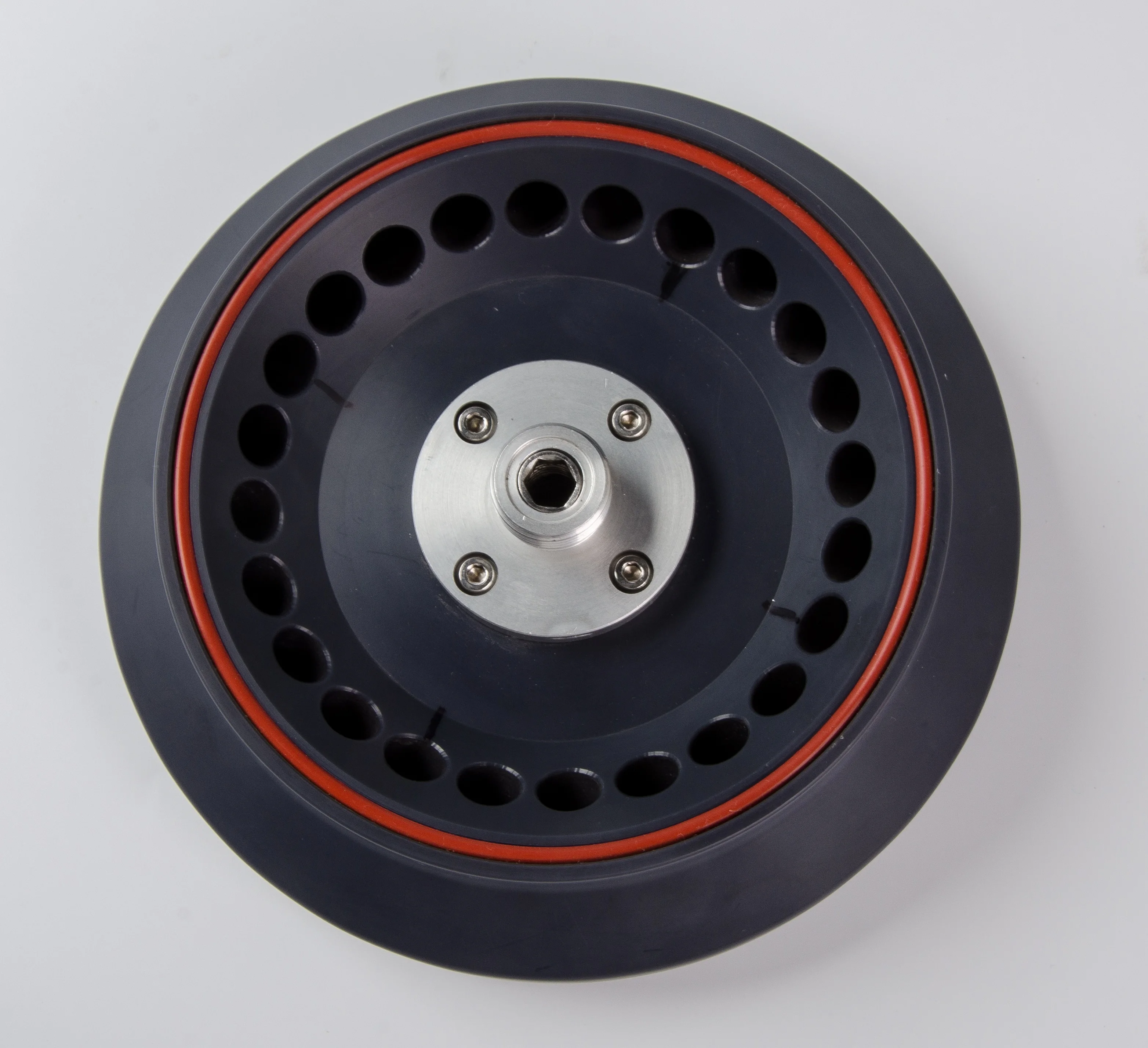

 Rotor Parameter






















































Product Name



Description



Maxspeed / Max RCF



Main Engine 1-14







14800rpm/21000×g



Angular rotor 1#



1.5ml/2.0ml×24   0.5ml×24  0.2ml×24



14800rpm /21000×g



Angular rotor 2#



0.5ml/×36   0.2ml×36



14800rpm /21000×g



Angular rotor 3#



5ml×18



14800rpm/ 21000×g



Angular rotor 4#



0.2ml/PCR 8×4



14800rpm /21000×g



Angular rotor 5#



24×(Φ1.75mm×75mm)



12000rpm /13800×g



0.5ml Adapter



ABS compound material 24PCS/set







0.2ml Adapter



ABS compound material 24PCS/set
